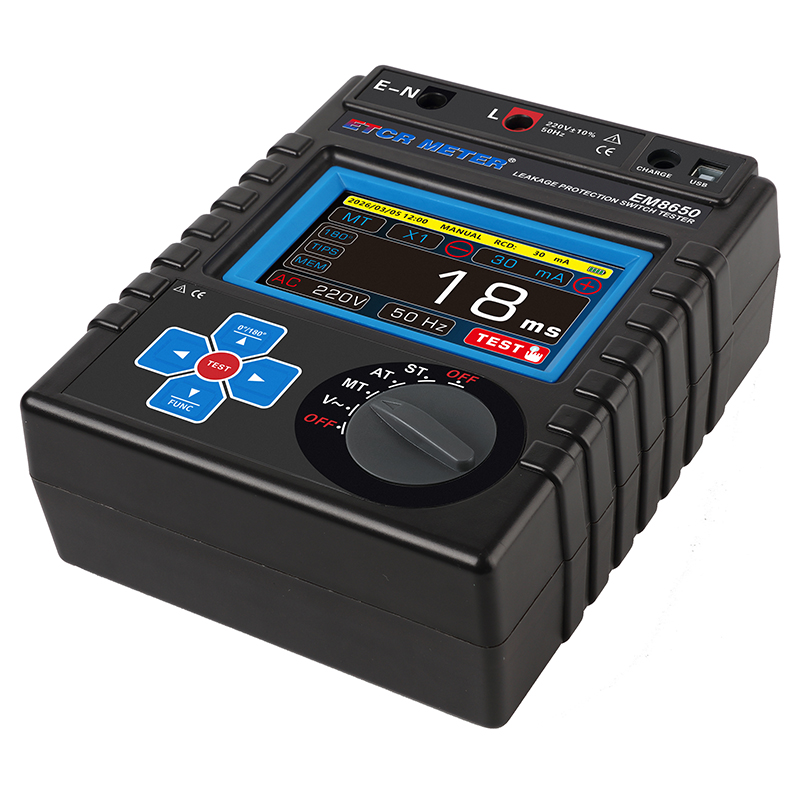

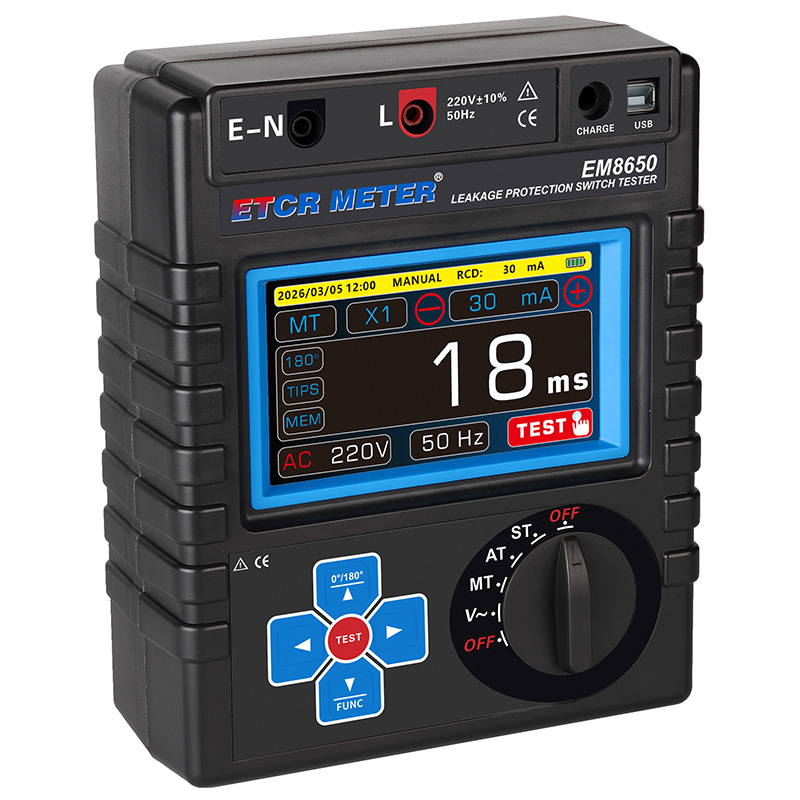

EM8650 Leakage Protector(RCD) Tester is specifically designed for on-site testing of the leakage action time, leakage action current value and line AC voltage of various leakage protection devices. The test current is divided into twenty ranges from 3 to 1000mA (3, 5, 7, 10, 15, 20, 25, 30, 35, 40, 50, 60, 100, 150, 200, 250, 300, 500, 600, 1000), and the leakage action time range is from 0.001s to 1.000s. The leakage operating current value is measured in a step mode, with a step value of 1mA or 5mA, and the range is: 3mA to 33mA. 10mA to 110mA.

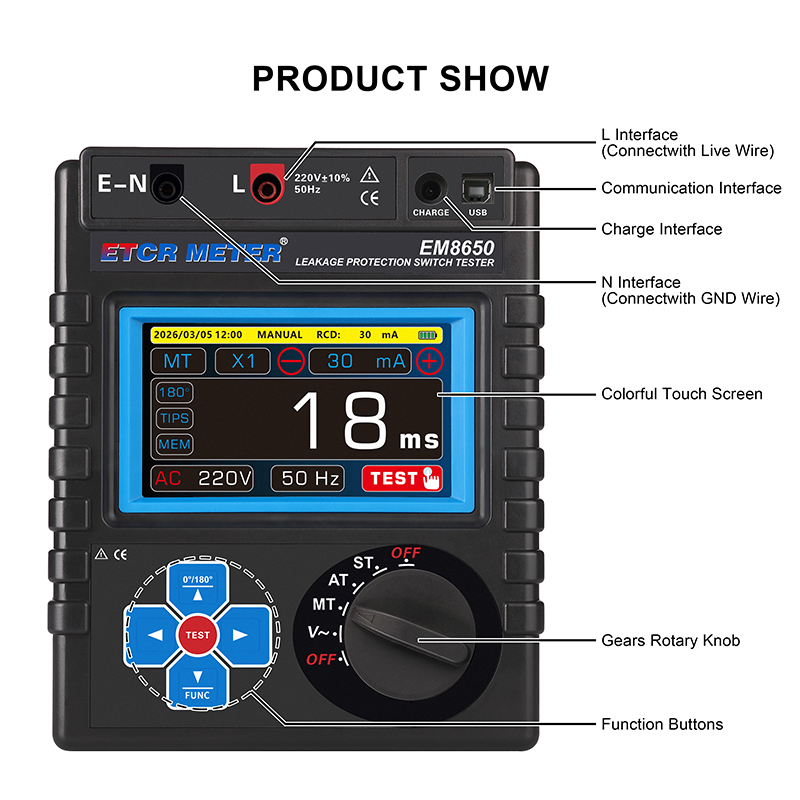

EM8650 Leakage Protector(RCD) Tester adopts a 5-inch full-color touch screen, featuring battery power display, automatic shutdown after 5 minutes, indication of set fault voltage, backlight brightness adjustment, clock display, data storage and other functions. The display screen is equipped with a wiring guidance diagram to prompt operation methods. The instrument also has Bluetooth communication and USB communication functions. It is an ideal tool for on-site or indoor detection of various leakage protection devices.
ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.

Product Features
1. Manual and automatic measurement modes; Output test current: 3mA～1000mA.
2. Leakage Current Operation Time Range: 0.001 ~ 1.000s
3. Step Mode for leakage operating current value range: 3mA～110mA.
4. Data Storage: 1000 groups.
5. Bluetooth communication: View test data on mobile phone via APP.
6. USB communication: Download stored data to PC via host software.

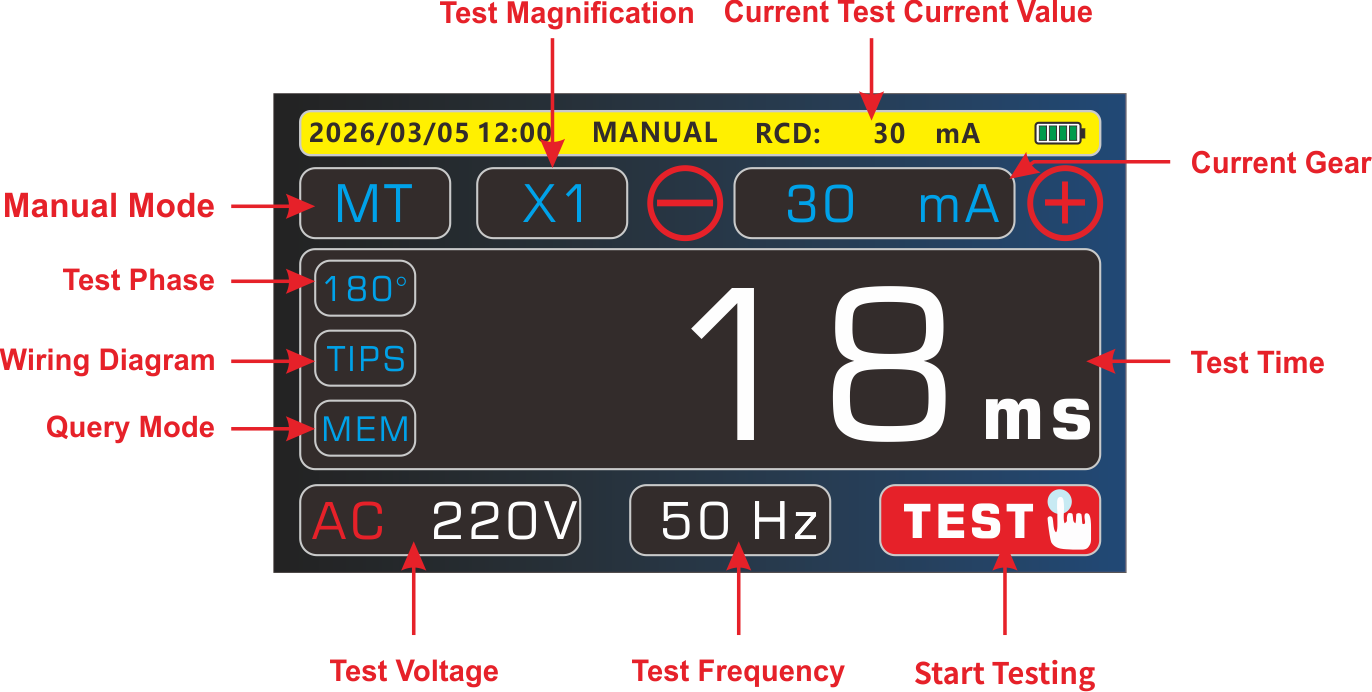

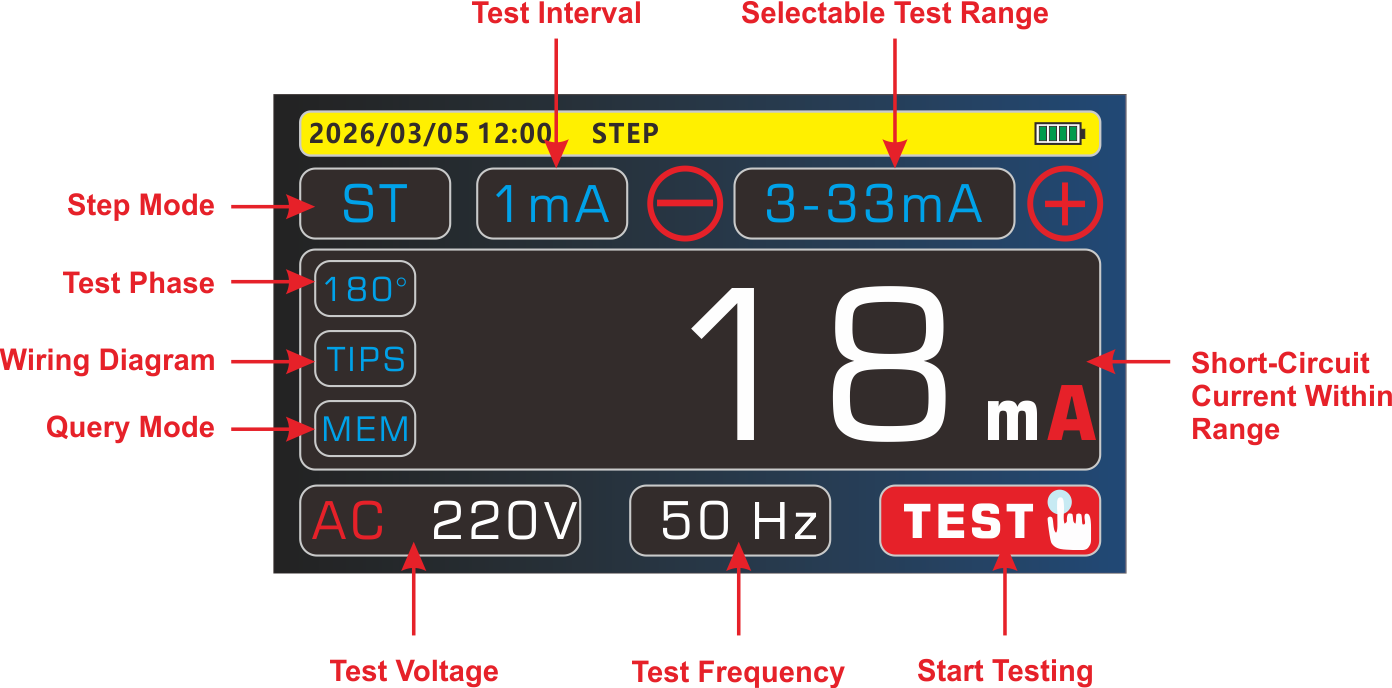

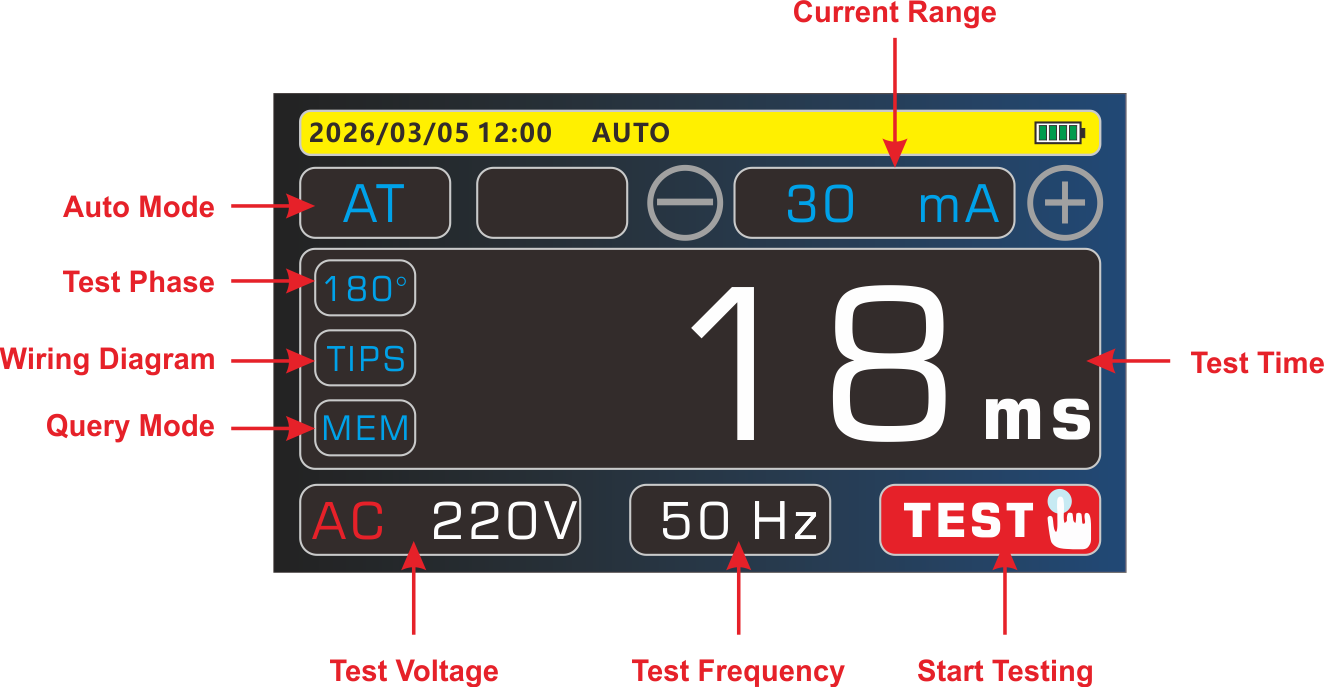

Test Interface
