1. What Are Power Quality Issues?

Power quality refers to the degree to which the quality of the power provided by the power system meets the normal, safe and efficient operation of electrical equipment. Its core evaluation dimensions include amplitude stability, frequency accuracy, waveform sinusoidality and three-phase symmetry of voltage and current. From a professional perspective, the essence of power quality problems is the collective name for various abnormal phenomena such as voltage, current or frequency that deviate from standard ratings, leading to reduced performance of electrical equipment, shortened life, and even power system failures.

Power quality is not only related to the continuity of industrial production and product quality, but also affects the safety of electricity for people's livelihood. It is also an important indicator to measure the operation level of the power system. Unqualified power quality will aggravate power grid losses, cause overheating of electrical equipment, and threaten system stability. In modern power systems, with the widespread application of power electronic equipment (such as frequency converters, rectifiers), the large-scale access to distributed power sources (such as photovoltaic, wind power), and the increase in various nonlinear loads, power quality issues have become increasingly prominent and have become the focus of power operation and maintenance management.

From the perspective of abnormal parameter types and manifestations, power quality problems are mainly divided into four categories: harmonic pollution, three-phase imbalance, voltage fluctuations and flickers, and voltage sags and surges. Among them, harmonic pollution and three-phase imbalance are particularly prominent in industrial scenarios due to their concentrated occurrence and wide impact. They are the two types of problems that require the most focused control.

2. What Is Harmonic Distortion?

Harmonic pollution is one of the most common power quality problems in current power systems. The core cause is that there are a large number of nonlinear loads in the power system (such as rectifiers, frequency converters, electric arc furnaces, LED lighting, switching power supplies, etc.). Such loads will change the sinusoidal waveform of the grid current and generate additional harmonic components, thereby polluting the grid.

From the perspective of Fourier analysis, harmonic currents are components whose frequency is an integer multiple of the fundamental wave (50Hz). The k-th harmonic is a component whose frequency is k times the fundamental wave (k=1 is the fundamental wave, k>1 is the harmonic), and the common ones are the 3rd, 5th, 7th, 11th, etc. It should be noted that harmonics not only exist in the current, but also couple into the voltage through the grid impedance, forming harmonic voltage. The harm of harmonics is mainly reflected in three aspects: First, it increases the loss of the power grid, causing overheating of transformers, transmission lines and other equipment and reducing its service life; second, it interferes with the normal operation of precision electronic equipment, such as causing malfunctions or measurement errors of PLCs, sensors, and measuring instruments; third, it may cause resonance in the power system, damaging power equipment in severe cases, and even causing grid failure and outage.

3. The Hazards of Power Quality Issues

The impact of power quality problems on the power system runs through three levels: equipment, control and energy efficiency:

1) Equipment layer: Harmonic current causes line heating, insulation aging, and motor overheating; three-phase imbalance causes increased motor vibration and loss.

2) Control layer: Harmonic interference causes the protection device to malfunction, causing frequent production line downtime; three-phase imbalance may cause the protection device to misjudge.

3) Energy efficiency layer: Harmonics and three-phase imbalance increase line losses, reduce energy efficiency, and increase electricity costs.

The above hazards are particularly prominent in actual production scenarios. In the field of precision manufacturing, slight fluctuations in voltage are enough to cause the machining accuracy of CNC machine tools to get out of control, leading to batch rework or even scrapping of parts; in data centers, a brief voltage drop may directly trigger server downtime, resulting in loss of important data and business interruption; and in heavy industrial sites such as mining and metallurgy, excessive harmonics will silently erode the insulation of transformers and motors, eventually causing burnout accidents, resulting in production shutdowns and huge maintenance losses. As a practitioner in the electrical industry, I have learned about cases where the entire production line was paralyzed due to untimely harmonic control, resulting in a single loss of hundreds of thousands of yuan. Power quality problems are never just about excessive parameters, but also a continuous production threat and cost vulnerability.

4. Product Features of the EM5230 Power Quality Analyzer

EM5230 power quality analyzer is a high-precision comprehensive testing instrument specially built for on-site detection of three-phase power quality. It is like a precision stethoscope for power grid operation. It integrates intelligent measurement, multi-dimensional analysis and portable operation, providing professional and reliable technical support for power operation and maintenance, equipment diagnosis and power quality control. Its core features are as follows:

（1）Portable and easy to use, flexibly adapted to multiple scenarios: It is equipped with a 7-inch high-definition touch color screen, and the body adopts a compact and lightweight design. The whole machine weighs only about 1.24kg, which is convenient for rapid deployment and portability in on-site operations. It supports the selection of multiple current sensors with different ranges, covering a wide current measurement range of 10mA~6000A, and can be flexibly adapted to the differentiated testing needs of various sites.

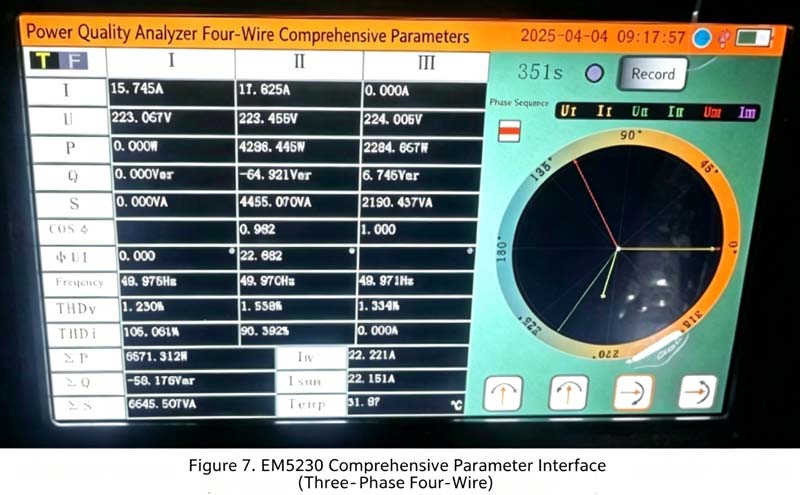

（2）Multi-parameter synchronization, comprehensive coverage of basic detection: supports the synchronous collection of 4 currents (three phases A, B, C and neutral line) and 3 voltages, can accurately measure dozens of core power parameters such as three-phase unbalance, active/reactive/apparent power, harmonic content rate, total harmonic distortion (THD), etc., fully covering the basic detection needs of three-phase power systems.

（3）Transient capture, intuitive presentation of power grid status: It can present voltage and current waveforms and phasor relationship diagrams in real time to visually display the power grid operating status; dynamically capture instantaneous fluctuations in voltage and current to achieve special monitoring of starting current and surge current. It also monitors various power parameters in real time and automatically generates an abnormal alarm list to help quickly locate power grid anomalies.

  (4) Long-term recording supports long-term monitoring and analysis: supports long-term recording of test data, automatically generates parameter trend curves, and supports data recording and screenshot retention; relying on a large-capacity storage architecture, ultra-long-term data storage can be achieved in different working modes. For example, in three-phase trend mode, continuous data recording for approximately 1,500 days can be achieved with a 10-second storage interval, fully meeting the needs of long-term power grid steady-state monitoring.

  (5) One machine has multiple functions, covering multiple testing needs: It has in-depth harmonic analysis capabilities and can complete accurate detection and spectrum analysis of up to the 51st harmonic. It also integrates special functions such as electric energy measurement, DC parameter testing, and transformation ratio testing. One machine has multiple functions and can cover the differentiated testing needs of multiple scenarios such as power operation and maintenance, equipment testing, and measurement verification.

  (6) Simple interaction to improve the efficiency of on-site operations: It is equipped with a Chinese and English bilingual operation interface, a full-touch interactive design, and the operation logic is simple and intuitive, greatly reducing the threshold for use; it supports one-click direct access to special functions, and can quickly access special testing modules such as phase voltammetry test, variable ratio test, and DC test, effectively improving the efficiency of on-site operations.

  (7) Event capture to facilitate fault traceability analysis: The built-in professional power quality event capture module can accurately capture transient power quality events such as voltage flickers and voltage swells/sags, providing accurate and complete data support for power grid disturbance analysis, fault traceability and power quality assessment.

5. Report Export

The EM5230 host computer system is equipped with a complete report export function, which can achieve accurate export and professional analysis and judgment of parameter record data. During operation, check the parameters to be exported according to the detection requirements in the parameter recording module, without additional preprocessing. When the parameter selection is completed and the export command is triggered, the host computer software will automatically call the preset national standards and testing specifications, conduct comprehensive data analysis, logical verification and result judgment on the selected parameter data, and finally generate a test report that complies with industry standards, has detailed data and clear judgments, and provides reliable technical support for subsequent test result review, data archiving and compliance review.

The specific content can be found in the official website article "[Application Case] How to Export Analysis Report of EM5230 Power Quality Analyzer".

6. Practical Application Case

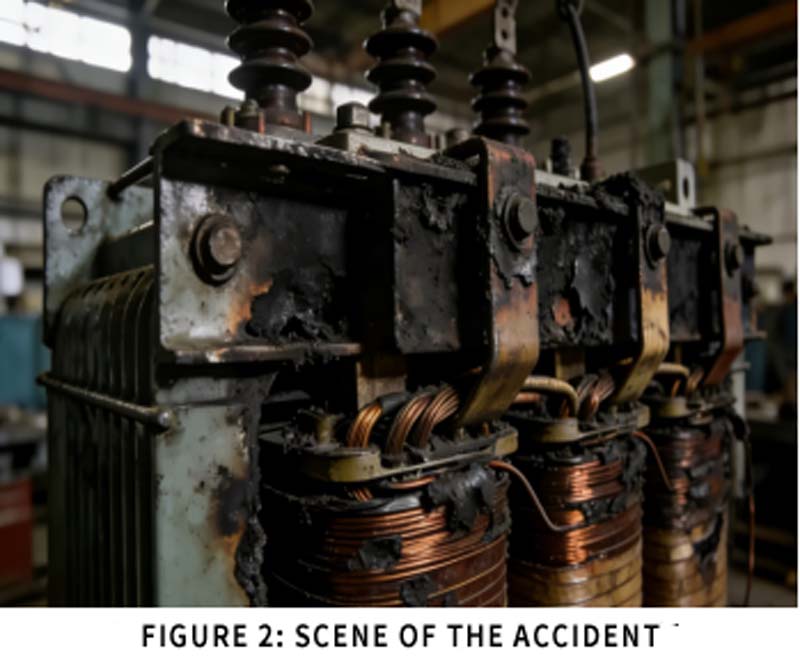

Case situation: The production line of an auto parts manufacturing factory has experienced motor overheating and abnormal tripping of circuit breakers many times recently, causing frequent shutdowns of the production line and affecting production efficiency. The factory's 400V low-voltage distribution cabinet loads are mainly nonlinear and asymmetrical loads such as variable frequency motors, single-phase welding equipment, and switching power supplies. The operation and maintenance team initially determined that there were problems with excessive harmonics and three-phase imbalance, which required accurate measurement for troubleshooting.

Measurement plan and implementation process:

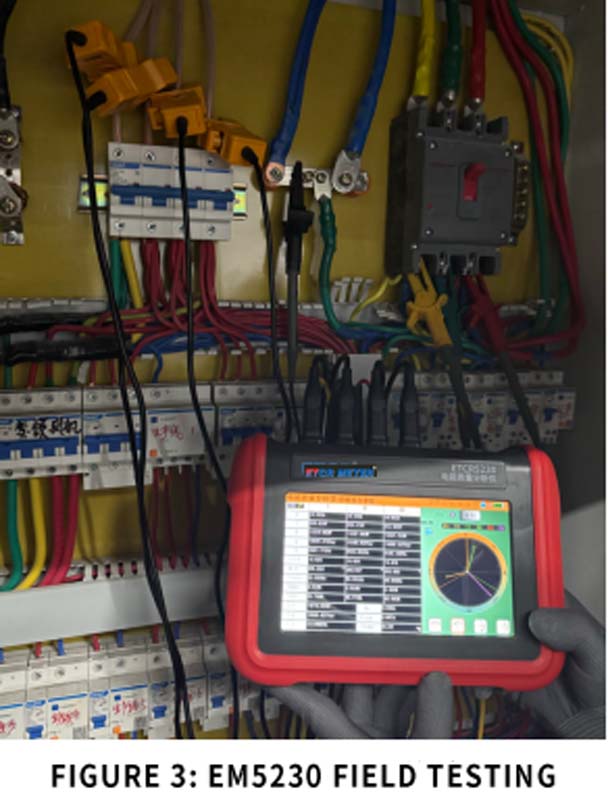

After on-site investigation and analysis, it was decided to use the EM5230 power quality analyzer for live detection. This method can complete accurate measurement without power outage and ensure the continuity of power supply. The specific measurement plan is as follows:

1) Basic instrument settings:

Press the power button to turn on the phone and enter the main interface.

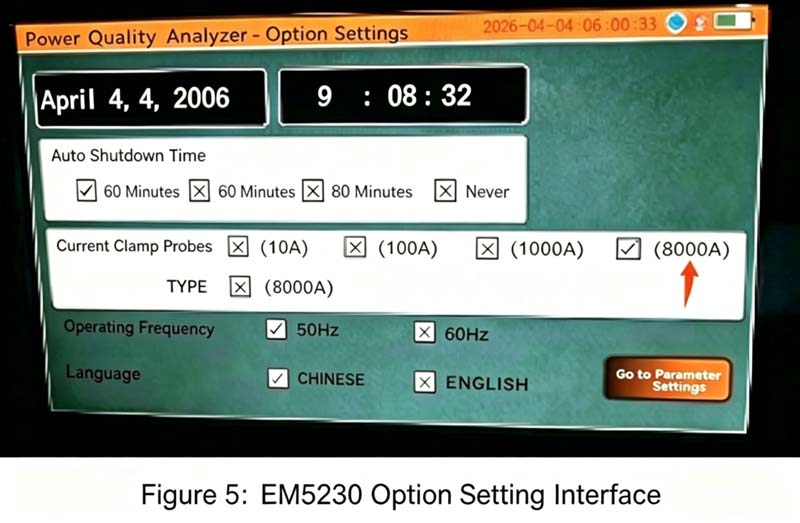

Select the appropriate current clamp according to the current size and wire diameter of the line under test; enter the setting interface, set the current transformation ratio and voltage transformation ratio, and select the corresponding current clamp model.

According to the on-site power grid type (three-phase four-wire power supply system), select the three-phase four-wire wiring method.

Set the working frequency to 50Hz and select the Chinese operation interface.

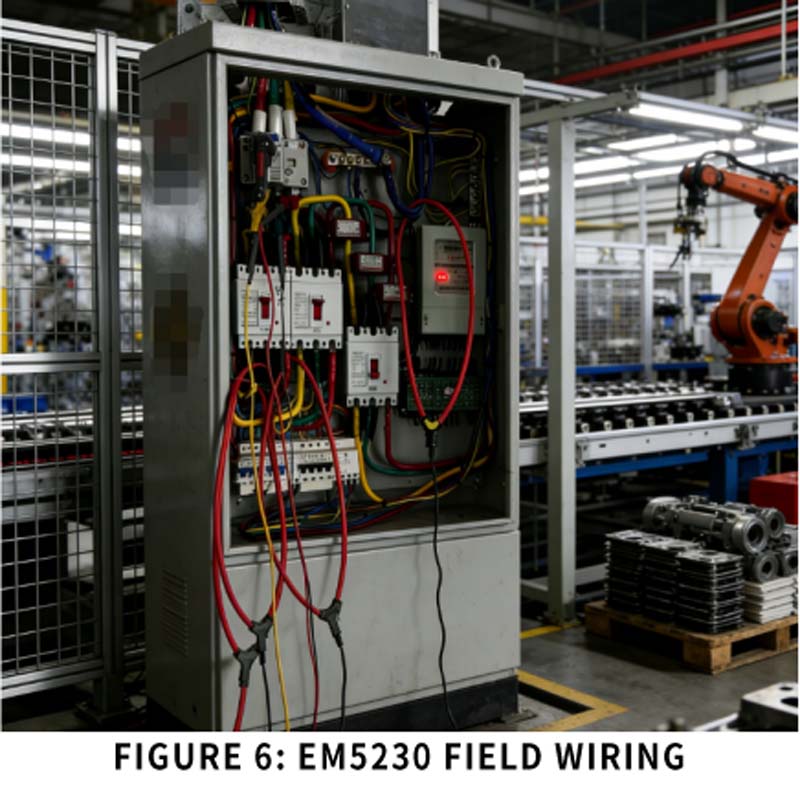

2) On-site wiring operation:

Connect the four current clamps to the four current interfaces of the instrument: L1/A, L2/B, L3/C, and N/D, ensuring the corresponding connections.

Connect the three voltage alligator clips to the three voltage input interfaces of the meter according to their colors: L1/A, L2/B, and L3/C.

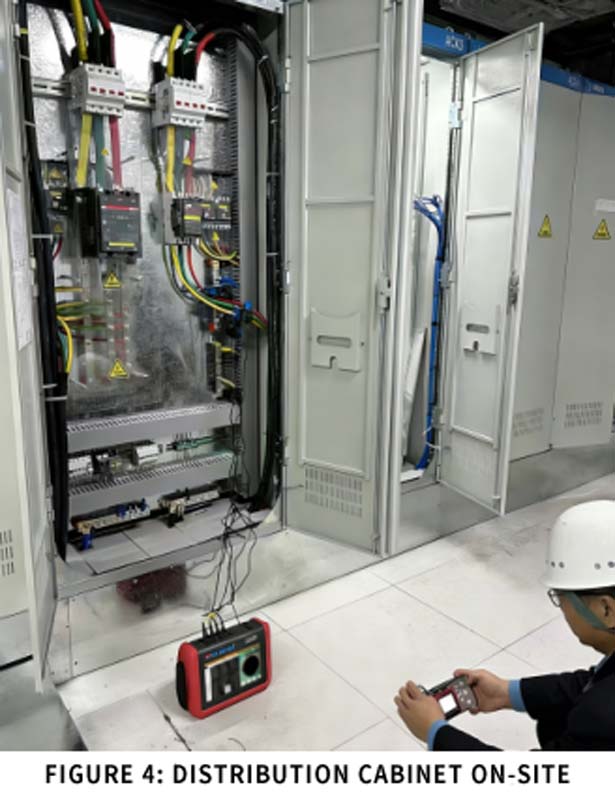

Wiring sequence: First clamp the N-phase current clamp to the neutral wire (N-phase) of the electrical cabinet, then clamp the A, B, and C-phase current clamps to the corresponding A, B, and C phase conductors respectively; the voltage test wires are connected to the A, B, and C phases according to their colors.

Check that all wiring is correct, secure and not loose.

3) Instrument Operation:

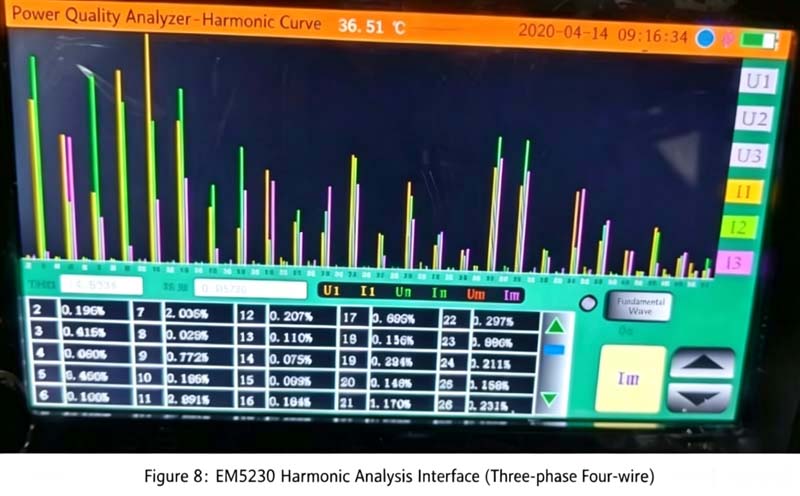

Switch to the harmonic analysis interface to view the harmonic content of each phase voltage and current (up to the 51st harmonic), and visually view the proportion of each harmonic through a histogram.

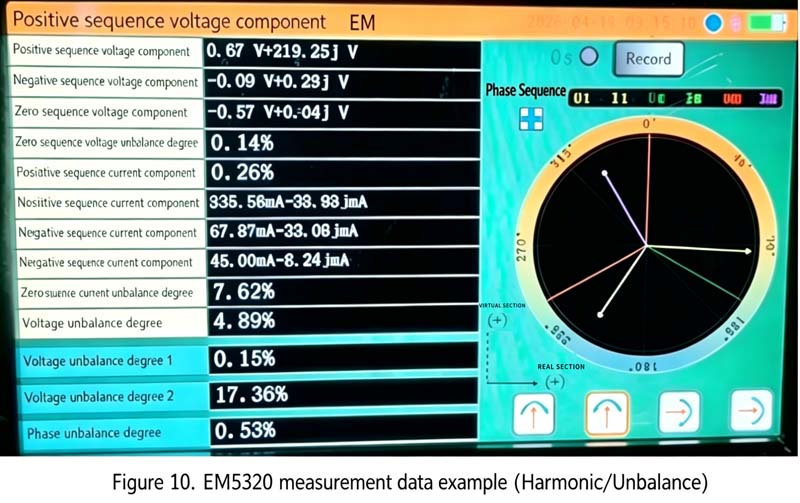

Switch to the unbalance interface, measure the unbalance of the three-phase voltage and current, and record the relevant data.

Start the parameter recording function and record data at 1-second intervals for subsequent analysis; at the same time, use the screenshot function to save key interface data.

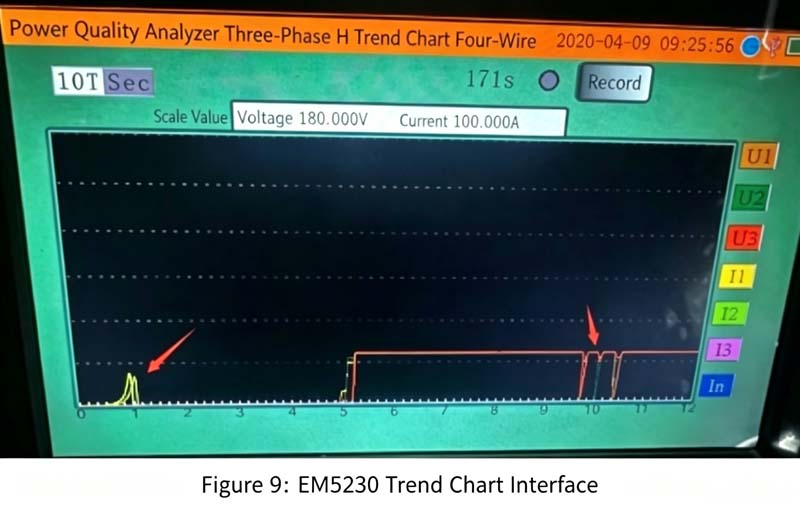

Switch to the trend graph interface to check the trend changes of voltage, current, and power, and observe whether there are sudden rises and falls in voltage, surge current, and other events.

Case summary:

This time, the EM5230 power quality analyzer was used to accurately measure the low-voltage distribution cabinet of the factory, and successfully located the root cause of the equipment abnormality:

Harmonics exceed the standard: the 5th harmonic current distortion rate reaches 7.2%, exceeding the national standard GB/T 14549-93 limit of 4%; at the same time, the 3rd harmonic current is superimposed on the neutral line, causing the neutral line current to exceed the phase line current by 1.8 times, causing line heating.

Three-phase unbalance: The three-phase current unbalance reaches 17.36%, which exceeds the national standard GB/T 15543-2008 limit by 4%, resulting in increased motor vibration and serious overheating.

Voltage sag: Multiple voltage sag events were captured, causing abnormal operation of on-site equipment.

Through this measurement, the operation and maintenance team formulated a targeted power quality management plan based on the measurement results, including installing harmonic filters and adjusting load distribution to balance the three-phase current. After the implementation of the plan, the equipment abnormality problem was effectively solved, the normal operation of the production line was restored, and the electricity cost was reduced.
