EM5000 power quality analyzer is widely used in industrial power distribution systems, new energy stations, rail transit, construction buildings and other scenarios. It is the core equipment for power quality monitoring, harmonic analysis, and energy consumption statistics. Its supporting host computer software is responsible for key functions such as data transmission, waveform analysis, report export, etc. However, in actual use, users often encounter various usage problems due to driver installation, parameter settings, environmental interference and other factors - an incorrect driver installation may cause the device to be unrecognized, a mismatched parameter setting may cause data deviation, and ignoring system permissions may cause the software to crash.

This article organizes high-frequency problems and standardized troubleshooting plans during the use of host computer software to help users quickly locate and solve problems and ensure efficient measurement work.

I. Drivers and Device Connectivity (Most Common)

1. The computer cannot recognize the instrument/the port is not displayed (the COM port is blank)

 • Phenomenon: After the USB cable is connected, there is no COM port available in the upper left corner of the host computer, and a yellow exclamation mark for “Unknown Device” appears in the device manager.

 • Reason: The FT232 driver is not installed or the version does not match, the USB cable is only a charging cable without data transmission function, the port is occupied by other programs, and the system permissions are insufficient.

 • Solve:

a. Go to the ETCR official website to download and install the FT232 driver corresponding to the system version (32/64-bit needs to match the computer system). After the installation is completed, restart the computer.

b. Replace the USB cable with data transmission function. Prioritize the use of the original dedicated data cable of the instrument and avoid using cables that only support charging.

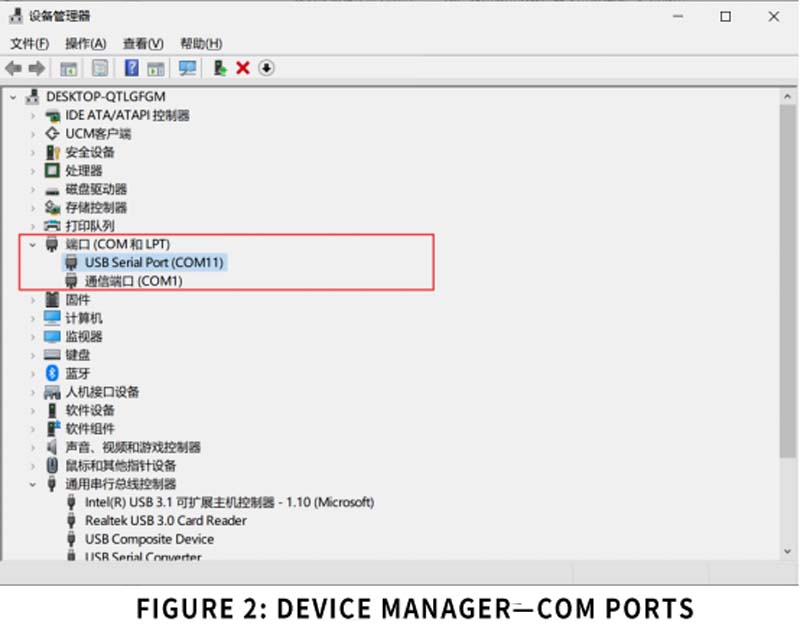

c. After the instrument is turned on, plug in the USB cable; open the computer device manager → Port (COM/LPT) to view the actual assigned COM port number, and manually select the corresponding port in the host computer.

d. Right-click on the host computer software icon, select "Run as administrator", temporarily close the anti-virus software and firewall and try to connect again.

2. The port is identified but "Connection failed/timed out" is displayed.

 • Phenomenon: The COM port is displayed normally in the device manager, but when you click the "Connect" button on the host computer, it prompts that the connection failed, or it automatically disconnects within a few seconds after the connection. Note: The power quality analyzer needs to be powered on.

 • Reason: Serial communication parameters do not match, instrument port is occupied by other software, USB interface power supply is unstable, on-site electromagnetic interference.

 • Solve:

a. Close other serial port debugging tools, old version of the host computer software and other programs that may occupy the port, and ensure that the current host computer occupies the COM port exclusively.

b. Prioritize the use of the USB port on the rear of the computer, which provides more stable power supply; avoid using USB extension cables or hubs to reduce signal loss.

c. Stay away from inverters, motors and other strong electromagnetic interference equipment. If necessary, you can execute "Menu → Settings → Restore factory settings" on the instrument side to reset the parameters and reconnect.

II. Data Reading and Export Classes

1. Real-time data does not refresh/displays abnormal fixed values

 • Phenomenon: After the connection is successful, parameters such as voltage, current, and power do not change, or always display “0”, which is obviously inconsistent with the actual situation on site.

 • Reason: Wiring method does not match, wrong range selection, instrument does not enter measurement mode, host computer channel selection is wrong.

 • Solve:

a. Check the wiring of the voltage clamp and current clamp: V1/V2/V3 correspond to the three-phase line, the N terminal must be connected to the neutral line, and the current clamp clamping direction should be consistent with the transformation ratio setting to avoid data anomalies caused by wiring errors.

b. Confirm that the "wiring mode" on the left side of the host computer is completely synchronized with the instrument settings. It supports three-phase four-wire, three-phase three-wire, single-phase and other modes. Mode mismatch will lead to data calculation errors.

c. Confirm that the instrument has entered the "real-time measurement" mode instead of the historical data playback mode; the host computer switches to the corresponding function page (comprehensive parameters/harmonic analysis/waveform monitoring) to view the data.

d. Select the appropriate range according to the on-site current: the 5A/50A range is preferred in small current scenarios, and the 500A/1000A range is selected in large current scenarios to avoid small signals being unrecognizable due to too large a range, or data overflow due to overrange.

2. History records cannot be read/Export to Excel fails or is garbled

 • Phenomenon: The record playback page list is blank, or "File Error" is prompted when exporting data, and garbled characters appear after the exported Excel file is opened.

 • Reason: The record was not successfully saved on the instrument side, the data file was damaged, the export path contained Chinese/special characters, and the Office version was incompatible. Note: The export file type is .csv, please use a computer to open the file to view

 • Solve:

a. Confirm that the record saving has been completed on the instrument side: press the "Record" key during the measurement process, select the recording duration and start recording. After the measurement is completed, the instrument will automatically store the data in the local memory.

b. On the "Record Playback" page of the host computer, select the correct record type (waveform record/trend record/alarm record) in the upper left corner, and click "Refresh List" to read the historical data stored in the instrument.

c. When exporting data, select a pure English/numeric storage path (such as D:ETCR5000Data) and avoid using desktop or Chinese-named folders to prevent the system from identifying the wrong path.

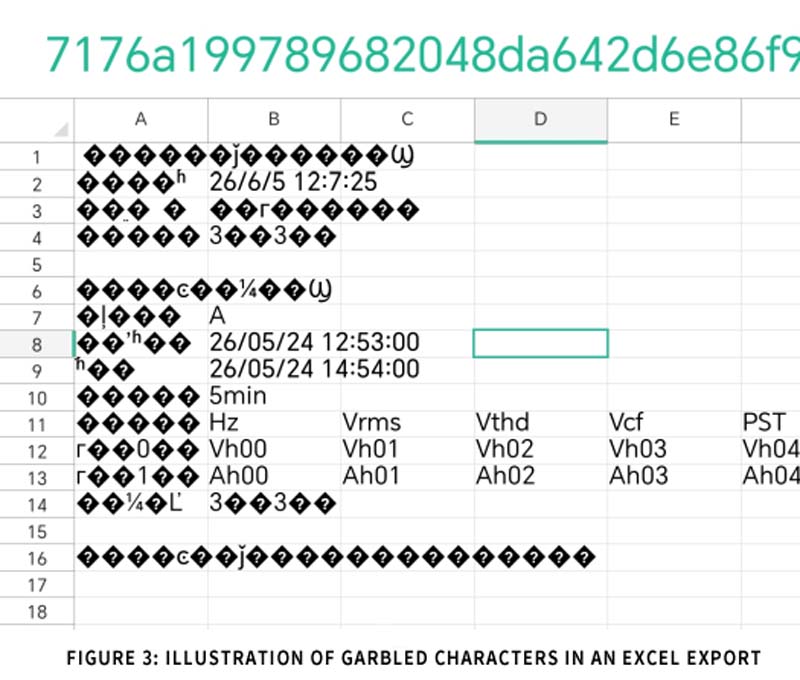

Use Excel 2016 and above to open the exported file, or save it as .xlsx format; if garbled characters appear, you can first open the file with Notepad, select UTF-8 encoding through "Save As" and then reopen it.

III. Software Operation and Permissions

1. The software crashes when opened/closes suddenly during operation

 • Phenomenon: There is no response when double-clicking the software icon, or it automatically exits after a few seconds of startup; it suddenly freezes during operation and shuts down without warning.

 • Reason: Insufficient system permissions, driver conflict, missing VC++ runtime library, damaged installation package.

 • Solve:

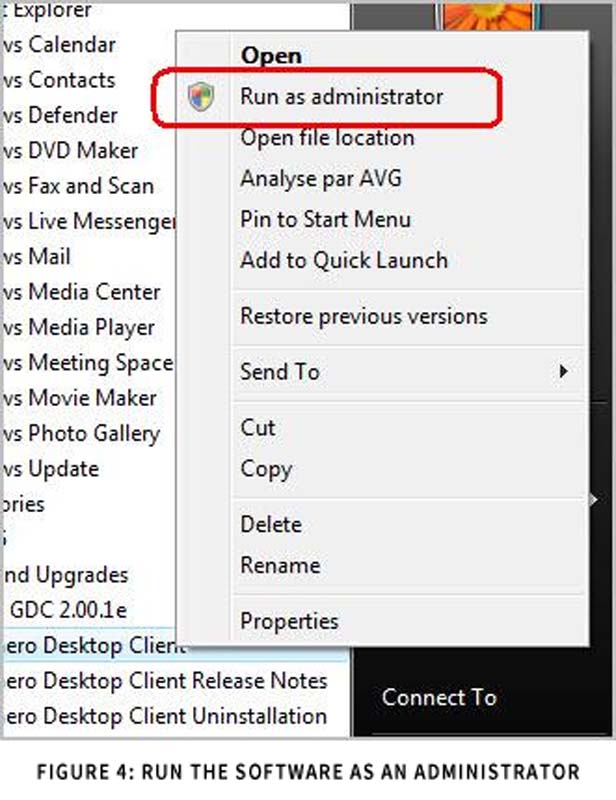

a. You must right-click the software icon and select "Run as administrator"; in Win10/11 system, you can adjust the User Account Control (UAC) to the lowest level to avoid permission interception.

b. Install the VC++ 2015-2022 runtime library (x86+x64) to fix the problem of missing system dependent components.

c. Uninstall the old version of the host computer software, re-download the latest official installation package, unzip it and install it to a pure English path (such as D:ETCR5000) to avoid program anomalies caused by Chinese paths.

d. Temporarily close anti-virus software such as 360 and Tinder, or add the software installation directory to the anti-virus software whitelist to avoid accidental killing and program exit.

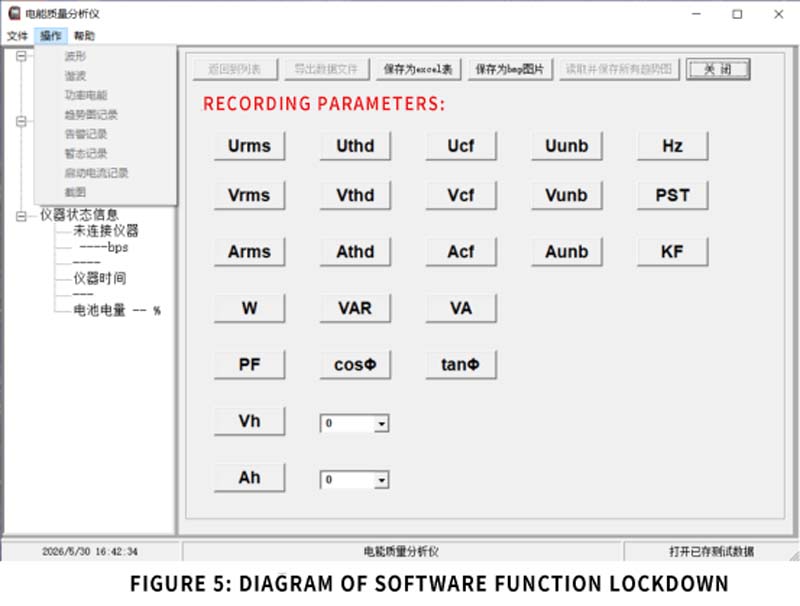

2. The interface buttons are gray and unavailable/the functions are locked

  • Phenomenon: Buttons such as "Save", "Export" and "Read" are gray, nothing happens when clicked, and the functions cannot be used.

  • Reason: The instrument was not successfully connected, the system permissions were insufficient, and the function did not match the current mode of the instrument.

  • Solve:

a. First complete the connection between the instrument and the host computer. When the interface displays the "Connected" status, the gray function button will be automatically activated and available.

b. Run the software as an administrator to avoid insufficient system permissions causing some functions to be locked.

c. Confirm that the current working mode of the instrument matches the function of the host computer. For example, when the instrument is in "Waveform Recording" mode, the host computer can read and play back the waveform data normally.

In the daily use of the host computer software, more than 90% of common problems can be solved by first checking the driver installation and connection parameters, and then confirming the wiring and mode matching. Standardized operation and regular parameter calibration can effectively improve the stability of software operation and extend the service life of the instrument.
