Range

0mA~60.0A  AC/DC

0mA~60.0A  AC/DC

Resolution

1mA  AC/DC

1mA  AC/DC

Accuracy

±2%rdg±5dgt

±2%rdg±5dgt

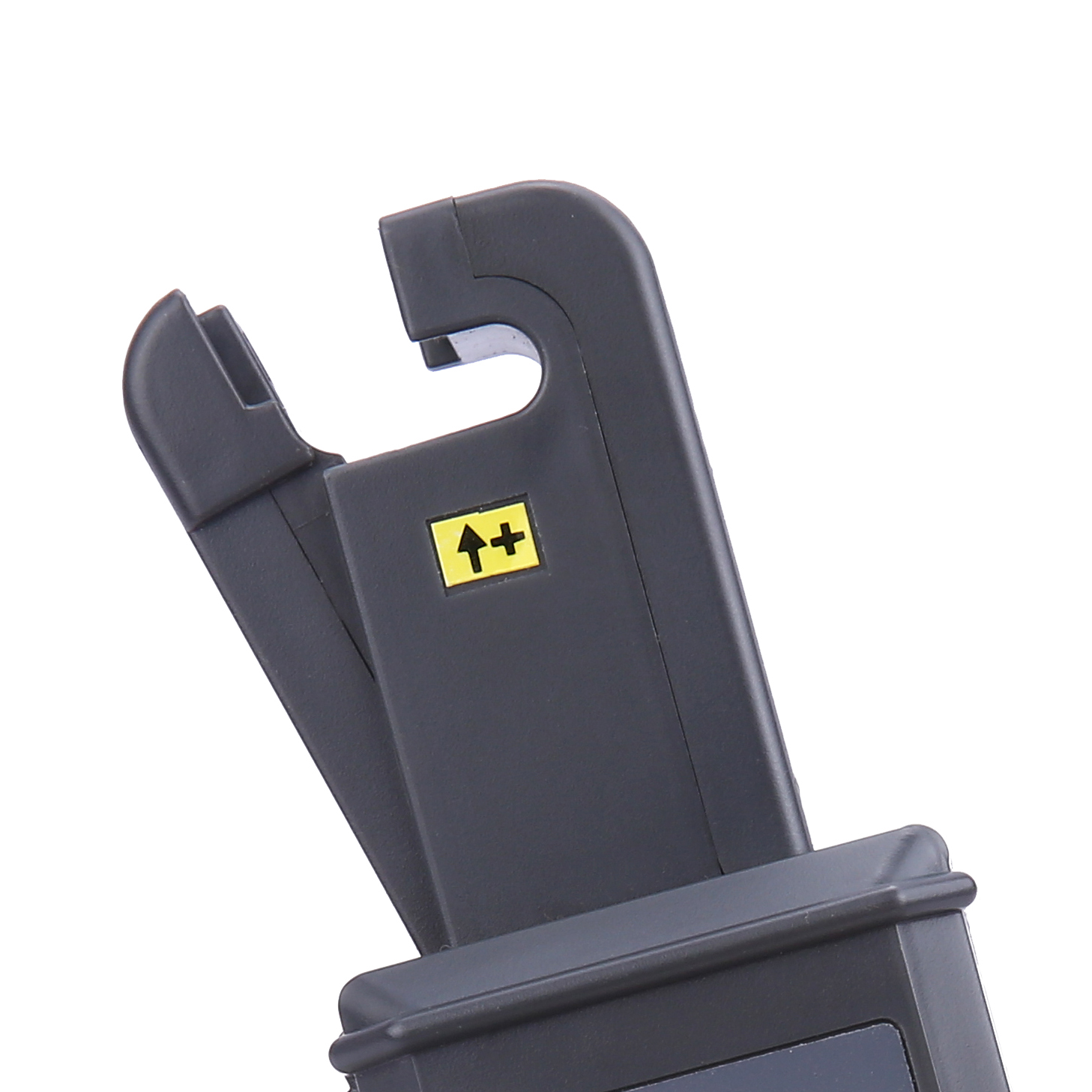

CT Size

φ7mm

16mmX18mm

Meter Dimension

168mmX65mmX34mm

215mmX65mmX34mm

Weight

180g

220g

Power Supply

DC9V Alkaline battery 6LR61 9V

Working Current

10mA

LCD Size

35mmX21.5mm; display area; 32mmX15mm

Sampling Rate

2 times/s

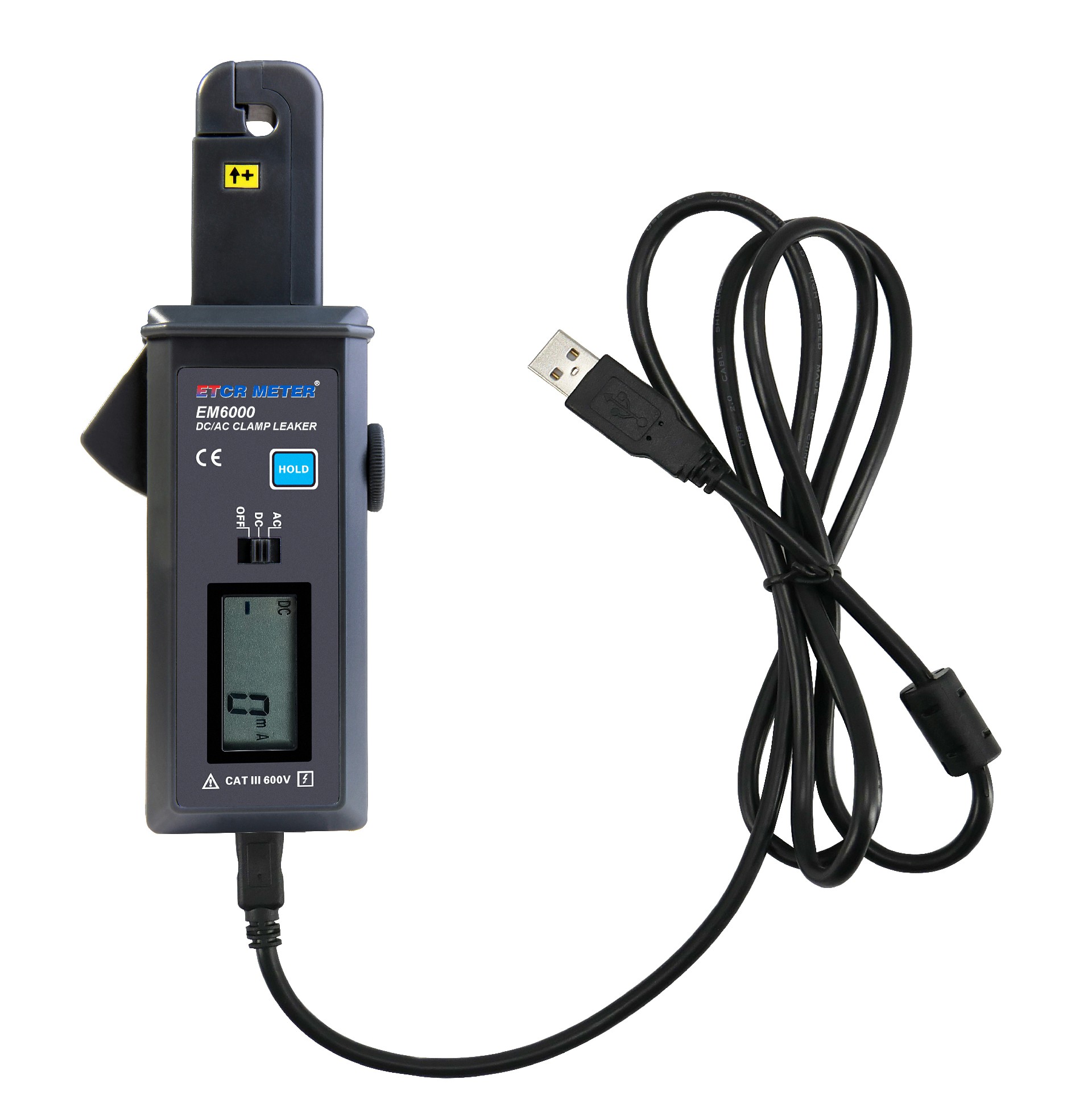

Communication Interface

With RS232 interface, storage data can be uploaded to computer save and print.

Communication Parameters

Baud rate: 9600, data bit: 8, stop bit: 1, check bit: NONE

Data Storage

99 groups, flash display “FULL” symbol indicate storage full

Data Hold

Data hold function: “DH” symbol display

Overflow Display

Exceed measure range overflow function: “OL A” symbol display

Polarity Indication

In DC current test auto identified and display“—” symbol

Auto Shut Down

5 Minutes after power on, it will power off automatically without any operation to reduce the power consumption.

Battery Voltage

Battery voltage lower than 7.2V will display low battery voltage symbol, and remind to replace battery

Line Voltage

Below 600V circuit test

Shift

Automatically

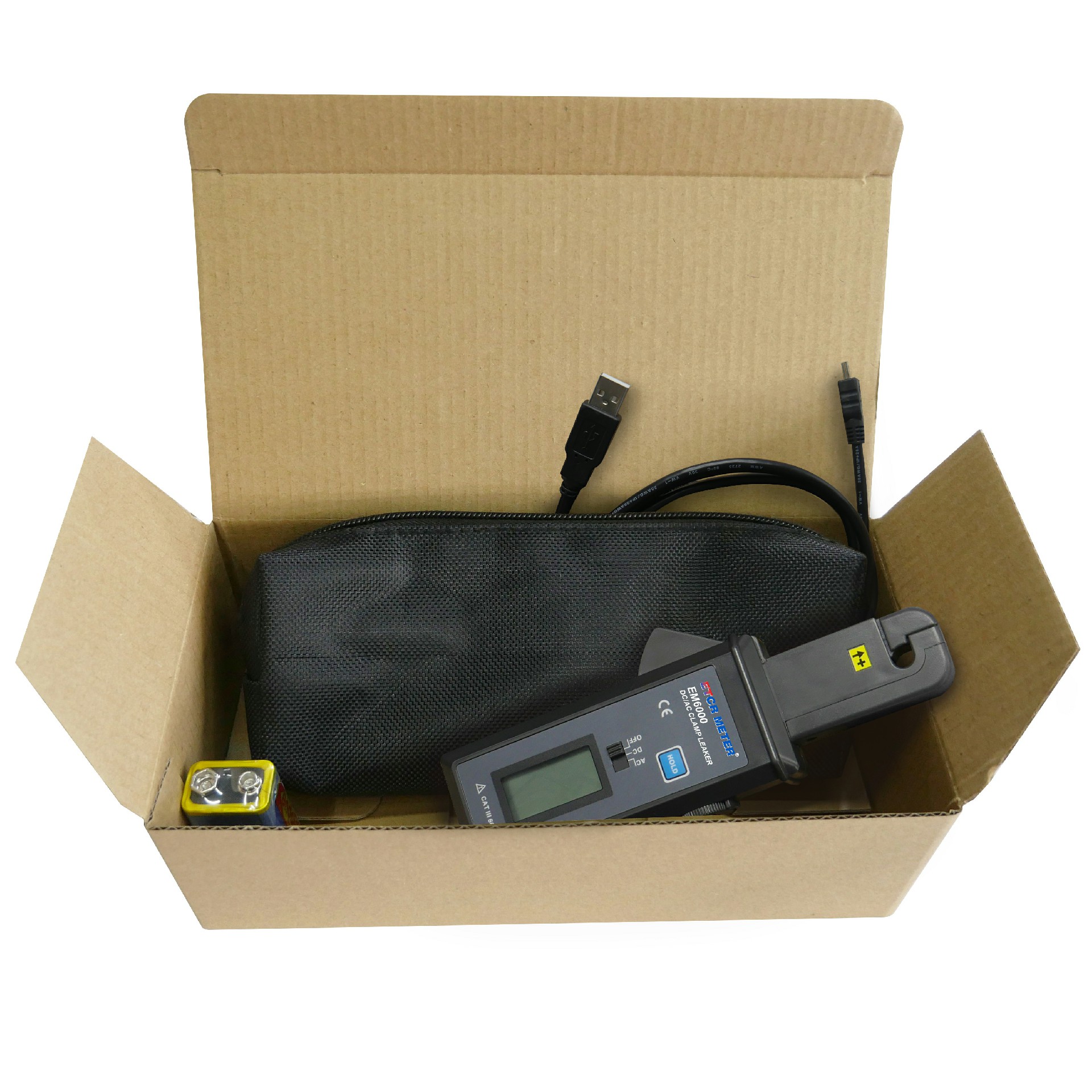

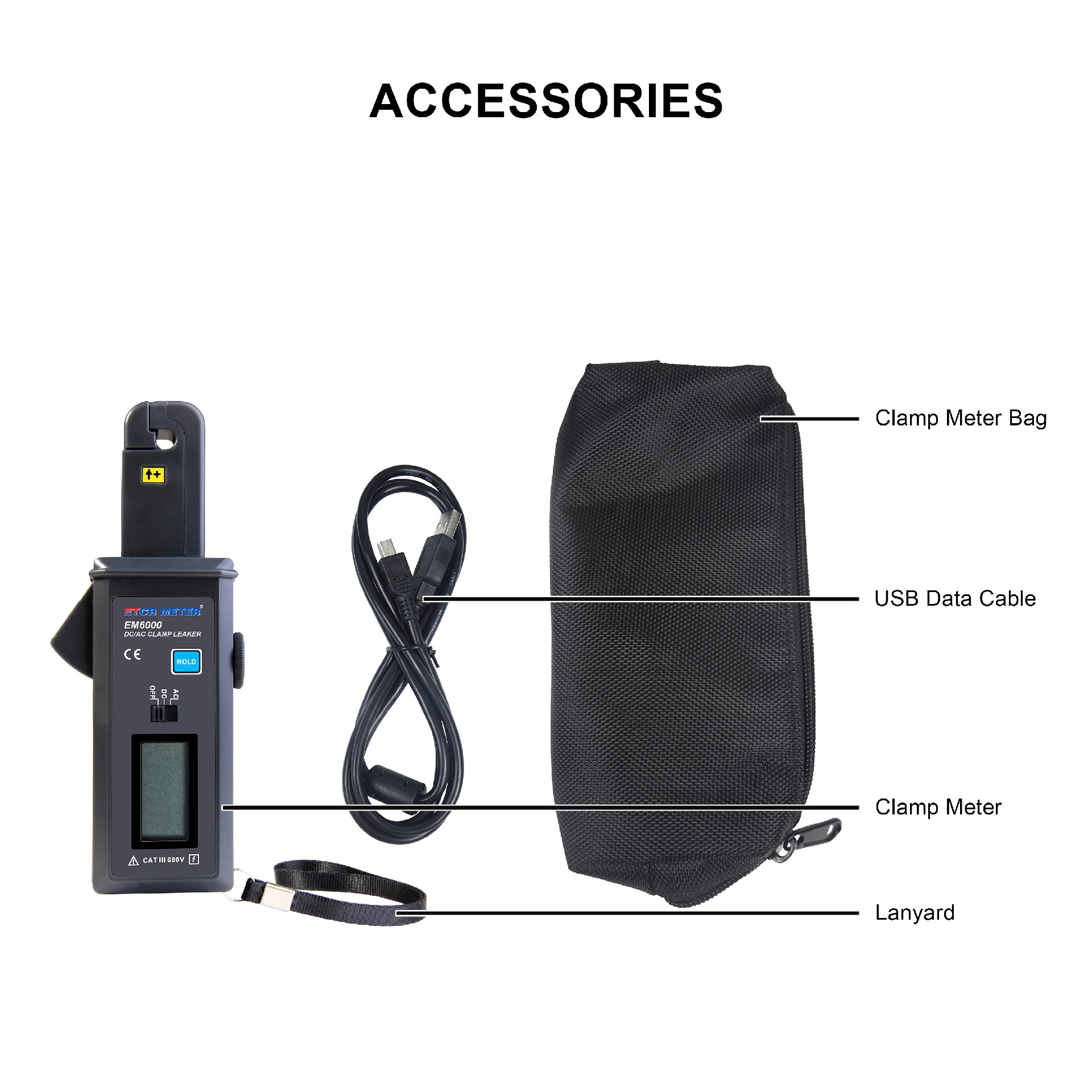

Accessories

Meter: 1PCS; RS232 communication cable: 1PCS; 6LR61 battery: 1PCS Cloth bag: 1PCS
