Range

DC: 0.0A~2000A  AC: 0.0A~1000A

Resolution

0.1A DC/AC

Accuracy (Reference condition)

0.0A~999A:  ±2%rdg±5dgt

1000A~1499A:  ±3%rdg±5dgt

1500A~2000A:  ±4%rdg±5dgt

Power Supply

DC 6V alkaline dry batteries (LR6 1.5VX4PCS)

Weight

1540g (include battery)

Meter Dimension

350mmX180mmX55mm

CT Size

108mmX148mm (can clamp φ108mm cable or 160mmX4mm flat cable or steel flat ground cable)

LCD Size

47mmX28.5mm

Sampling Rate

2 times/second

Frequency Response

AC: 45Hz~400Hz

USB Interface

With USB interface, storage data can be uploaded to computer, software monitoring, USB cable length: 1.5m

Data Storage

99 groups, flash display “FULL” symbol indicate storage full

Peak Hold

Peak value capture and hold function, long press HOLD key display peak value.

Data Hold

Data hold function: “HOLD” symbol display

Overflow Display

Exceed measure range overflow function: “OL” symbol display

Polarity Indication

In DC current test auto identified and display“—” symbol

Auto Shut Down

5 Minutes after power on, it will shut down automatically without any operation to reduce the power consumption.

Battery Voltage

While battery voltage is lower than 4.6low battery voltage symbol “  ” display, remind to replace the battery

Working Current

20mA

Line Voltage

Below AC 600V circuit measurement

Shift

Automatic

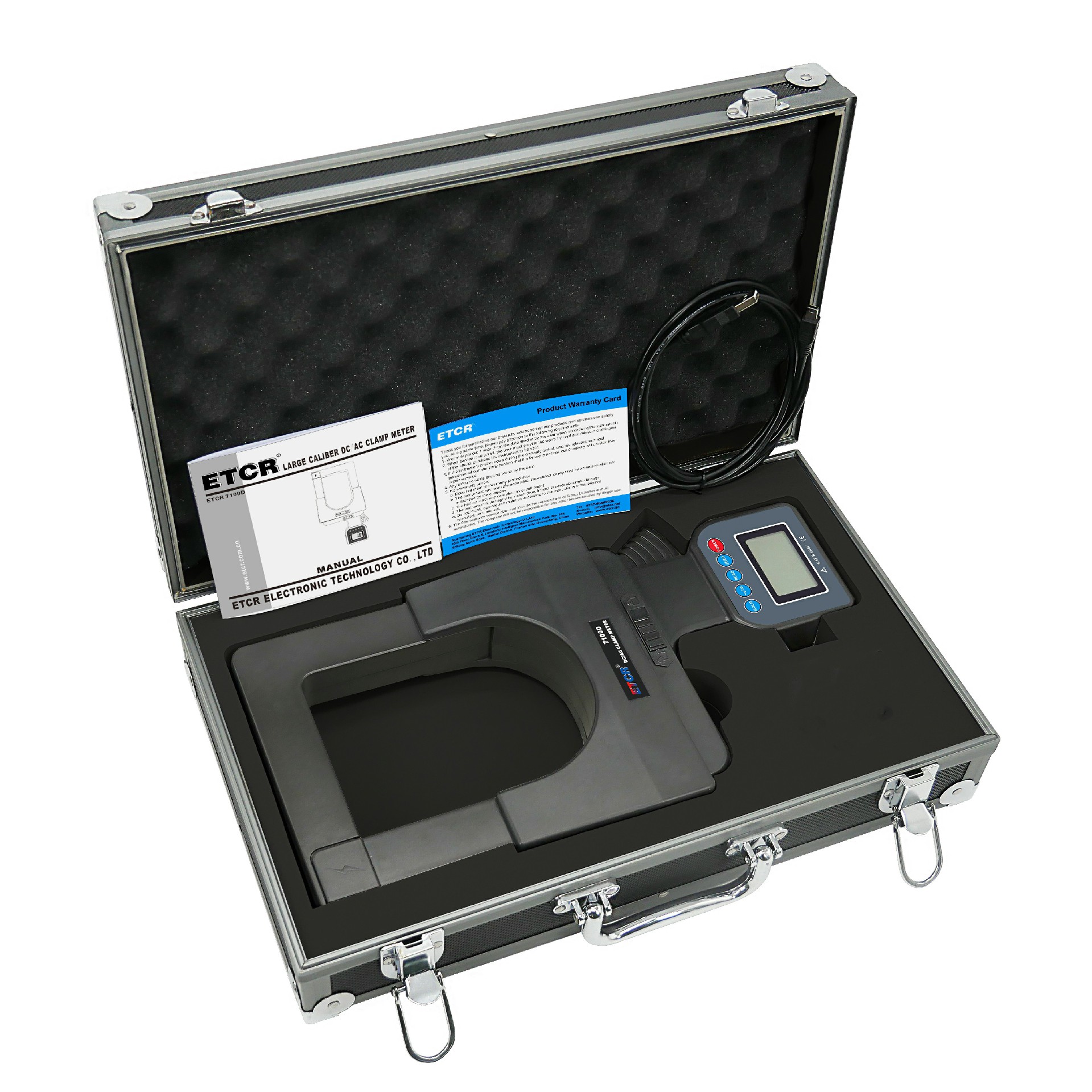

Accessories

Meter: 1PCS; USB special communication cable: 1PCS; 1PCS; Meter Case: 1PCS; LR6 battery: 4PCS
