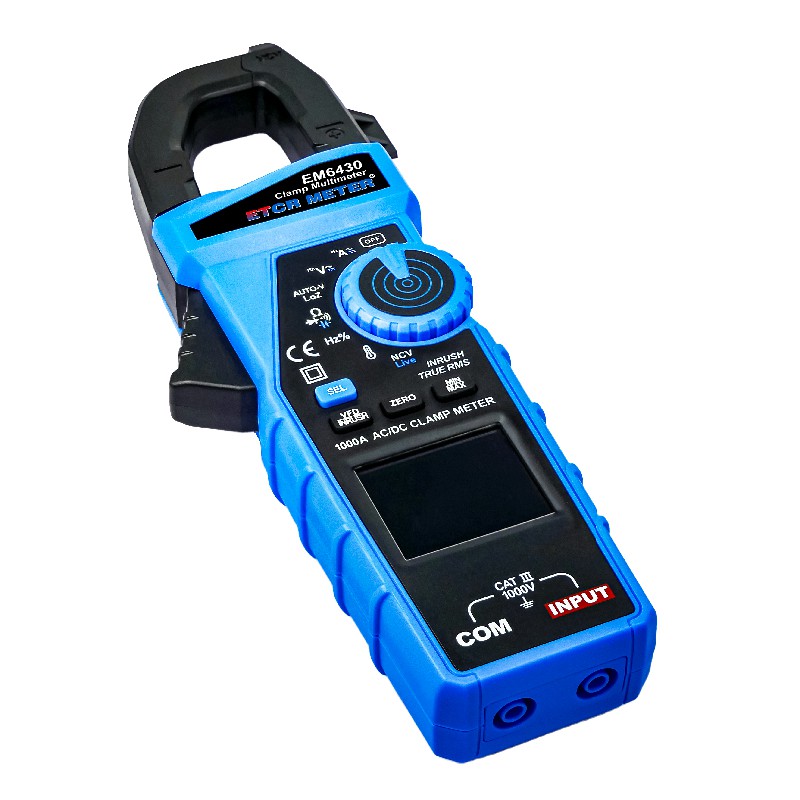

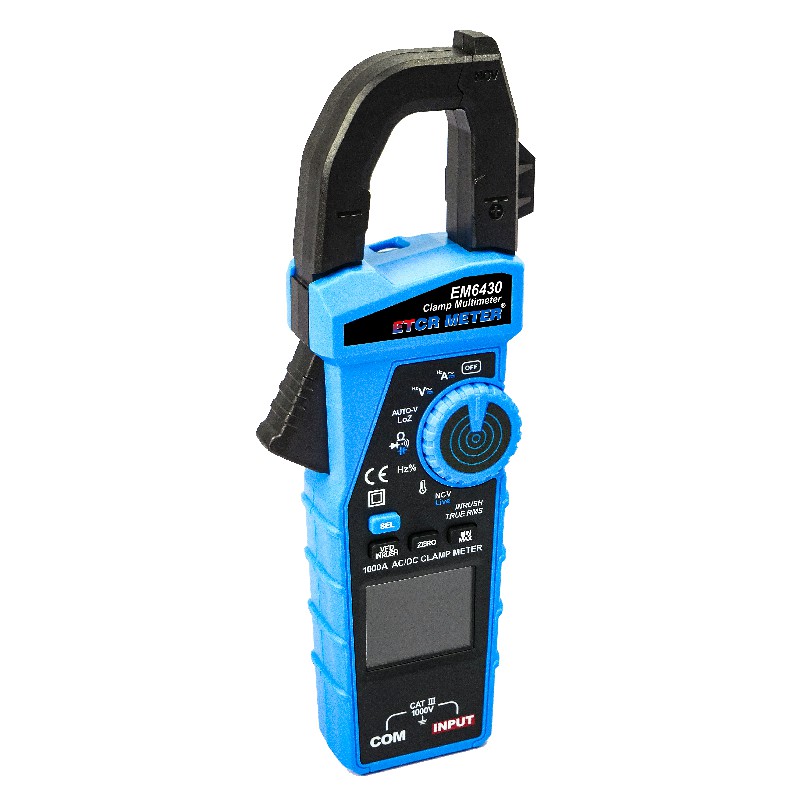

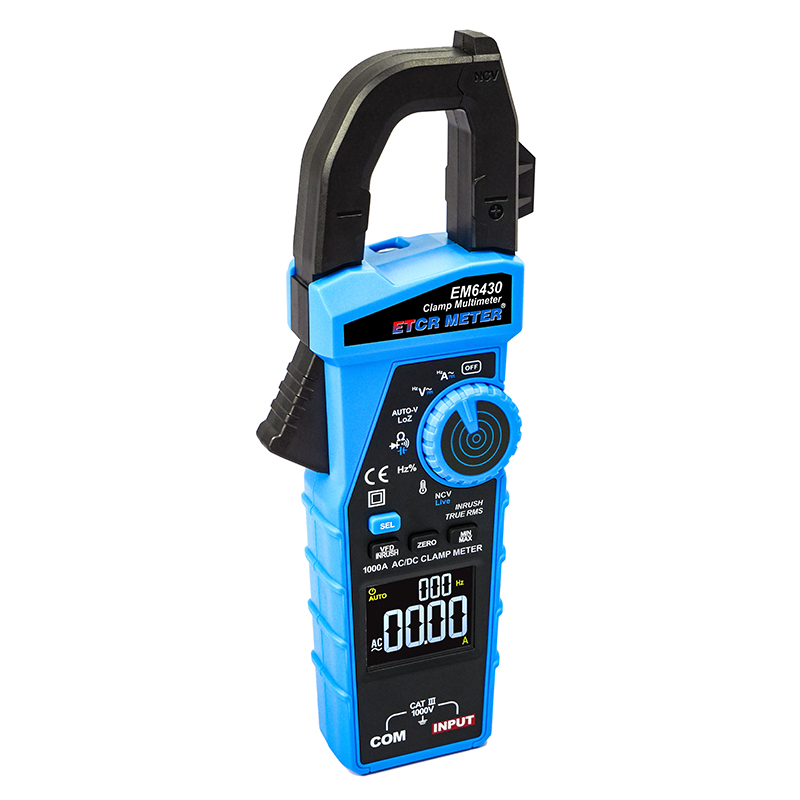

    EM6430 Clamp Multimeter
  • Product Series : Clamp Multimeter

    • Main Features

      Used to measure AC/DC current, AC/DC voltage, resistance, capacitance, diode, line continuity, frequency, percentage, temperature, NCV, Live, as well as MAX, MIN, HOLD, INRUSH, and VFD.
      Jaw Size: Ф30mm
      Voltage Measurement Range: AC/DC 0.0mV ~ 1000V
      Current Measurement Range: AC/DC 0.0A ~ 1000A
      Resistance Measurement Range: 0.0Ω ~ 60MΩ
      Capacitance Measurement Range: 0nF ~ 60mF
      Frequency Measurement Range: 0Hz ~ 10MHz
      Temperature Measurement Range: - 50°C ~ 1000°C
      Flashlight Function

    Product Introduction

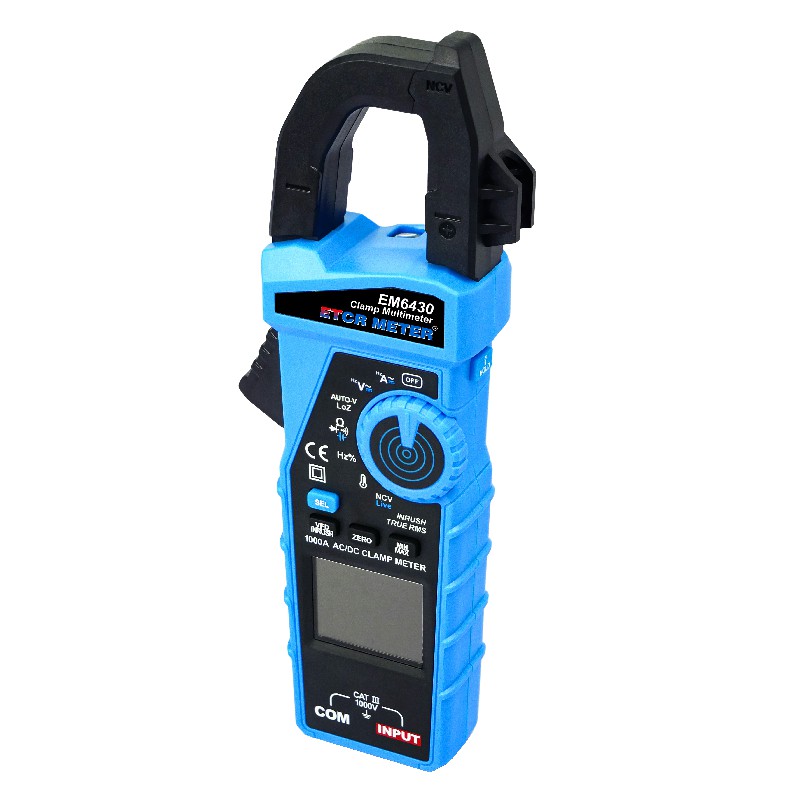

    EM6430 Clamp Multimeter is a powerful 6000-count AC/DC auto-ranging digital clamp meter. It features standard voltage measurement, AUTO-V LOZ low-impedance automatic voltage detection, surge measurement, variable frequency measurement, and true RMS measurement. It allows you to quickly and accurately measure a wide range of electrical parameters. This product is widely used in power maintenance, electrical installation, industrial testing, and other fields, making it a valuable assistant.EM6430 Clamp Multimeter can measure AC/DC current, AC/DC voltage, resistance, capacitance, diodes, line continuity, frequency, percentage, temperature, NCV, Live, as well as MAX, MIN, HOLD, INRUSH, VFD, flashlight, automatically shutdown, full-range overload protection, and low-battery indication.ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.
    ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.


    Product Features
    1. Low-impedance LOZ AC/DC automatic voltage identification function.
    2. True RMS measurement.
    3. A perfect combination of a clamp meter and a multimeter, it utilizes a high-performance new MCU processor and is convenien to carry, making it an ideal tool for electrical measurements, especially for renewable energy and photovoltaic applications.
    4. Current Range: AC/DC: 0 ~ 1000A, Voltage Range: AC/DC 0.0mV ~ 1000V.

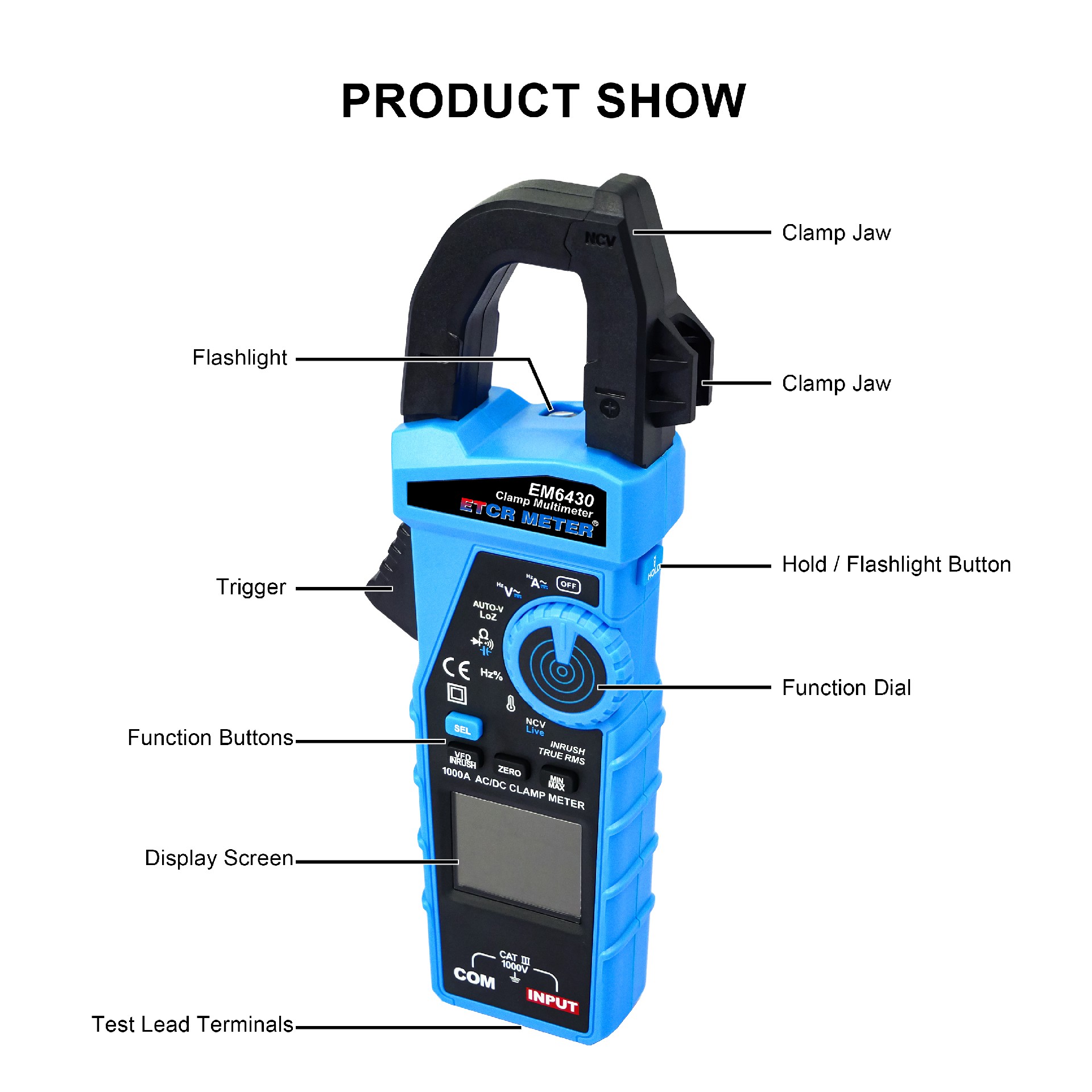

    EM6430 (8).jpg EM6430 (9).jpg

    Technical Parameters

    Specification NameParameters Description

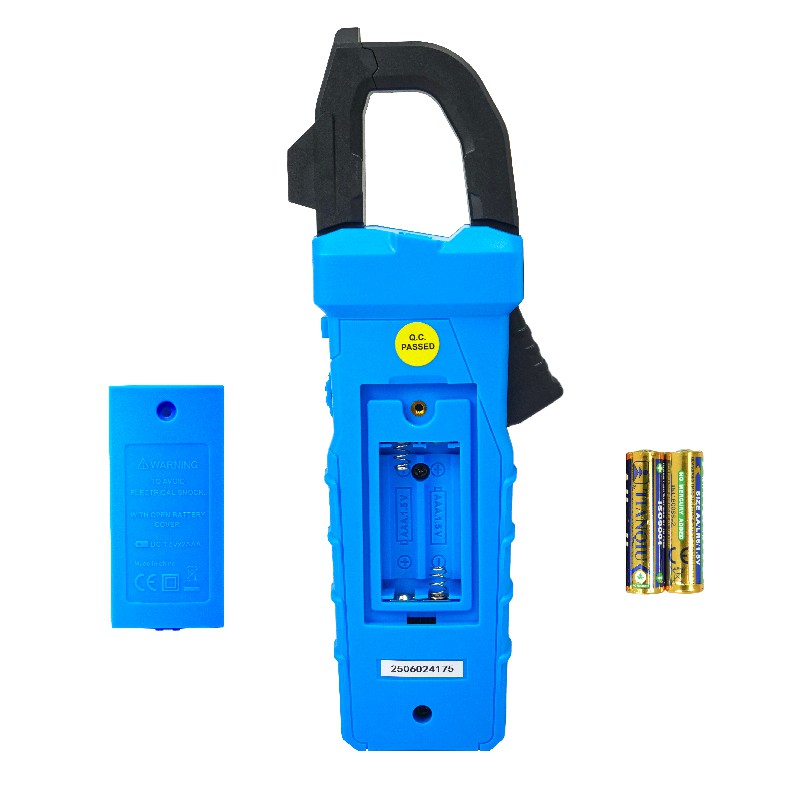

    Power SupplyLR03  1.5V×2
    Display

    4-digit LCD display, maximum display: 5999; display area: 37 mm × 35 mm

    DC VoltageRange: 600mV / 6V / 60V / 600V / 1000V

    ± (1.0%+5)

    AC VoltageRange: 6V / 60V / 600V / 1000V

    ± (1.2%+5)

    AUTO-V LoZ DC VoltageRange: 6V / 60V / 600V / 1000V

    ± (1.0%+5)

    AUTO-V LoZ AC VoltageRange: 6V / 60V / 600V / 1000V

    ± (1.2%+5)

    DC CurrentRange: 6A / 60A / 600A / 1000A

    ± (2.0%+5)

    AC CurrentRange: 6A / 60A / 600A / 1000A

    ± (2.0%+5)

    ResistanceRange: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ

    ± (1.2%+3)

    CapacitanceRange: 600nF / 6μF / 60uF / 600uF / 6mF / 60mF± (3%+20)
    FrequencyRange: 6Hz / 60Hz / 600Hz / 6KHz / 60KHz / 600KHz / 10MHz

    ± (1%+3)

    TemperatureRange: - 50℃~1000℃

    ± (1%+4)

    Automatically Ranging
    Maximum Display Value5999 (overrange display: 0L or -0L)
    DisplayTrue RMS
    Sampling TimeApprox. 3 times/second
    Overload Protection
    Automatically ShutdownAutomatically enters sleep mode 15 minutes after power-on
    Backlight Auto-off TimeApprox. 3 minutes
    Flashlight Auto-off TimeApprox. 5 minutes
    Diode Test
    NCV (live) Measurement
    Short Circuit Beep
    Low Voltage Indication
    Input ImpedanceApprox. 10MΩ
    Data Hold
    Meter Jaw SizeMaximum wire diameter: 30mm
    Dimensions222mm x 75mm x 37mm
    Weight

    Instrument: Approx. 265 g (including battery)

    Total weight: Approx. 0.47 kg (including accessories)

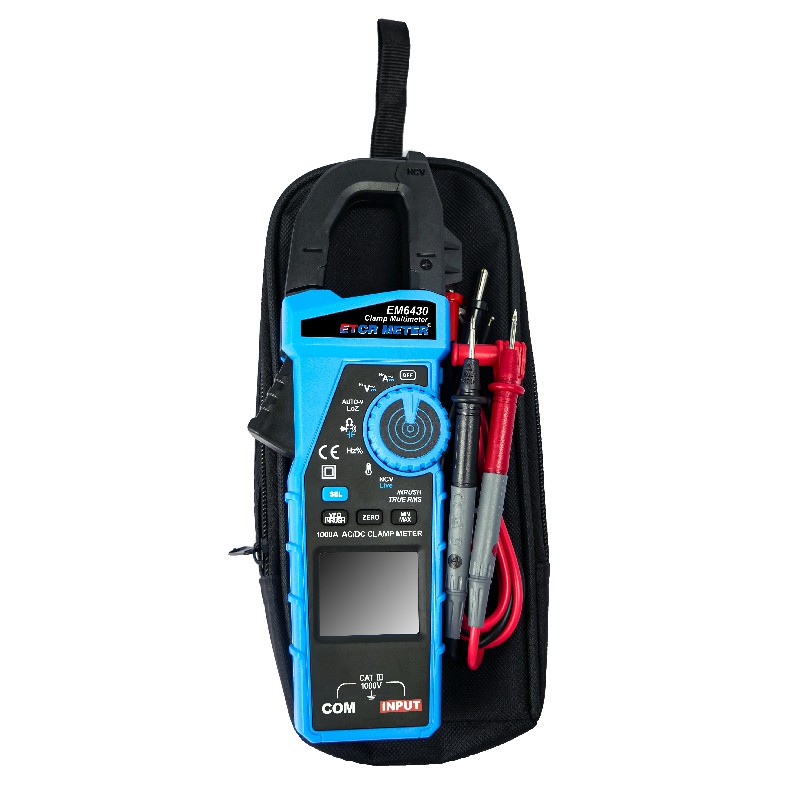

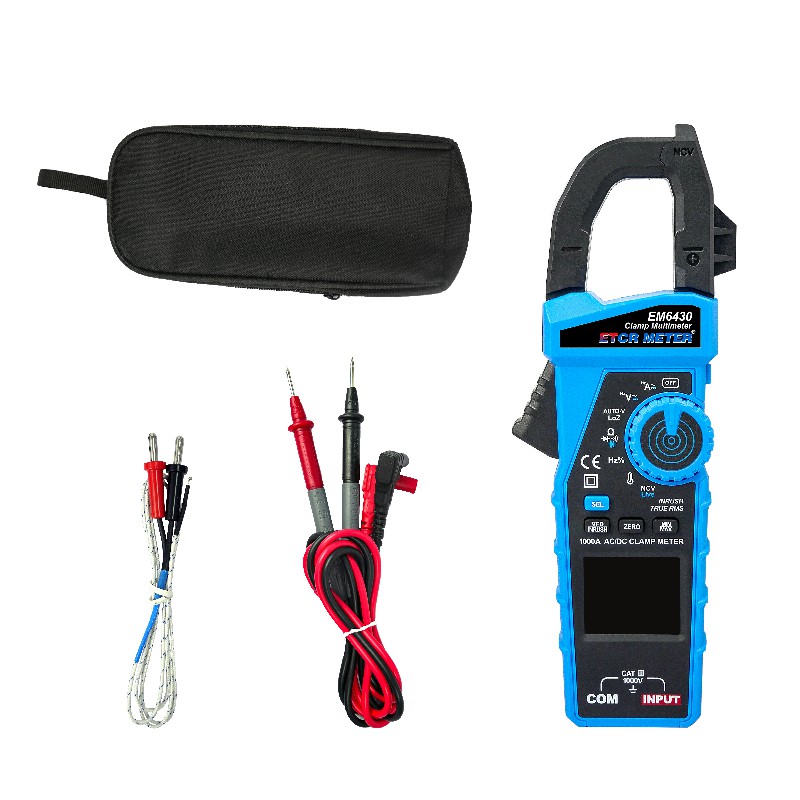

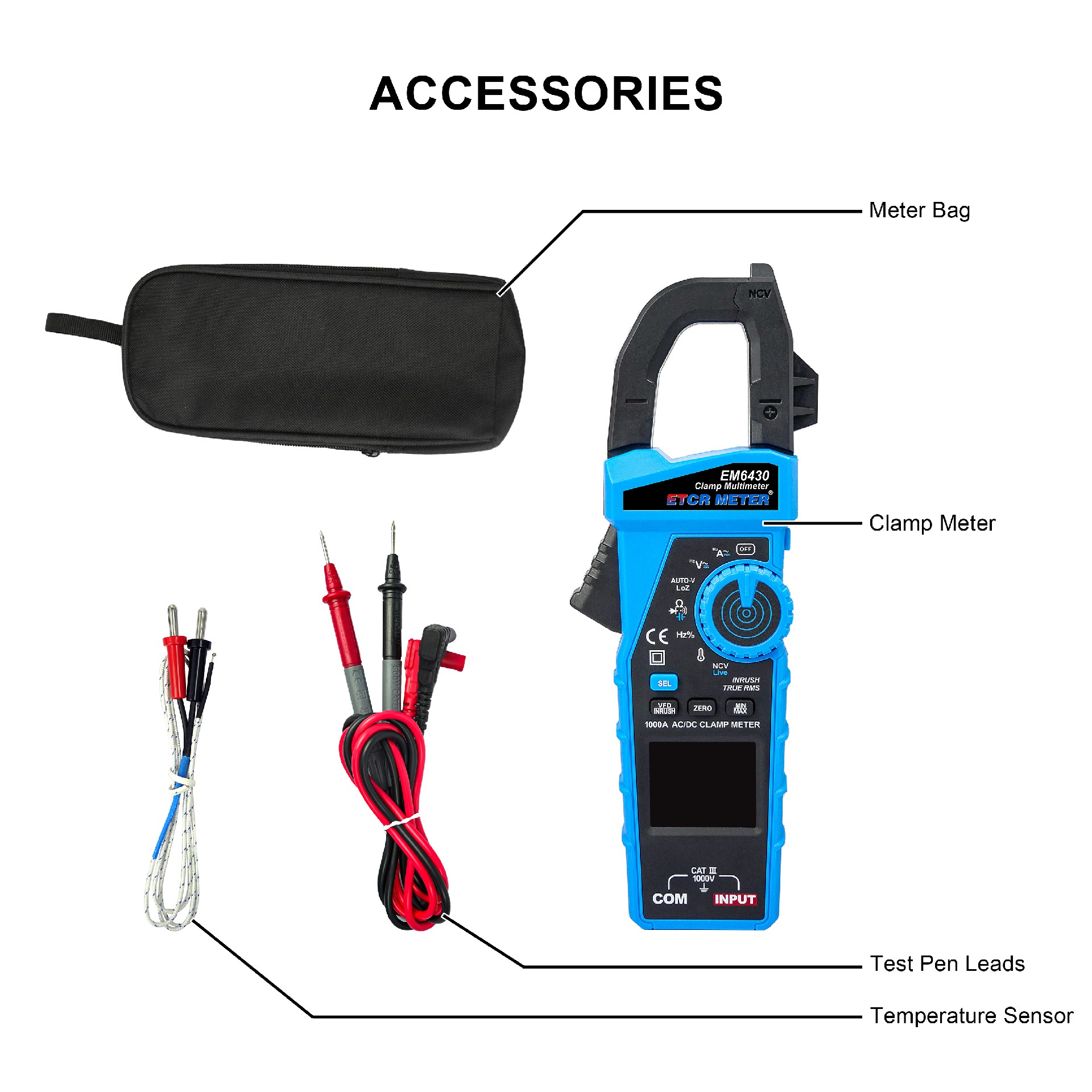

    Accessories

    Clamp meter*1PC;
    Test leads*1SET;
    Thermocouple*1PC;
    1.5V batteries*2PCS;
    Tool bag*1PC

    Model Comparison

    Product ModelVoltage RangeCurrent RangeResistance RangeCapacitance Range

    EM6420 (1).jpg

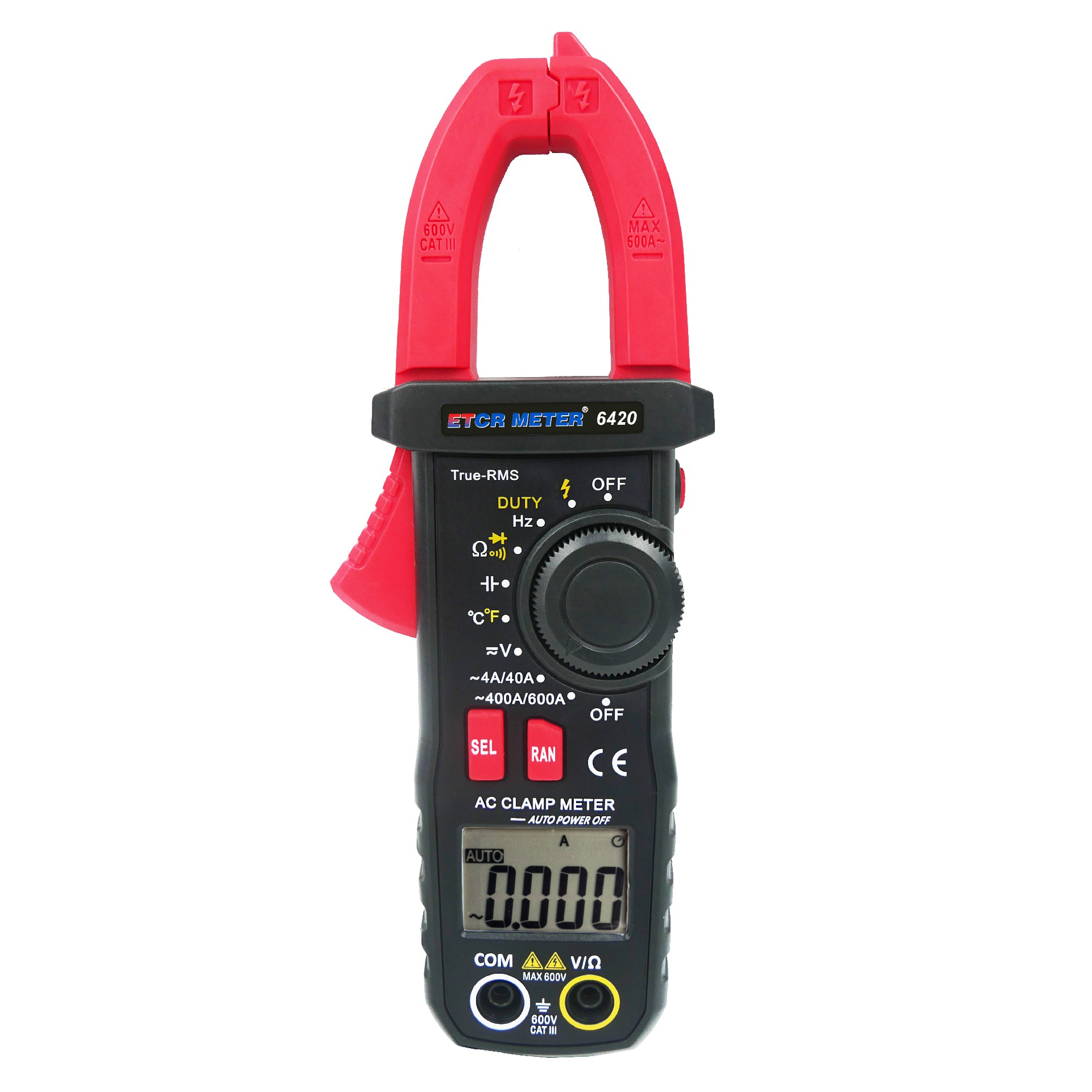

    EM6420

    DC 0mV ~ 600V

    AC 0V ~ 600V

    0A~600A0Ω ~ 40MΩ0nF ~ 10mF

    EM6420B (1)(1).png

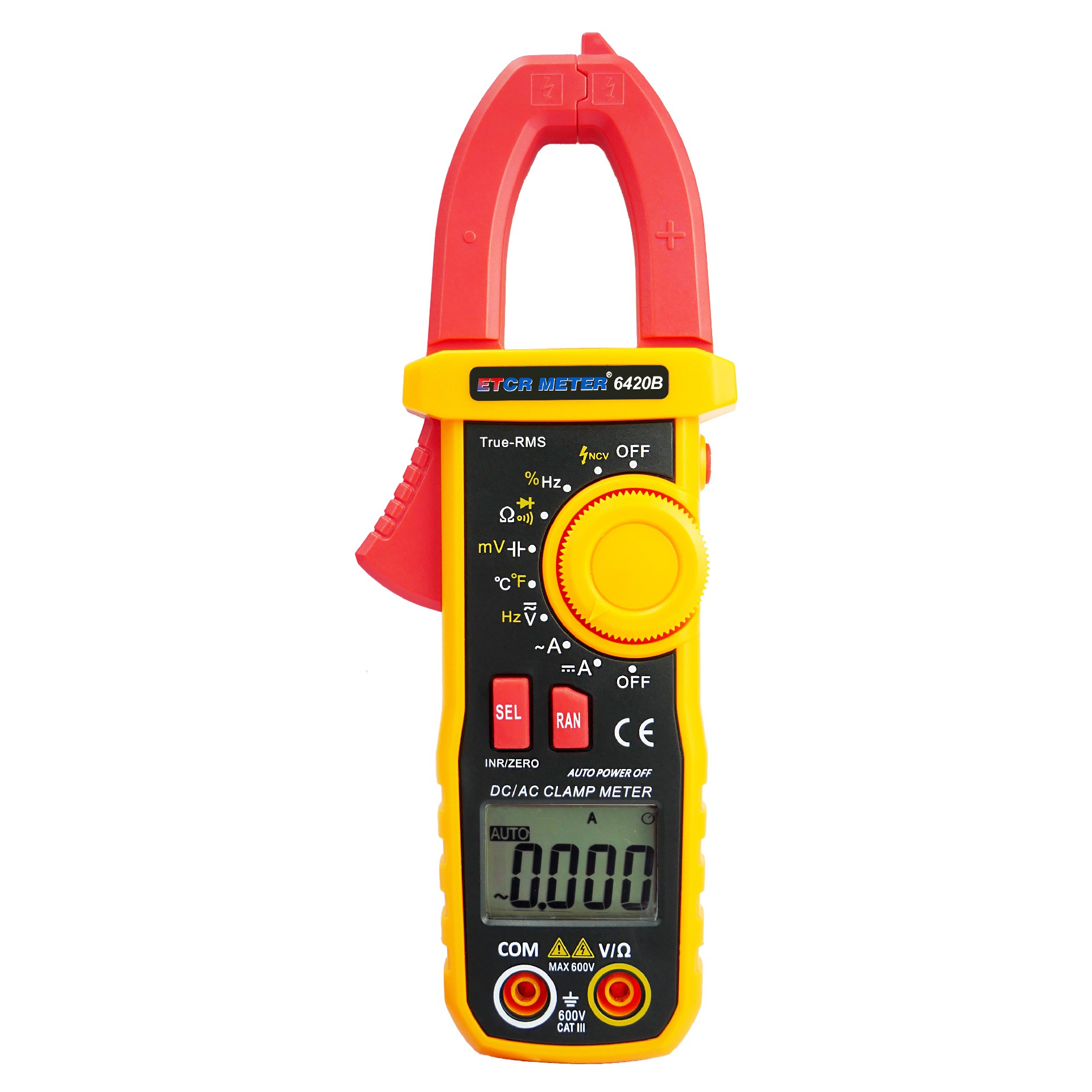

    EM6420B

    DC 0mV ~ 600V

    AC 0mV ~ 600V

    DC 0A~600A

    AC 0A~600A

    0Ω ~ 40MΩ0nF ~ 10mF

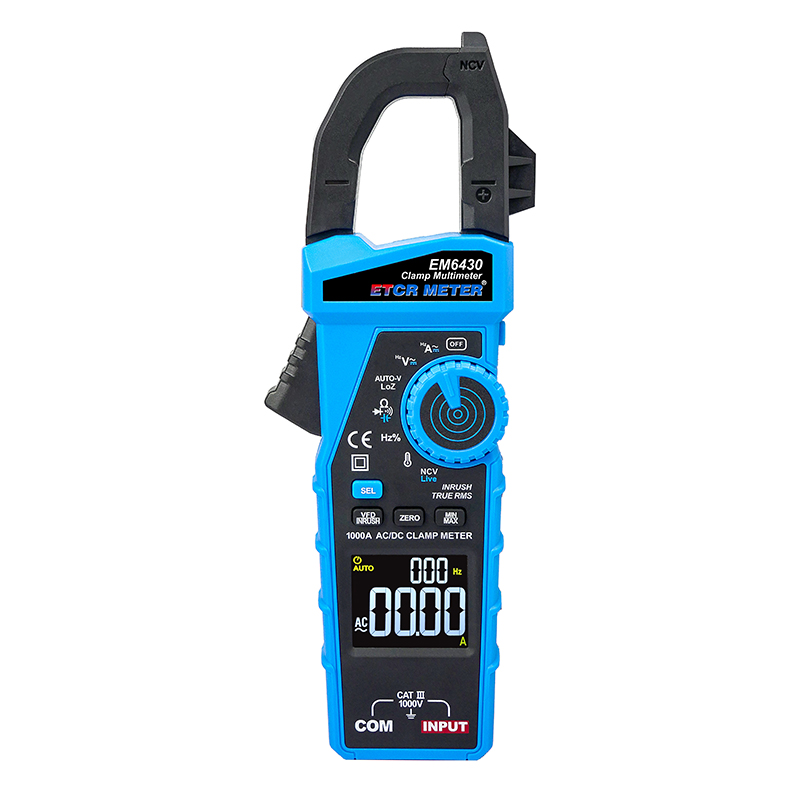

    EM6430 (1).jpg

    EM6430

    DC/AC 0mV~1000VDC/AC 0A~1000A0Ω~60MΩ0nF~60mF

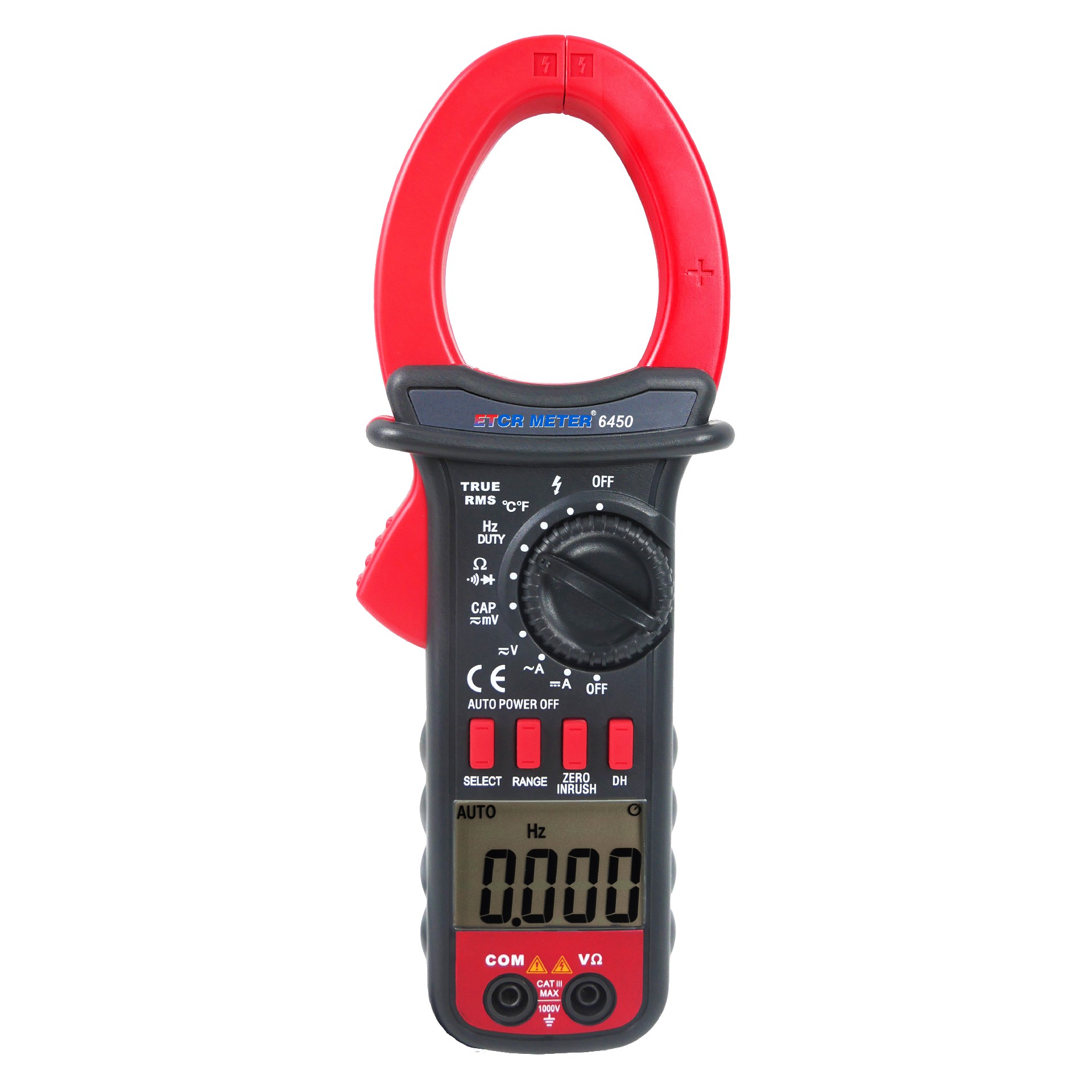

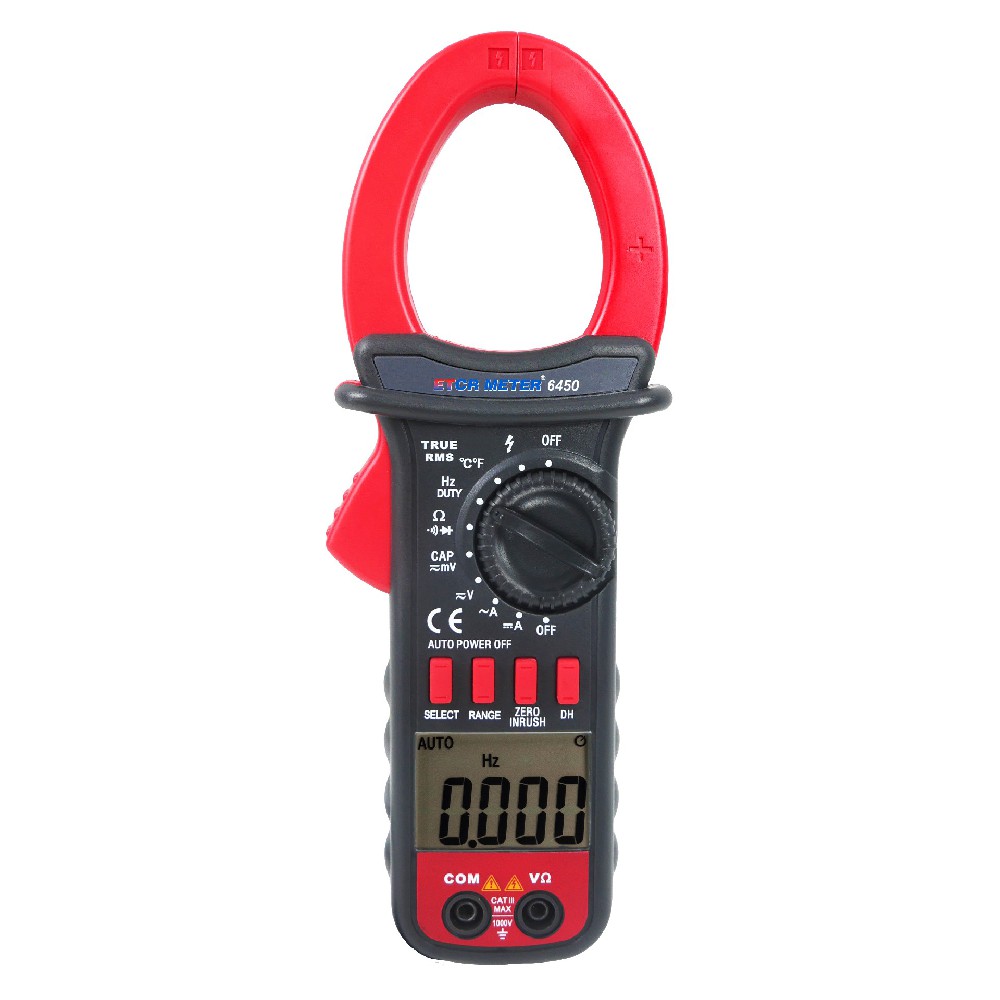

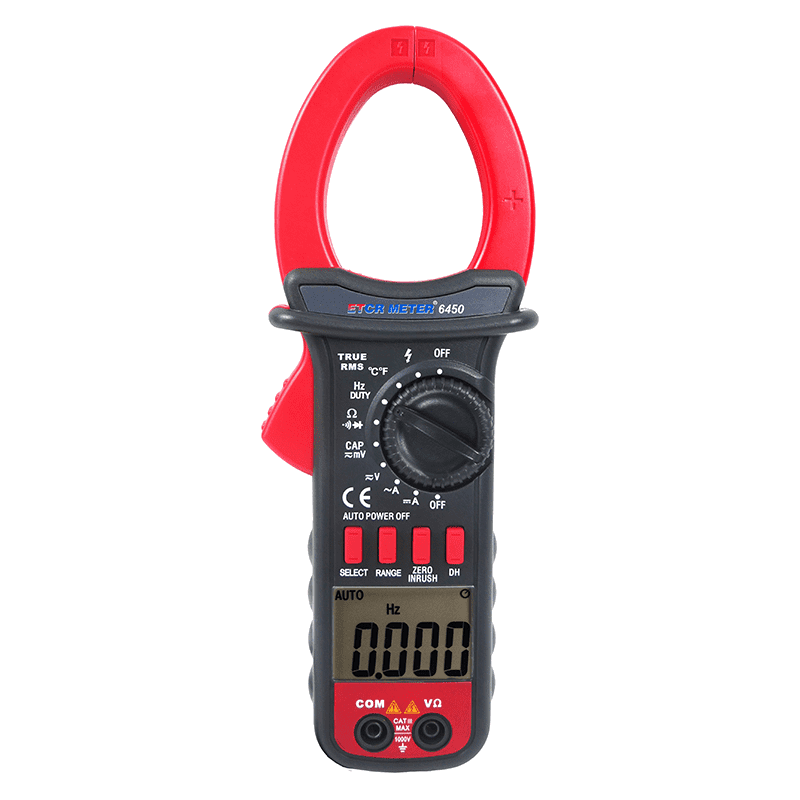

    EM6450

    DC 0mV ~ 1000V

    AC 0mV ~ 700V

    DC 0A~1000A

    AC 0A~1000A

    0Ω ~ 40MΩ0nF ~ 10mF

    EM6470 (1)(1).png

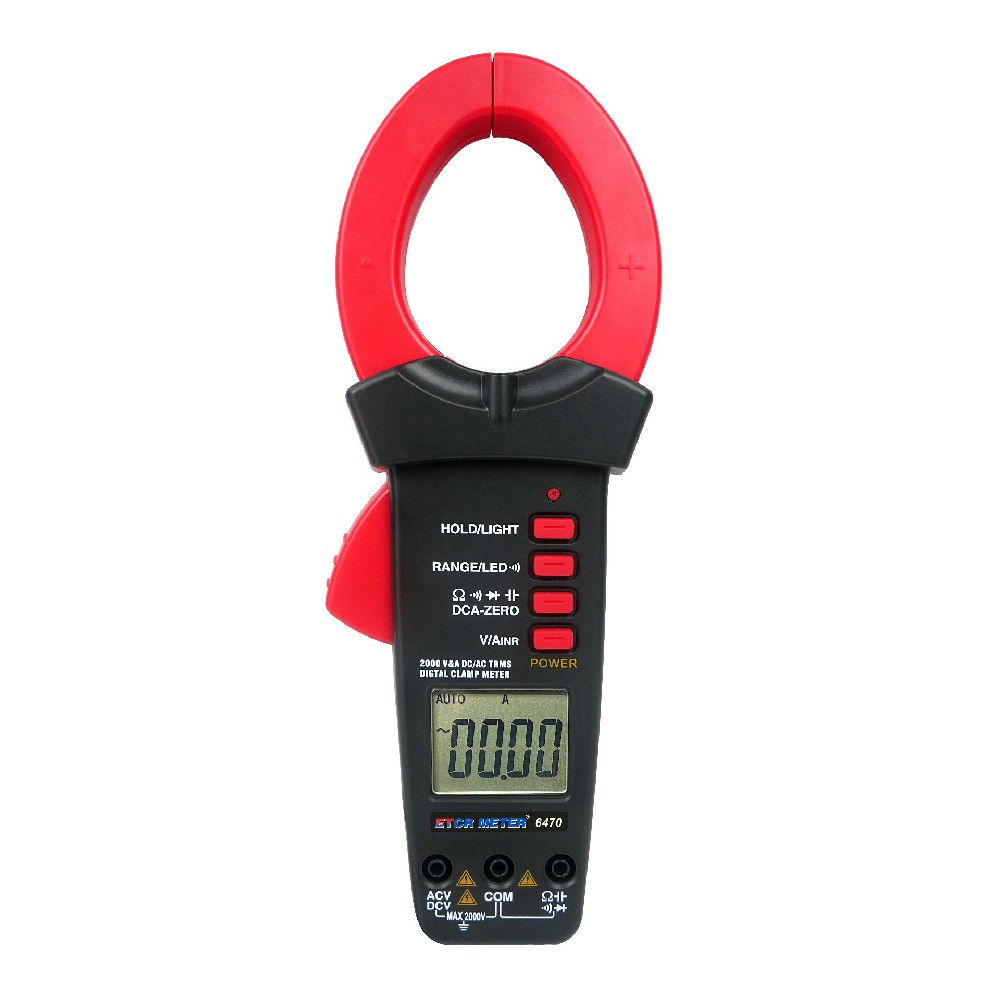

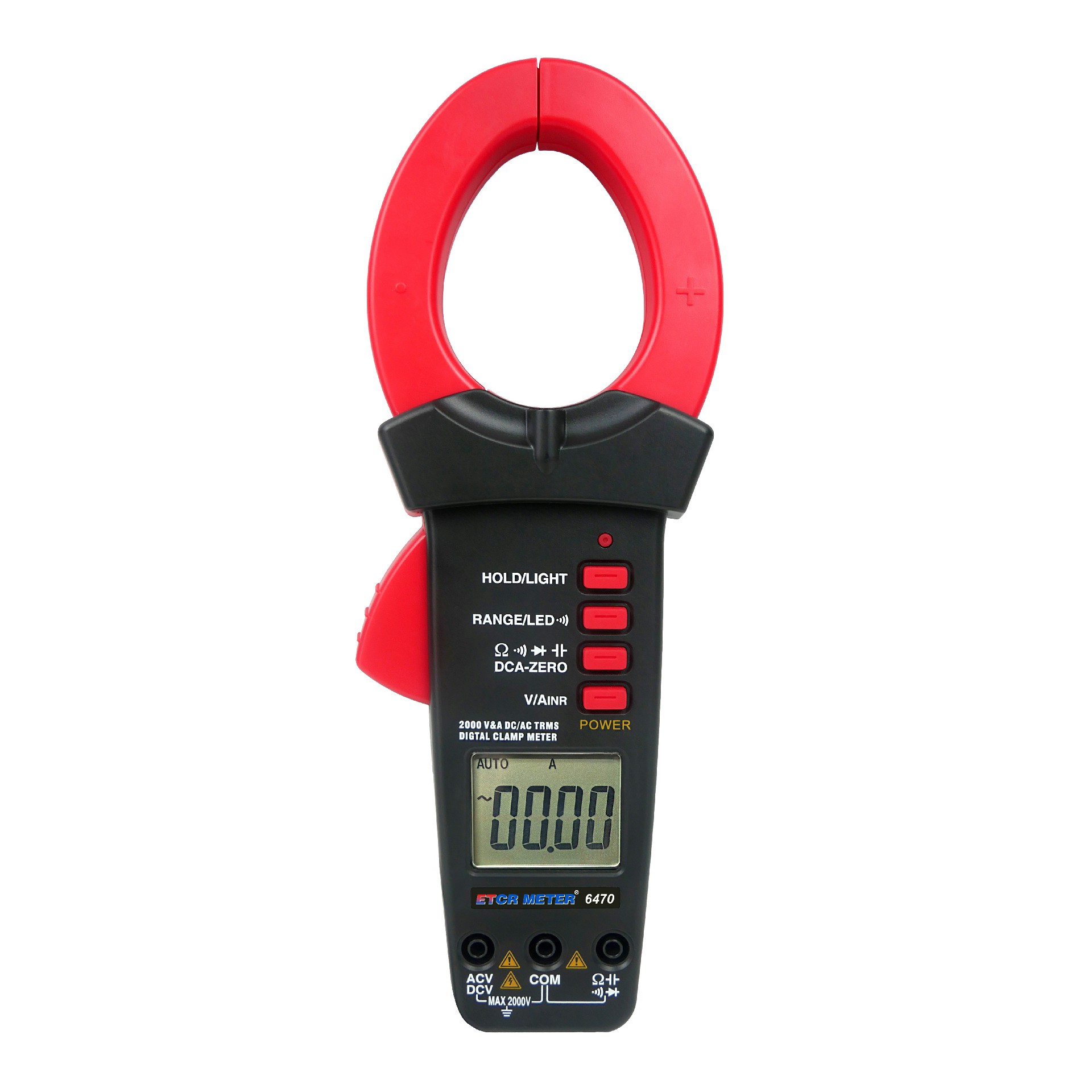

    EM6470

    DC/AC 0V ~ 2000VDC/AC 0A~2000A0Ω ~ 20MΩ0uF ~ 2000uF

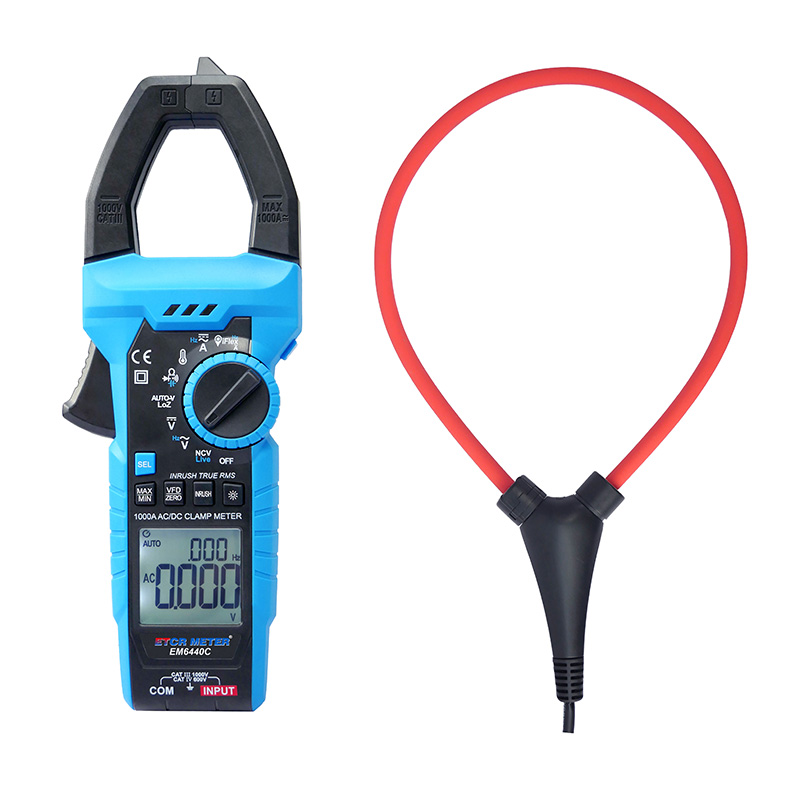

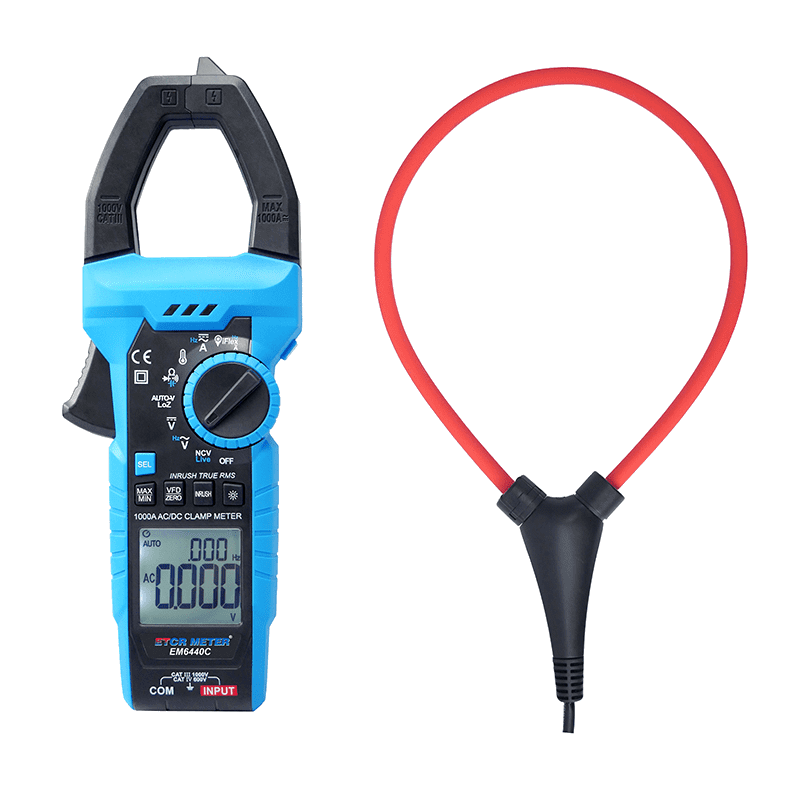

    EM6440C

    DC 600mV ~ 1000V

    AC 0mV ~ 1000V

    DC/AC 60A~1000A   600Ω ~ 60MΩ600nF ~ 60mF
