    EM6440C Clamp Multimeter
  • Product Series : Clamp Multimeter

    • Main Features

      Measurement of AC and DC current, AC and DC voltage, resistance, capacitance, diodes, and circuit continuity.
      It features MAX and MIN value locking, INRUSH surge current measurement, VFD frequency conversion measurement, flashlight illumination, temperature measurement, automatic shutdown, NCV non-contact AC voltage detection, Live hot wire identification, full-range overload protection, and low battery indication.

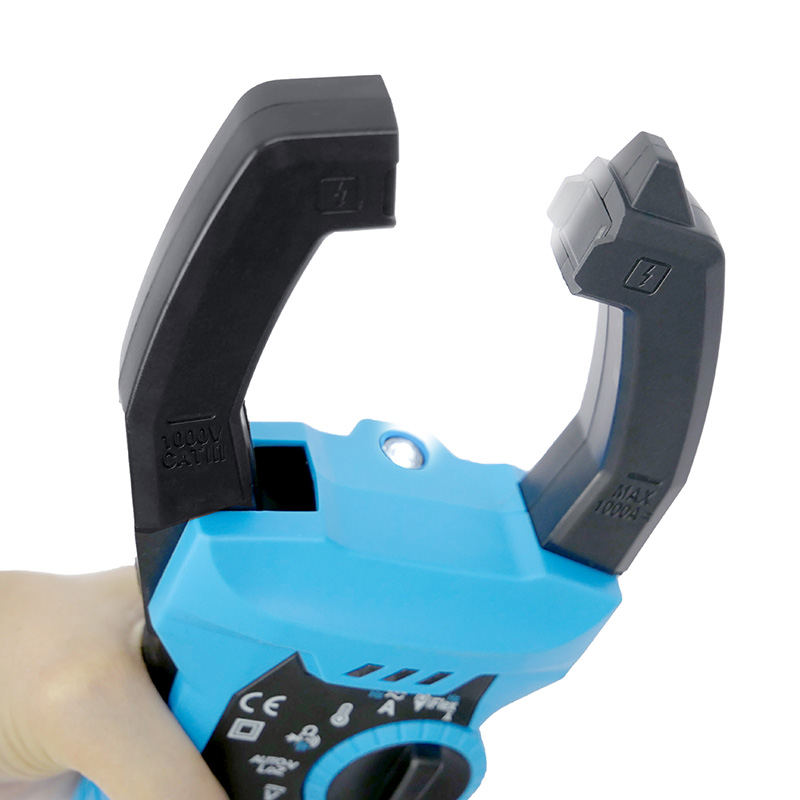

      Jaw Size: Ф42mm
      Flexible Coil Size: Ф150mm
      Voltage Measurement Range: AC 0.0mV ~ 750V; DC 0.0mV ~ 1000V
      Current Measurement Range: AC/DC 0.0A ~ 1000A/3000A
      Resistance Measurement Range: 0.0Ω ~ 60MΩ
      Capacitance Measurement Range: 0nF ~ 60mF
      Temperature Measurement Range: - 50°C ~ 1000°C

    Product Introduction

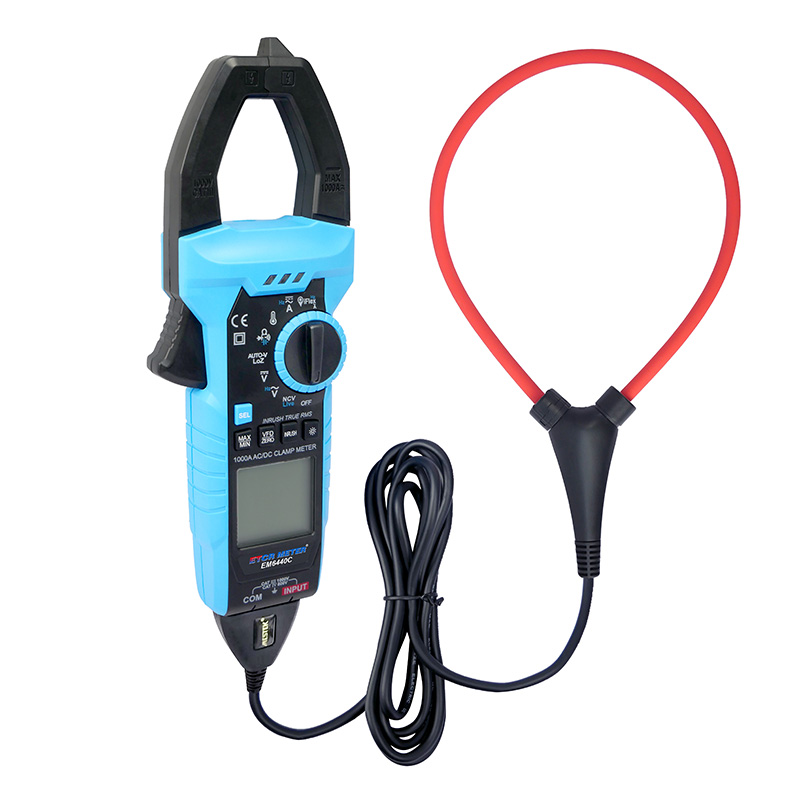

    EM6440C Clamp Multimeter is a 6000 count, automatic AC/DC range clamp meter, also known as a flexible coil multimeter, a dual-purpose multimeter, with low impedance LOZ AC/DC voltage automatic identification function, true RMS measurement, and support for iFlex flexible clamps to expand the AC current range to 3000A. IFlex flexible clamps have higher flexibility and are suitable for conductors of various sizes, with a wider range of application scenarios.
    The meter can be used to measure AC/DC current, AC/DC voltage, resistance, capacitance, diode, and line continuity. It has MAX maximum value, MIN minimum value lock, INRUSH surge current measurement VFD frequency conversion measurement, flashlight lighting, temperature measurement, automatic shutdown, NCV non-contact AC voltage detection, Live live wire identification, full-range overload protection, low battery indication and other functions.
    ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.


    Product Features
    1. Support iFlex flexible clamp to expand the AC current range to 3000A.
    2. With low impedance LOZ AC and DC voltage automatic recognition function, it has true RMS measurement.
    3. The perfect combination of clamp meter and multimeter, using high-performance new MCU processor, easy to carry, is an ideal tool for electrical measurement.
    EM6440C (7).jpg EM6440C (8).jpg

    Technical Parameters

    Specification NameParameters Description
    Power Supply3*1.5V AAA
    DC VoltageRange: 600mV / 6V / 40V / 600V / 1000V± (0.8 % + 3)
    AC VoltageRange: 6V / 60V / 600V / 750V± (1.0 % + 5)
    DC CurrentRange: 60A / 600A / 1000A± (2.5 % + 10)
    AC CurrentRange: 60A / 600A / 1000A ± (2.5 % + 10)
    Flexible ClampRange: 3000A ± (3 % + 5)
    ResistanceRange: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ± (1 % + 3)
    CapacitanceRange: 600nF / 6μF / 60uF / 600uF / 6mF / 60mF± (3 % + 20)
    TemperatureRange: - 20°C ~ 1000°C± (1 % + 4)
    Auto Range√
    DisplayTrue RMS
    Overload protection√
    Auto shutdownApprox. 10 minutes, can be set to no automatic shutdown
    Diode TestCan measure LED operating voltage below 2.5V
    NCV (live line) Measurement√
    Short Circuit Buzzer√
    Low Voltage Indicator√
    Input ImpedanceApprox. 10MΩ
    Data Hold√
    CT SizeMax. Ф42mm
    Diameter of Flexible CoilФ150mm
    Meter Weight368g (without accessories)
    Meter Dimension250 x 85 x 45mm

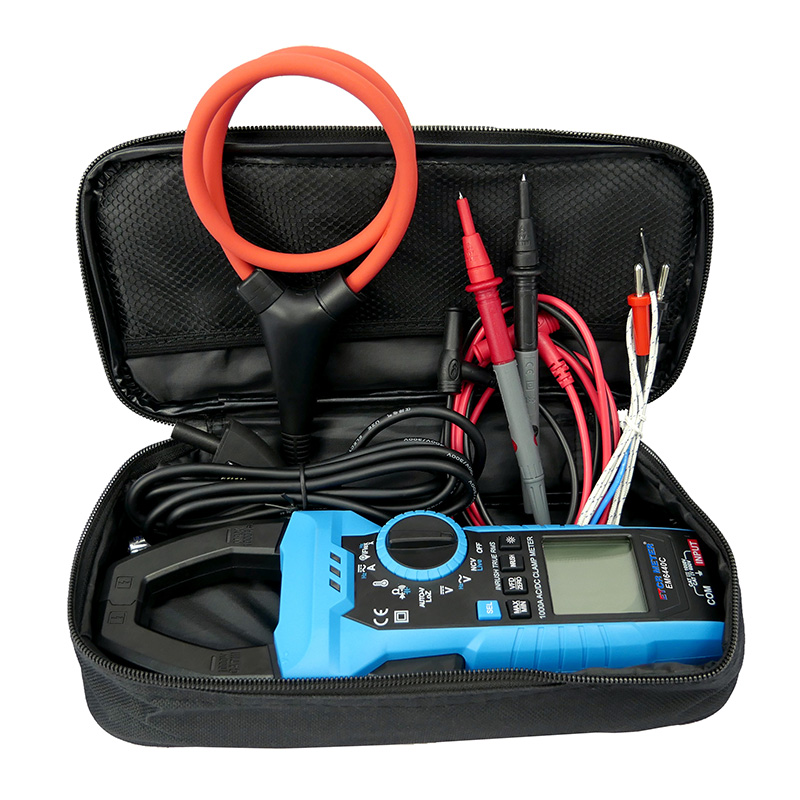

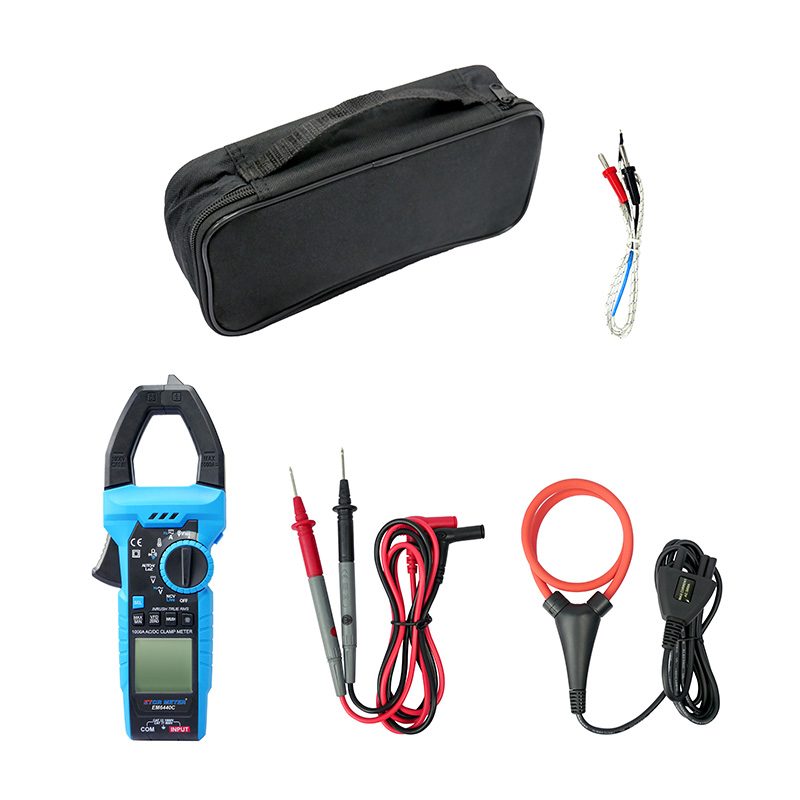

    Accessories

    Tester*1PC;
    Pen probe*1SET;
    Temperature sensor*1SET;
    Meter Bag*1PC;
    1.5V battery*3PCS

    Model Comparison

    Product ModelVoltage RangeCurrent RangeResistance RangeCapacitance Range

    EM6420 (1).jpg

    EM6420

    DC 0mV ~ 600V

    AC 0V ~ 600V

    0A~600A0Ω ~ 40MΩ0nF ~ 10mF

    EM6420B (1)(1).png

    EM6420B

    DC 0mV ~ 600V

    AC 0mV ~ 600V

    DC 0A~600A

    AC 0A~600A

    0Ω ~ 40MΩ0nF ~ 10mF

    EM6430 (1).jpg

    EM6430
    DC/AC 0mV~1000VDC/AC 0A~1000A0Ω~60MΩ0nF~60mF


    EM6450

    DC 0mV ~ 1000V

    AC 0mV ~ 700V

    DC 0A~1000A

    AC 0A~1000A

    0Ω ~ 40MΩ0nF ~ 10mF

    EM6470 (1)(1).png

    EM6470
    DC/AC 0V ~ 2000VDC/AC 0A~2000A0Ω ~ 20MΩ0uF ~ 2000uF


    EM6440C

    DC 600mV ~ 1000V

    AC 0mV ~ 1000V

    DC/AC 60A~1000A   600Ω ~ 60MΩ600nF ~ 60mF
