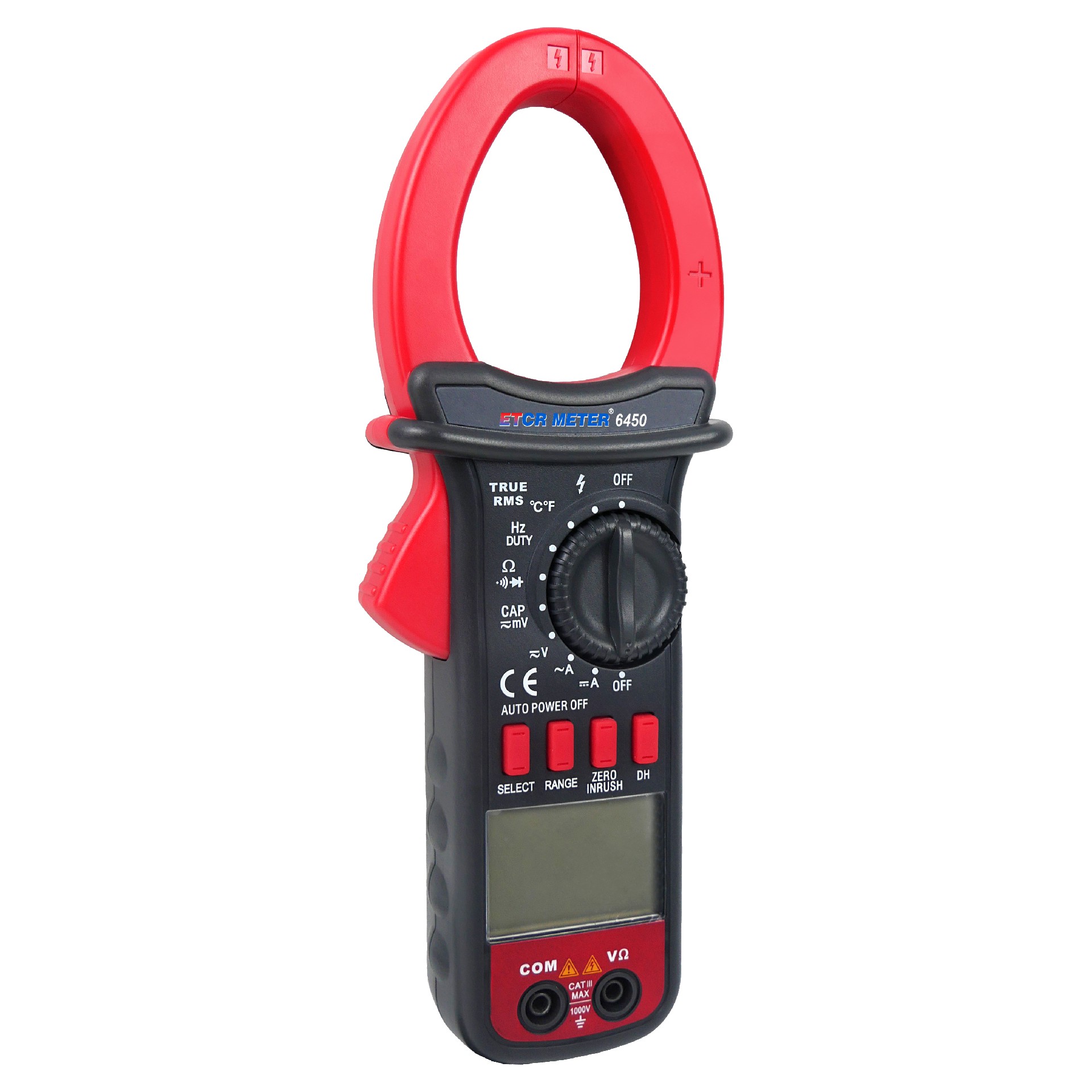

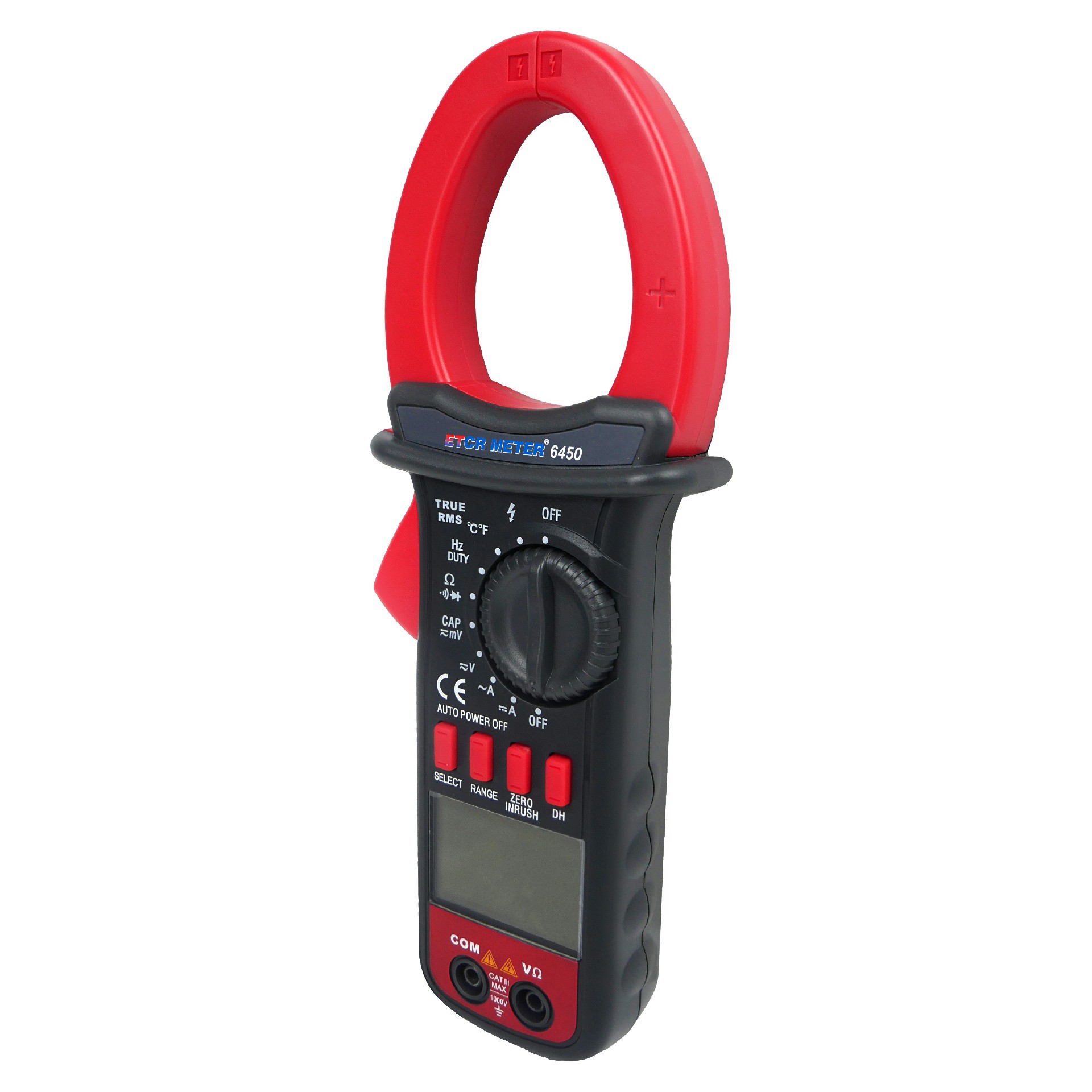

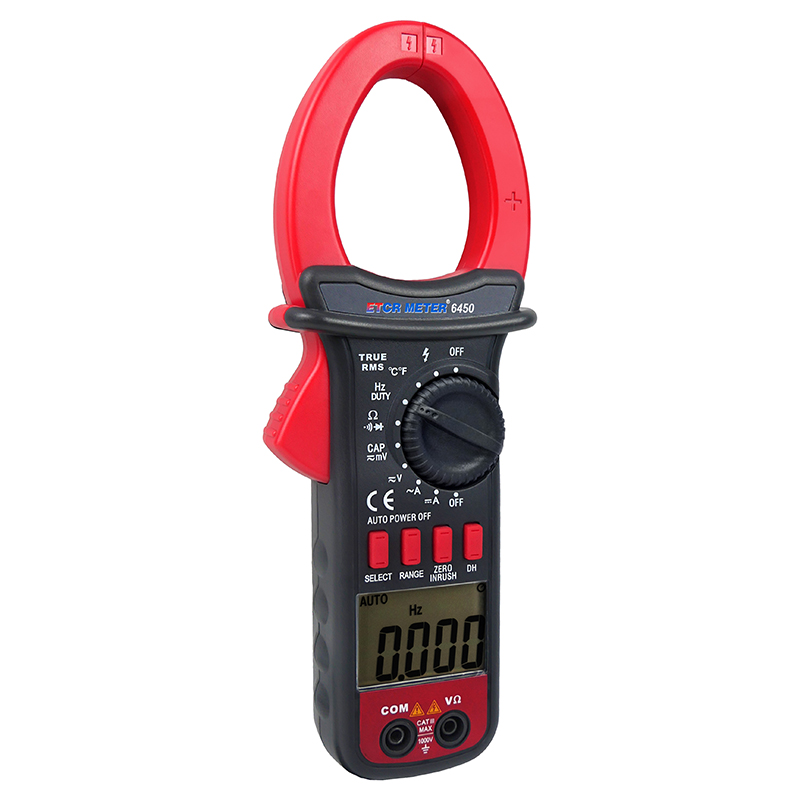

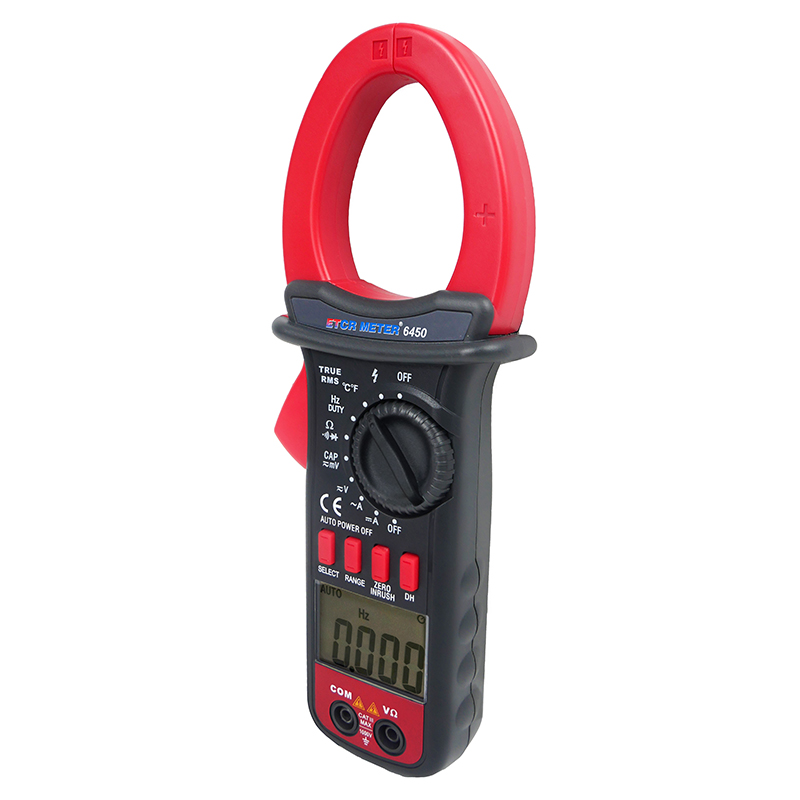

    ETCR EM6450 Clamp Type Multimeter
  • Product Series : Clamp Multimeter

    • Main Features

      Used for measurement of DC voltage, AC voltage, AC current true effective value (TRMS), surge, capacitance, frequency, continuity test, forward voltage drop of diode ,etc.
      Clamp jaw size: Ф52mm
      Voltage measurement range: DC 0mV~1000V; AC 0mV~700V
      Current measurement range: DC 0A~1000A; AC 0A~1000A
      Resistance measurement range: 0Ω~40MΩ
      Capacitance measurement range: 0nF~10mF
      Frequency measurement range: 10Hz~40MHz
      Temperature measurement range: -50°C~1000°C

    Product Introduction

    ETCR EM6450 Clamp Multimeter, also known as multifunctional clamp type ammeter, the multimeter adopt with new type MCU processor with high performance, and with extremely high cost performance ratio, also has the characteristics of high reliability, high safety, automatic range, handheld clamp meter, etc.


    With large digital screen, full range overload protection, data hold, undervoltage prompt, automatic shutdown function, true effective value (TRMS) can accurately measure frequency conversion voltage, non-sine wave voltage, surge current can measure the effective value of surge current with a period of 80mS. The multimeter also equipped with temperature measurement function that can accurately measure -50~1000℃, making this instrument very suitable for inverter power supply, air conditioning, refrigerator and other refrigeration equipment, motor performance testing, etc. DC 40A, 400A, 1000A DC current range function is widely used in electroplating, DC welding machine, auto testing and all kinds of DC current measurement occasions above 500mA.


    ETCR EM6450 Clamp Multimeter can be used in Various colleges and universities, smelting, communications, manufacturing, petroleum, national defense, electric power, electronics, and power equipment testing, maintenance and repair ideal tools. It provides a safe, accurate and convenient new type of power meter for electricity inspectors, which is an essential tool for electrician safety testing.


    1. The perfect combination of clamp meter and multimeter, using new type MCU processor with high performance, easy to carry, is an ideal tool for electrical measurement.
    2. It can measure the effective value of the surge current with a period of 80mS.

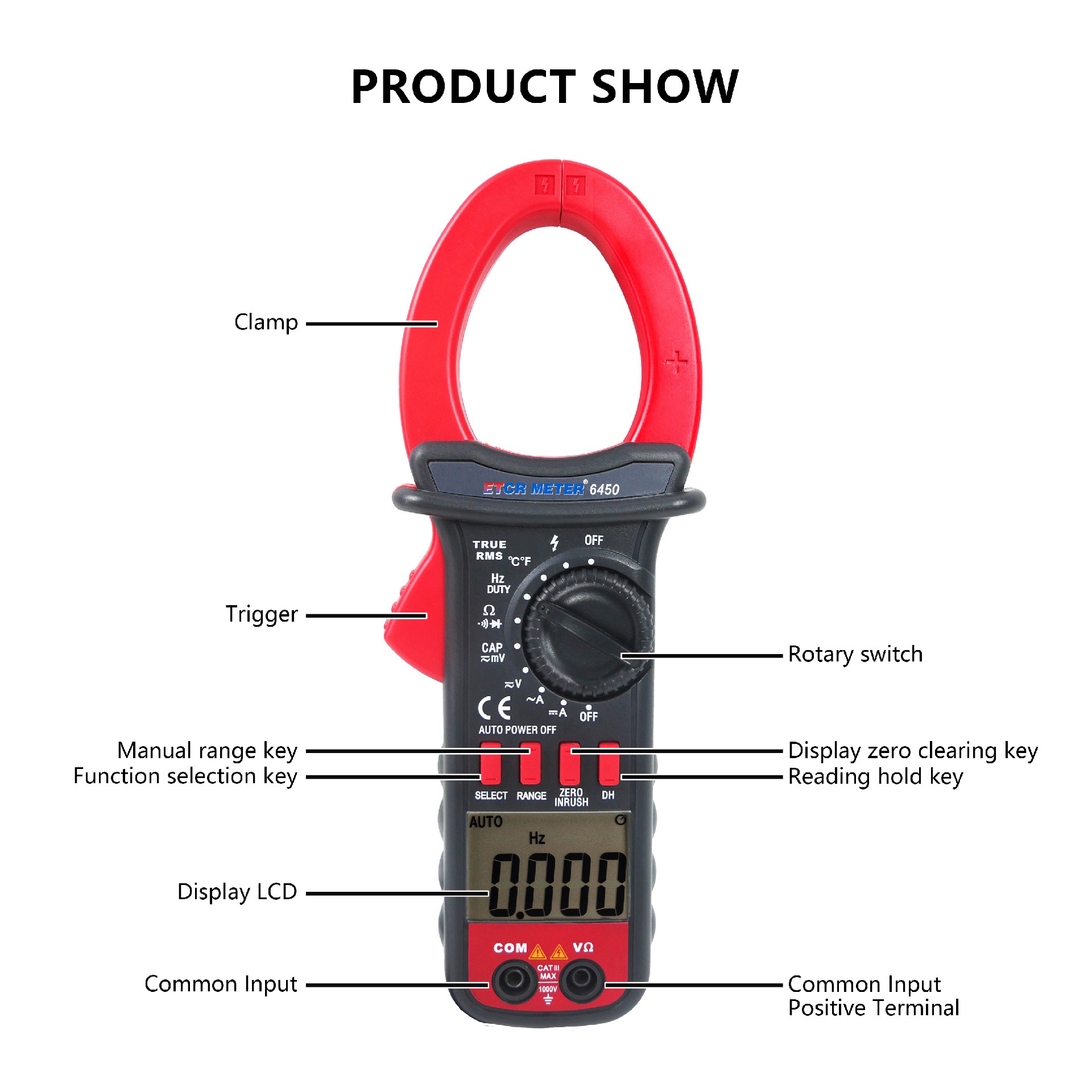

    EM6450 (8).jpg

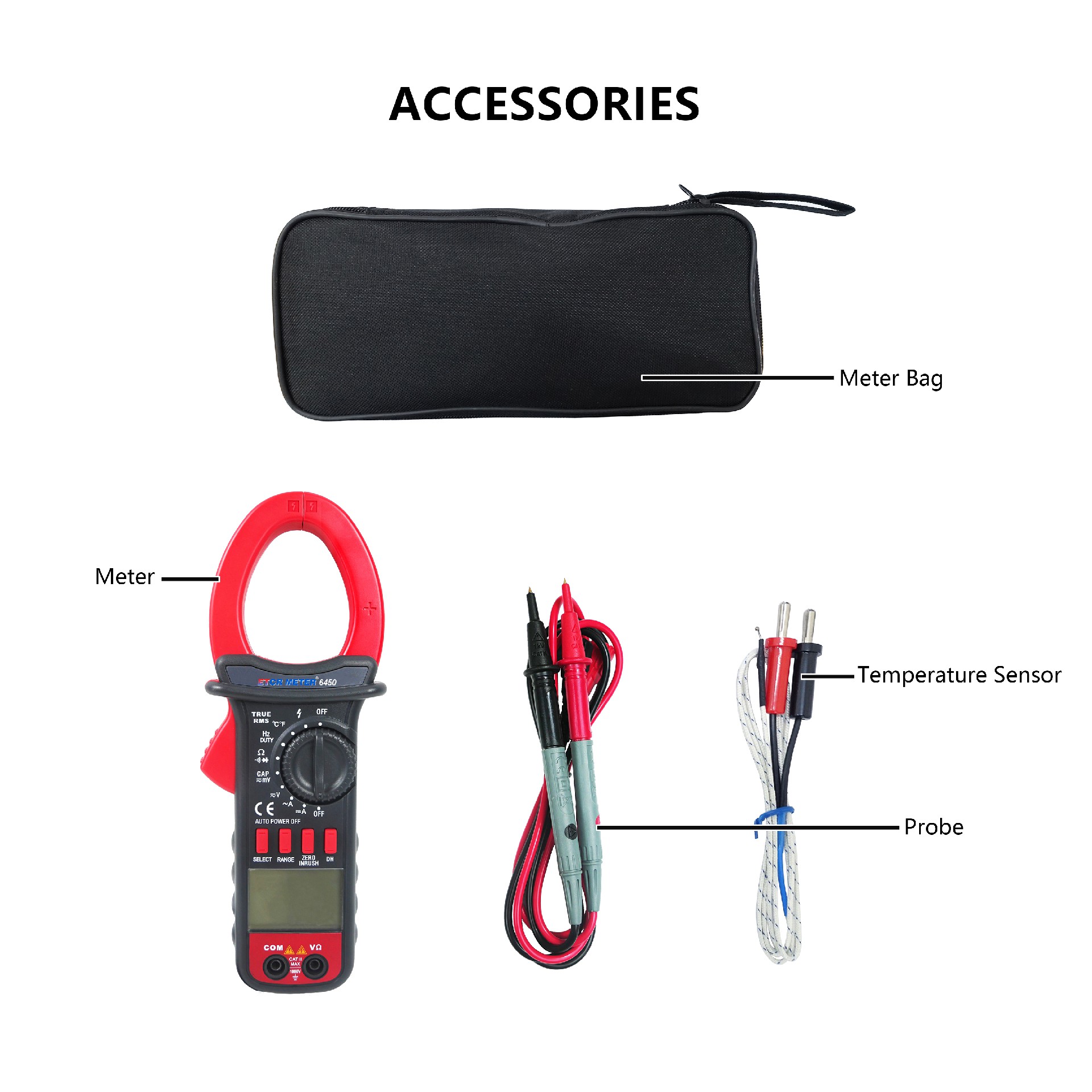

    EM6450 (7).jpg

    Technical Parameters

    Basic function

    DC Voltage

    400mV/4V/40V/400V/1000V                           ±(0.8%+2)

    AC Voltage

    400mV/4V/40V/400V/700V                            ±(1.2%+5)

    DC Current

    40A/400A/1000A                                     ±(2%+5)

    AC Current

    4A/40A/400A/1000A                                     ±(2%+5)

    Resistance

    400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ                      ±(1%+3)

    Capacitance

    10nF/100nF/1uF/10uF/100uF/1000uF/10mF             ±(3%+5)

    Frequency

    10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz   ±(0.5%+3)

    Temperature

    -50°C~1000°C                                       ±(1%+5)

    Special function

    Auto Range

    Manual Range

    AC Conversion Type

    True RMS

    Input Protection



    Auto Shutdown

    about 10 minutes, can be set and cancel auto shutdown function

    Diode Test

    Can measure the LED work voltage below 3V

    Duty Ratio Measurement

    Voltage Frequency Measurement

    NCVLive lineMeasurement

    Short Circuit Buzzer

    Low Voltage Indicator

    Input Impedance

    about 10MΩ

    Data Hold

    Surge Signal Measurement

    CT Size

    Ф52mm

    General features

    Power Supply

    6F22  9VX1

    Meter Weight

    360g (with battery)

    Meter Dimension

    249X89X38mm

    Accessories

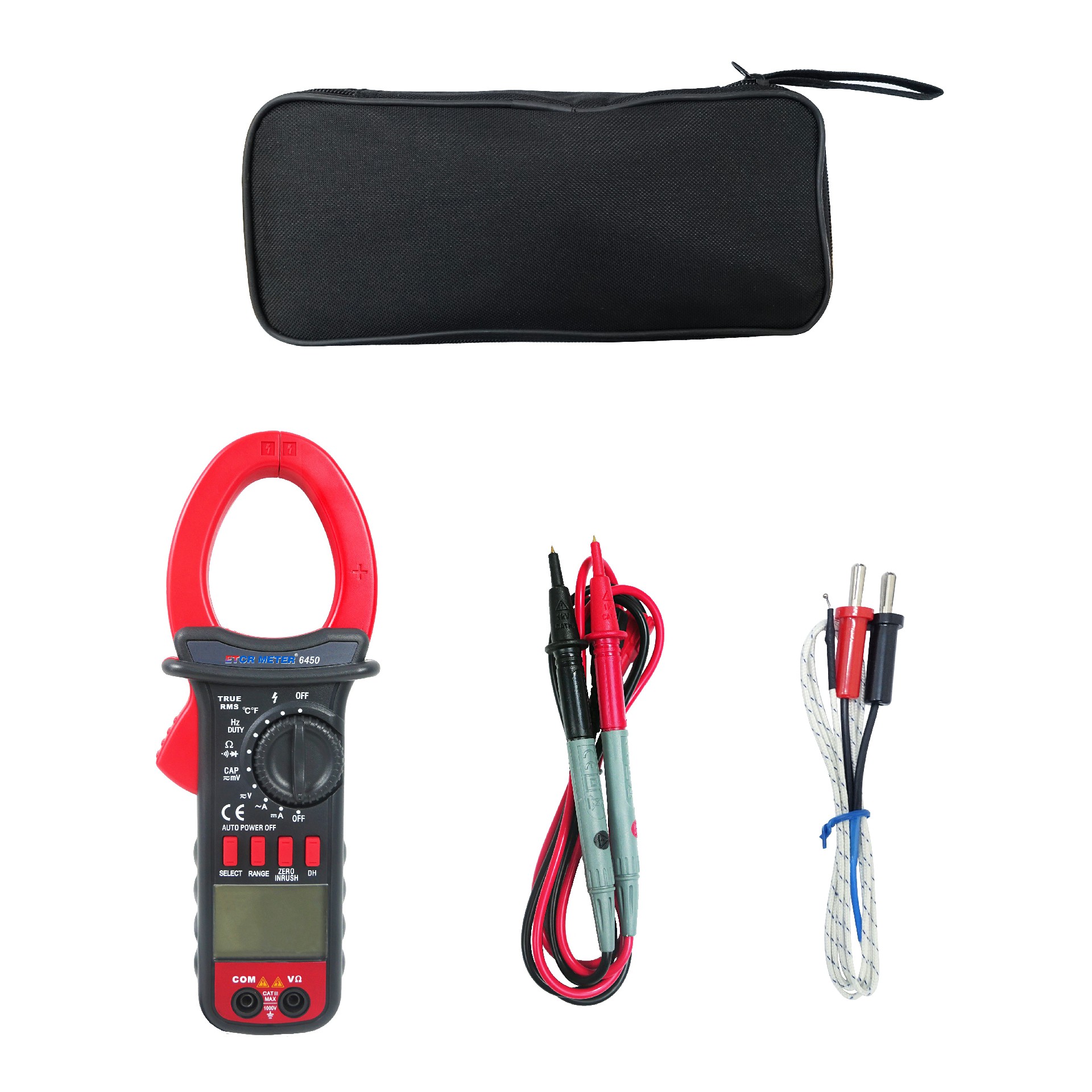

    Tester: 1pcs; Pen probe: 1set; Temperature sensor: 1set; Meter Bag: 1pcs


    Model Comparison

    roduct PictureProduct Model NameClamp Jaw SizeVoltage RangeCurrent RangeResistance RangeCapacitanceFrequencyTemperature
    EM6420 (1).jpgETCR EM6420 Clamp Type MultimeterΦ27mmAC/DC 600VAC 600A40MΩ10mF40MHz-50℃~1000℃
    EM6420B (2).jpgETCR EM6420B  Clamp Type MultimeterΦ27mmAC/DC 600VAC/DC 600A
    40MΩ10mF40MHz-50℃~1000℃

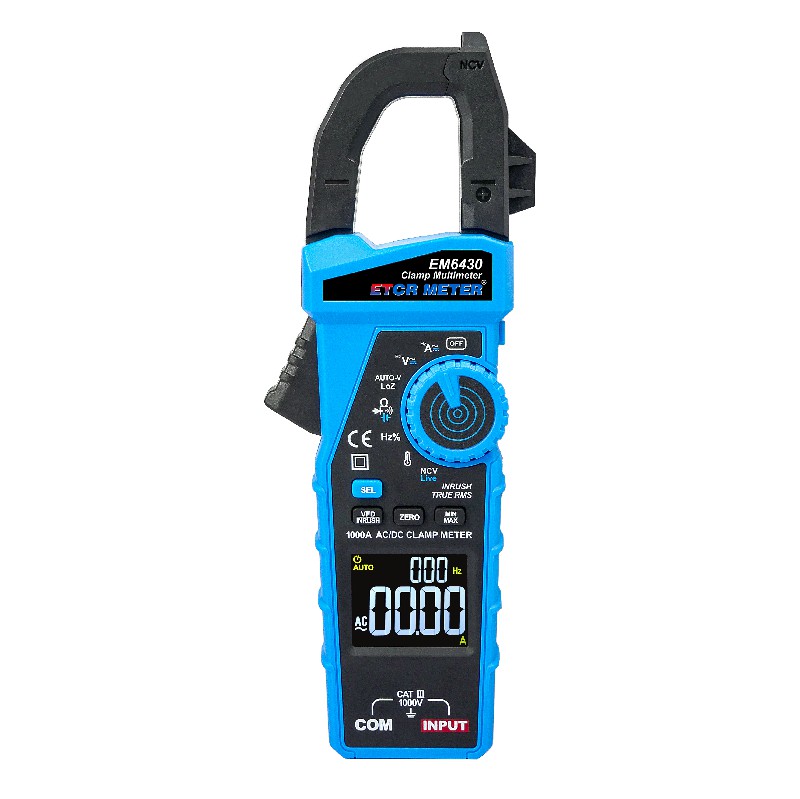

    EM6430 (1).jpgEM6430 Clamp Multimeter

    Ф30mm

    AC/DC 1000VAC/DC 1000A

    60MΩ

    60mF
    10MHz
    -50℃~1000℃
    EM6450 (1).jpgETCR EM6450 Clamp Type MultimeterΦ52mm

    DC 0mV~1000V

    AC 0mV~700V

    AC/DC 1000A40MΩ10mF40MHz-50℃~1000℃
    EM6470 (1)~1.jpgETCR EM6470  Clamp Type MultimeterΦ55mmAC/DC 2000VAC/DC 2000A20MΩ2000uF----
    EM6440C (1).jpgETCR EM6470 Clamp Type MultimeterФ42mm

    DC 600mV~1000V

    AC 0mV~1000V

    DC/AC 60A~1000A 600Ω~60MΩ600nF~60mF---20°C~1000°C
