Product Introduction

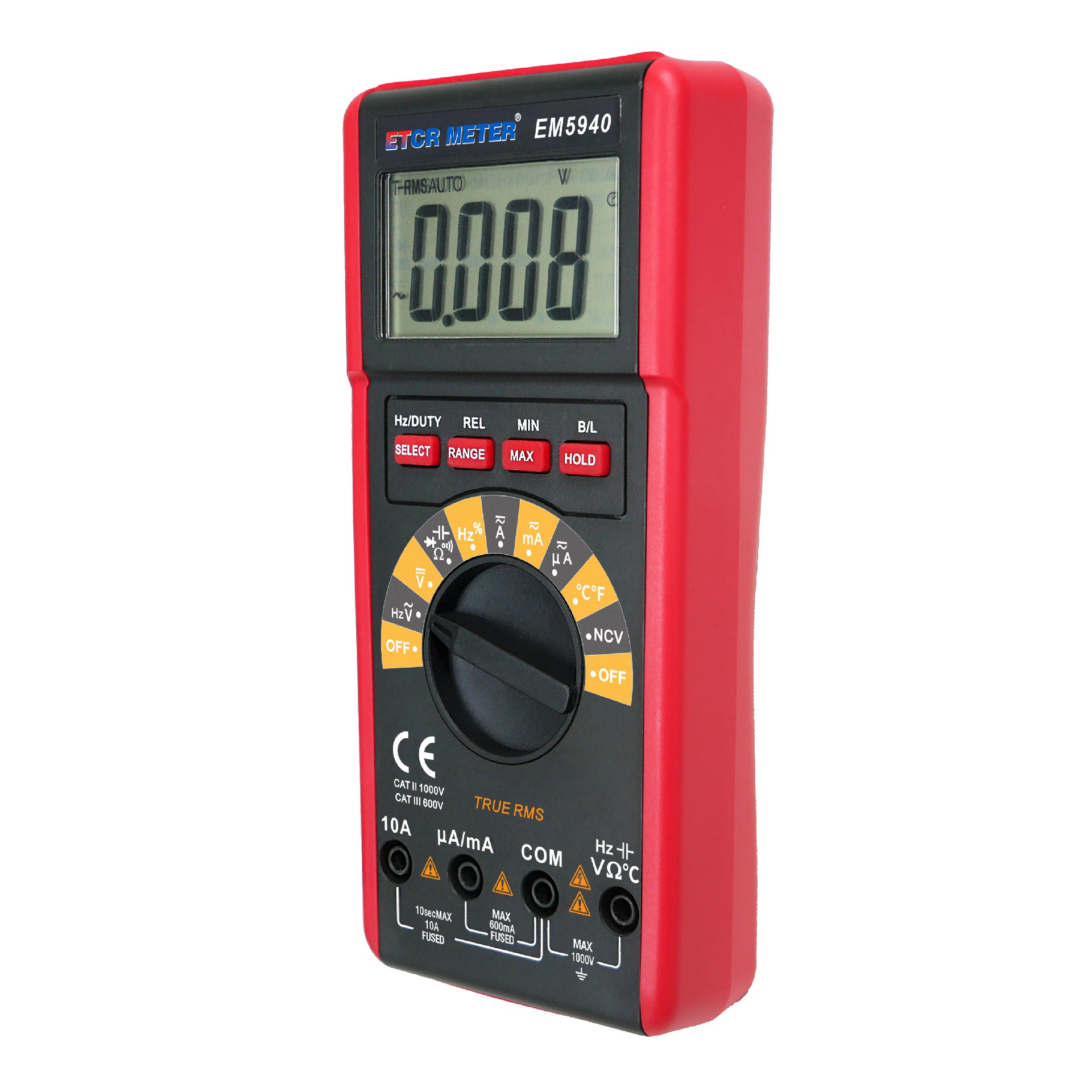

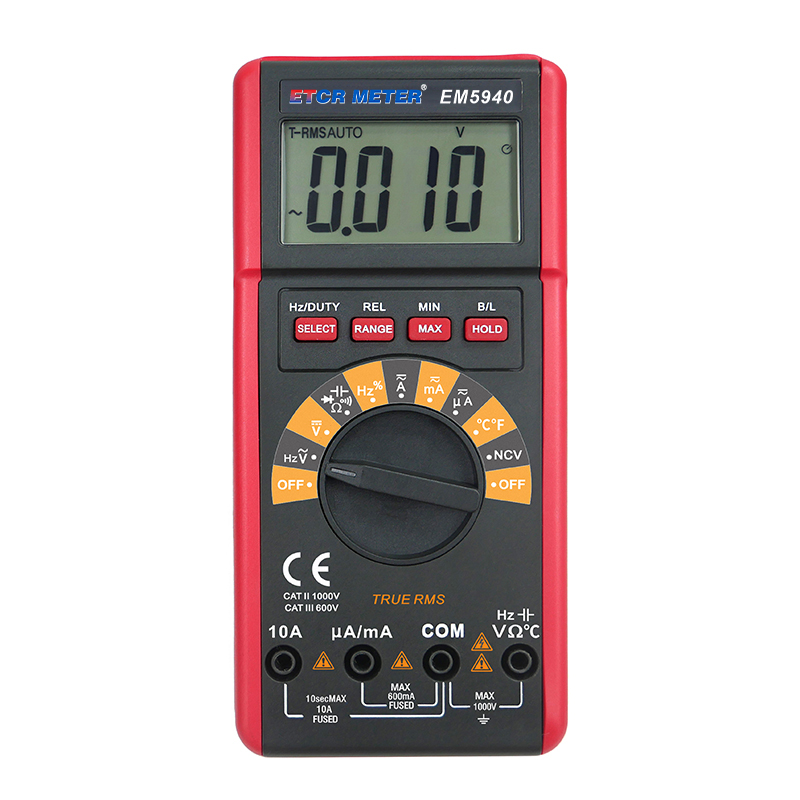

ETCR EM5940 Digital Multimeter, also known as smart multimeter, which is a 3 5/6 bit portable automatic range digital multimeter that can measure AC voltage true RMS (TRMS), DC voltage, AC current true RMS (TRMS), DC current, resistance, frequency, capacitance, temperature, on-off test, diode forward voltage drop, etc. The instrument is compact in structure, easy to operate and carry, which is an ideal tool for electrical and electronic measurement.

1.3 5/6 bit portable automatic range digital multimeter, compact in structure, easy to operate and carry, which is an ideal tool for electrical and electronic measurement.
2.Equipped with backlight, read data hold, which is convenient for user to read out the measured value in dark place.
3.With automatic shutdown, data hold function.
4.Frequency, duty ratio measurement function.

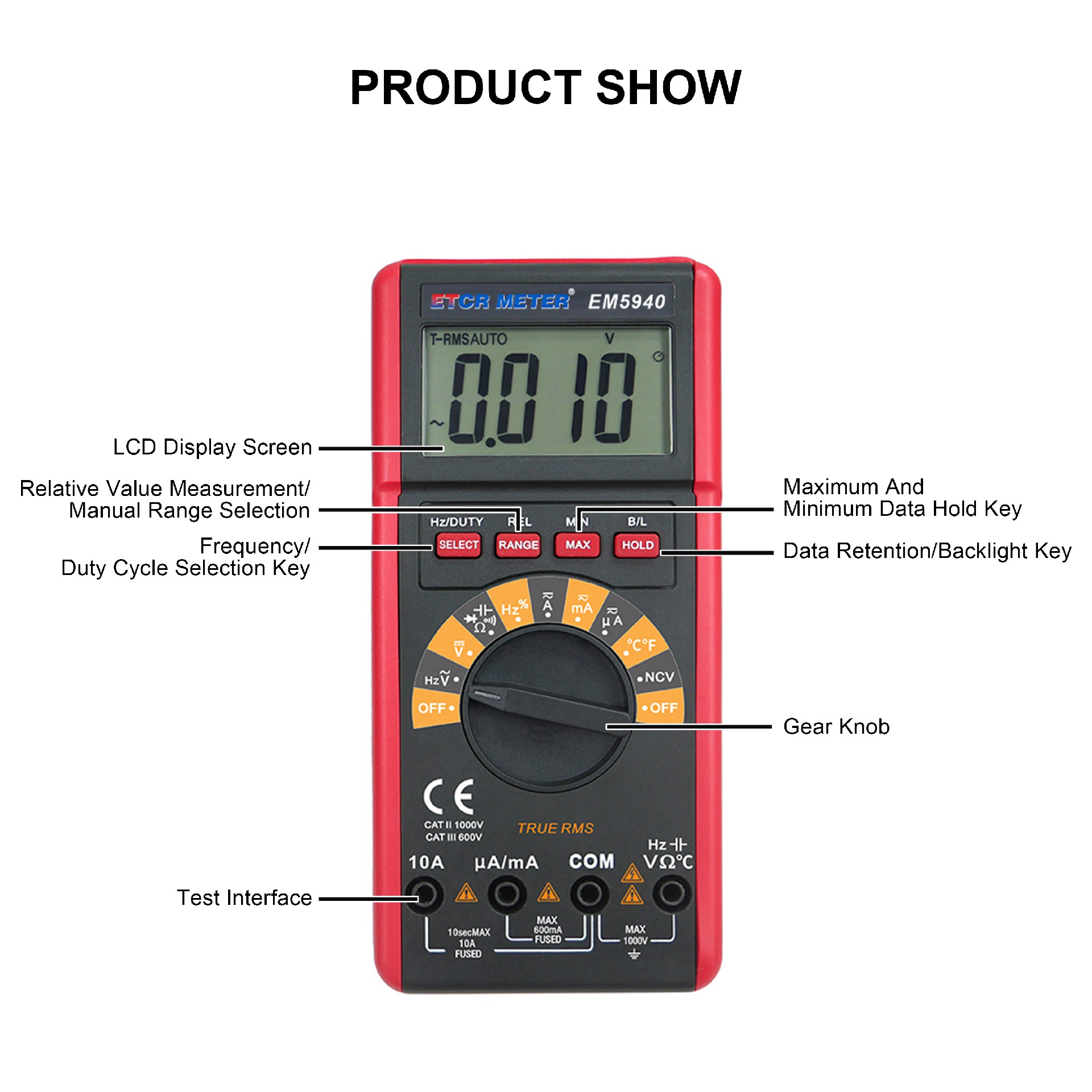

EM5940-PRODUCT SHOW.jpg

Technical Parameters

Voltage Measurement	Range: DC 0mV~1000V	Max Resolution: 1mV	Max Accuracy: ±(0.5%+5)
Voltage Measurement	Range: AC 0mV~1000V	Max Resolution: 1mV	Max Accuracy: ±(1.2%+5)
Current Measurement	Range: DC 0.0uA~10A	Max Resolution: 0.1uA	Max Accuracy: ±(1%+5)
Current Measurement	Range: AC 0.0uA~10A	Max Resolution: 0.1uA	Max Accuracy: ±(1%+5)
Resistance Measurement	Range: 0.0Ω~60MΩ	Max Resolution: 0.1Ω	Max Accuracy: ±(0.8%+5)
Capacitance Measurement	Range: 0.000nF~9.999mF	Max Resolution: 0.001nF	Max Accuracy: ±(3%+30)
Frequency Measurement	Range: 0.000Hz~20MHz	Max Resolution: 0.001Hz	Max Accuracy: ±(0.5%+3)
Temperature Measurement	Range: 0℃~1000℃	Max Resolution: 1℃	Max Accuracy: ±(1.2%+4)
Power Supply	3V DC LR03X2PCS alkaline dry battery
Meter Weight	About 396g(include accessories)
Meter Dimension	178mmX85mmX35mm
LCD Size	58mmX31mm; Max display: 6000
Backlight	Yes
Data Hold	Yes
Continuity Measurement	Yes
Diode Forward Voltage Drop	Yes
Automatic Shutdown	Automatic shutdown after starting up 15 minutes without any operation
Overflow Display	Over range overflow function: “OL” symbol display
Overload Protection	Yes
Input Impedance	10MΩ
Battery Voltage	When battery power indicate “ ”symbol, remind to replace the battery
Line Voltage	Measuring the voltage to ground: Below AC 600V
Working Temperature	0℃- 40℃ RH<75%
Store Temperature	-10℃- 50℃ RH<80%

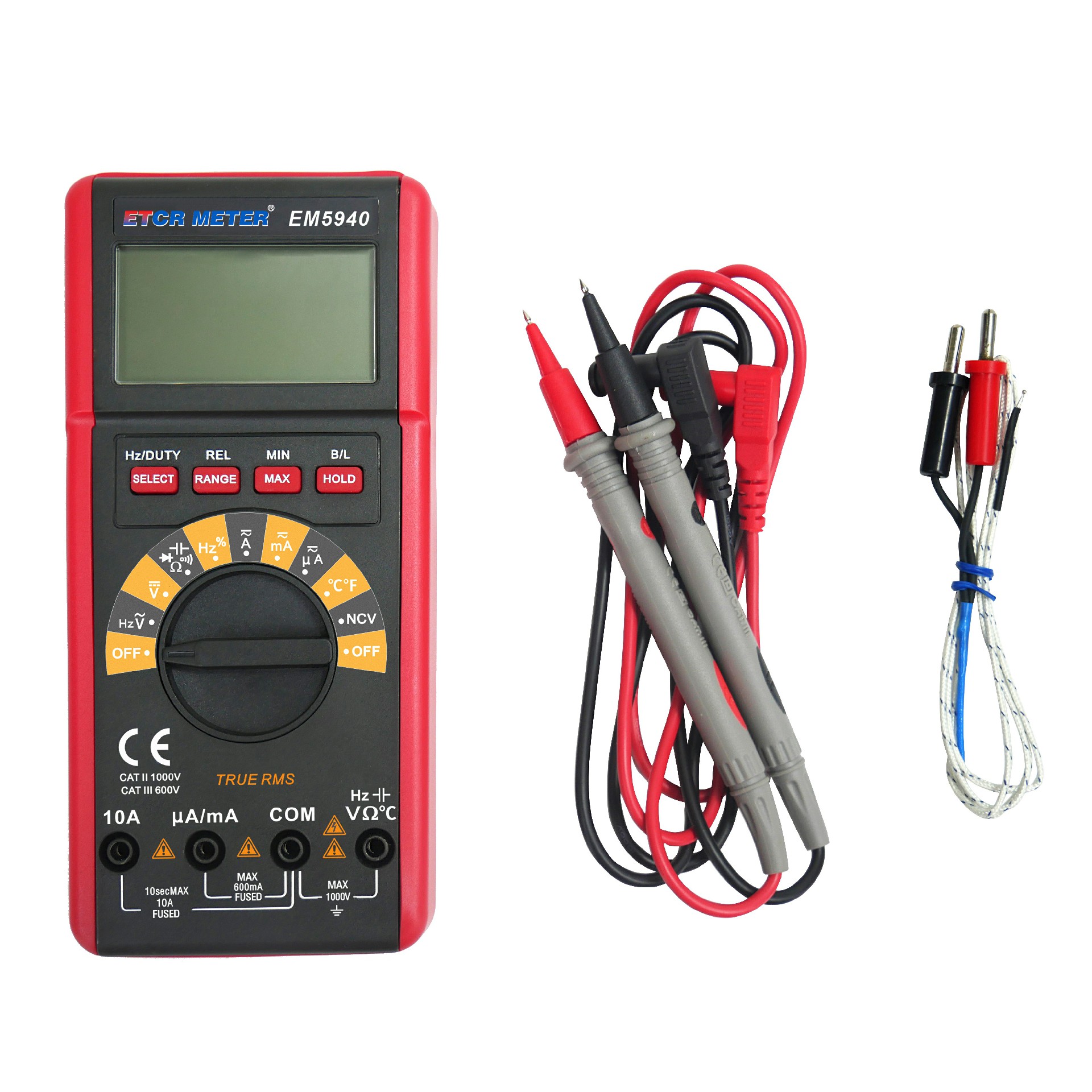

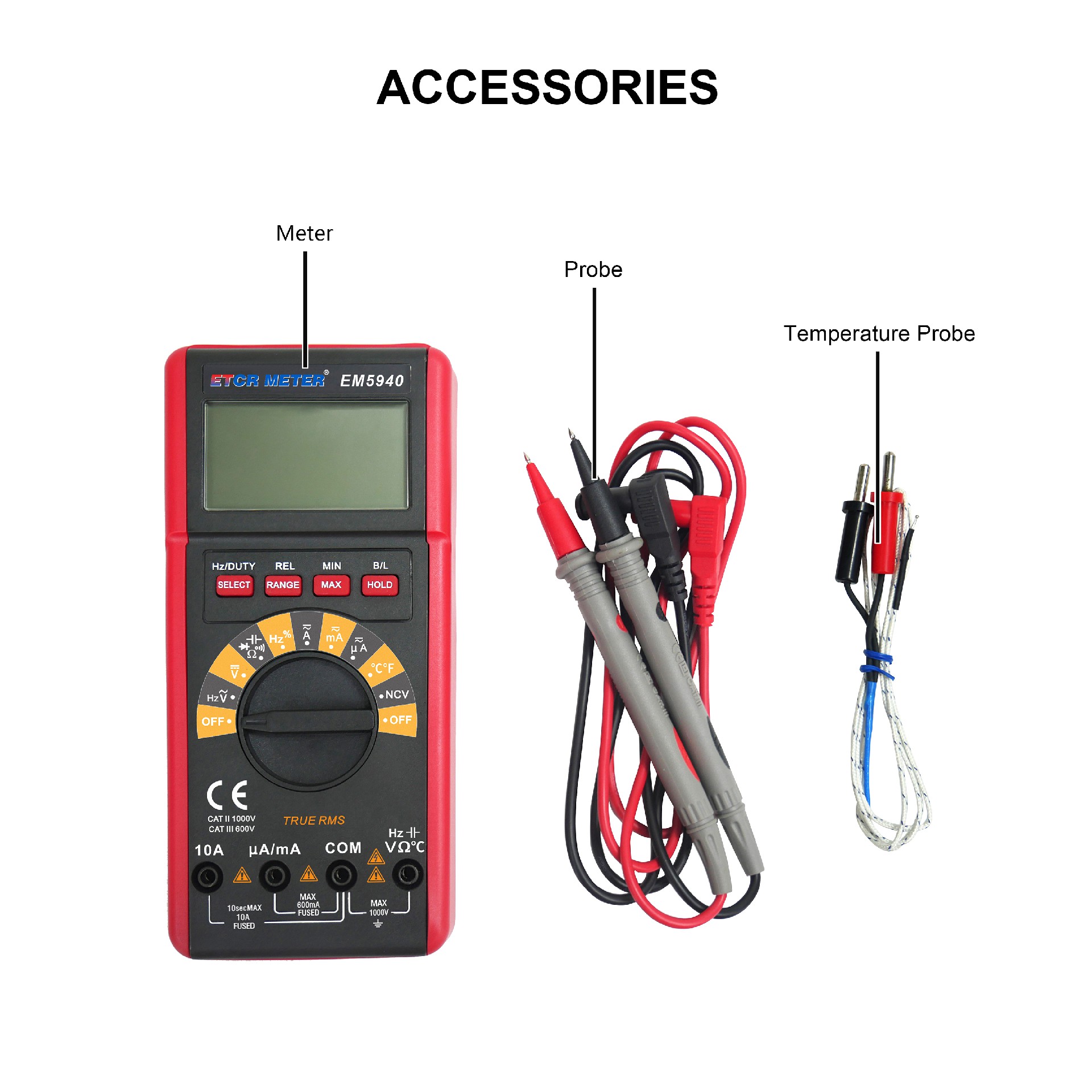

Accessories	Meter:1PCS; Probe: 1set; Temperature probe: 1PCS; LR03 3V battery: 2PCS

Model Comparison

Product Picture	Product Model Name	Voltage Range	Current Range	Resistance Range	Capacitance	Frequency	Temperature

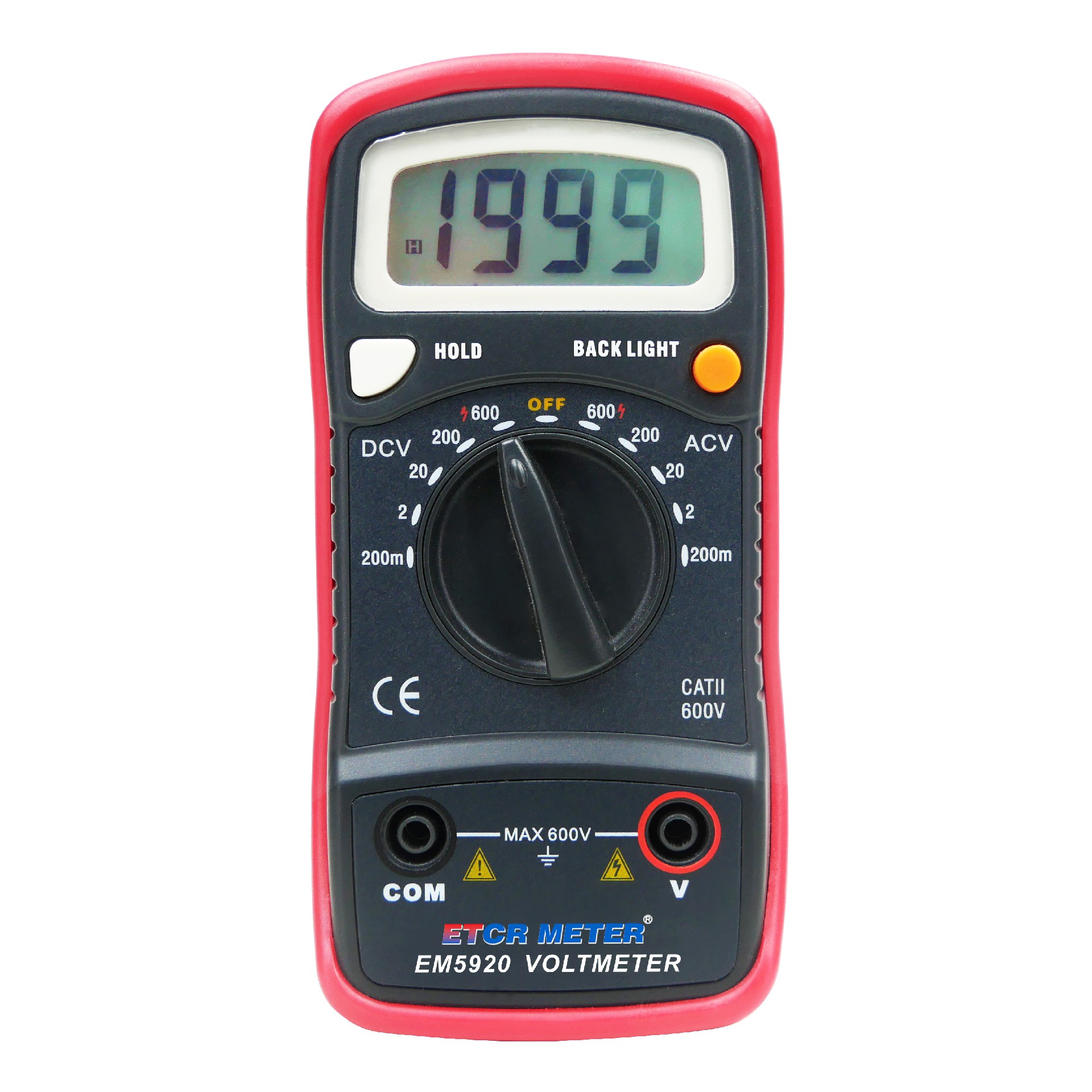

	ETCR EM5920 Digital Voltmeter	AC/DC 600V	--	--	--	--	--

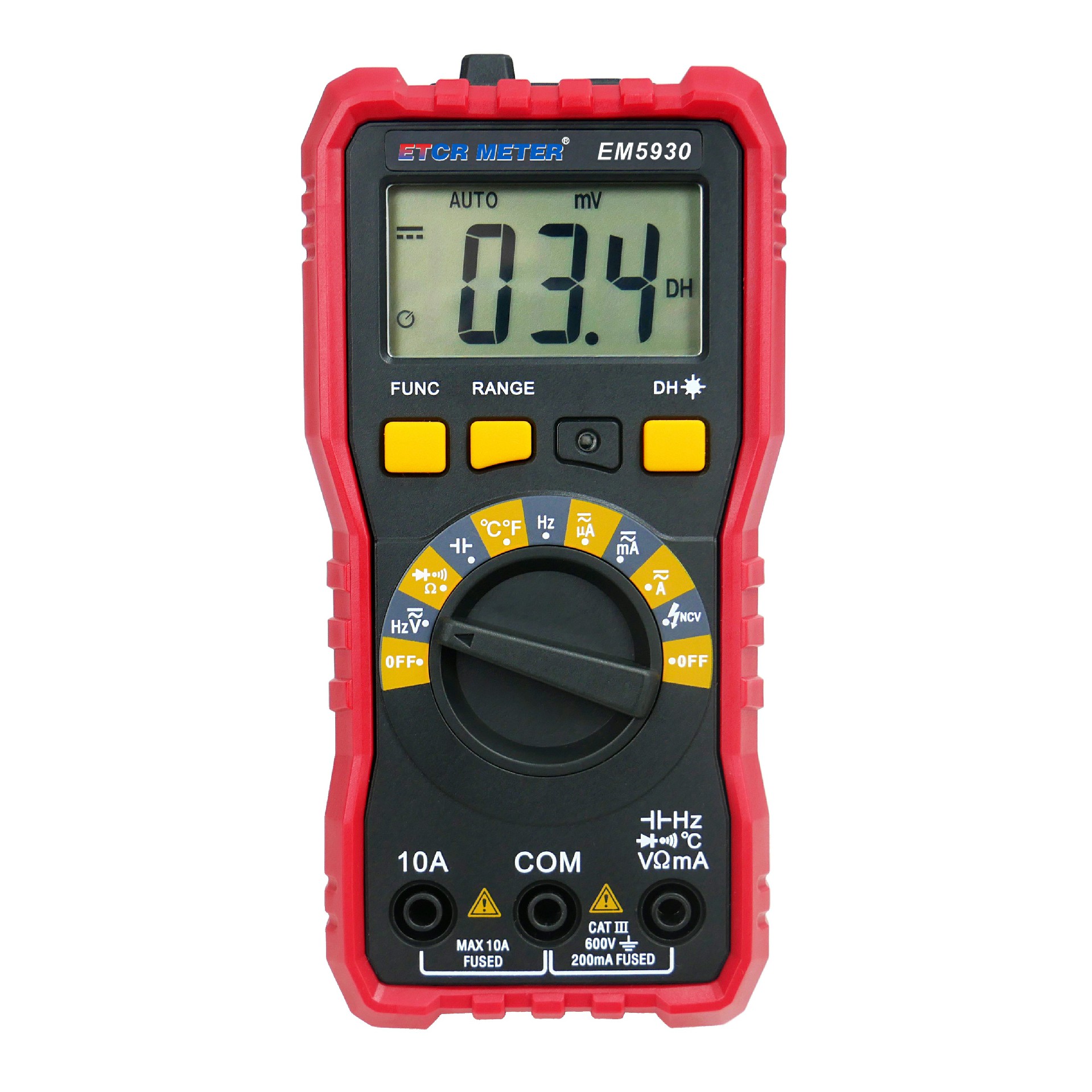

	ETCR EM5930 Digital Voltmeter	AC/DC 600V	AC/DC 10A	20MΩ	2mF	20Mhz	0℃～1000℃
	ETCR EM5940 Digital Voltmeter	AC/DC 1000V	AC/DC 10A	60MΩ	10mF	20Mhz	0℃～1000℃

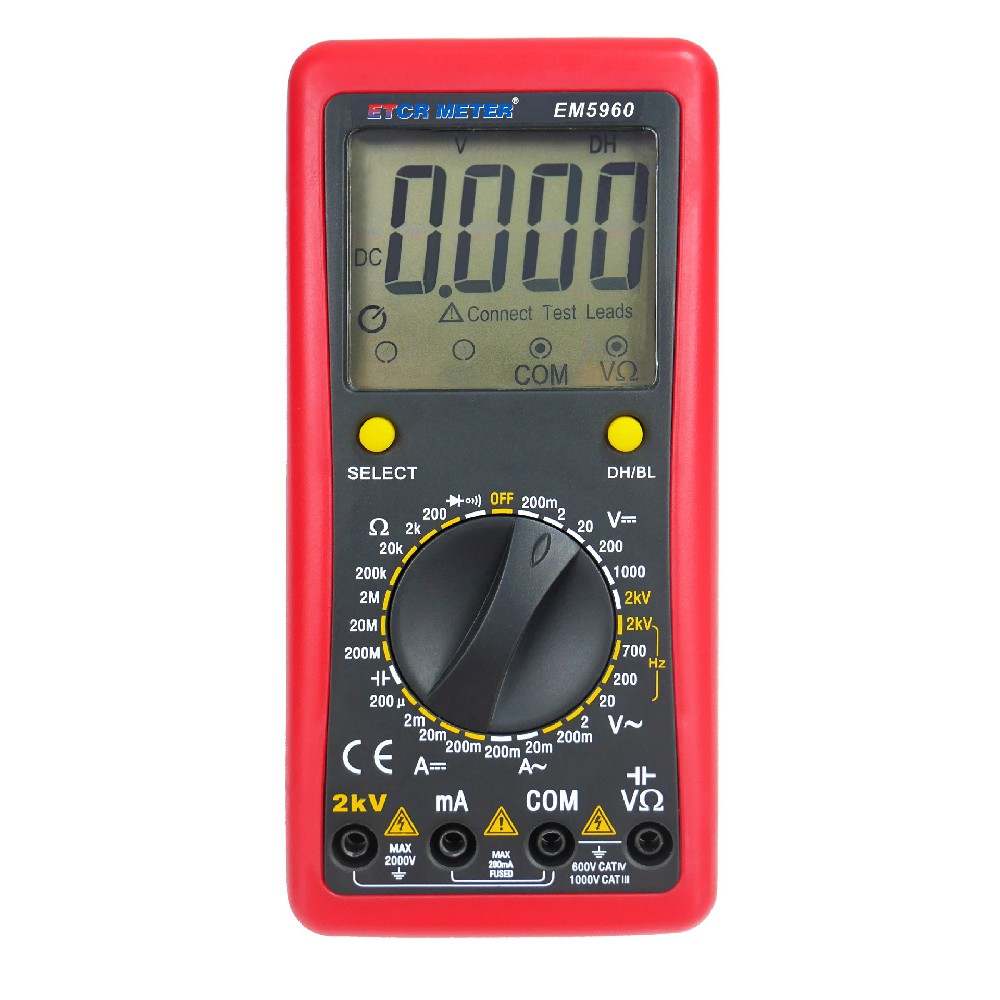

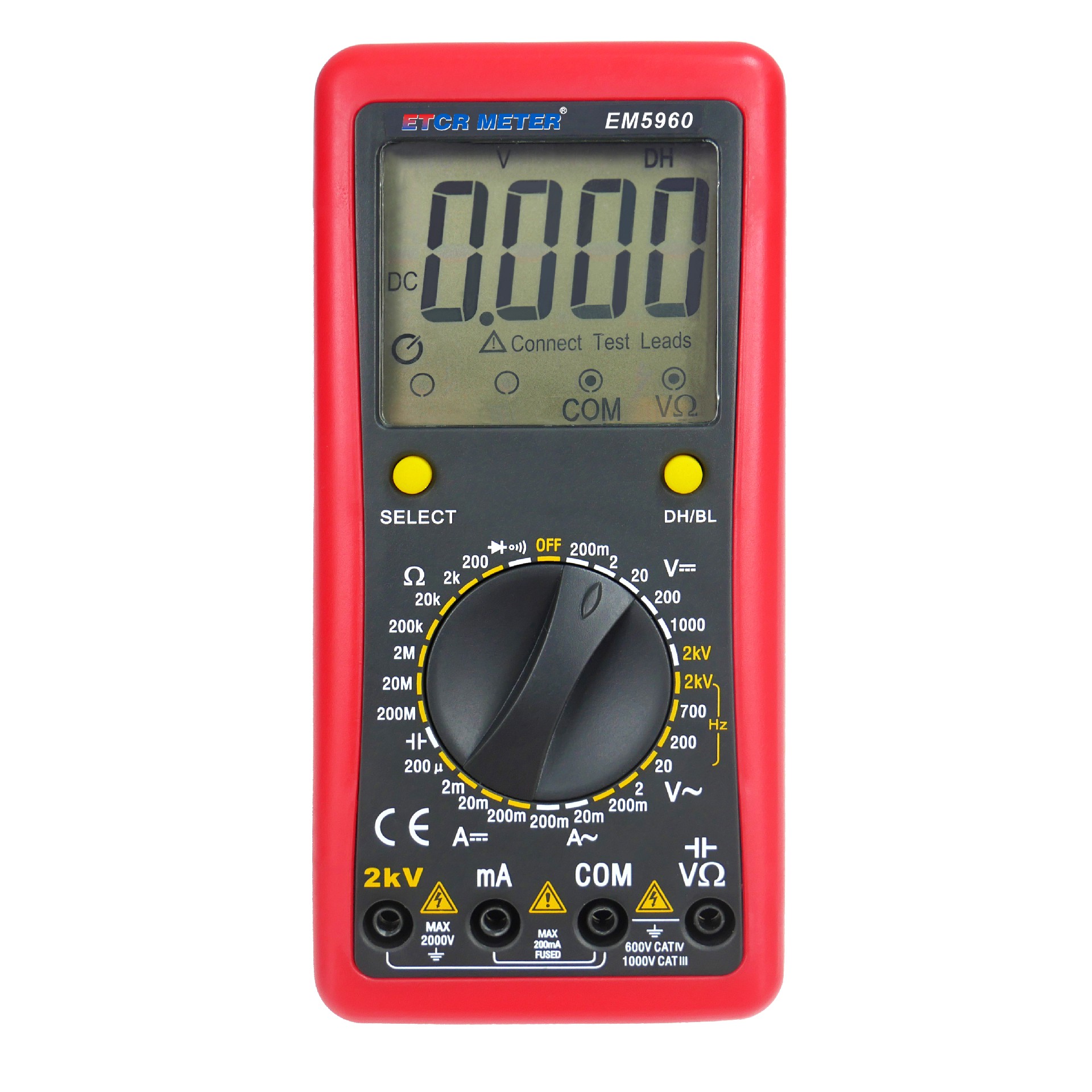

	ETCR EM5960 Digital Voltmeter	AC/DC 2000V	AC/DC 200mA	20MΩ	2mF	--	--
