Product Introduction

ETCR EM5960 Digital Multimeter, also known as smart multimeter, which is a stable and battery-powered digital multimeter with high reliability. The multimeter is managed by single chip microcomputer and has full function of overload protection. The meter can show the position of each pen and socket, and remind you not to insert the wrong position. The instrument can measure DC voltage and current AC true RMS voltage and current, resistance, capacitance, diode forward voltage drop, circuit on-off, etc. Accurate measurement, stable performance, safe and reliable, is your ideal test and repair tool.

1.The multimeter is managed by single chip microcomputer and has full function of overload protection.
2.Equipped with backlight, read data hold function, making it convenient for user to read measurement value in dark place.
3.With automatic shutdown, data hold function.

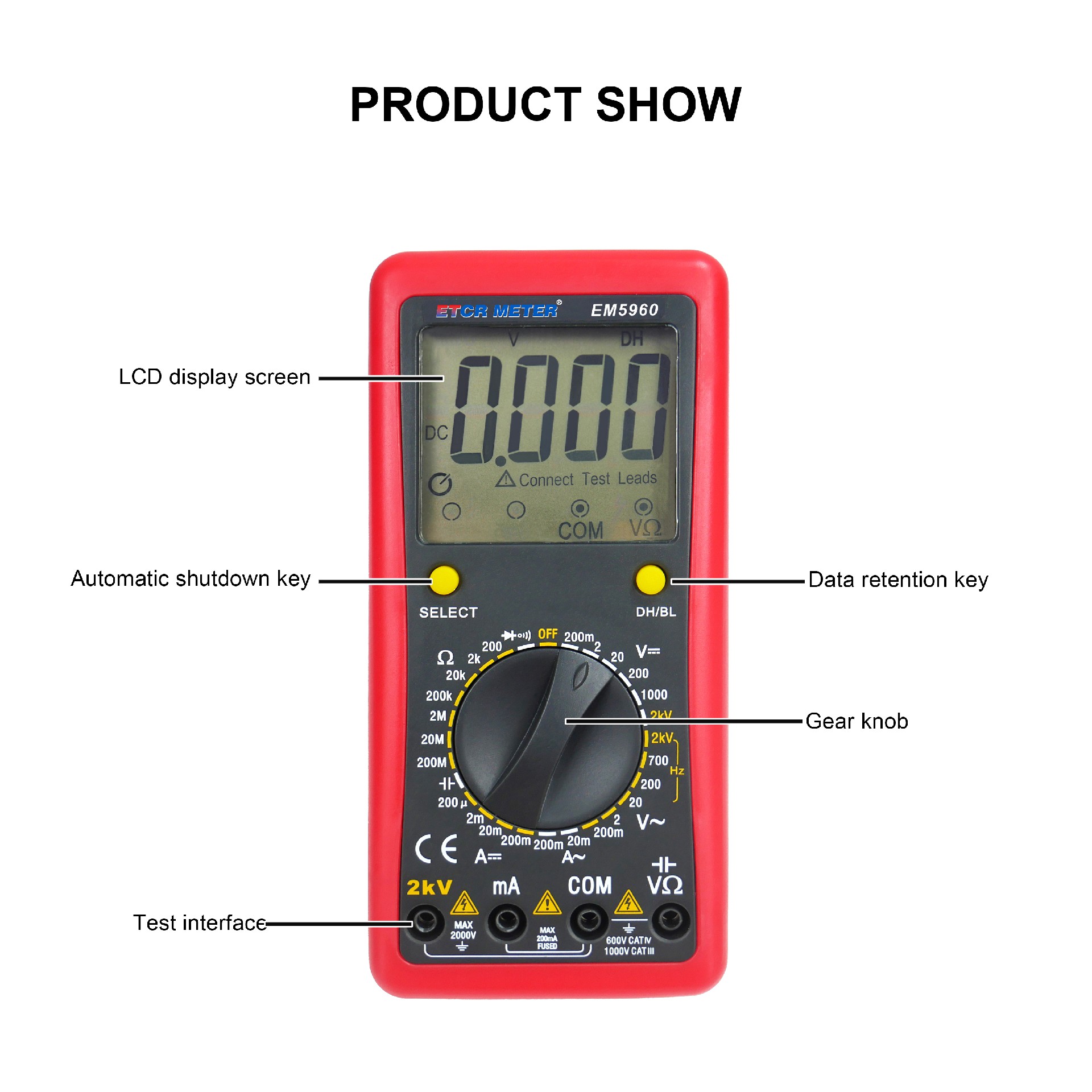

EM5960-PRODUCT SHOW.jpg

Technical Parameters

Voltage Measurement	Range: DC 0mV~2000V	Max Resolution: 1mV	Max Accuracy: ±(0.5%+5)
	Range: AC 0mV~2000V	Max Resolution: 1mV	Max Accuracy: ±(0.8%+5)
Current Measurement	Range: DC 0.0uA~200mA	Max Resolution: 0.1uA	Max Accuracy: ±(0.8%+5)
	Range: AC 0.0uA~200mA	Max Resolution: 10uA	Max Accuracy: ±(1%+5)
Resistance Measurement	Range: 0.0Ω~200MΩ	Max Resolution: 0.1Ω	Max Accuracy: ±(1%+5)
Capacitance Measurement	Range: 0nF~2000uF	Max Resolution: 10pF	Max Accuracy: ±(3%+10)
Frequency Range	40Hz~1kHz
Power Supply	9V DC 6F22X1PCS alkaline dry battery
Meter Weight	About 680g(include accessories)
Meter Dimension	180mmX85mmX42mm
LCD Size	60mmX50mm; Max display: 1999
Backlight	Yes
Data Hold	Yes
Continuity Measurement	Yes
Sampling Rate	2 .5 times/s
Automatic Shutdown	Automatic shutdown after starting up 15 minutes without any operation
Overflow Display	Over range overflow function: the highest digit display “OL”
Overload Protection	Yes
Input Impedance	10MΩ
Battery Voltage	When battery power indicate “ ”symbol, remind to replace the battery
Line Voltage	Measuring the voltage to ground: Below AC 600V
Working Temperature	0℃- 40℃ RH<75%
Store Temperature	-10℃- 50℃ RH<80%

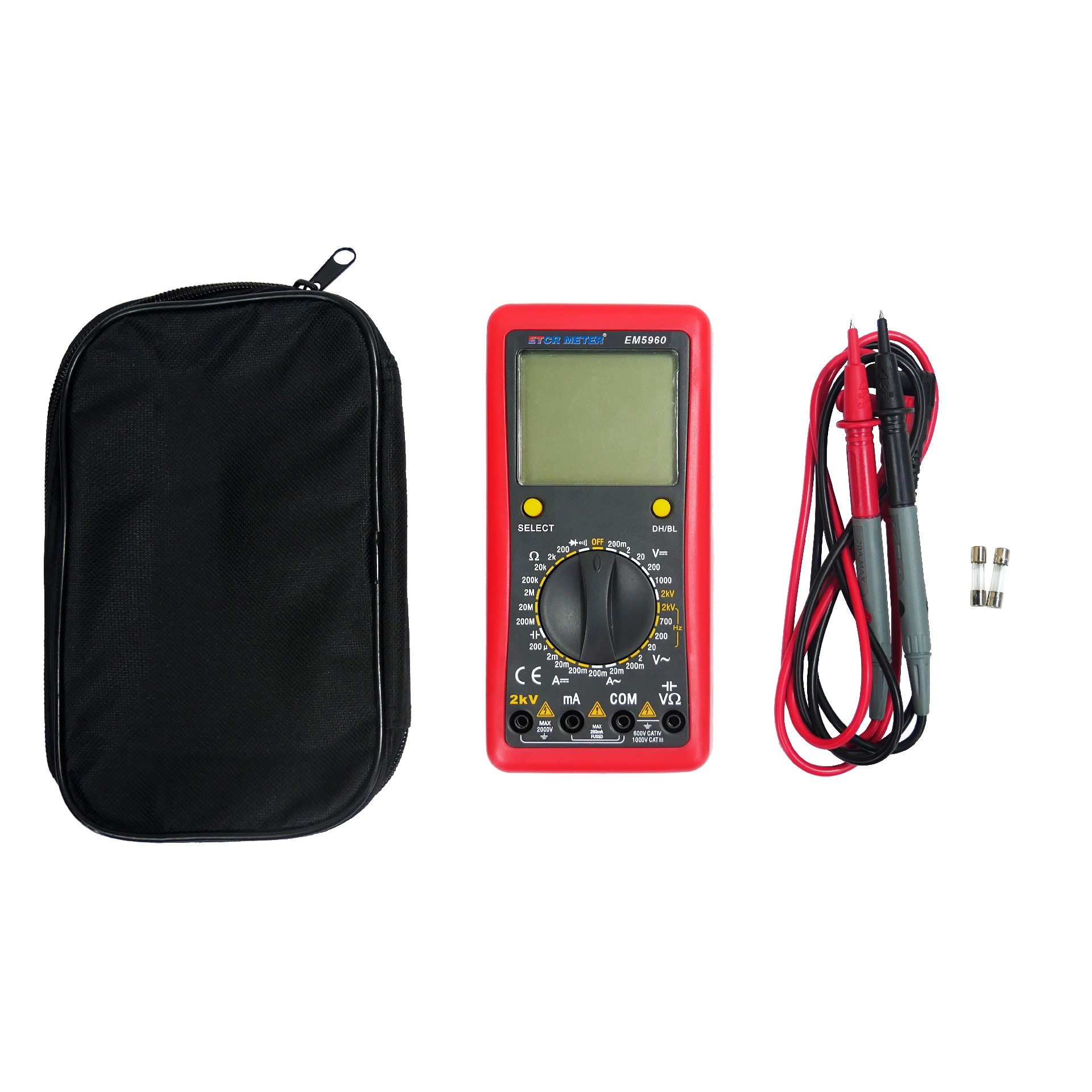

Accessories	Meter:1PCS; Probe: 1set; Tool bag: 1PCS; 6F22 9V battery: 1PCS; 200mA fuse tube: 1PCS

Model Comparison

Product Picture	Product Model Name	Voltage Range	Current Range	Resistance Range	Capacitance	Frequency	Temperature
	ETCR EM5920 Digital Voltmeter	AC/DC 600V	--	--	--	--	--
	ETCR EM5930 Digital Voltmeter	AC/DC 600V	AC/DC 10A	20MΩ	2mF	20Mhz	0℃～1000℃
	ETCR EM5940 Digital Voltmeter	AC/DC 1000V	AC/DC 10A	60MΩ	10mF	20Mhz	0℃～1000℃
	ETCR EM5960 Digital Voltmeter	AC/DC 2000V	AC/DC 200mA	20MΩ	2mF	--	--
