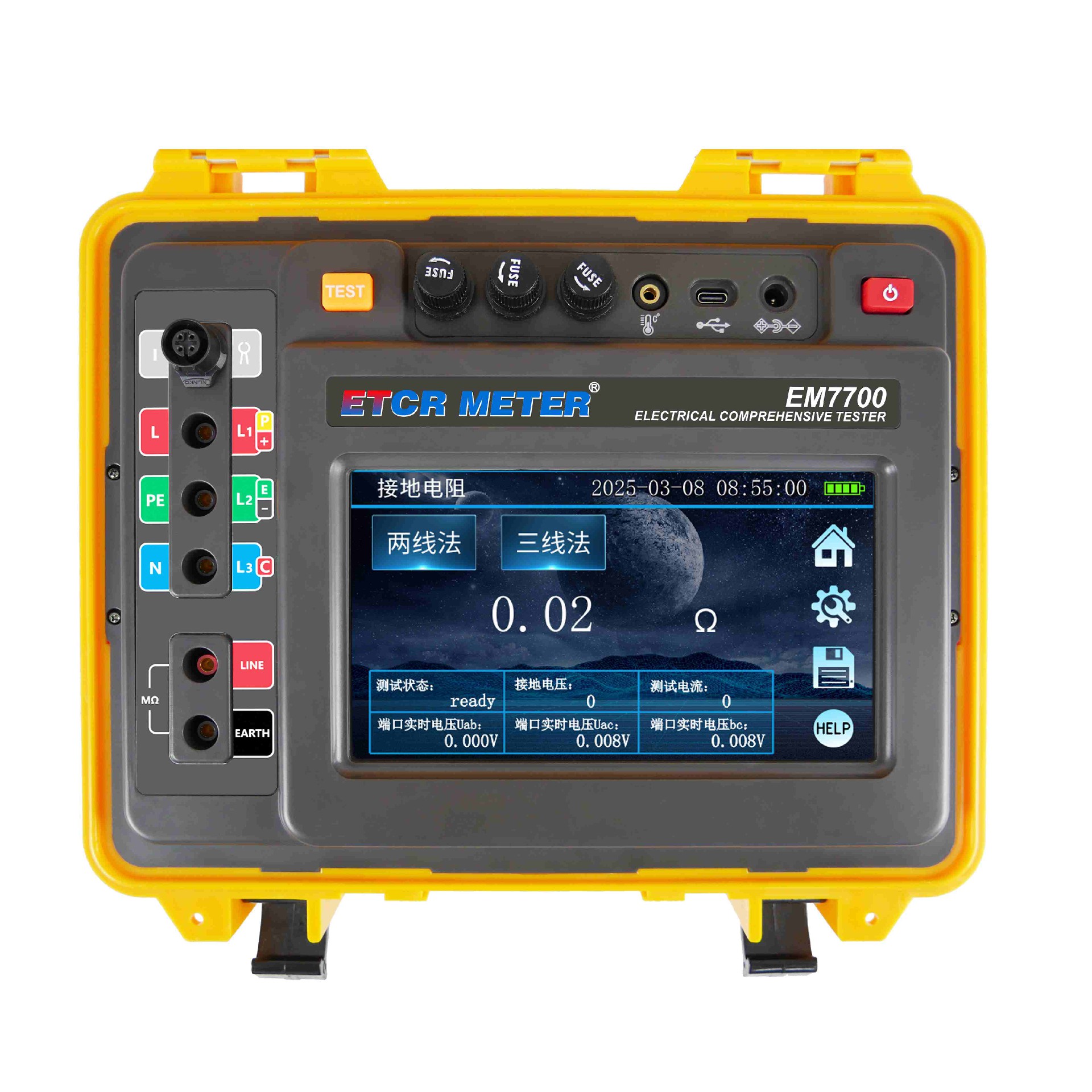

1. 7-inch touchscreen color display, showing test data simultaneously. Convenient test operation and history retrieval.

2. Modular operation of multiple testing functions including grounding resistance testing, insulation resistance testing, DC resistance testing, RCD leakage current protection testing, electrical socket testing, and power parameter testing, clear and convenient.

3. Test diagrams and wiring labels use different colors to distinguish between different user habits for different functions.

4. 7.4V 10400mAh high-capacity lithium battery ensures long-term testing operation.

5. User-settable timer for shutdown.

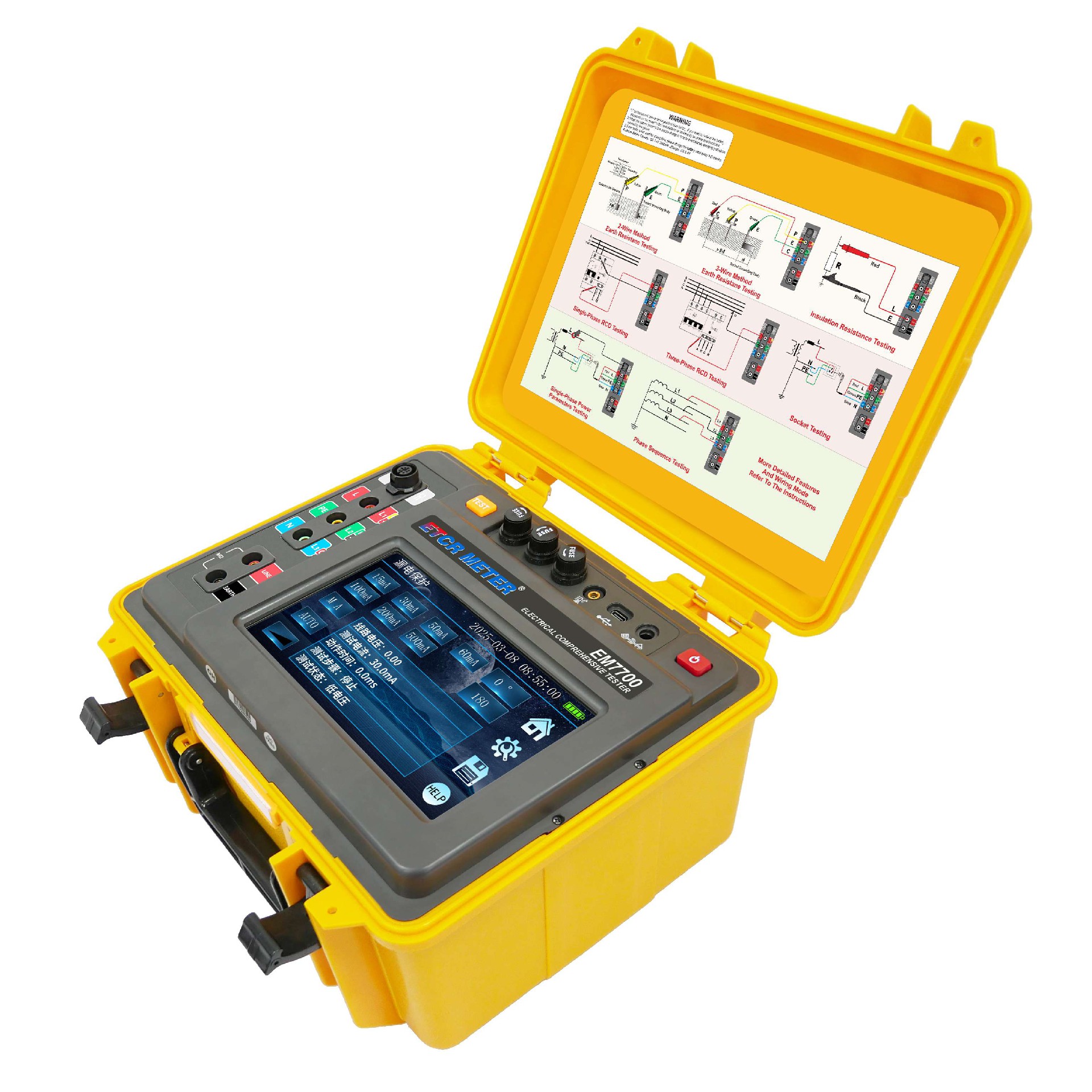

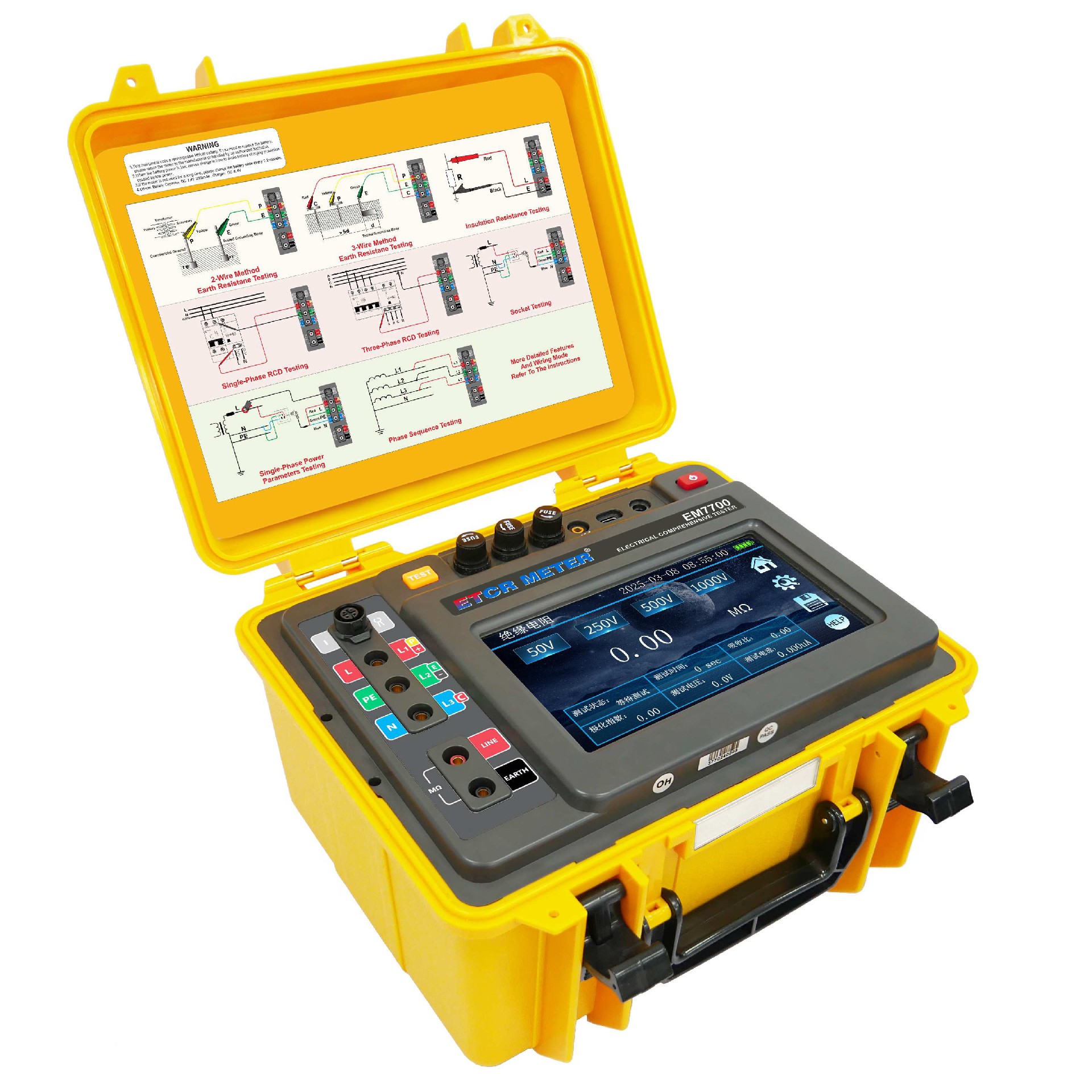

6. Built-in wiring diagrams for each functional module for easy wiring reference.

7. Large-capacity test record storage; test records can be directly viewed and analyzed on the instrument. Automatically stores up to 1000 sets of real-time test data with test date and time.

8. USB communication upload function; recorded data can be uploaded to a computer for storage, statistical analysis, and more.

9. Double-layer shell structure, sturdy and durable, with an IP65 protection rating (when the cover is closed).

Technical Parameters

Functions

Grounding resistance test, insulation resistance test, DC resistance test, RCD leakage current protection device test, electrical
socket test, current RMS value test, AC voltage test, phase sequence test

Power Supply

DC 7.4V 10400mAh rechargeable lithium battery, fully charged to approximately DC 8.4V

Display Mode

7-inch touchscreen color screen

Grounding Resistance Measurement Range

0.10Ω～3000Ω

Grounding Resistance Accuracy

±2%rdg±5dgt

Insulation Resistance Measurement Range

0.10M-80G

Maximum Insulation Resistance Accuracy

±3%rdg±5dgt

Leakage Current Range

Manual/Automatic modes: 15mA, 30mA, 50mA, 60mA, 100mA, 200mA, 500mA Ramp Mode: 30mA, 100mA (Specific operating current can be
tested)

Leakage Current Accuracy

±10%rdg+5mA

Leakage Protection Trip Time Range

0.0ms-1000.0ms

Leakage Time Accuracy

±5%rdg±3ms

DC Resistance Measurement Range

0.10Ω-3000Ω

DC Current Accuracy

±5%rdg±8dgt

AC Voltage Measurement Range

0.10V～500.00V

AC Voltage Accuracy

±2%rdg±5dgt

AC Current Measurement Range

0mA-300.0A

AC Current Accuracy

±2%rdg±5dgt

Phase Range

0.0°～360.0°

Frequency range

45.00Hz～65.00Hz

Active power range

0.0W～150kW

Reactive power range

0.0var～150kvar

Apparent power range

0.0VA～150kVA

Power factor range

-1.000～1.000

Temperature test function

yes

Phase sequence test function

yes

Harmonic function

3rd harmonic content, 5th harmonic content

Communication interface

Features a TYPE-C interface, software monitoring, and data storage that can be uploaded to a computer, saved, and printed.

Data storage

1000 sets

Automatic shutdown

Automatic shutdown time can be set from 0 to 60 minutes, 0 for off.

Clock setting

yes

Bluetooth communication

yes

Battery voltage

When the battery voltage drops to DC 7.4V±0.1V, the battery voltage symbol displays "", reminding the battery to be charged.

Power consumption

12W Max

Main unit dimensions

280mm×260mm×160mm

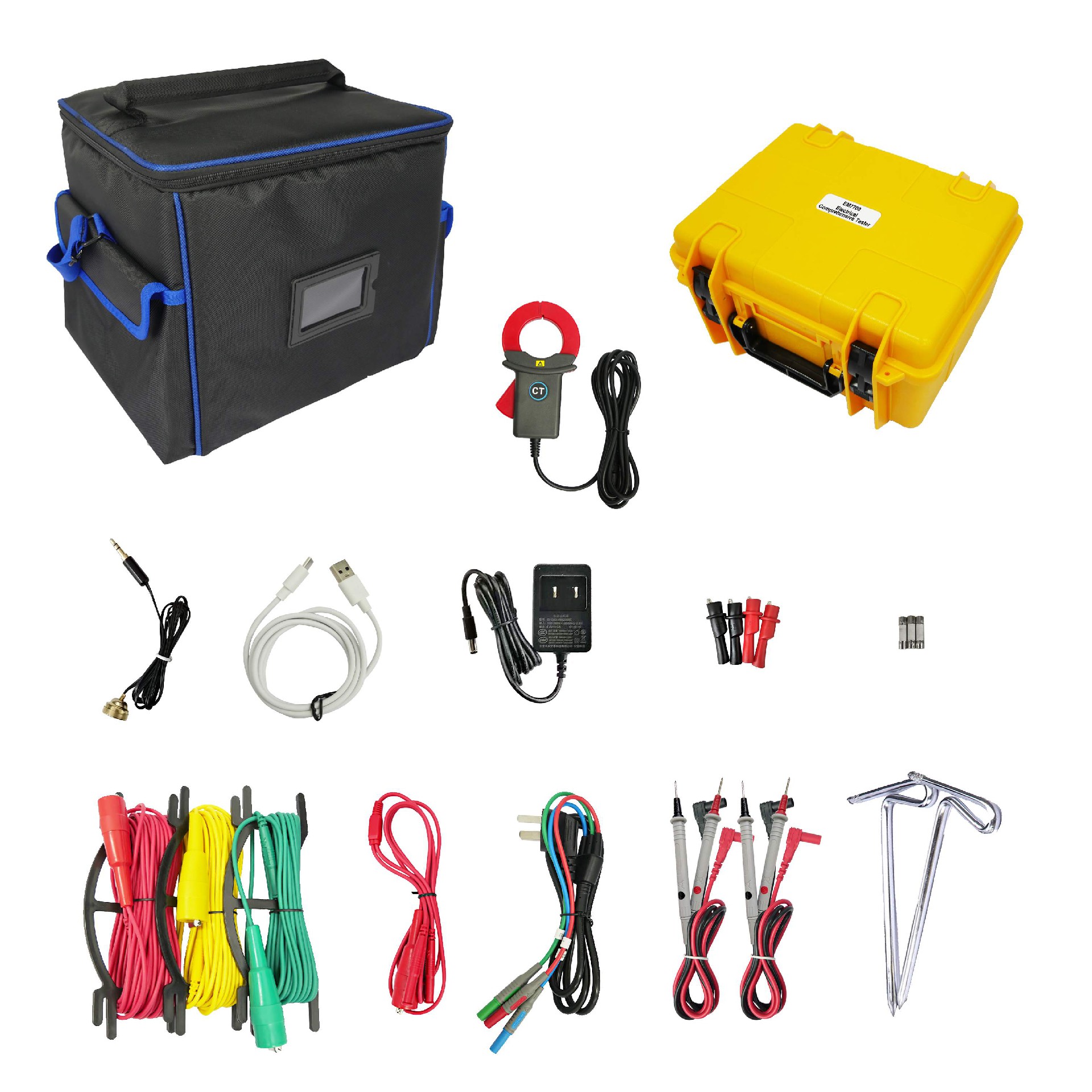

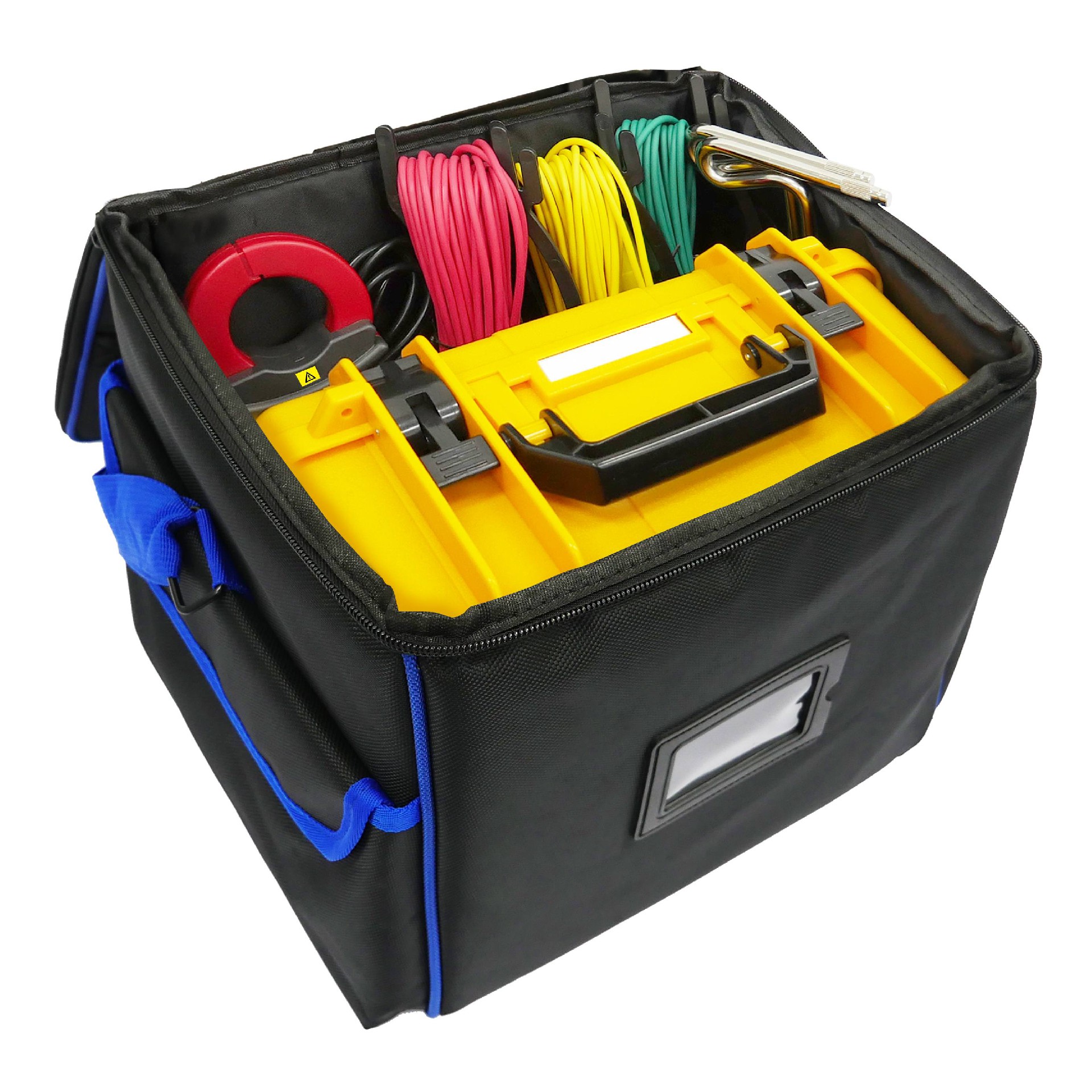

Instrument Quality

Instrument: Approx. 2720g (including battery)

Current Clamp: Approx. 200g

Test Leads: Approx. 1210g (including simple test leads/socket test leads/multimeter test leads)

Auxiliary Grounding Rods: Approx. 347g (2 pieces)

Total Weight: Approx. 6.3kg (including accessories)

Operating Temperature and Humidity

-10℃～40℃; below 80%RH

Storage Temperature and Humidity

-20℃～60℃; below 70%RH

Protection Rating

IP65 (with cover closed)

Overload Protection

Measuring Grounding Resistance: AC 280V/3 seconds between E-P and E-C ports

Insulation Resistance

Above 10MΩ (500V between circuit and casing)

Withstand Voltage

AC 3700V/rms (between circuit and casing)

Electromagnetic Characteristics

IEC61010-4-3, Radio Frequency Electromagnetic Field ≤1V/m

Suitable for Safety Regulations

IEC61010-1 (CAT III 300V, CAT IV) 150V, Pollution Degree 2); IEC61010-031; IEC61557-1 (Grounding Resistance); JJG 366-2004
(Grounding Resistance Meter); JJG 1005-2019 Electronic Insulation Resistance Meter; JJG 843-2007 Leakage Current Tester; JJF
1283-2011 Calibration Specification for Residual Current Operated Protective Device Operating Characteristic Tester
