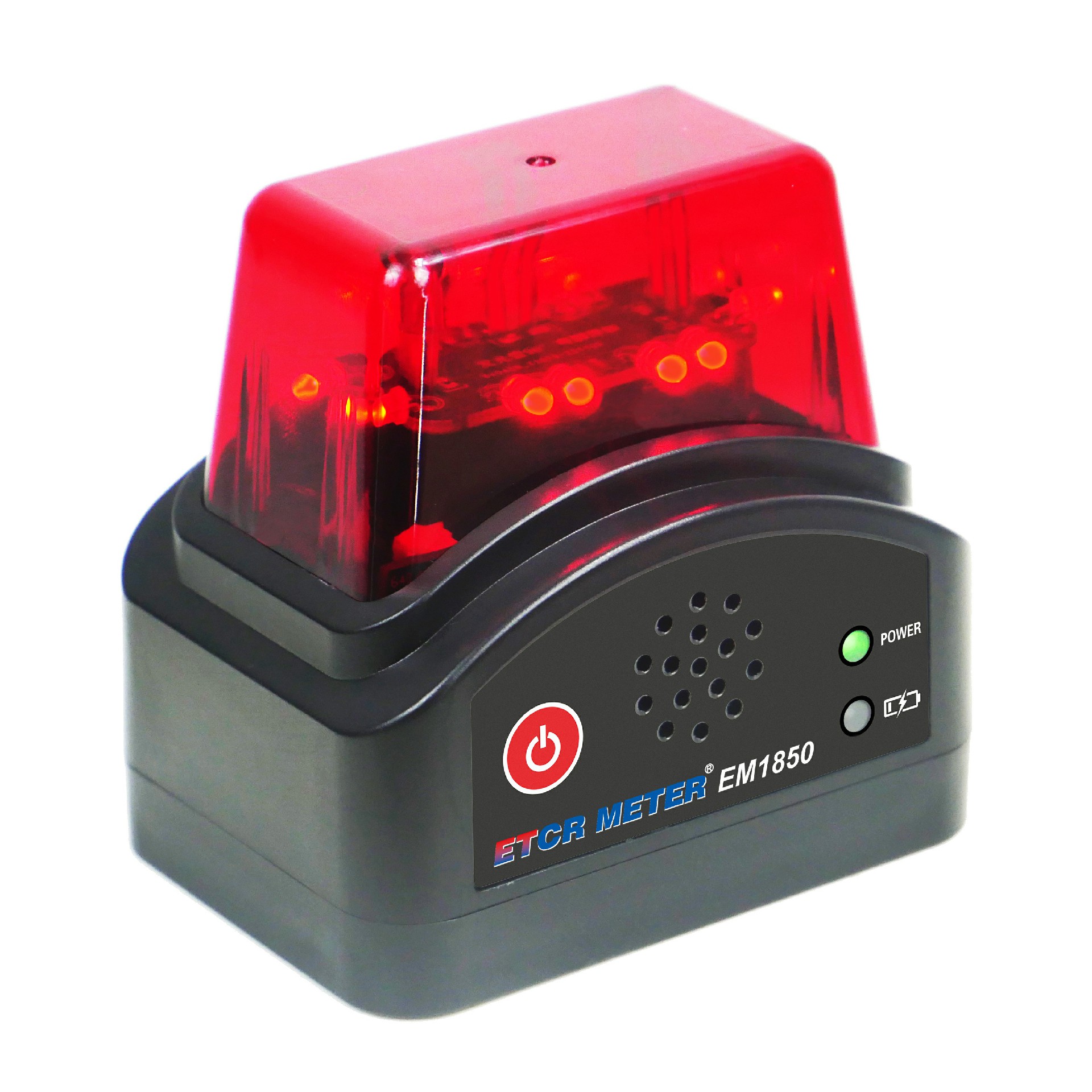

ETCR EM1850 Grounding Wire Clip Approach Electricity Alarm , also known as charged object near electric alarm, which provides a safe, practical and convenient new-type near electric alarm for power operators. When power operators perform power outage maintenance on power cable and equipment, due to induced voltage or other reasons, in order to ensure the safety of operator, it is necessary to use grounding down lead clip to earth the cable or equipment. The alarm is installed on the grounding down lead clip or insulating rod, when the cable and equipment is live, the alarm will trigger the alarm function to emit sound, light and vibration alarm to remind operators to pay attention to safety, avoiding electric shock accident, and provide safer protection for operators.

ETCR EM1850 Grounding Wire Clip Approach Electricity Alarm adopt with non-contact induction technology to comprehensive detects the electric field in the air in all directions, accurate alarm, low power consumption of the alarm, and the standby time is up to 6 months. There are various methods to install the alarm, and it is convenient to install and remove. The alarm is durable and has a protection level of IP65, also can be used for line fault detection and electroscope use.

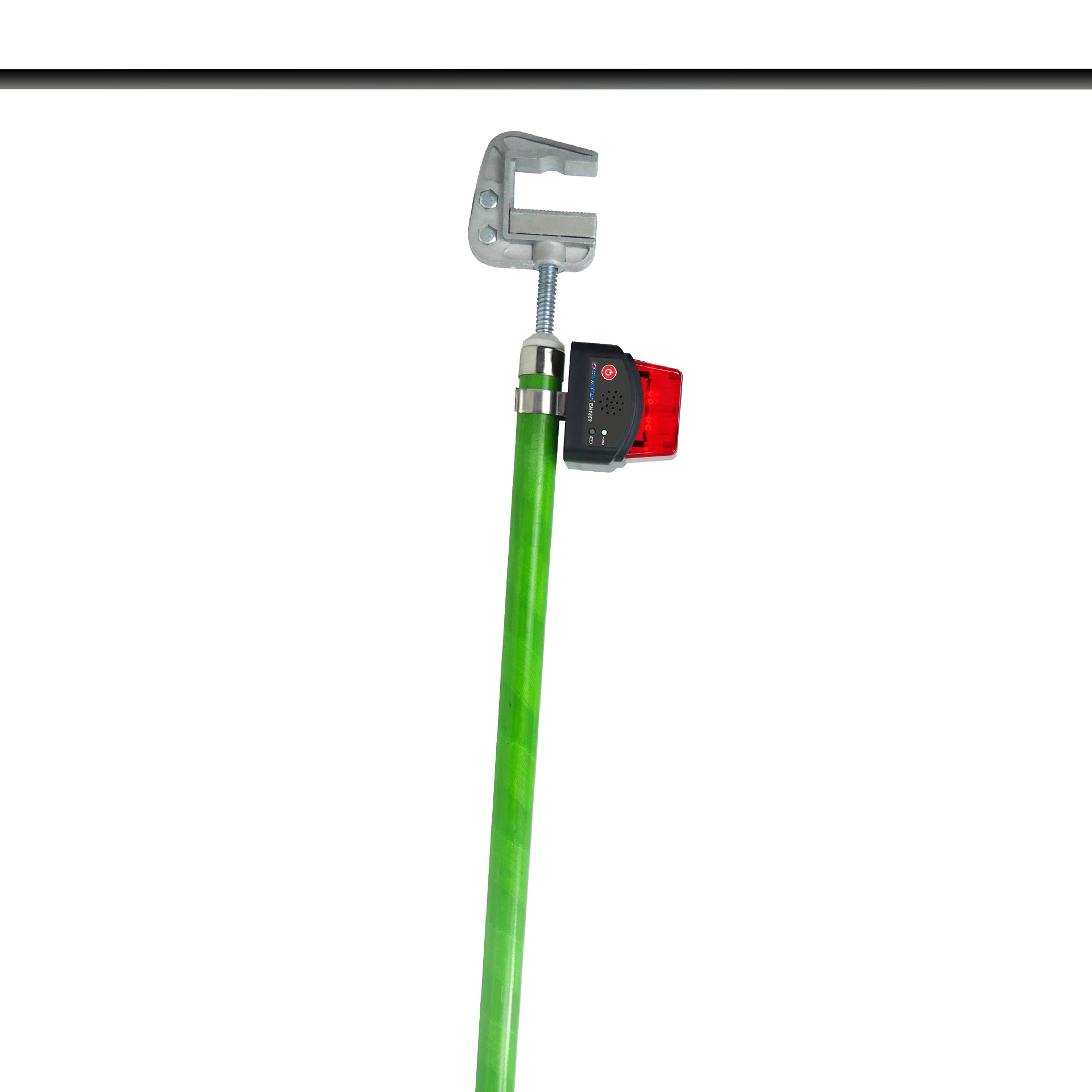

1.There are various methods to install the alarm, and it is convenient to install and remove. When the alarm be installed on the insulating rod, should place as close as the metal line clip.
2.Adopt with non-contact induction technology, accurate alarm, low power consumption of the alarm, the standby time is up to 6 months.
3. Comprehensive detects the electric field in the air in all directions, and triggers automatic electricity verification alarm, sound and light alarm mode, ensuring the safety of the near electric operators.
4.Protection level: IP56

1.Alarm Distance

Note: In practical application, the alarm distance of the alarm may change due to the influence of the environment.

2.General Specification
