Current Range

AC 0.0mA~3200A

AC 0.0A~4000A

Max Resolution

AC 0.1mA

AC 0.1A

Current Accuracy(23℃±3℃, below 70%RH,  measured wire at the center of the clamp)

AC 0.0mA~499A    ±2%rdg±5dgt

AC 500A~999A     ±3%rdg±5dgt

AC 1000A~2999A   ±4%rdg±5dgt

AC 3000A~4000A   ±5%rdg±5dgt

Power Supply

DC6V   alkaline dry batteries (LR6 1.5VX4PCS)

Weight

1920g (include battery)

Meter Dimension

350mmX180mmX55mm

CT Size

108mmX148mm (can clamp φ108mm cable or 160mmX4mm flat cable or steel flat ground cable)

Sampling Rate

2 times/second

Frequency

50Hz, 60Hz automatic identification

Communication Interface

With USB interface, storage data can be uploaded to computer, convenient to data analyze, communication cable length: 1.8m

Data storage

99units, flash display “FULL” symbol indicate storage full

Data Hold

Data hold function: “HOLD” symbol display

Overflow Display

Exceed measure range overflow function: “OL” symbol display

PEAK Hold

Press PEAK key to open the peak hold function, press PEAK key once again to cancel this function

Auto Shut Down

5 minutes after power on, it will power off automatically without any operation to reduce the power consumption.

Battery Voltage

While battery voltage is lower than 5.2V. low battery voltage symbol display, remind to replace the battery

Backlight

Yes

Line Voltage

Below AC 600V circuit measurement

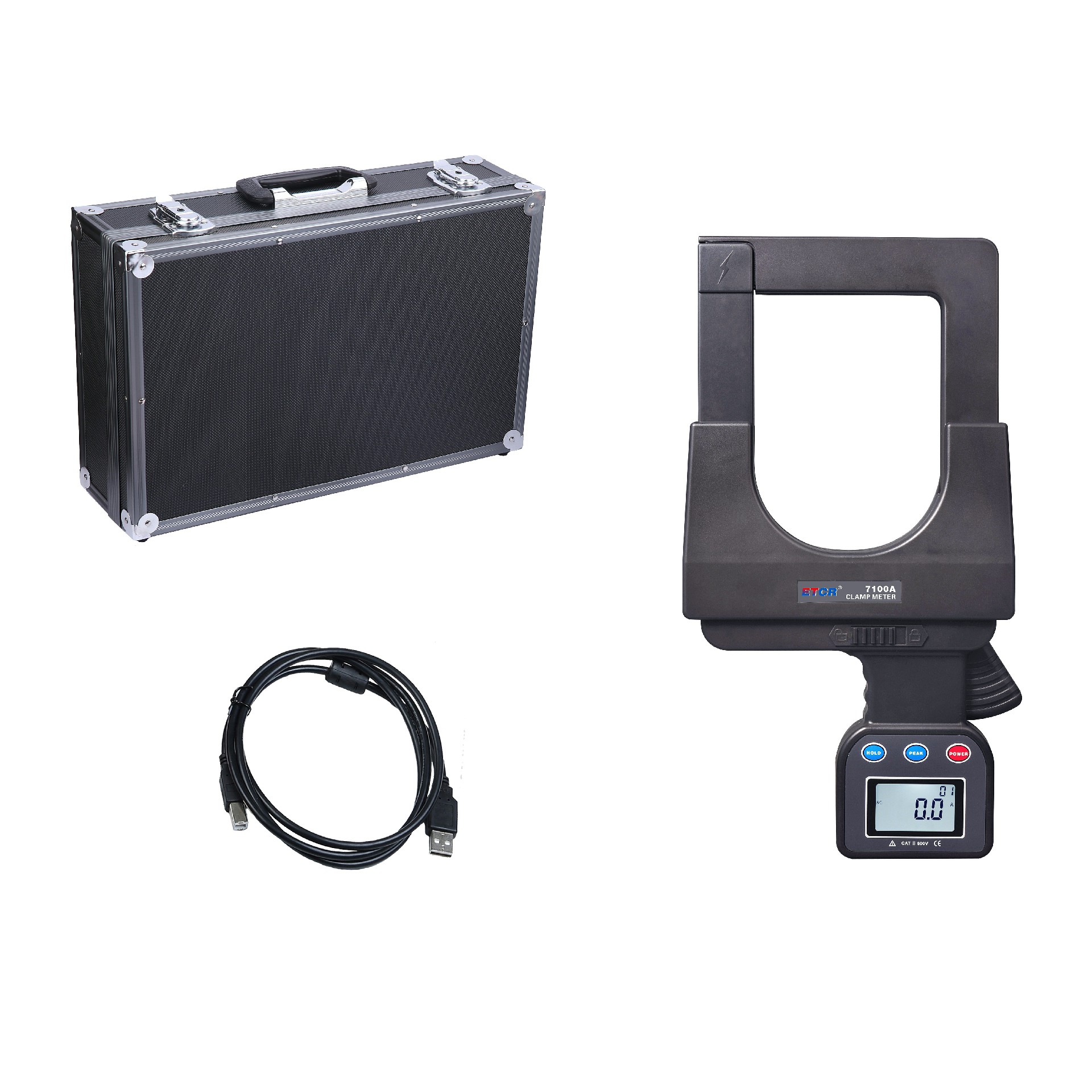

Accessories

Meter: 1PCS; USB communication cable: 1PCS; Meter Case: 1PCS; LR6  battery: 4PCS

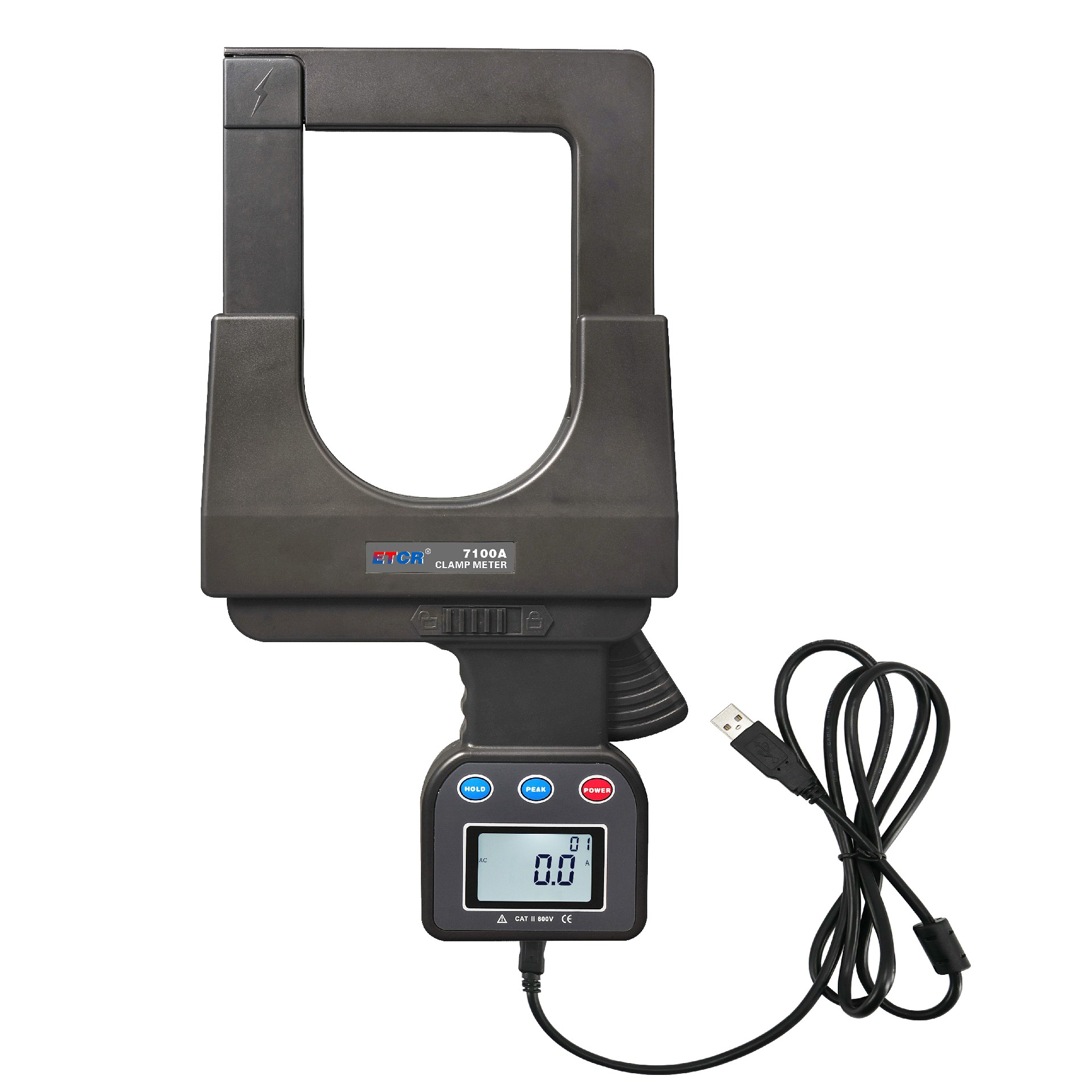

Clamp Leakage Current Meter
