Product Series : High Precision Clamp Leakage Current Tester
AC leakage current, AC current measurement
Current range: AC 0.000mA~60.0A
Jaw size: Φ30mm
Storage function: 99 sets of data storage
Peak hold function
Product Introduction

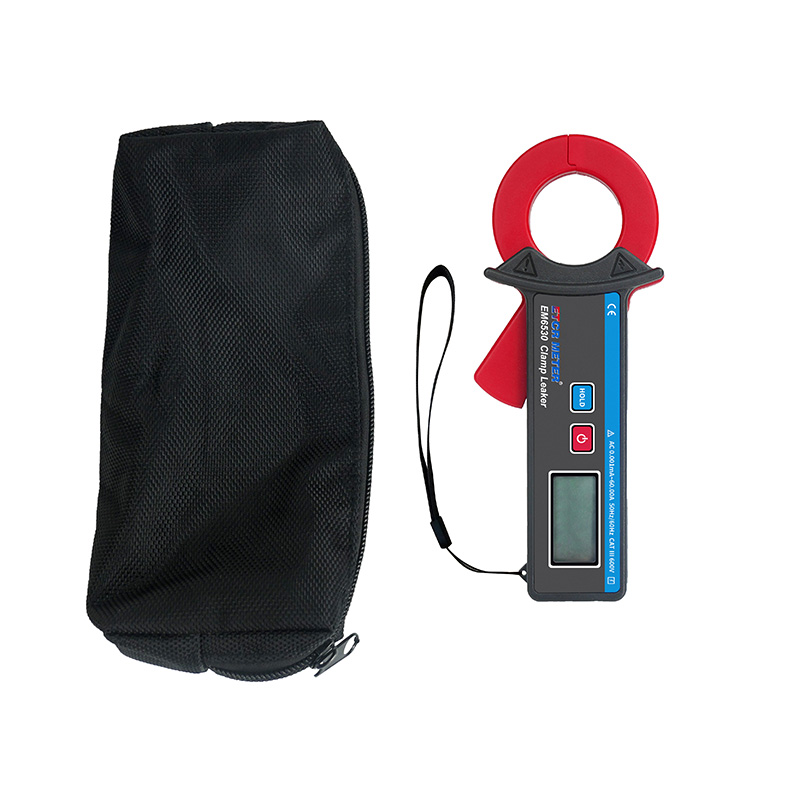

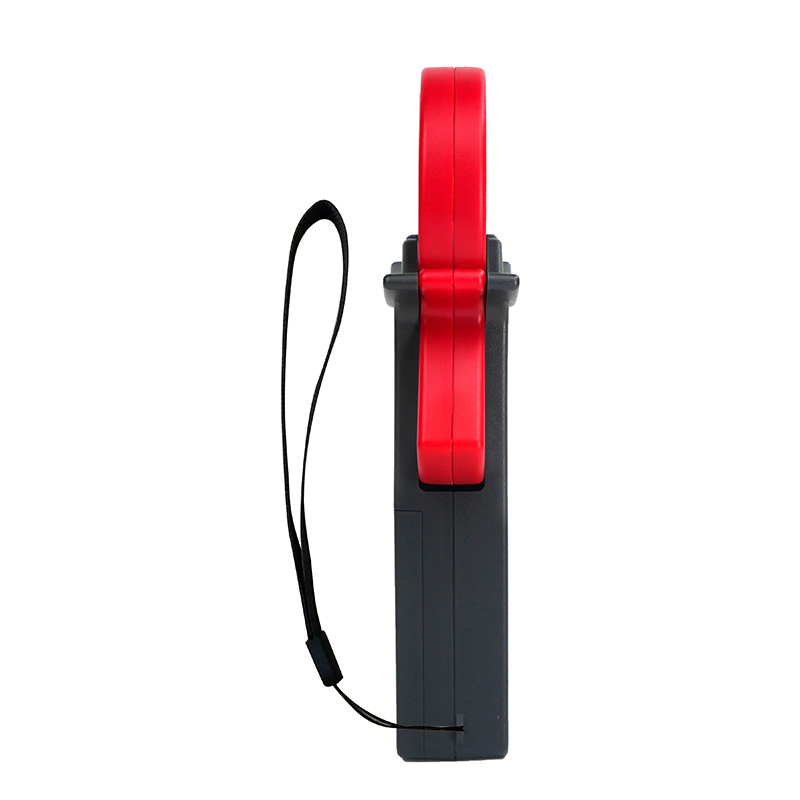

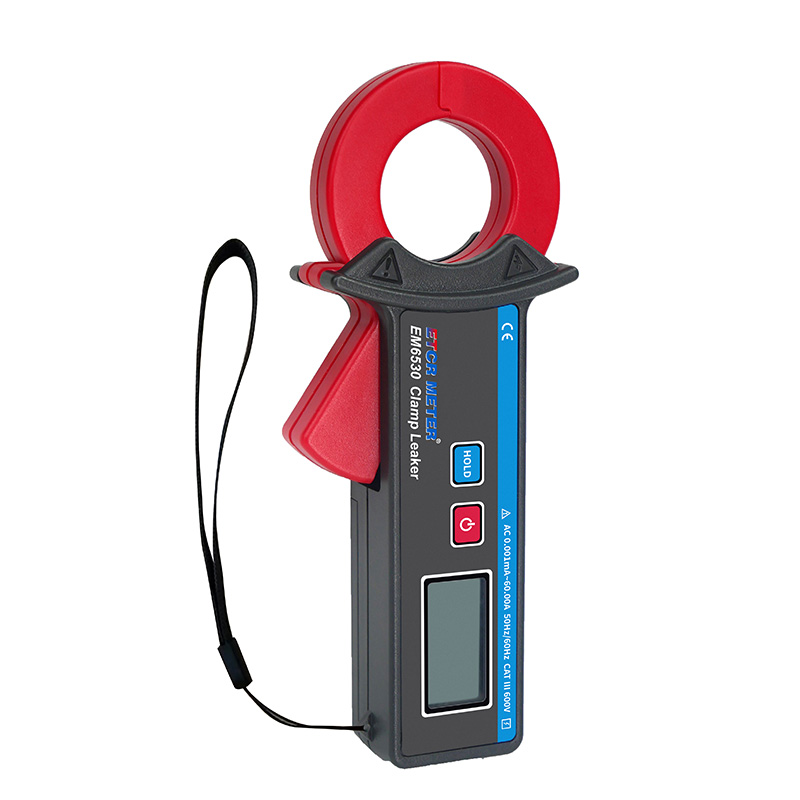

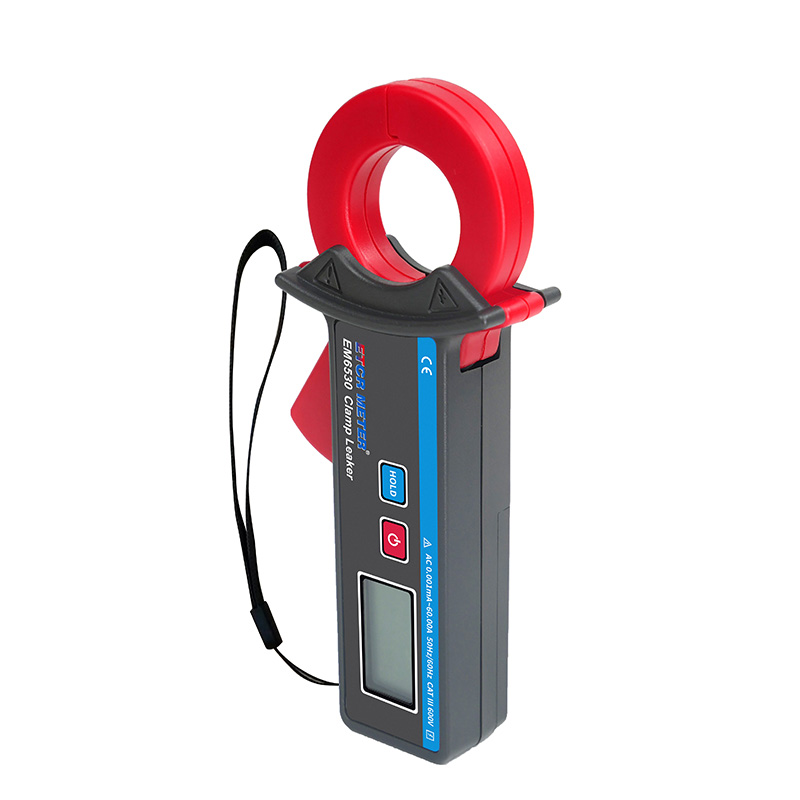

ETCR EM6530 mini clamp leakage current meter is also called clamp leakage current tester and high-precision clamp current meter, which is used for AC leakage current and AC current measurement.
The clamp meter sensor core adopts slope film alloy and double-layer shielding technology, which is almost unaffected by external electromagnetic fields, ensuring high precision, high stability and
high reliability of uninterrupted measurement all year round. It is widely used in power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.
ETCR EM6530 mini clamp leakage current meter has peak hold, data hold, data storage and other functions.
Product Features
1. The clamp meter is small in size and easy to carry. It is an essential tool for electrical safety detection.
2. Double-layer shielding technology, high precision, strong anti-interference ability, and resolution of 1uA.
3. Peak hold function.
4. Data storage function.
Technical Parameters
| Power supply | Alkaline dry battery 7# 2 pcs |
| Display mode | 4-digit LCD display |
| LCD size | 35mm×21.5mm; display area: 32mm×15mm |
| Range | 0.000mA～60.0A |
| Resolution | 1uA |
| Measurement accuracy | ±1.5%rdg±5dgt |
| Jaw size | Φ30mm |
| Instrument size | 180mm×72mm×32mm |
| Instrument weight Instrument | about 200g (including battery); total weight: about 0.31kg (including accessories) |
| Test method | Clamp CT, integration method |
| Sampling rate | about 2 times/second |
| Frequency | 50Hz, 60Hz automatic recognition |
| Shifting | Fully automatic switching |
| Line voltage | Line test below AC600V |
| Data storage | 99 groups, flashing "FULL" symbol indicates that the storage is full |
| Peak hold | Peak capture hold function, long press HOLD during the test to display the peak value |
| Data hold | Data hold function: "DH" symbol display |
| Overflow display | Over range overflow function: "OL" symbol display |
| Auto shutdown | After about 5 minutes of power on, the instrument automatically shuts down to reduce battery consumption |
| Battery voltage | When the battery voltage drops to about 2.8V, the low battery voltage symbol is displayed to remind you to replace the battery. |
| Working current | 5mA |
| Insulation strength | AC2kV/rms (between the core and the box) |
| Suitable for safety regulations | IEC1010-1, IEC1010-2-032, pollution level 2, CAT Ⅲ (600V) |
| Working temperature and humidity | 0℃～40℃; below 80%RH |
| Storage temperature and humidity | -10℃～60℃; below 70%RH |
