Product Introduction

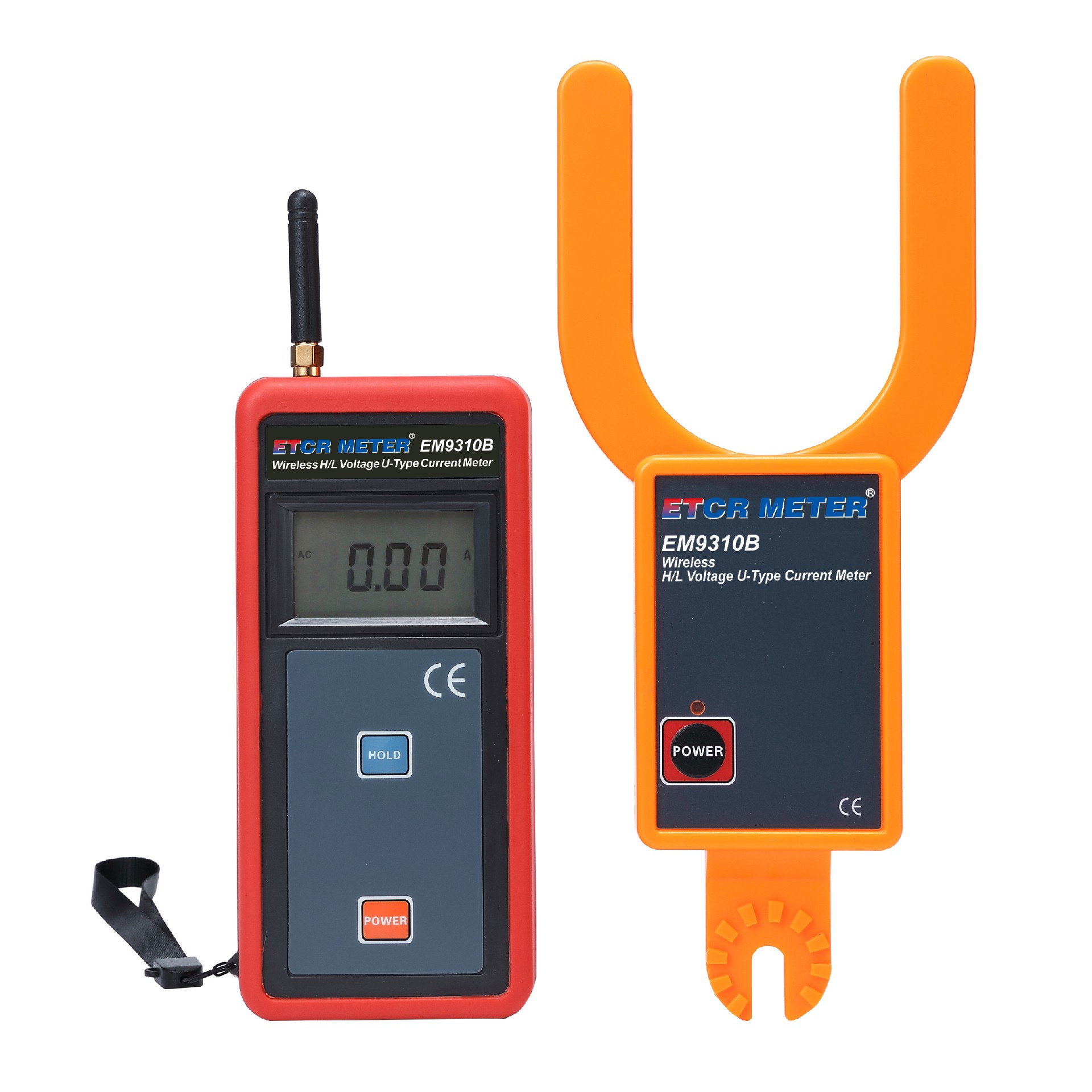

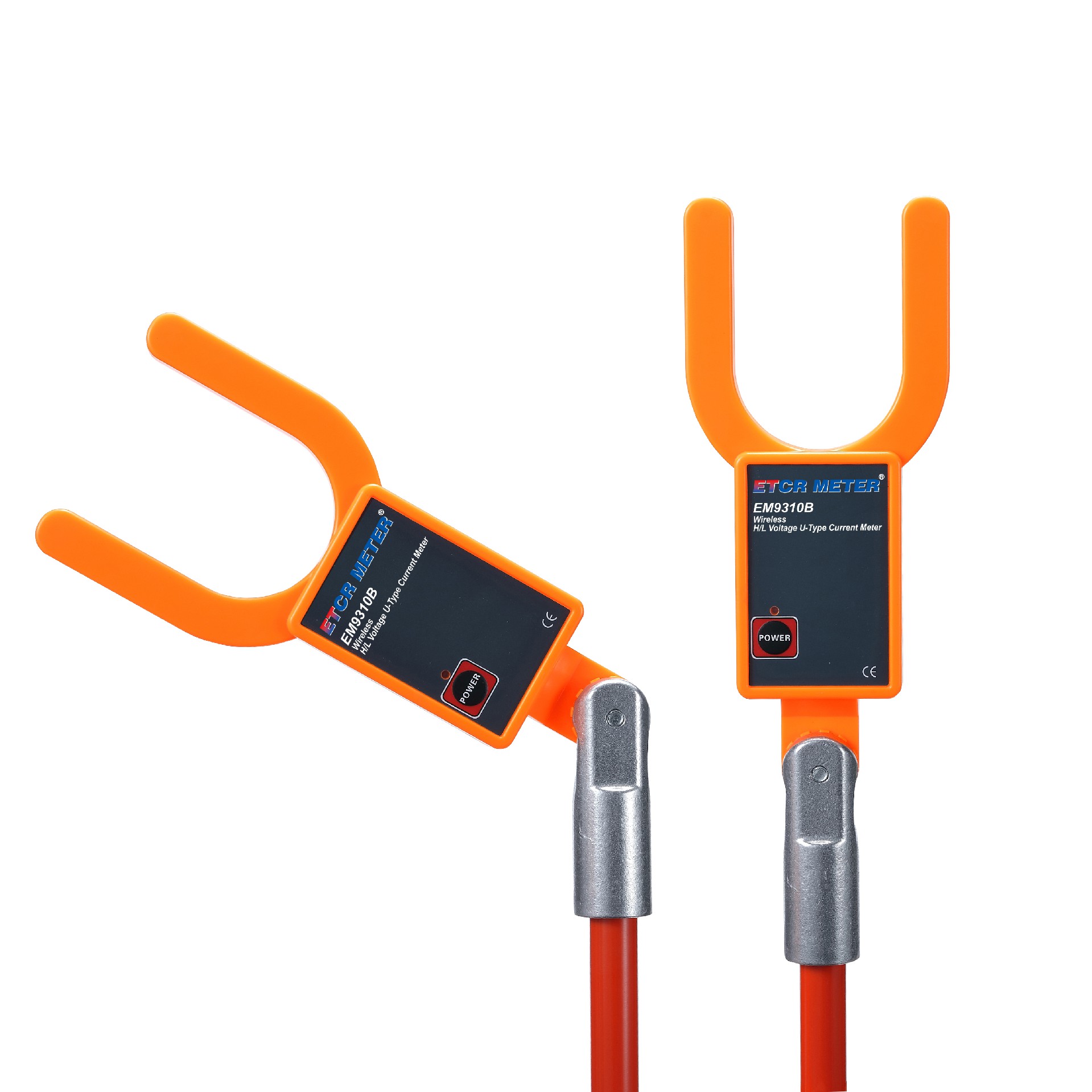

ETCR EM9310B Large Caliber U-shaped Wireless H/L Current Meter, also known as U-shaped H/L Clamp Current Meter, overhead line load tester, high voltage load tester, high altitude current tester, high voltage current telemeter, which is used for measurement of H/L AC current of overhead line below 110kV. The unique U-shaped opening structure realizes unhindered measurement, and on-site testing is particularly convenient. It is widely used in substation, power plant, industrial and mining enterprise, testing station, electrician maintenance department for current detection and field electrician operation,etc.

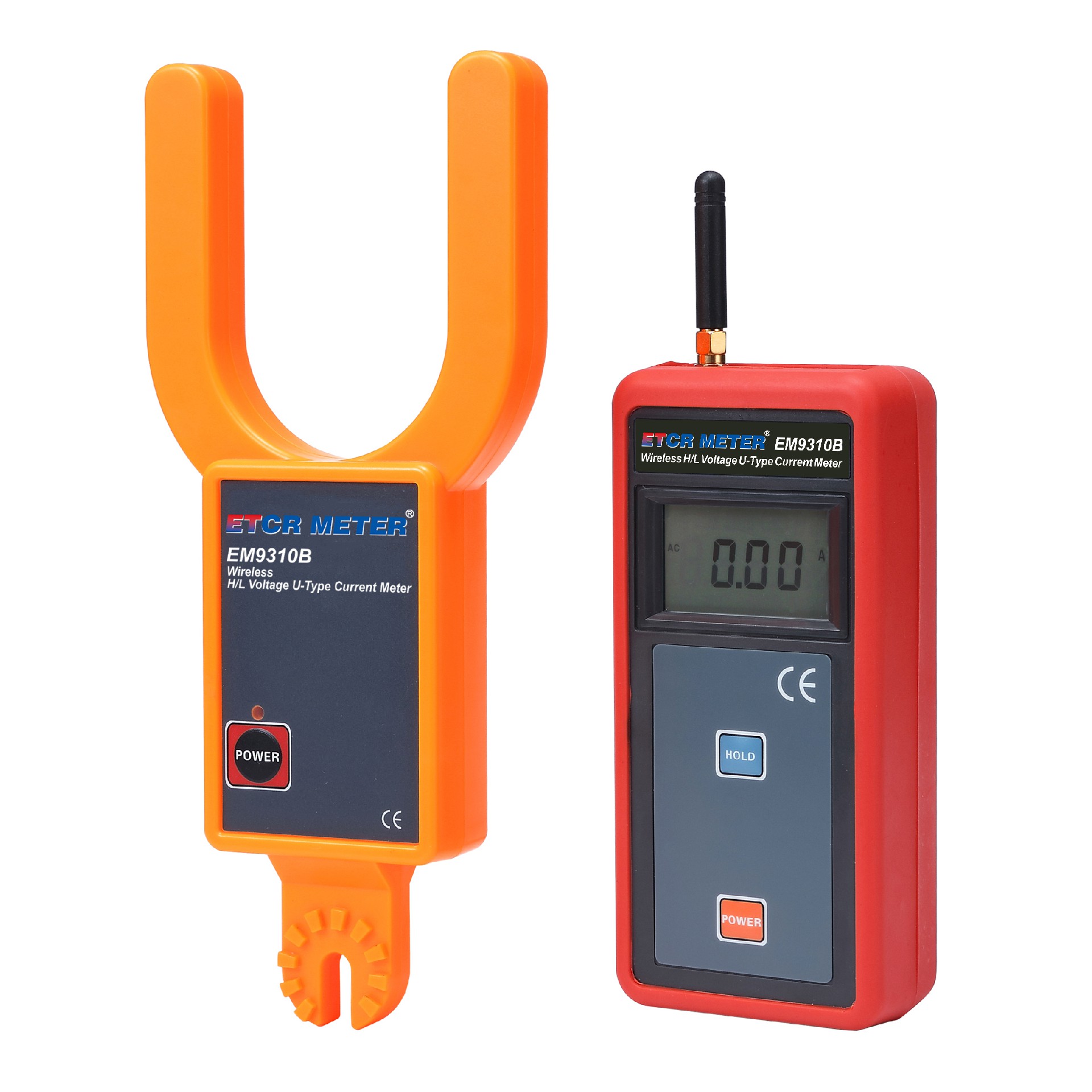

ETCR EM9310B Large Caliber U-shaped Wireless H/L Current Meter is composed of u-shaped clamp jaw, receiver and insulating rod. Testing below 110kV requires insulating rod (testing below 500kV can be customized), no request insulating rod when measure below 600V. The meter has data hold, memory function, etc.

1.Unique U-shaped opening structure realizes unhindered measurement, and on-site testing is particularly convenient.

2.Testing below 110kV requires insulating rod (testing below 500kV can be customized).
3.Ultra-wide current range: 0.00A~9999A.
4.Adopt with wireless transmission method, transmission distance 100m.
5.Memory: data storage 99 groups.

EM9310B (8).jpg

EM9310B (7).jpg

Technical Parameters

Function	High voltage AC current measurement, low voltage AC current and online AC current monitoring
Power Supply	6V DC (1.5V AAAX4 alkaline dry batteries)
Test Mode	Non-contact U-type CT
Transmission Mode	433MHz wireless transmission, transmission distance is about 100 meters
Display Mode	4-digit LCD display, backlight function, suitable for measurement in dark place
LCD size	47mmX28.5mm
Meter Dimension	Detector: 107mmX252mmX31mm; Receiver: 78mmX165mmX42mm
CT Size	φ128mm
Insulation Rod Dimension	4300mm
Sampling Rate	2 times / second
Measurement Range	0.00A~9999A (50/60Hz automatic)
Resolution	0.01A
Shift	0.00A~9999A automatic shift
Test Accuracy	±2%rdg±5dgt (The wire is near the center of the bottom end of the U-type clamp,23℃±2℃)
Position Error	The measured conductor should be located as close as possible to the center of the bottom end of the U-type clamp.
Data Storage	99 groups, in storage process “MEM” symbol display, “FULL” symbol flash display indicate storage is full
Line Voltage	Below 110kV, operated with insulation rod ( customized test below 500kV)
Data Hold	In general test mode, press HOLD key to hold data, “HOLD” symbol display. press HOLD Key once again to cancel this function
Data Access	“MR” symbol display, it can look over all the stored data
Overflow Display	Exceed measurement range overflow function: “OL A” symbol display
No Signal Indication	When the receiver has not received transmit signal, dynamic display “no- -”symbol
Automatic Shutdown	15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption
Battery Voltage	When battery voltage is lower than 4.8V±0.2V, low battery voltage symbol “” will display and remind to replace battery.
Weight	Detector: 235g (with Battery ), Meter total Weight: 4.5kg (including insulation rod and battery)
Working Temperature	-10℃~40℃; Below 80%RH
Interference	Should try to avoid 315MHz, 433MHz same-frequency signal interference
Insulation Strength	AC 220kV/rms (The telescopic insulation rod is fully opened between the two ends)

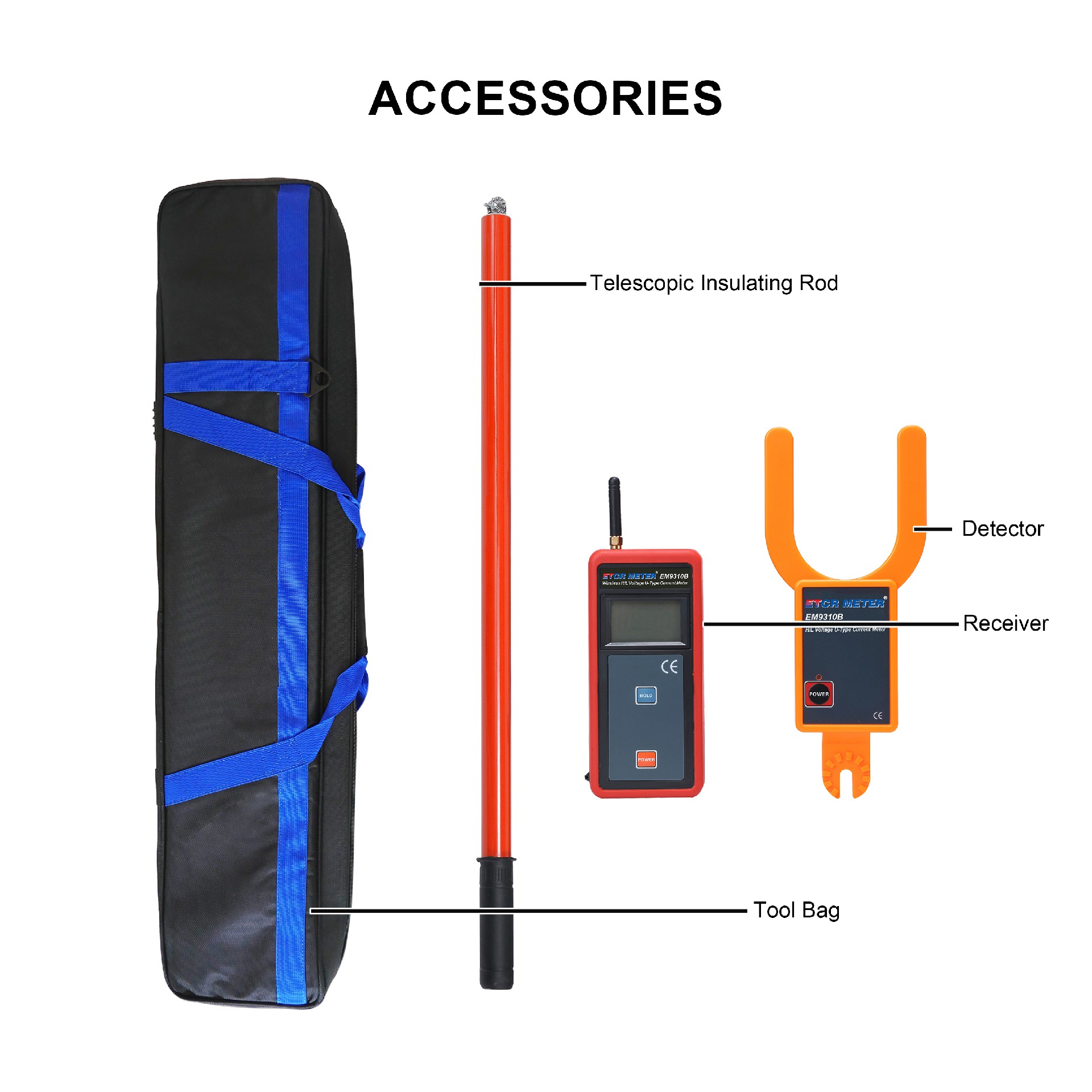

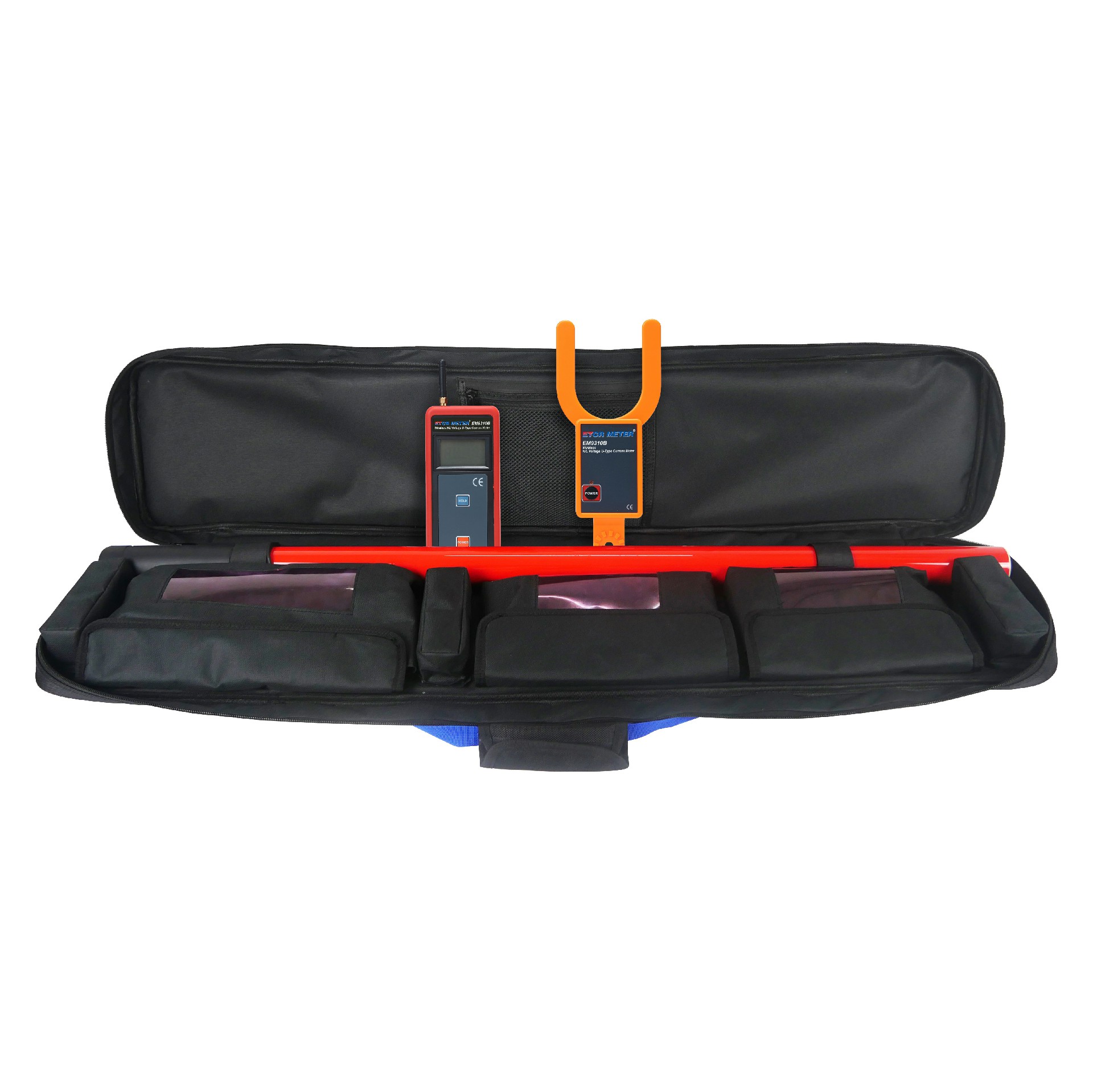

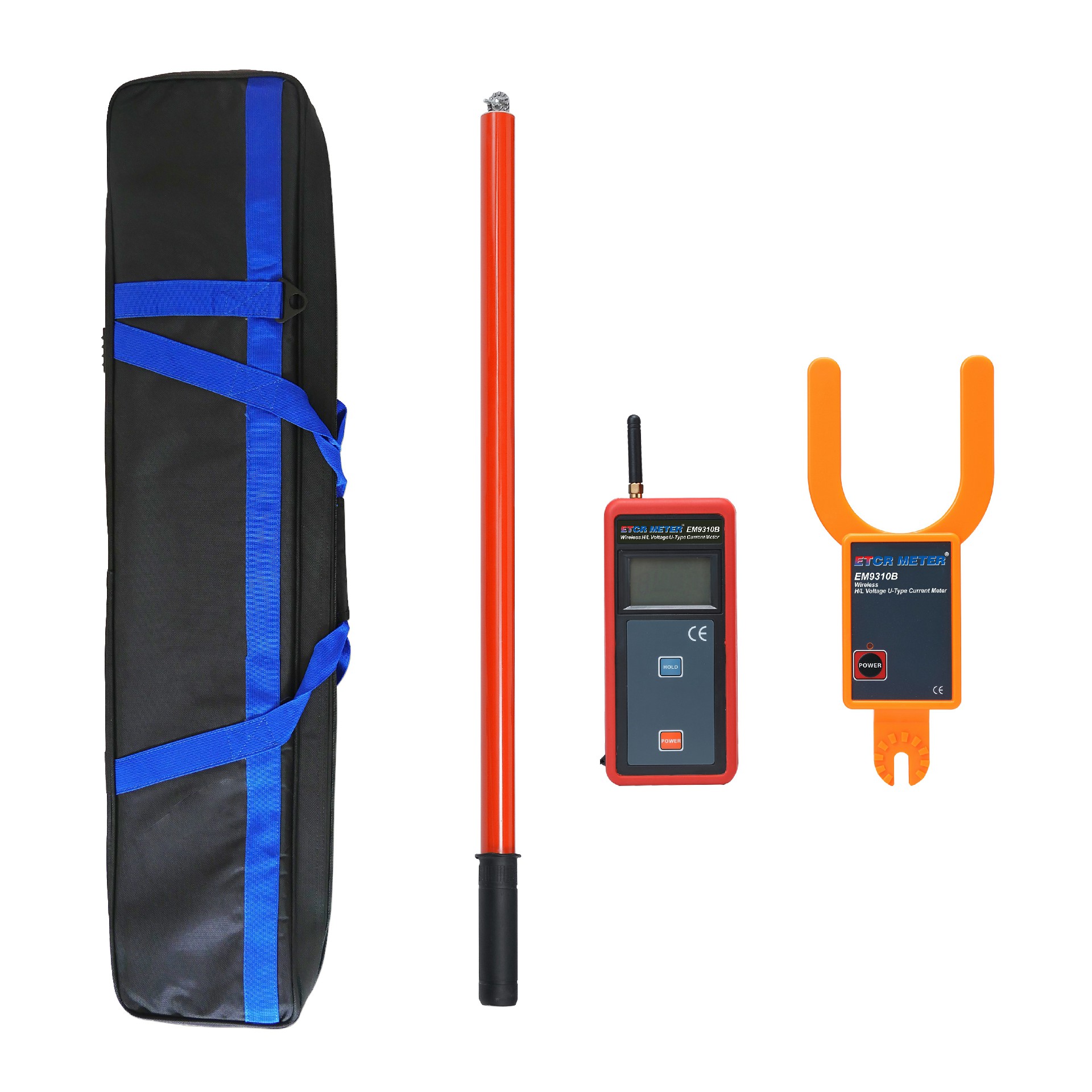

Accessories	Clamp meter: 1PCS; Receiver: 1PCS; Telescopic insulating rod: 1PCS; Cloth bag: 1PCS; LR03 Alkaline dry battery: 8PCS

Model Comparison

Product Picture	Product Model Name	Clamp Jaw Size	Line Voltage Level	Current Range	Solution	Max Accuracy	Transmission Method

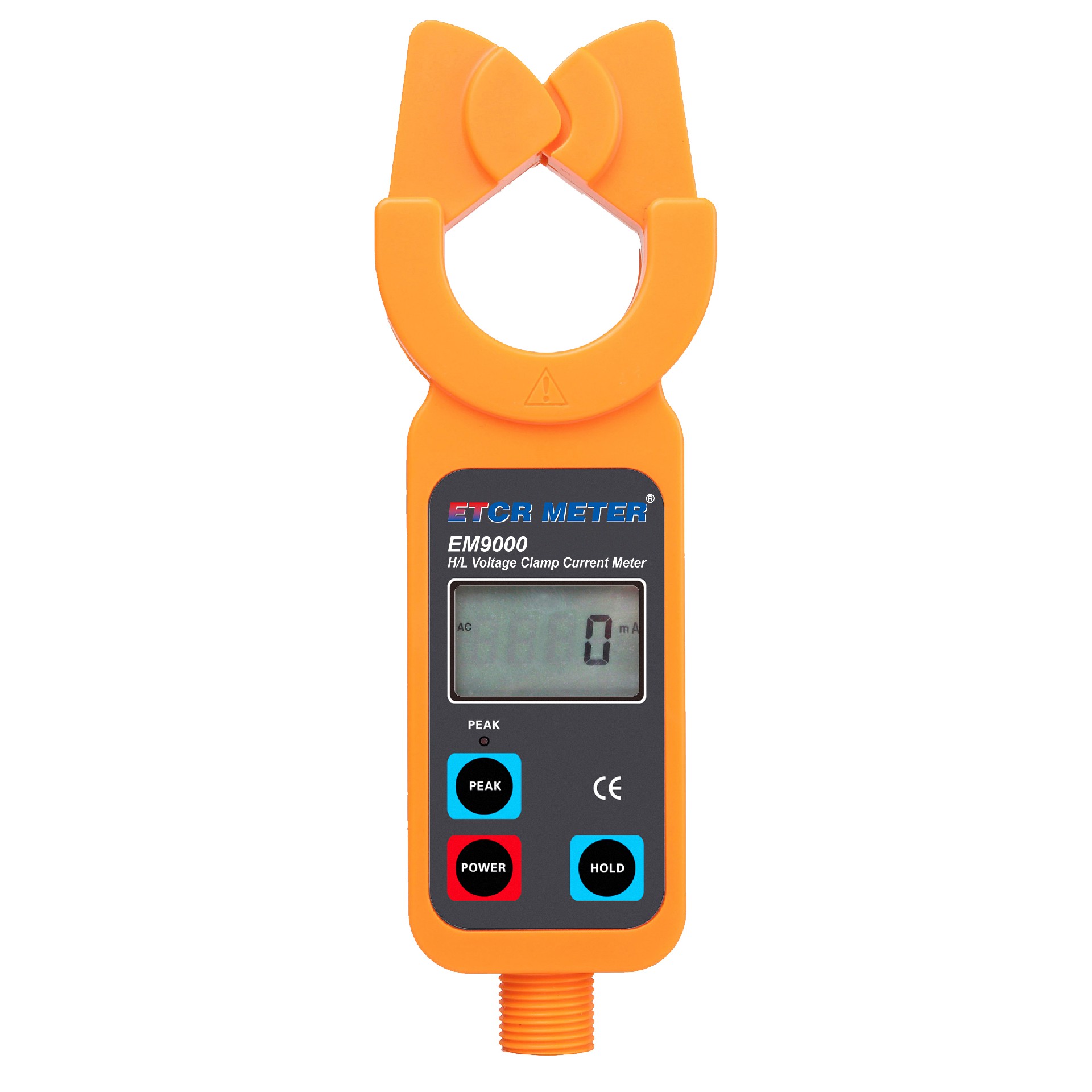

	ETCR EM9000 H/L Voltage Clamp Current Meter	Φ48mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	--

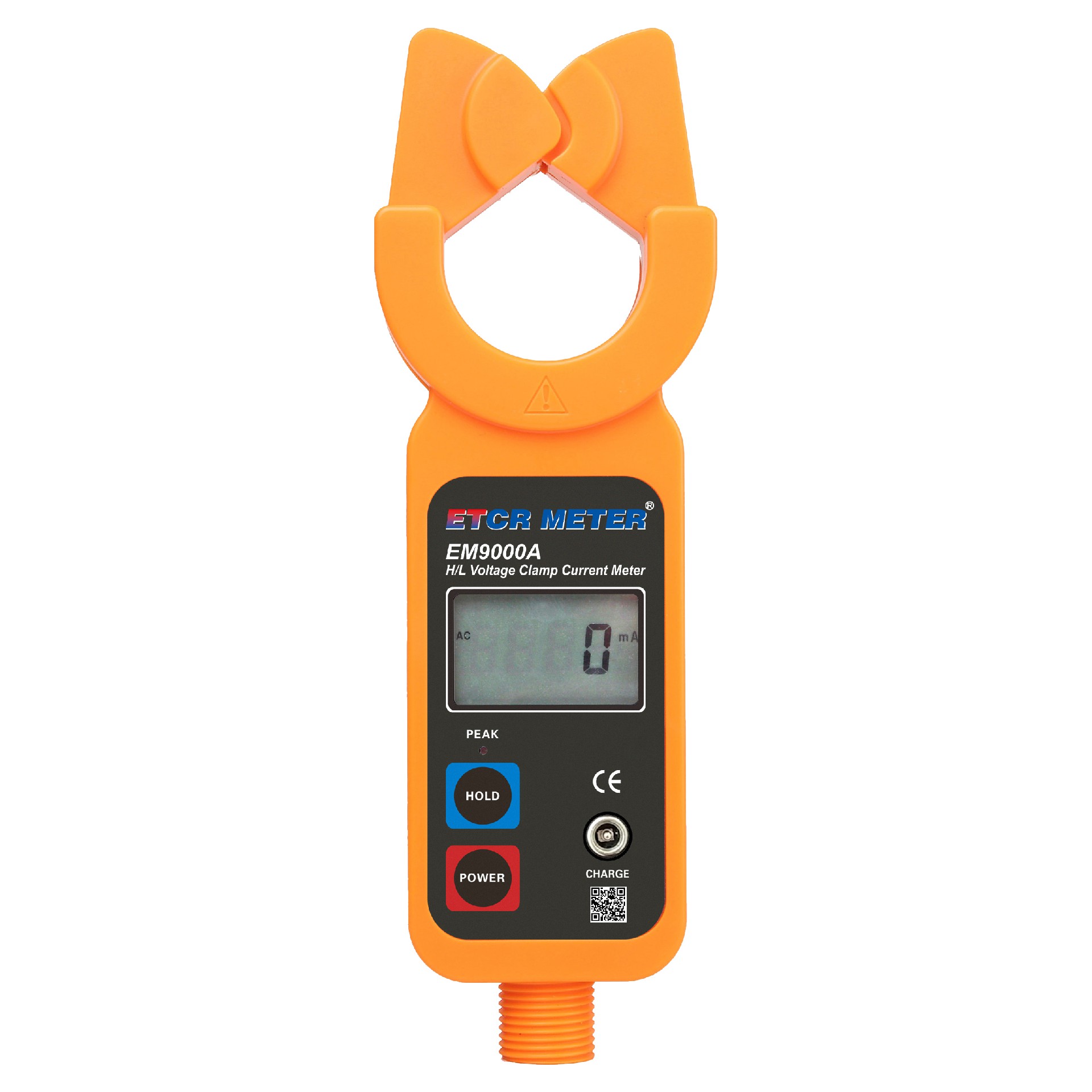

	ETCR EM9000A H/L Voltage Clamp Current Meter	Φ48mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	Bluetooth 10m
	ETCR EM9000B Wireless H/L Voltage Clamp Current Meter	Φ48mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±3dgt	Wireless 30m

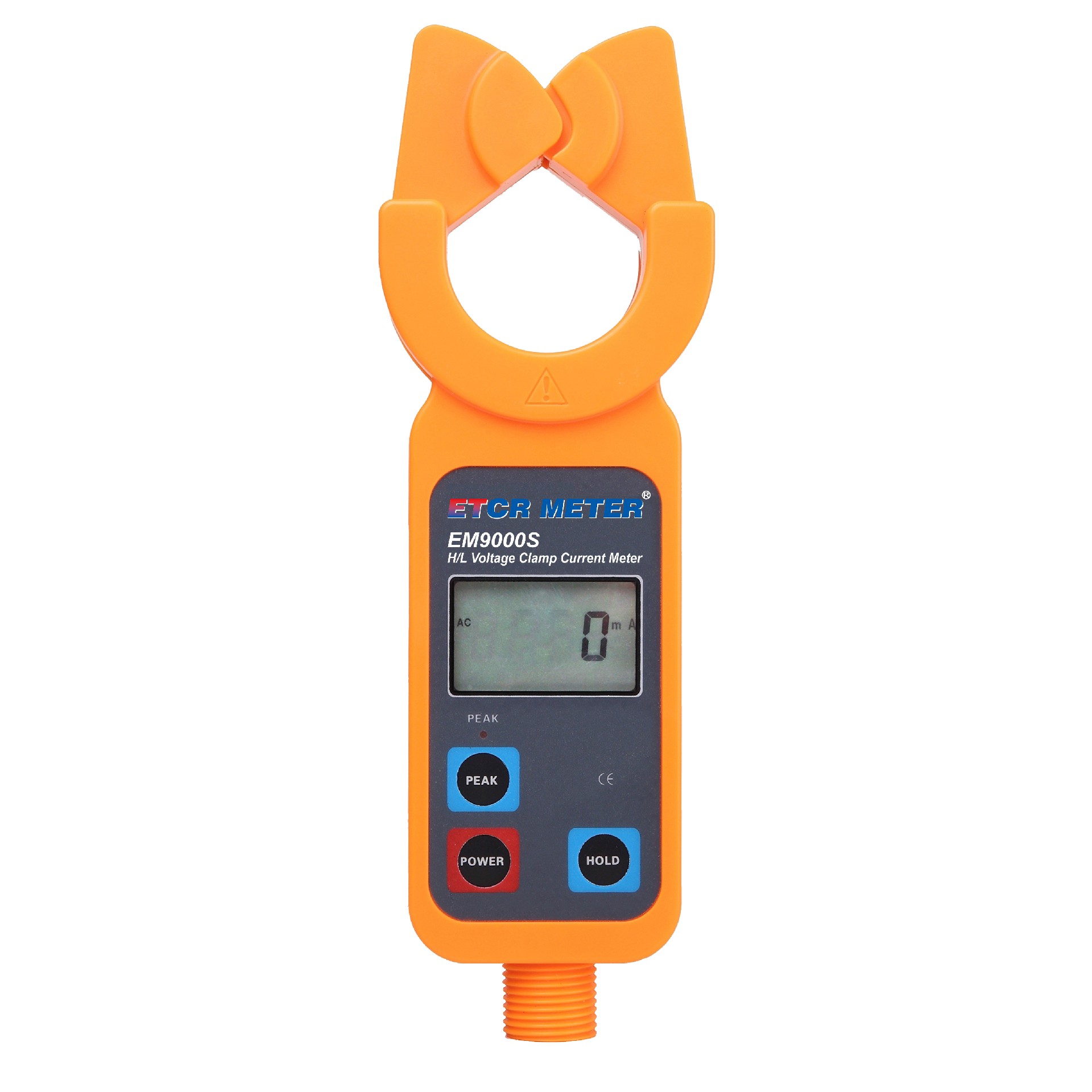

	ETCR EM9000S H/L Voltage Clamp Current Meter	Φ48mm	≤10kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	--

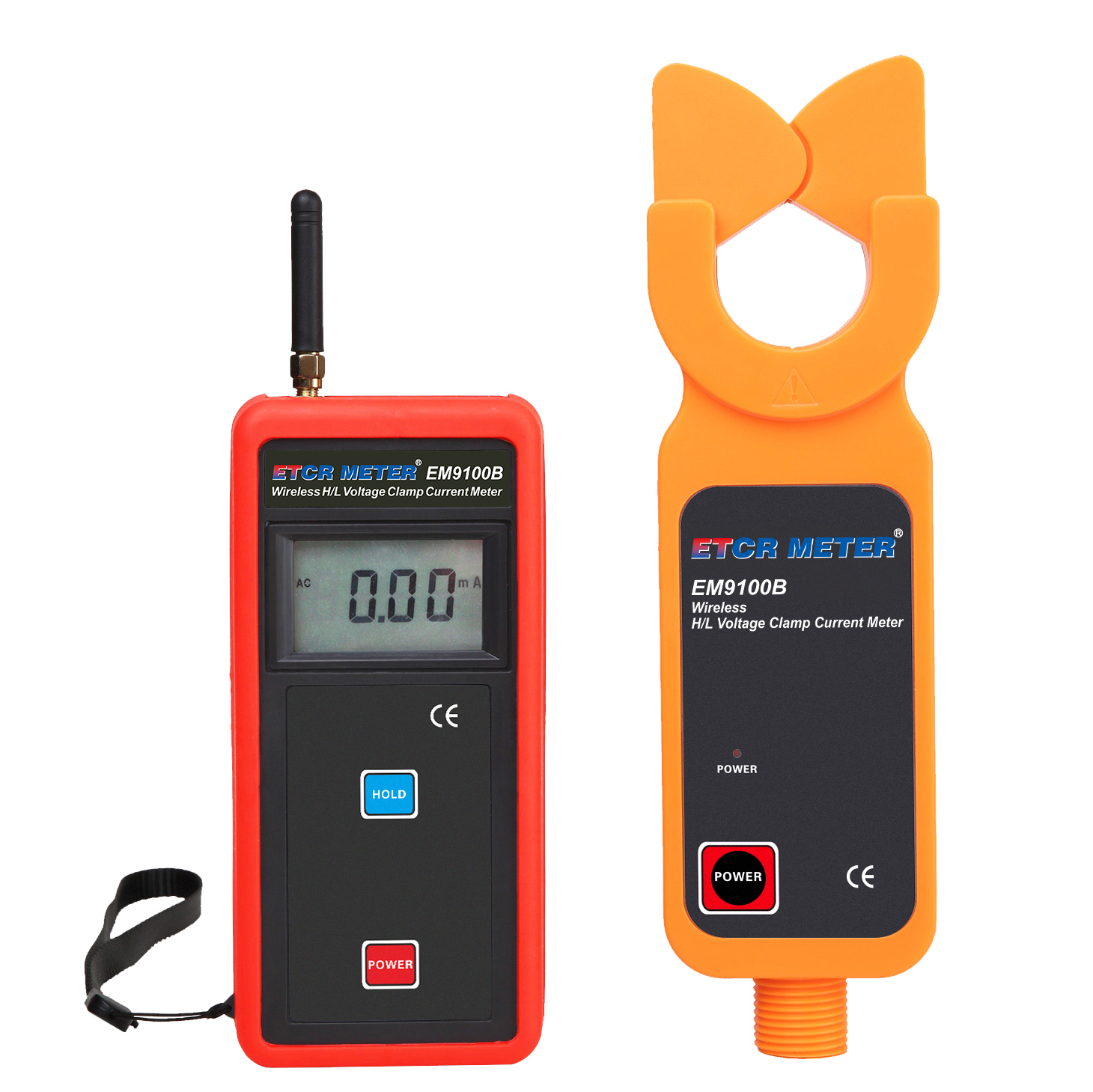

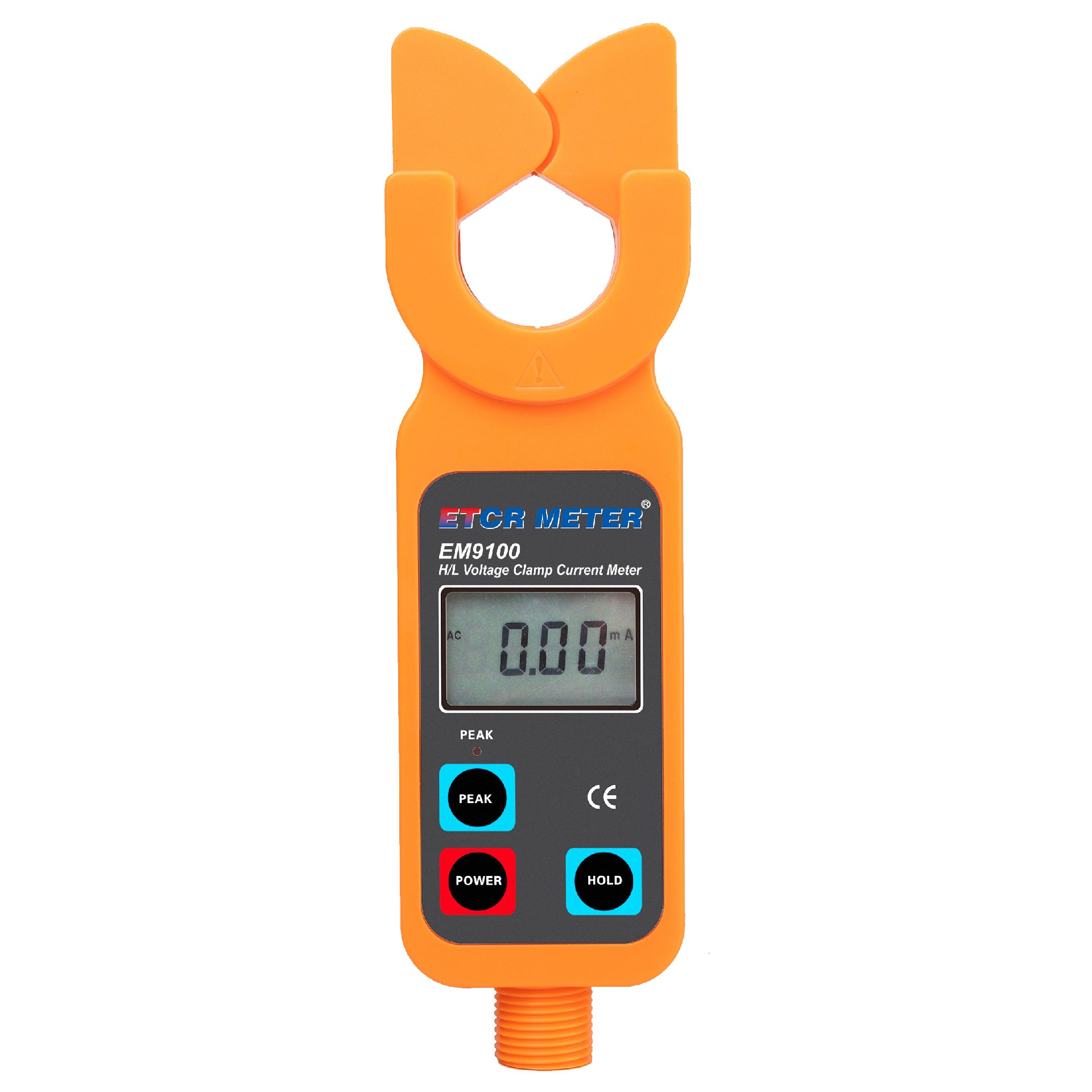

	ETCR EM9100 H/L Voltage Clamp Current Meter	Φ33mm	≤60kV	AC 0.00mA～600A	0.01mA	±1%rdg±5dgt	--
	ETCR EM9100B Wireless H/L Voltage Clamp Current Meter	Φ33mm	≤60kV	AC 0.00mA～600A	0.01mA	±1%rdg±5dgt	Wireless 30m

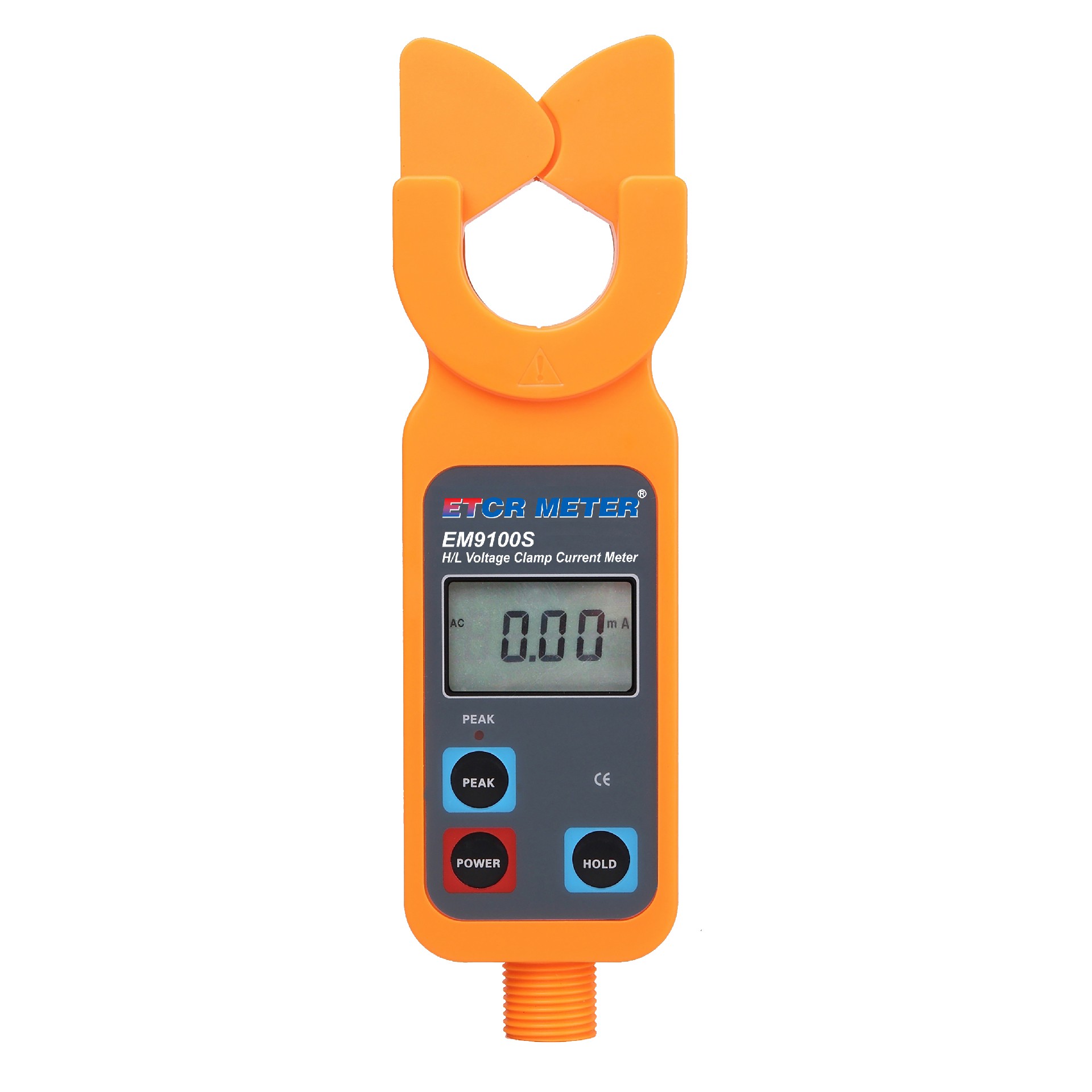

	ETCR EM9100S H/L Voltage Clamp Current Meter	Φ33mm	≤10kV	AC 0.00mA～600A	0.01mA	±1%rdg±5dgt	--
	ETCR EM9150B Wireless H/L Voltage Clamp Current Meter	Φ40mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	Wireless 30m

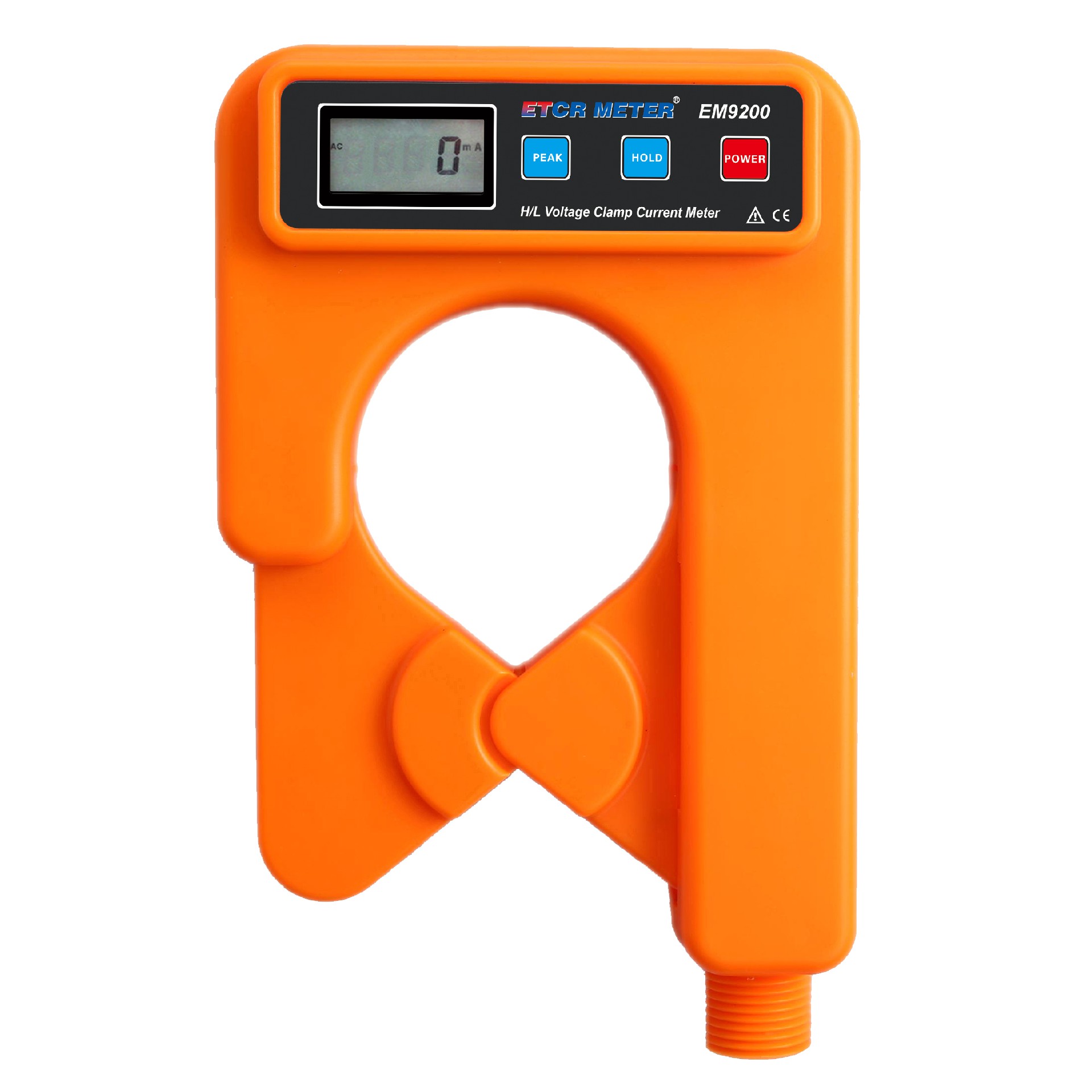

	ETCR EM9200 H/L Voltage Clamp Current Meter	Φ68mm	≤60kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	--

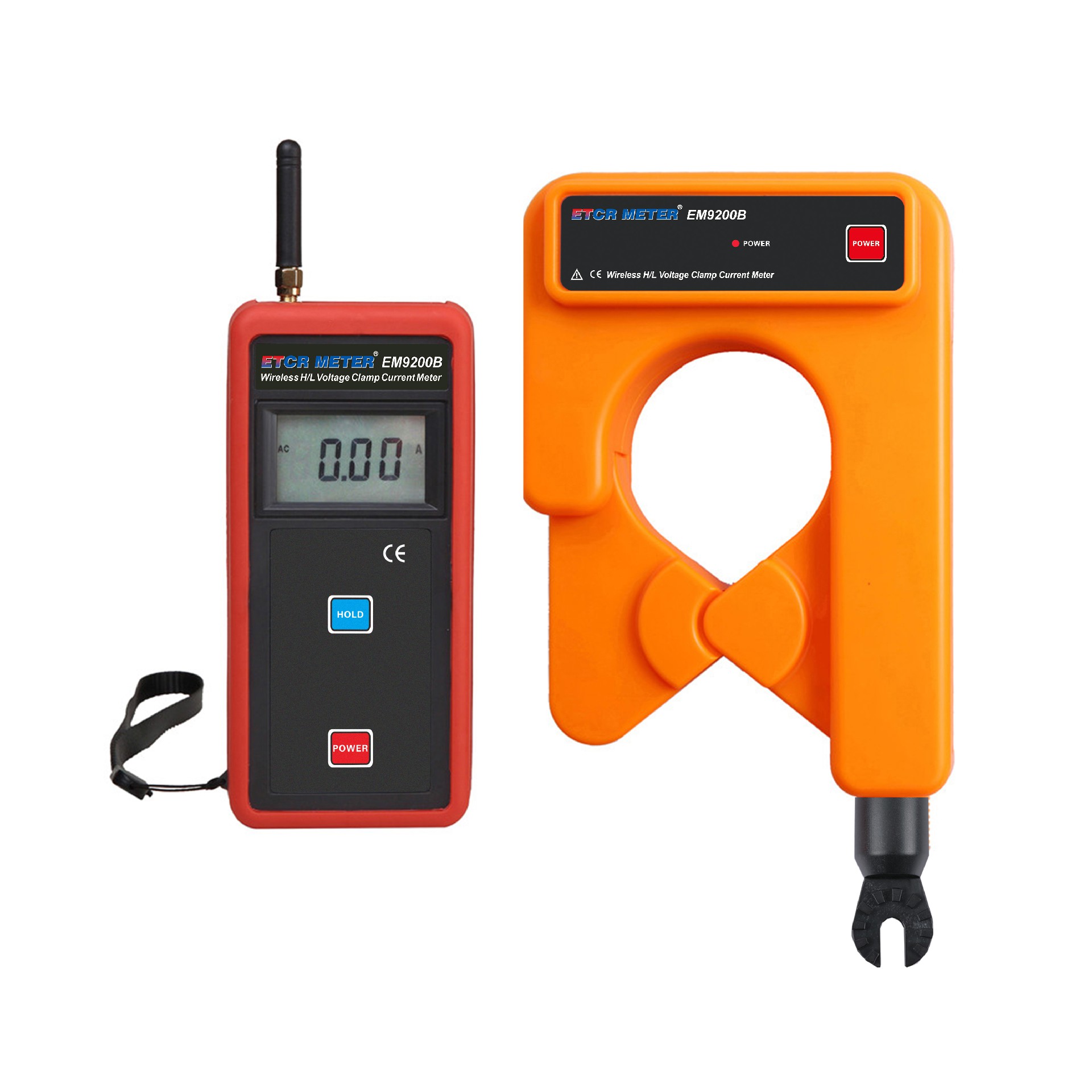

	ETCR EM9200B Wireless H/L Voltage Clamp Current Meter	Φ68mm	≤60kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	Wireless 30m
	ETCR EM9310B H/L Voltage Clamp Current Meter	Φ128mm	≤110kV	AC 0.00A～9999A	0.01A	±1%rdg±5dgt	Wireless 100m

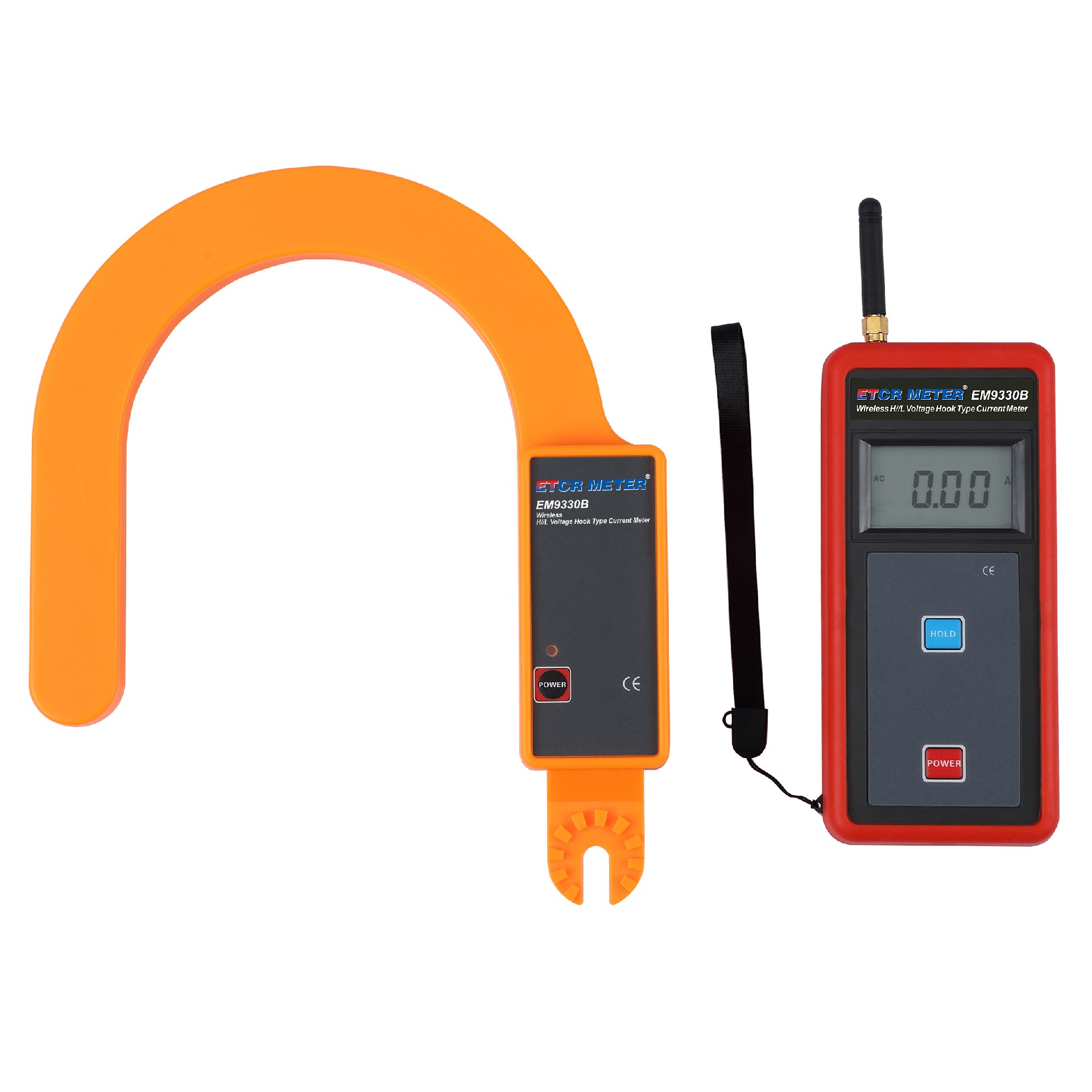

	ETCR EM9330B H/L Voltage Clamp Current Meter	Φ128mm	≤110kV	AC 0.00A～9999A	0.01A	±1%rdg±5dgt	Wireless 100m
