Product Series : IR Thermometer
Used for non-contact temperature measurement. It determines the surface temperature of an object by measuring the infrared energy radiated from the surface. It is suitable for safely measuring the temperature of hot, toxic, or hard-to-reach objects.
Temperature Range: - 50°C ~ 950°C
Resolution: 0.1°C
Spectral Response: 8µm ~ 14µm
Power Supply: 9V carbon or alkaline battery
Product Introduction
The ETA550 non-contact infrared thermometer is compact, interference-resistant, and easy to use. Simply aim and press a button to read the current surface temperature of the object being measured in under a second. This device allows for safe measurement of hot, toxic, or hard-to-reach objects.
An infrared thermometer measures the surface temperature of an object. Its light sensor radiates, reflects, and transmits energy. This energy is then collected and focused by the probe, and other circuitry converts the information into a reading displayed on the instrument. The laser light included in this device allows for more efficient alignment of the object being measured and improves measurement accuracy.
ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.
Product Features
1. Single-point laser aiming.
2. Backlit display.
3. MAX (maximum), MIN (minimum), DIF (difference), and AVG (average).
4. Adjustable emissivity.
5. High and low temperature alarms.
6. Data logging.
Technical Parameters
| Model | ETA550 | ETA950 |
| Temperature Range | - 50℃~550℃ | - 50℃~950℃ |
| Measurement Accuracy(environment: 23℃±3℃) | - 50℃~0℃: ±2.5℃ | - 50℃~23℃: ±2℃ |
| Resolution | 0.1℃ | 0.1℃ |
| Repeatability | 1% of reading or ±1℃ (whichever is greater) | 0.5% of reading or ±1℃ (whichever is greater) |
| Spectral Response | 8μm~14μm | 8μm~14μm |
| Weight | 92g | 240g |
| Dimensions | 145mm × 37mm ×90mm | 200mm × 120mm × 55mm |
| Response Time | 500 mSec | |
| Laser Targeting | Single-point laser (<1mW) | |
| Tripod Mount | 1/4in. 20UNC thread | |
| Power Supply | 9V carbon or alkaline battery | |
| Relative Humidity | 10%~90%RH, non-condensing | |
| Working Temperature | 0℃~40℃ | |
| Storage Temperature | - 20℃~50℃ | |
| Battery Life | 20 hours (laser & backlight on); 40 hours (laser & backlight off) | |

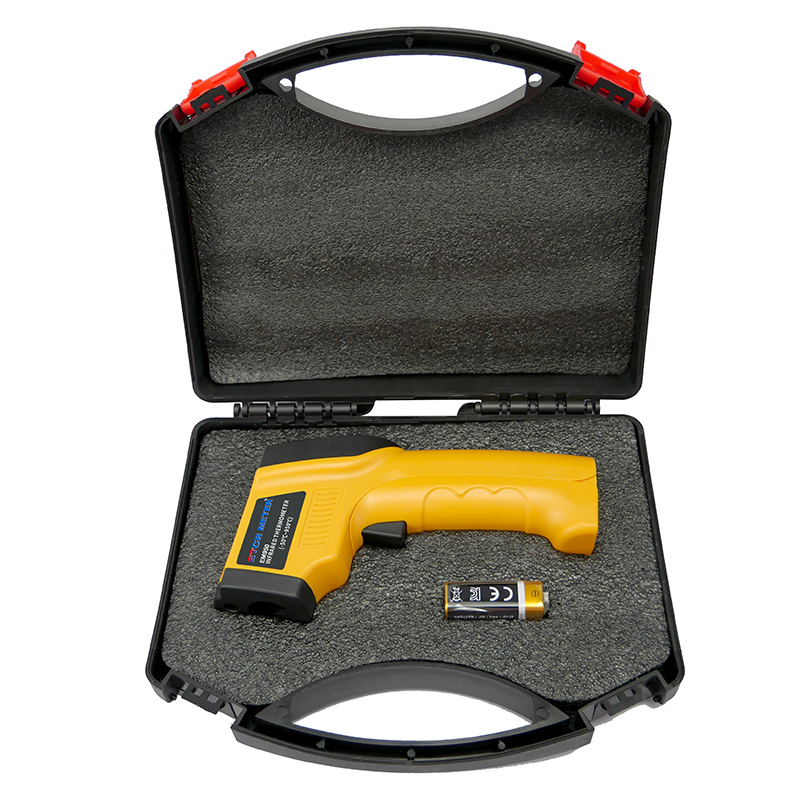

| Accessories | Thermometer: 1PC; | Thermometer: 1PC; |
Model Comparison
| Product Picture | Model | Temperature Range | Resolution | Spectral Response | Power Supply |

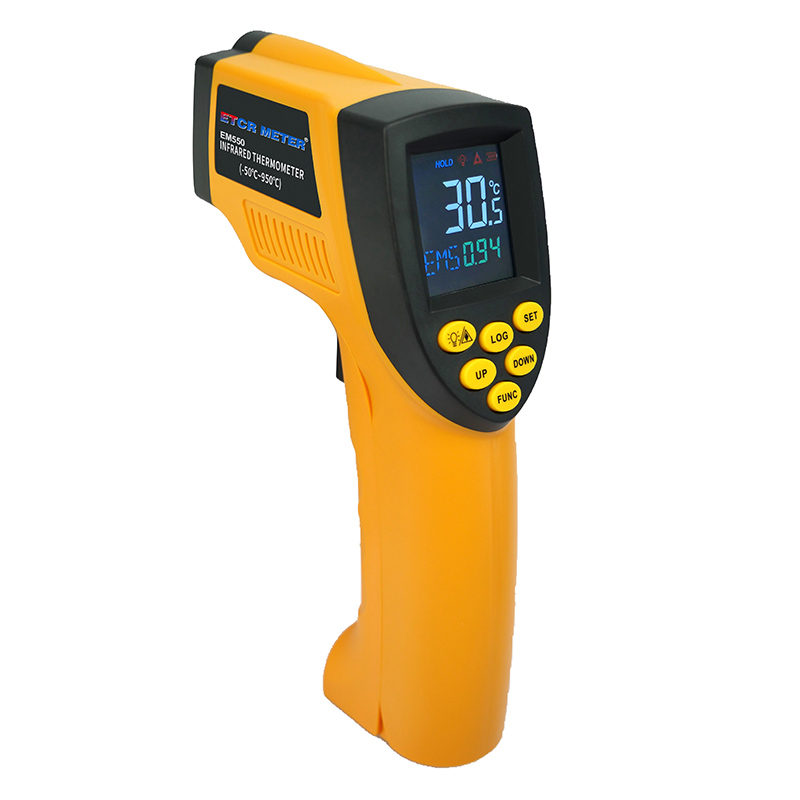

![]() | ETA550 | - 50℃~550℃ | 0.1℃ | 8um~14um | 9V Carbon or Alkaline Battery |

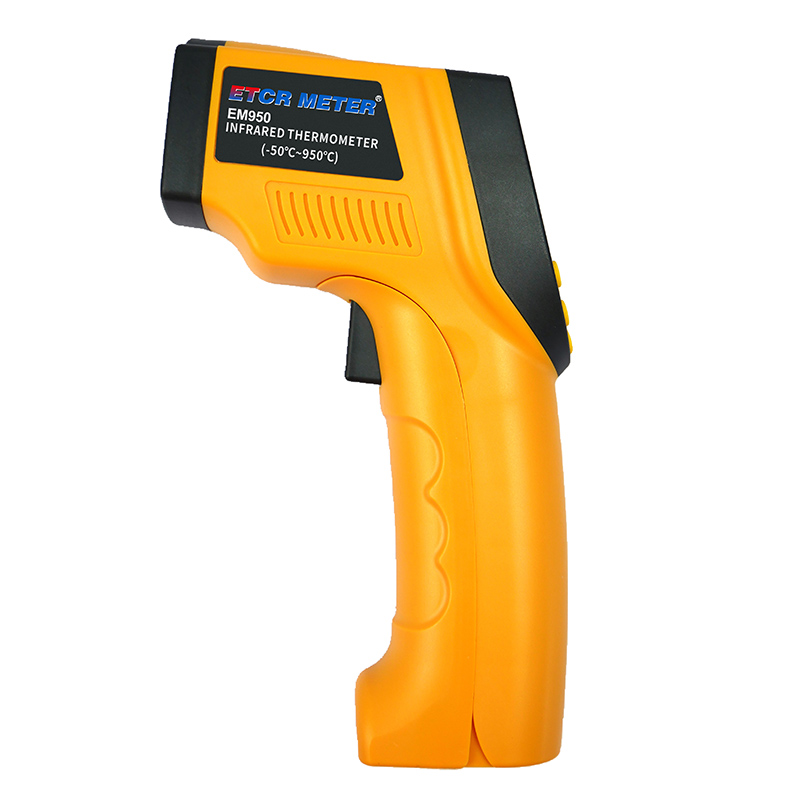

![]() | ETA950 | - 50℃~950℃ | 0.1℃ | 8um~14um | 9V Carbon or Alkaline Battery |
