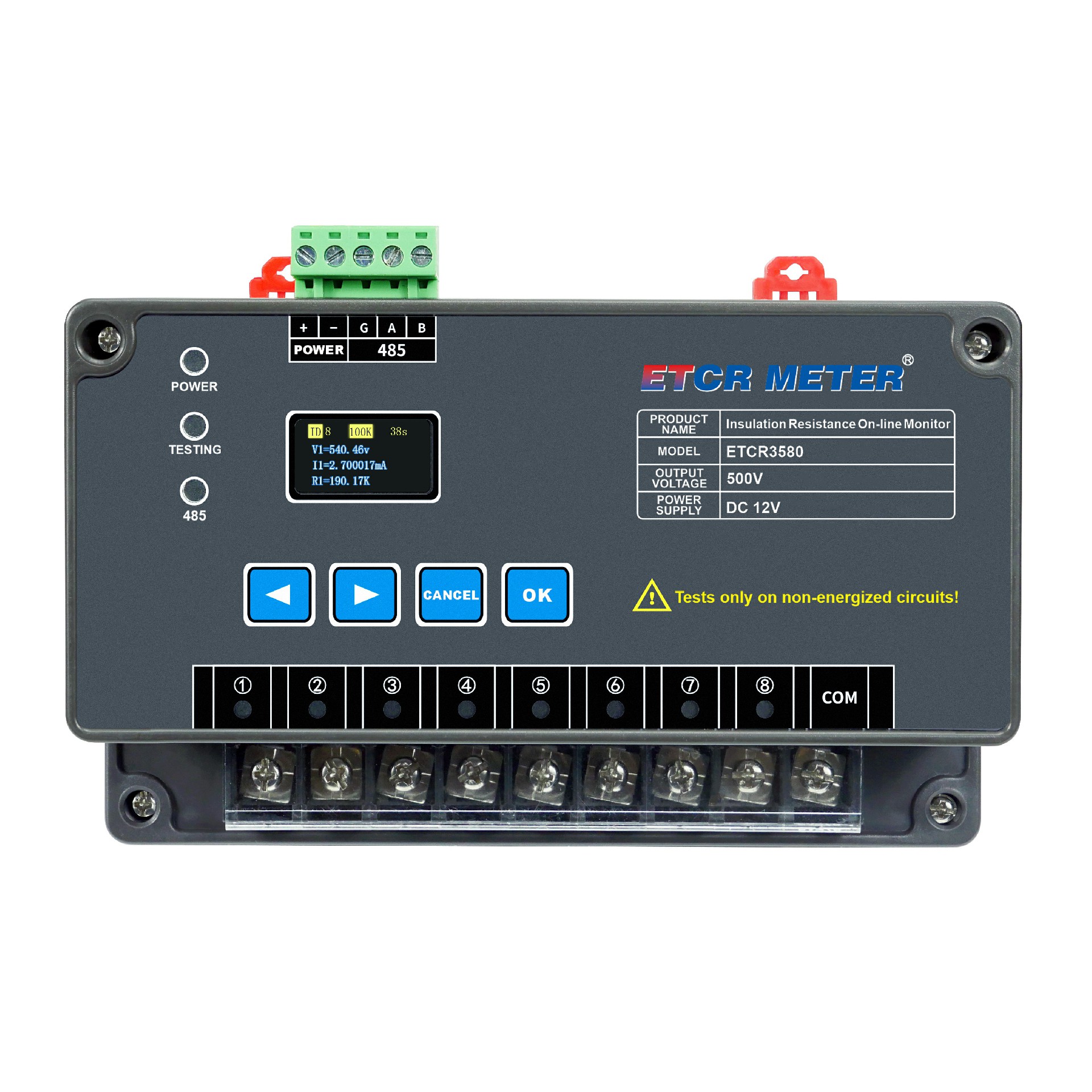

ETCR EM3580B Insulation Resistance On-line Monitor, also known as Insulation resistance on-line tester, which is used to online monitoring the insulation resistance value of cables, motors, switches, electrical appliances and other electrical equipment and insulating materials. The monitor adopt with OLED screen, test parameters can be set with monitor button or in the background,which is easy installation, reliable test. The monitor can monitoring the insulation resistance value of 1- 8 loop channels, the test must be conducted with the tested circuit not energized. The monitor equip with RS485 interface and Bluetooth communication to provide MODBS communication protocol, and can upload data such as insulation resistance value, output voltage, leakage current, dielectric absorption ratio and polarization index, etc, which for secondary development and application by users to realize real-time on-line monitoring the insulation resistance, widely used in telecommunication, electricity, meteorology, computer room, oil field, industrial and mining enterprises and other important places for insulation resistance online monitoring.

1.The test must be conducted with the tested circuit not energized.

2.Can upload data: insulation resistance value, output voltage, leakage current, dielectric absorption ratio and polarization index,etc.

3.Adopt with OLED screen

4.Mostly can monitoring the insulation resistance value and dielectric absorption ratio of 1- 8 loop channels.

5.Manual measurement and RS485 remote measurement.

6.RS485 communication

7.Bluetooth communication
