Product Series : Intelligent Digital Multimeter
Used for measuring AC voltage TRMS, DC voltage, AC current TRMS, DC current, resistance, frequency, capacitance, temperature, on/off test, diode forward voltage drop, etc.
Voltage range: DC 0.0mV ~ 1000V; AC 0mV ~ 750V
Current range: DC 0.0uA ~ 10A; AC 0.0uA ~ 200mA
Resistance range: 0.0Ω ~ 60MΩ
Capacitance range: 0.00nF ~ 6mF
Frequency range: 0.0Hz ~ 6MHz
Temperature range: 0℃ ~ 1000℃
Product Introduction

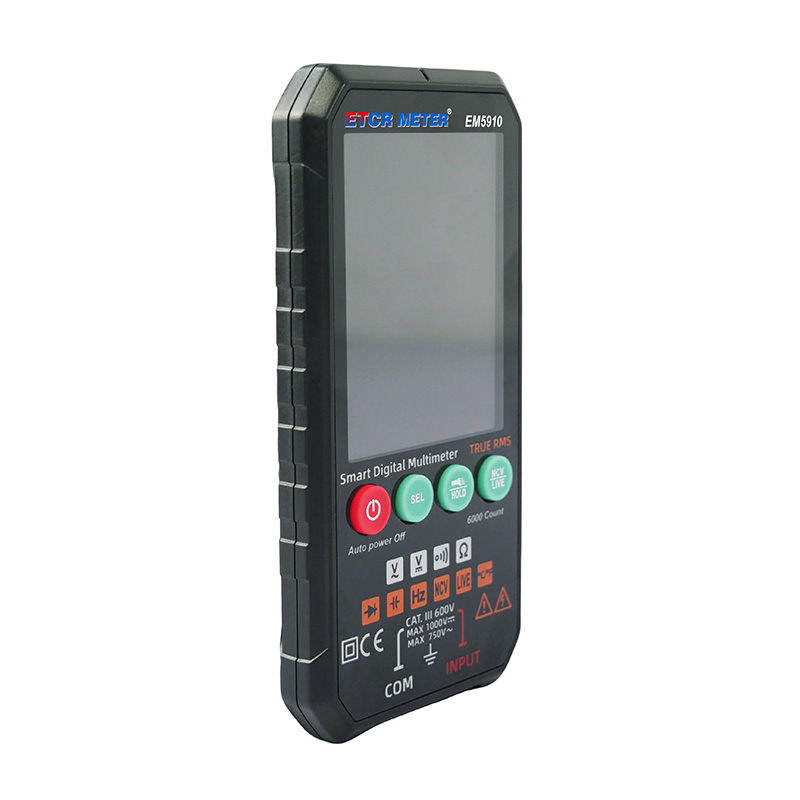

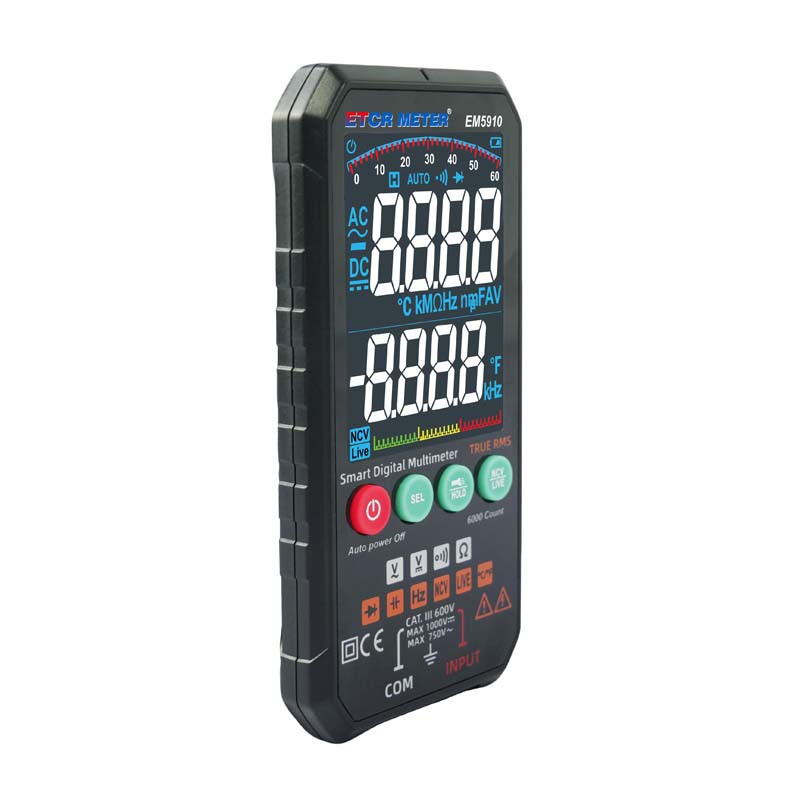

This meter is a 6000 count handheld digital smart multimeter. With fast measurement data, large LCD dual display with illumination, users are easy to read. With functions such as overload protection and battery undervoltage indication. Whether for professionals, factories, schools, hobbyists or home use, it is an ideal multi-function meter.
Designed and manufactured in accordance with the safety requirements of the International Electrotechnical Safety Standard IEC-61010 for electronic measuring instruments and handheld digital multi-meters. The instrument conforms to GBIT13978-92 general technical conditions for digital multi-meters, and GB4793.1-1995 (IEC-61010-1) safety requirements for electronic measuring instruments, which is a second level of pollution, and the over-voltage standard is CATI600V.
Product features
1. portable 6000 counts auto range digital multi-meter, new design, compact structure, easy to operate, easy to carry, is the ideal tool for electrical and electronic measurements.
2. large LCD screen display, convenient for users to read out the measured value in dark places.
3. With automatic shutdown, data retention, lighting and other functions.
Technical Parameters
Voltage Measurement | Range：DC 6V/60V/600V/1000V Maximum Resolution：1mV Maximum Accuracy：±(0.8%+3) |
Range：AC 6V/60V/600V/750V Maximum Resolution：1mV Maximum Accuracy：±(1.0%+3) | |
Resistance Measurement | Range：600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ Maximum Resolution：0.1Ω Maximum Accuracy：±(1.2%+3) |
Capacitance Measurement | Range：6nF/60nF/600nF/6uF/60uF/600uF/6mF Maximum Resolution：0.01nF Maximum Accuracy：±（3%+5） |
Frequency Measurement | Range：6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz Maximum Resolution：0.001Hz Maximum Accuracy：±（0.1%+3） |
Temperature Measurement | Range：0℃～1000℃ Maximum Resolution：1℃ Maximum Accuracy：±(5.0%+4) |
Power Supply | DC3V, No. 7 Alkaline Dry Batteries (LR03 1.5V×2) |
Meter Mass | Approx. 146g (With Accessories) |
Meter Size | Height, Width and Thickness：142mmx70mmx20mm |
LCD Size | 52mm x 67mm; Maximum Display: 5999 |

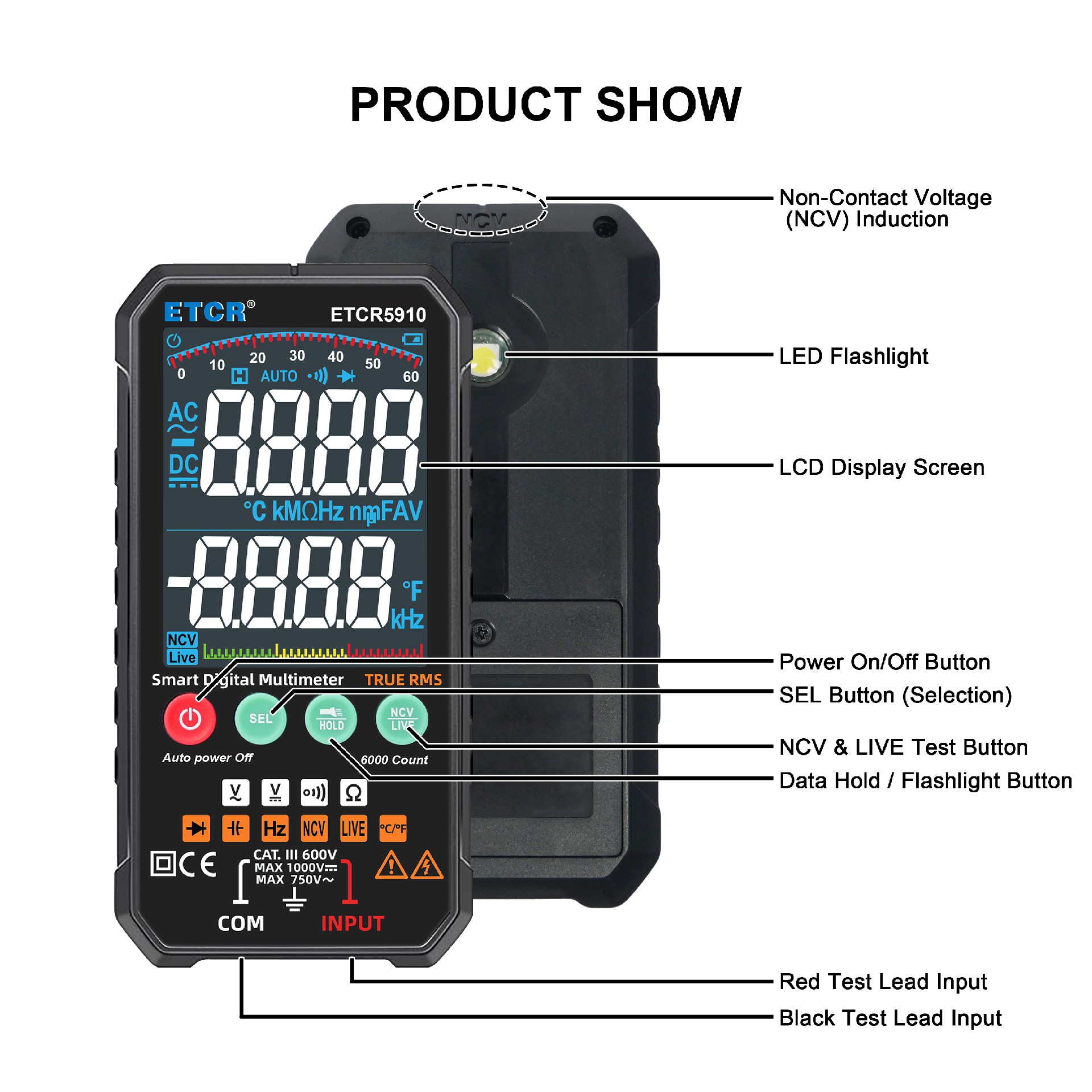

NCV Functions | Yes |
Illuminated Lamp | Yes |
Data Retention | Yes |
On-Off Measurement | Yes |
Diode Measurement | Yes |
Automatic Shutdown | Automatically Shuts Down When There is No Action for About 14 Minutes After Power On. |
Overflow Display | Overflow Function: “OL” is Displayed. |
Overload Protection | Yes |
Input Impedance | Approx. 10MΩ |
Battery Voltage | When the Low Battery Indication “ ” is Displayed, Reminding to Replace the Battery |
Operating Temperature | 0℃- 40℃ Relative Humidity<75% |
Storage Temperature | -10℃- 60℃ Relative Humidity <80% |

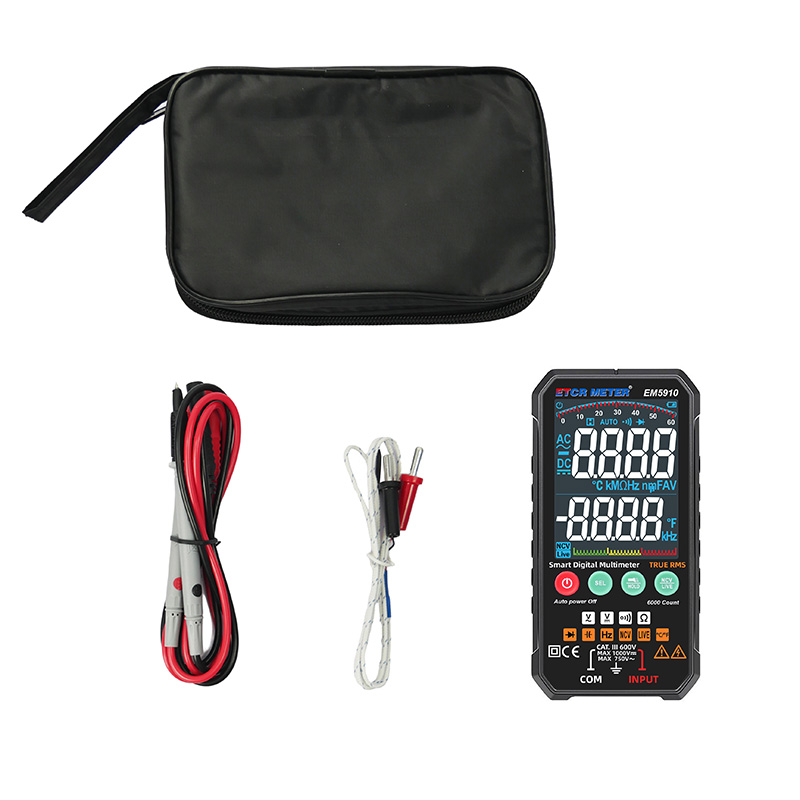

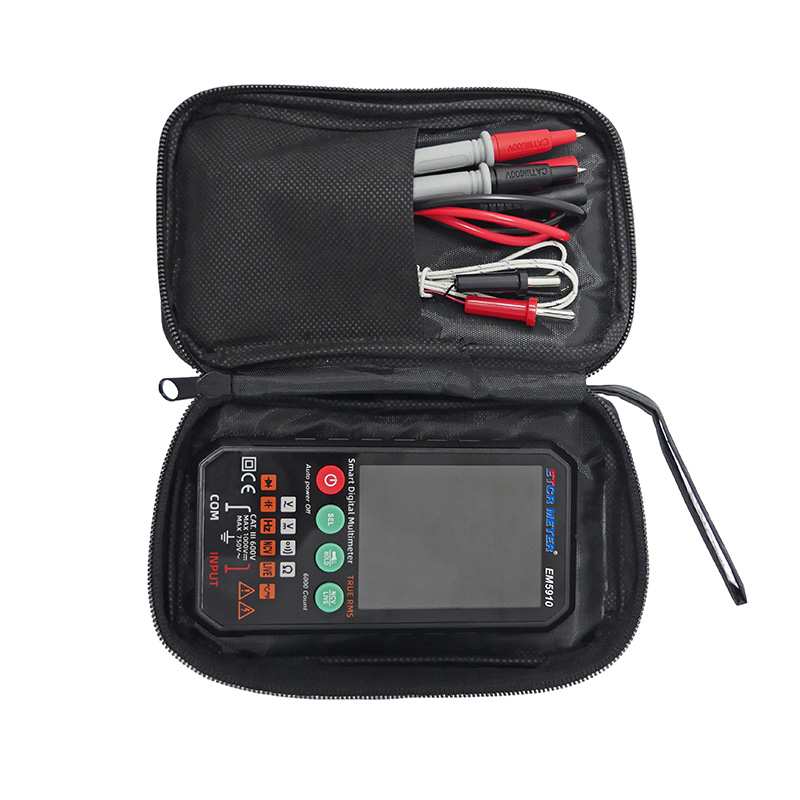

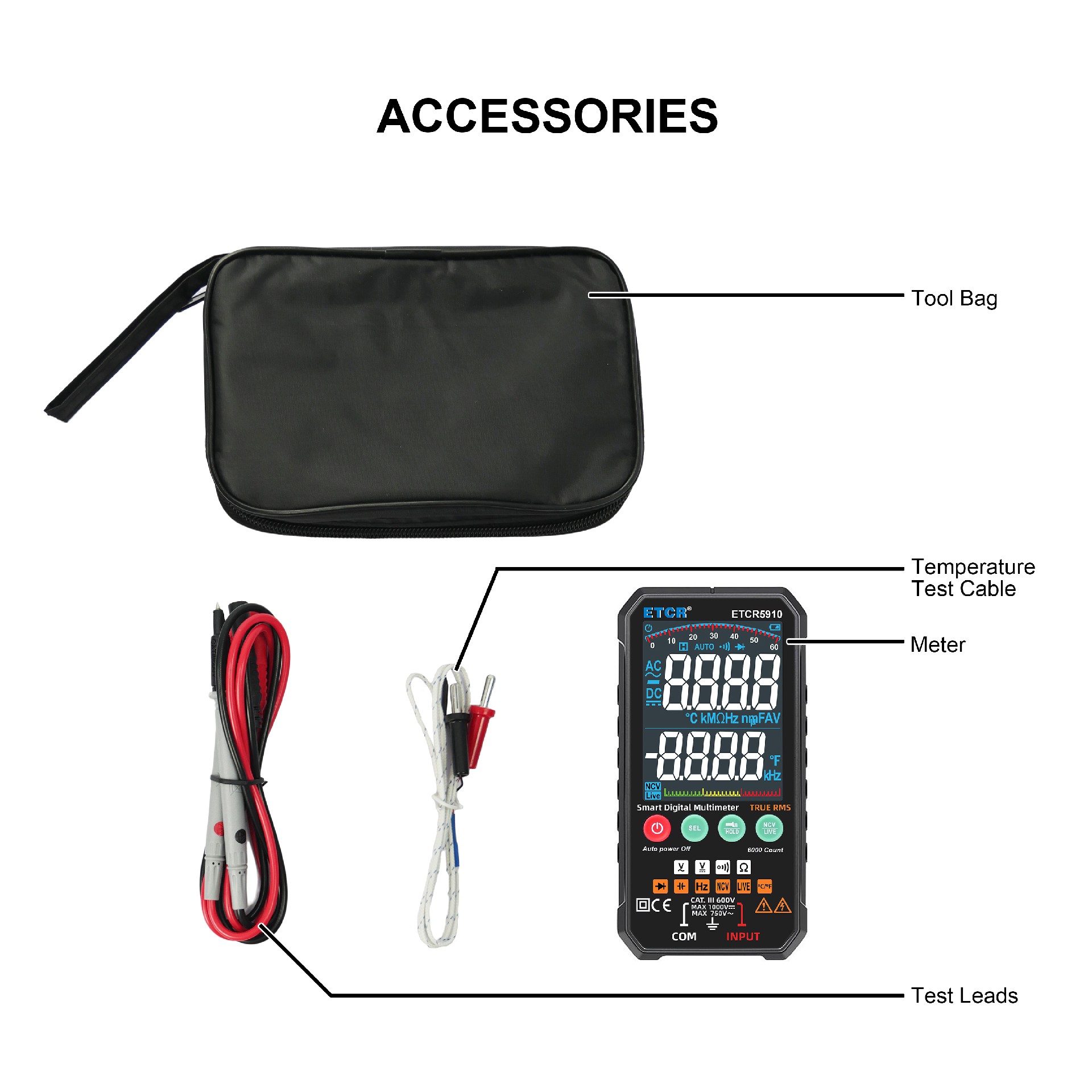

Random Accessory | Meter: 1 pc; Meter Pen: 1 pc; Temperature Probe: 1 pc; LR03 Battery: 2 pcs; Tool Kit: 1 pc |
