Function

Measure leakage current, active power, reactive power, apparent power and other parameters

Measure large current, large power, can not measure leakage current, the current up to 5A can display the active power, reactive power, apparent power and other parameters.

Current Range

AC 0.00mA~1200A    Resolution 0.01mA

AC 0.0A~2000A         Resolution 0.1A

Power Range

AC 0.5W~720kW      Resolution 0.01W

AC 0.0KW~1200kW     Resolution 0.1kW

Apparent Power Measurement

AC 0.50VA~720kVA    Resolution 0.01VA

AC 0.0kVA~1200kVA    Resolution 0.1kVA

Reactive Power Measurement

AC 0.50var~720kvar   Resolution 0.01var

AC 0.0kvar~1200kvar    Resolution 0.1kvar

Voltage Range

AC 0~600V           Resolution 0.01V

Frequency Range

25Hz~100Hz          Resolution 0.1Hz

Phase Range

0.0°~360.0°           Resolution 0.1°

Power Factor Range

0.300~1.000           Resolution 0.001

Power Energy Range

0.000kWh~72000kWh  Resolution 0.0001kWh

Highest precision

±(1.5%rdg+5dgt)

Power Supply

DC6V  alkaline dry batteries (LR6 1.5VX4PCS)

Working Current

Backlight open 50mA;  Backlight close 25mA

Weight

830g (with battery)

Meter Dimension

275mmX145mmX40mm

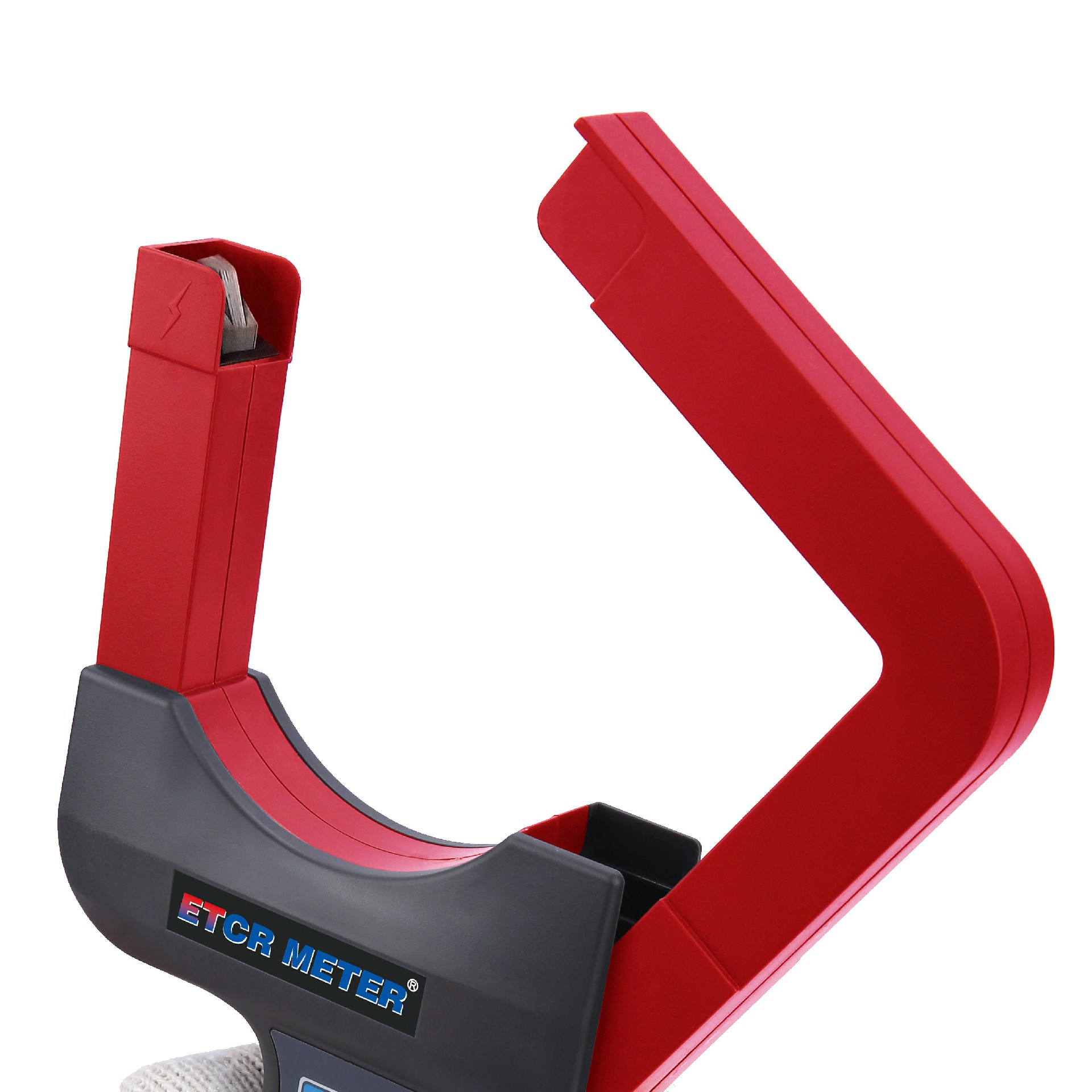

CT Size

80mmX80mm (can clamp φ80mm cable or 96mmX4mm steel flat ground cable)

Sampling Rate

2 times/second

Frequency

50Hz, 60Hz automatic identification

Communication Interface

Storage data can be uploaded to computer, convenient to data analyze, communication cable length: 1.8m

Data Storage

200 groups, flash display “FULL” symbol indicate storage full

Data Hold

Data hold function: “HOLD” symbol display

Overflow Display

Exceed measure range overflow function: “OL” symbol display

Auto Shut Down

15 minutes after power on, it will shut down automatically without any operation to reduce the power consumption.

Battery Voltage

While battery voltage is lower than 5.2V. low battery voltage symbol display, remind to replace the battery

Backlight

Yes, Controlled by “ * ”key

Line Voltage

Below AC 600V circuit measurement

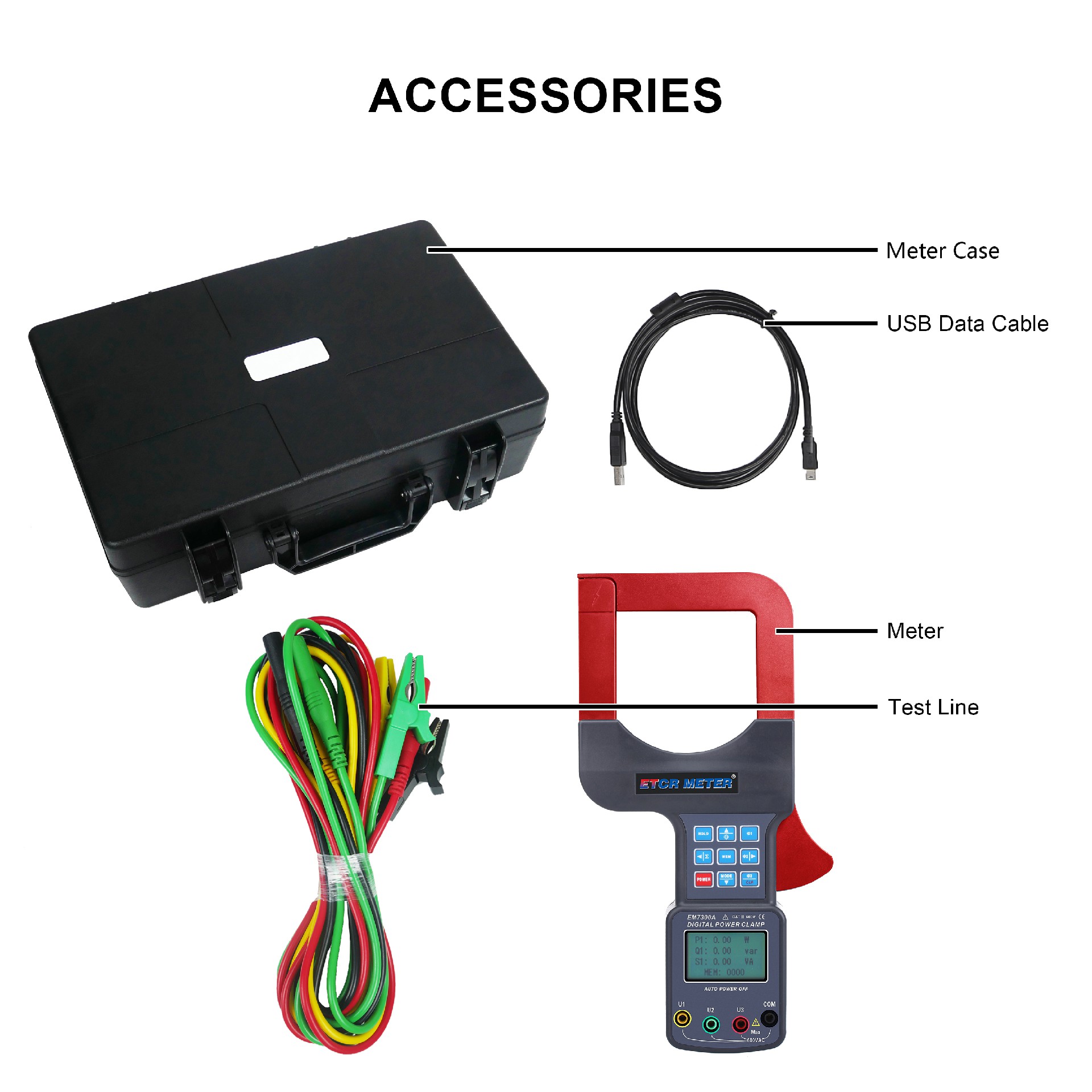

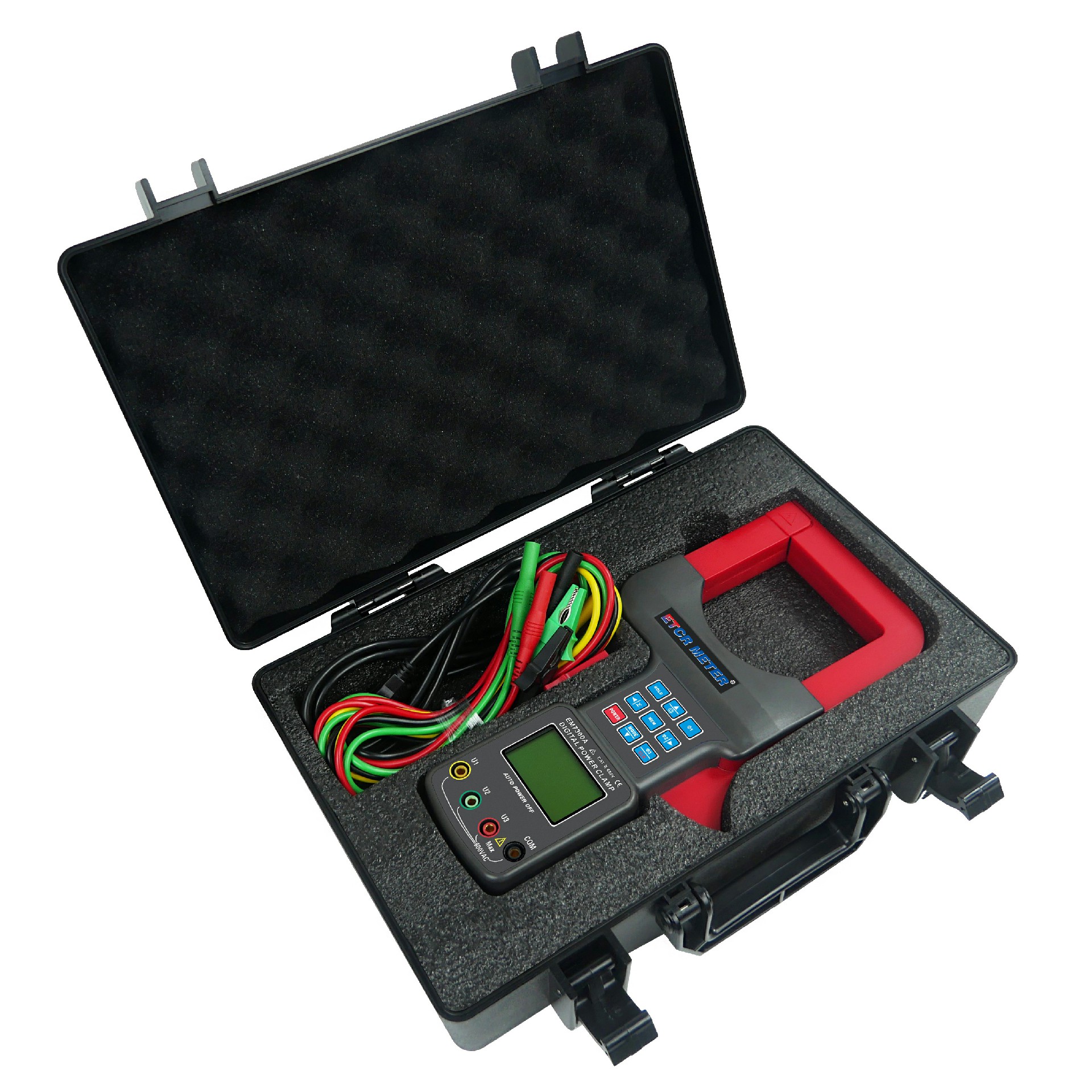

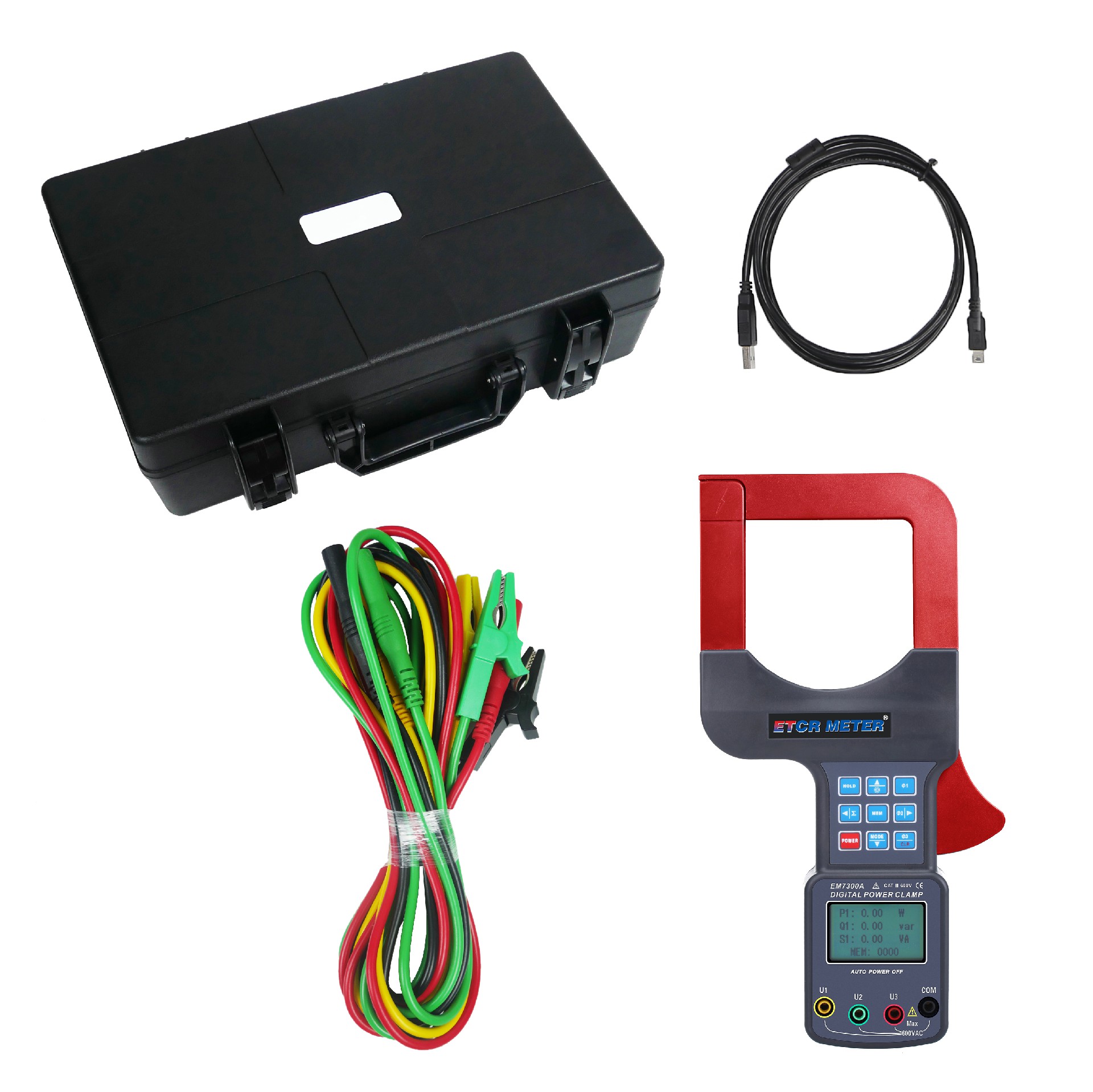

Accessories

Meter: 1PCS; Test Wires: 4PCS (each of yellow, green, red, black); Communication cable: 1PCS; Meter Case: 1PCS; LR6 battery: 4PCS
