Clamp Size

Φ 200mm

Φ 300mm

Weight

266g (include battery)

286g (include battery)

Meter Size

200mmX370mmX35mm

300mmX470mmX35mm

Current Measurement

Range: AC 0.0A~6000A           Accuracy: ±0.5%Fs     Resolution 0.1A

Voltage Measurement

Range: AC 0.01V~600V          Accuracy: ±0.5%Fs    Resolution: 0.01V

Active Power Measurement

Range: 0.00W~3600kW          Accuracy: ±1%Fs      Resolution: 0.01W

Apparent Power Measurement

Range: 0.00VA~3600kVA        Accuracy: ±1%Fs       Resolution: 0.01VA

Reactive Power Measurement

Range: 0.00var~3600kvar       Accuracy: ±1%Fs       Resolution: 0.01var

Power Factor Measurement

Range: 0.300~1.000             Accuracy: ±1%Fs      Resolution: 0.001

Electric Energy Measurement

Range: 0.00Wh~360000kWh       Accuracy: ±1%Fs       Resolution: 0.01Wh

Frequency Measurement

Range: 25.0Hz~600.0Hz         Accuracy: ±0.5Hz      Resolution: 0.1Hz

Phase Measurement

Range: 0.0°~360.0°             Accuracy: ±0.5°        Resolution: 0.1°

Power Supply

6V DC alkaline dry battery (LR03 1.5VX4PCS)

Working Current

Backlight open 80mA; Backlight close 50mA

Sampling Rate

2 times/second

Frequency

50Hz/60Hz automatic identification

Communication Interface

With USB interface, storage data can be uploaded to computer, convenient to data analyze, communication cable length: 1.8m

Data Storage

200 groups , flash display “FULL” symbol indicate storage full

Data Hold

Data hold function: “HOLD” symbol display

Overflow Display

Over range overflow function: “OL” symbol display

Auto Shut Down

15 minutes after power on, it will shut down automatically without any operation to reduce the power consumption.

Battery Voltage

While battery voltage is lower than 4.8V. low battery voltage symbol “      ” display, remind to replace the battery

Backlight

Yes, Controlled by “ * ”key

Working Temperature

-10℃~40℃; Below 80%RH

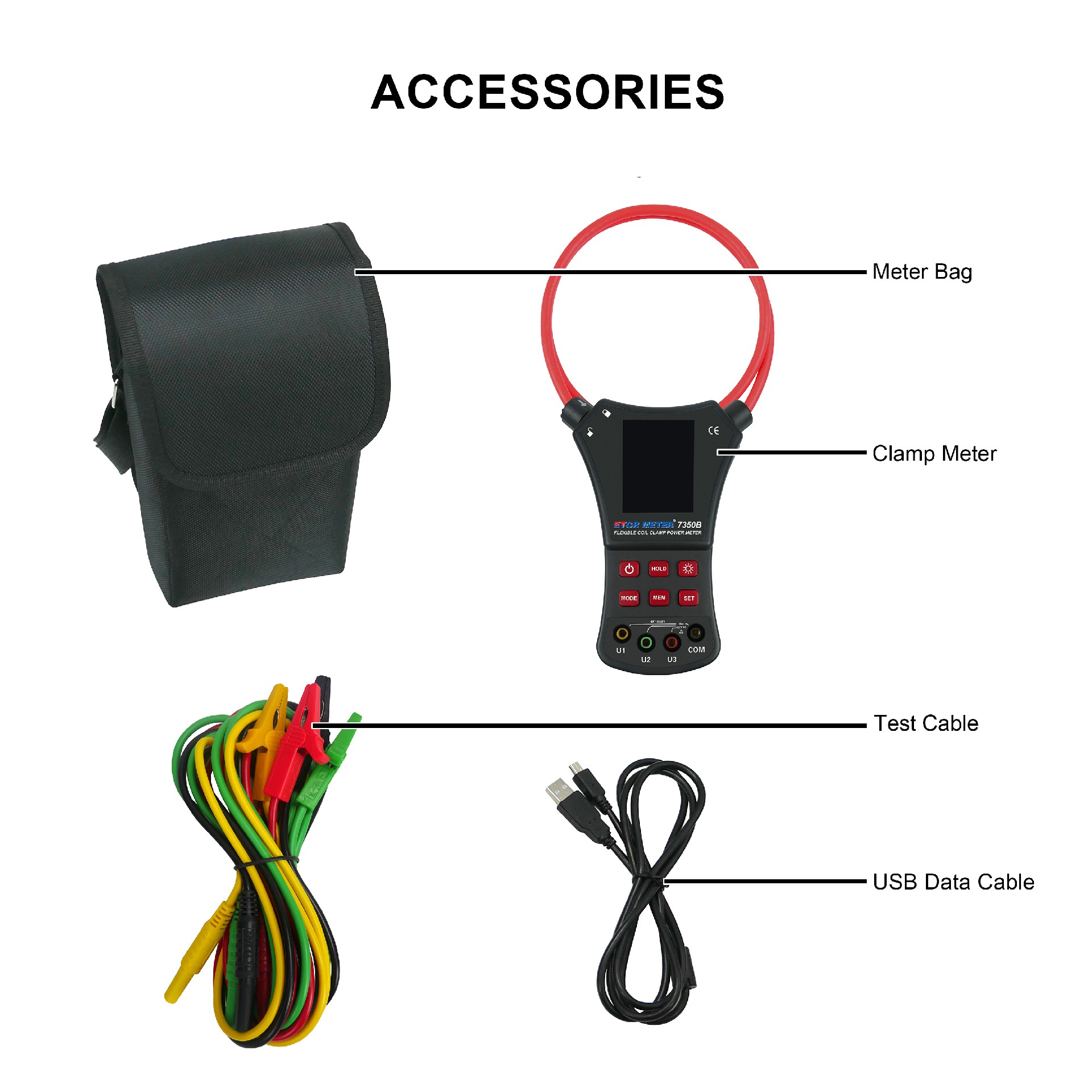

Accessories

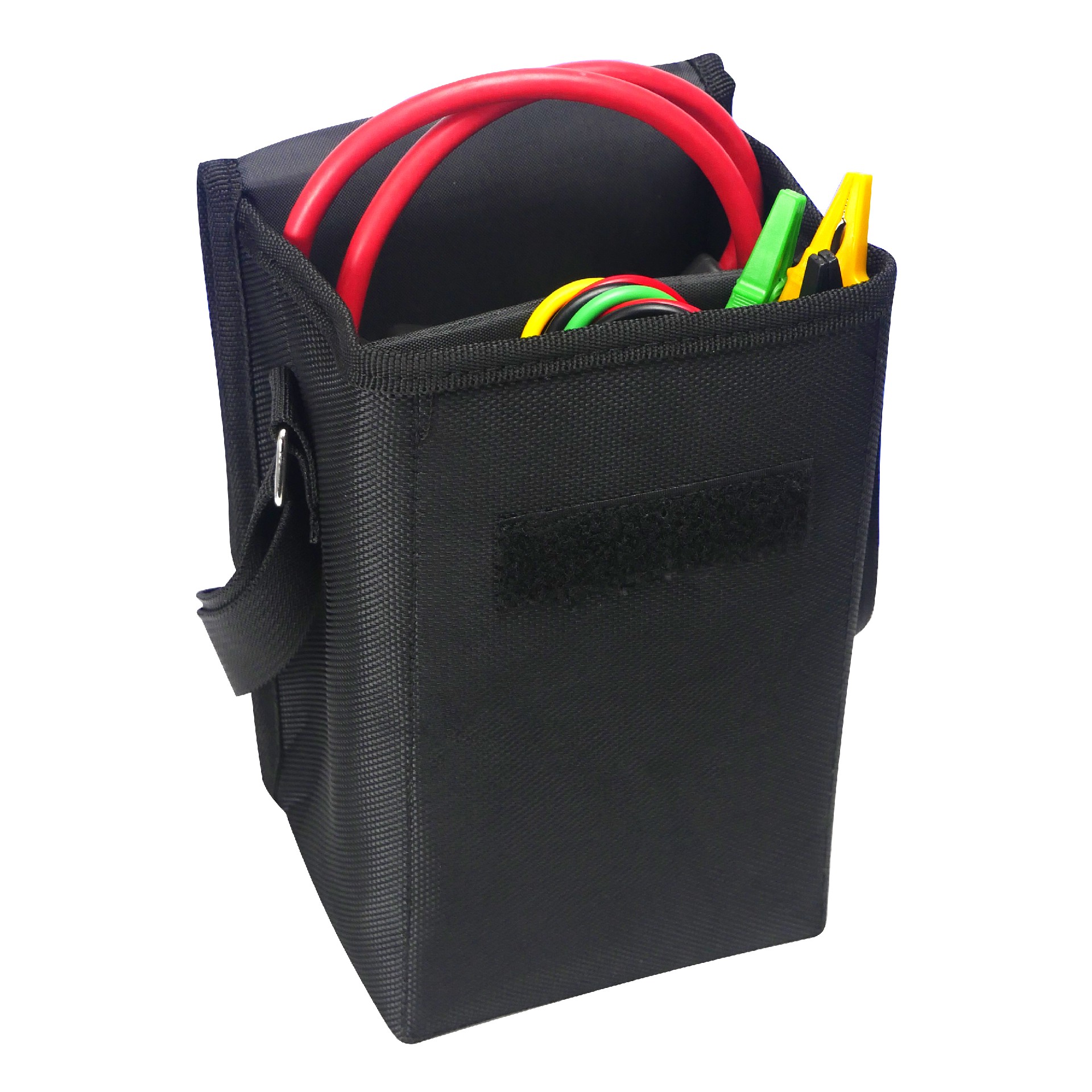

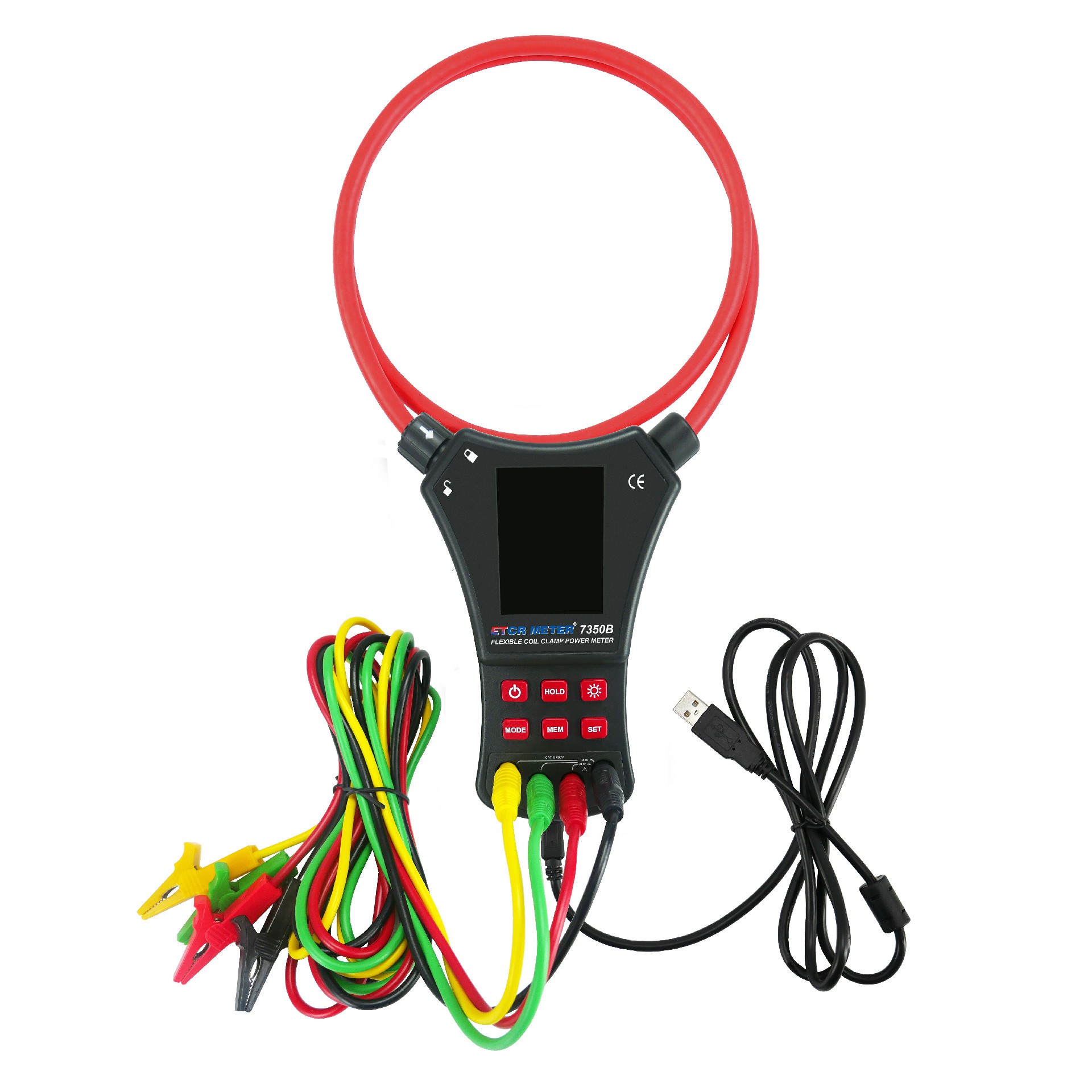

Meter: 1PCS; Test Wires: 4PCS (each of yellow, green, red, black); USB communication cable: 1PCS; LR03 Battery: 4PCS ; Meter bag: 1PCS
