ETCR EM8600A Leakage Protector Tester, also known as leakage switch tester and leakage switch characteristic tester, which is used for on-site measure various leakage protector of leakage operating time and line AC voltage. Test current is divided into 18 gears from 3mA~500mA(3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 275mA, 300mA, 375mA, 500mA), test range of leakage current operating time is 0~999ms. AC voltage measurement range: 0~600V.

ETCR EM8600A Leakage Protector Tester adopts with super large LCD display, white screen backlight and bar chart indication. Output current, operating time, battery level and phase are displayed on the same screen. The tester has functions such as automatic shutdown, fault voltage indication setting, phase selection, backlight selection and memory. The tester is easy to operate, high accuracy, small size, light weight and exquisite appearance and portable, which is an ideal tool for on-site or indoor testing of various leakage protectors.

1.18 gears test current: 3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 275mA, 300mA, 375mA, 500mA can satisfy various using requirements.
2.Test range of leakage operating time is 0~999ms.
3.Manual, automatic two measurement mode.
4.Phase selection function.

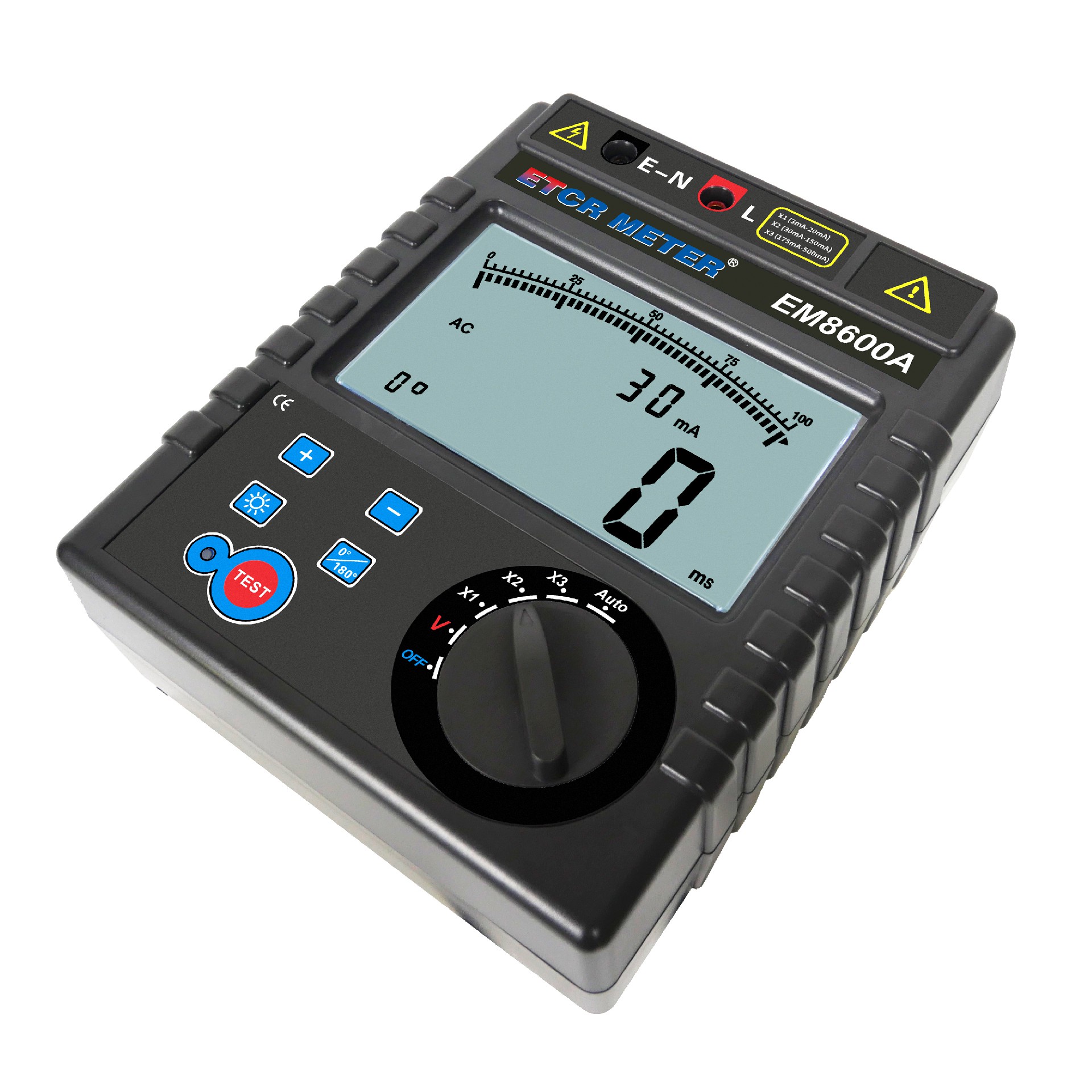

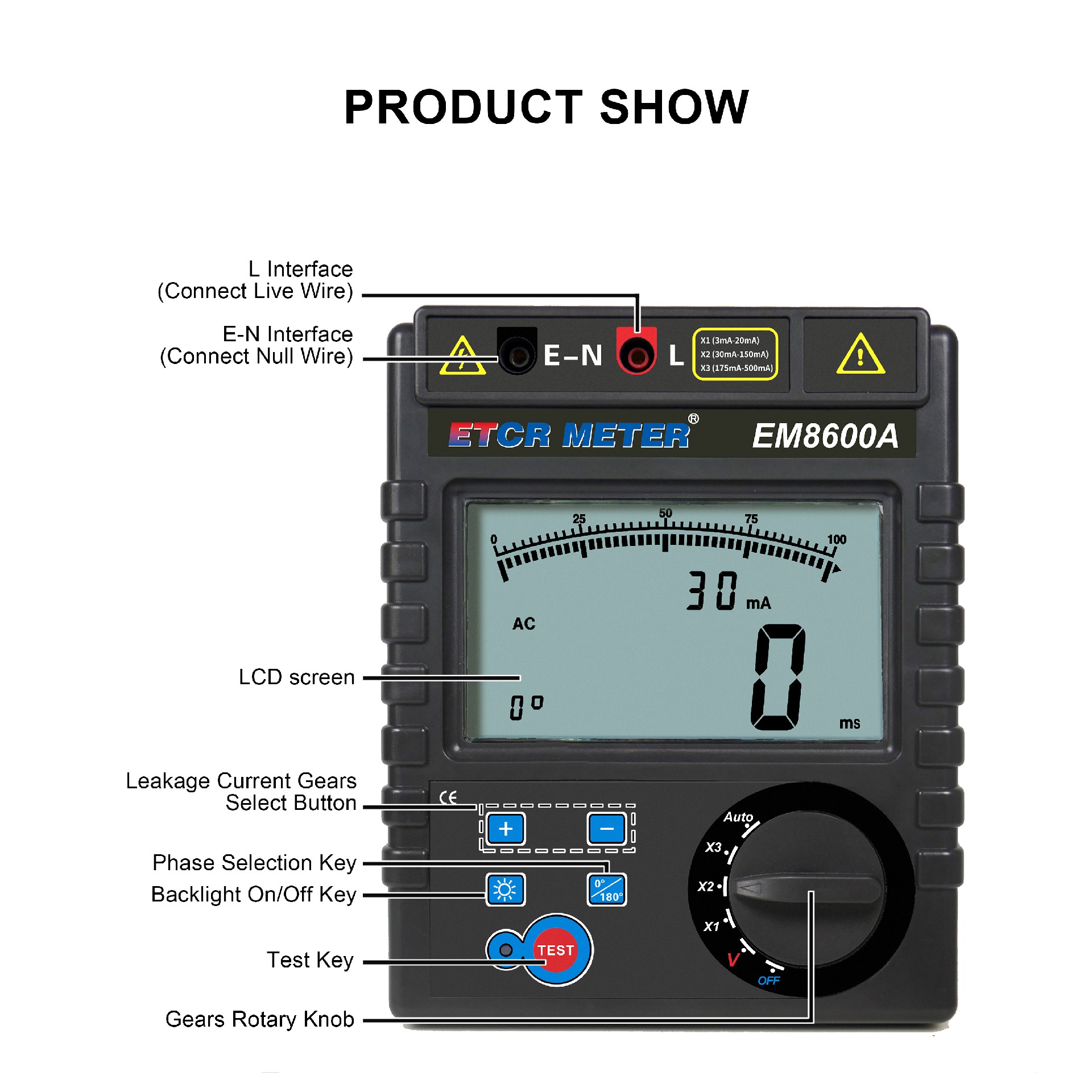

5.Adopt with super large LCD display, white screen backlight and bar chart indication. Output current, operating time, battery level and phase are displayed on the same screen.
