    Milliampere level Split Core Leakage Current Sensor
  • Product Series : Milliampere level Split Core Leakage Current Sensor

    • Main Features

      For online detection of AC leakage current, AC current, phase, energy, power, power factor, and harmonics.
      Current range: 0.001mA to 20A/30A/60A
      Accuracy: 0.5
      Transformation ratio: 800:1
      Operating frequency: 10Hz to 100kHz
      Excellent anti-interference performance
      Weak current detection
      RoHS compliant
      CE compliant
      Connection terminals: S1 and S2 coil tap terminals, GND shield terminal
      Customization accepted

    Product Introduction

    1. The retractable structure eliminates the need for power outages or disconnecting the measured circuit, making installation quick, safe, and reliable, making it particularly suitable for online installation.


    2. Utilizing a Permalloy core and shielding technology, it offers stable performance, high precision, and strong anti-interference capabilities, making it suitable for complex interference environments.


    3. It can simultaneously clamp both the live and neutral wires to measure leakage current in cables and electrical equipment.


    4. The transformer's measuring range, turns ratio, and output interface can be customized to meet customer requirements.


    5. Safety rating: CAT III 600V.


    6. Operating temperature: -15°C to 50°C

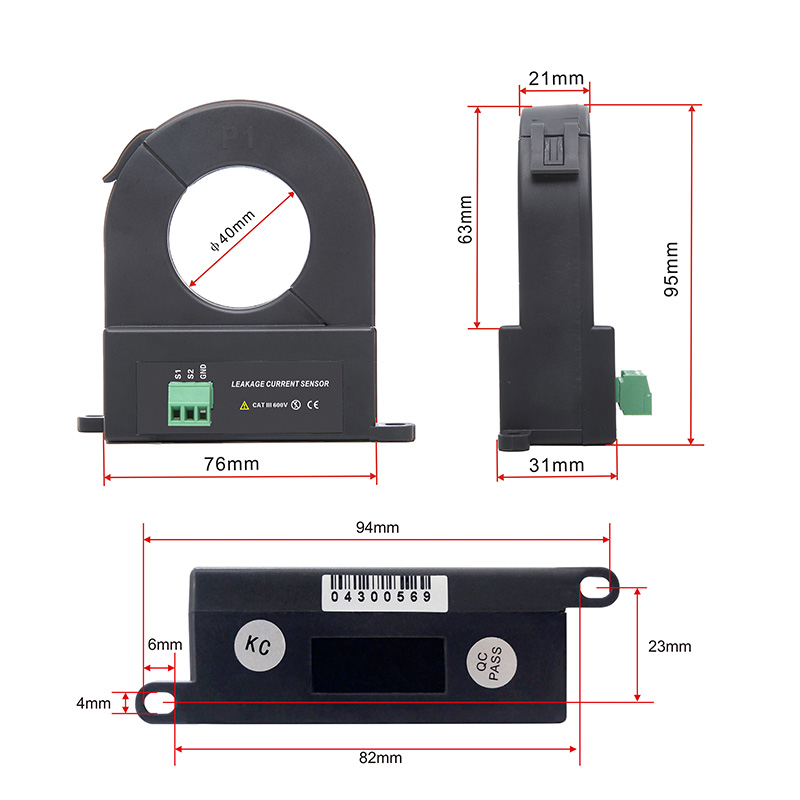

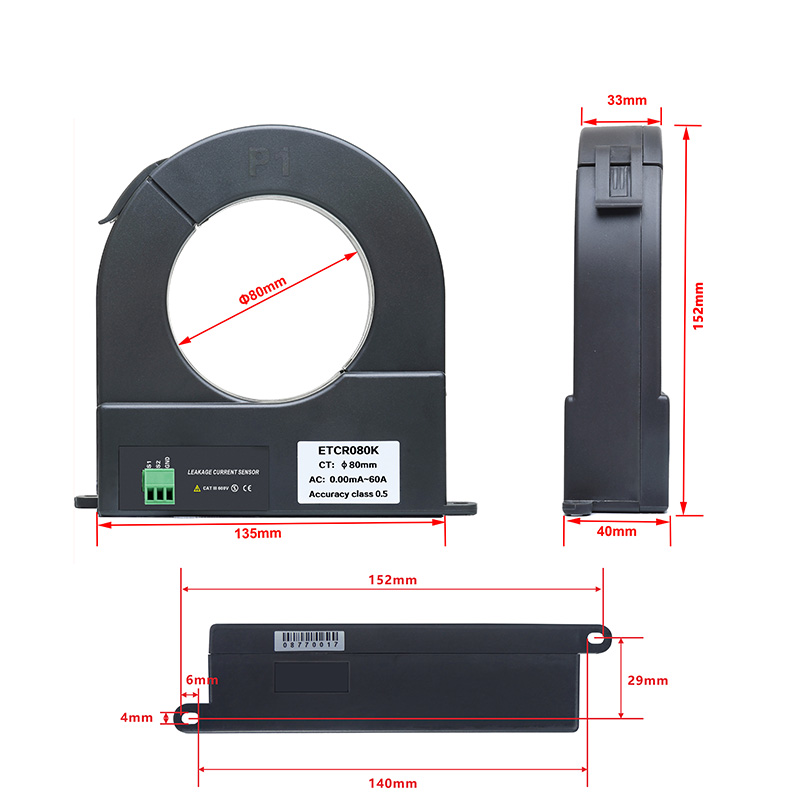

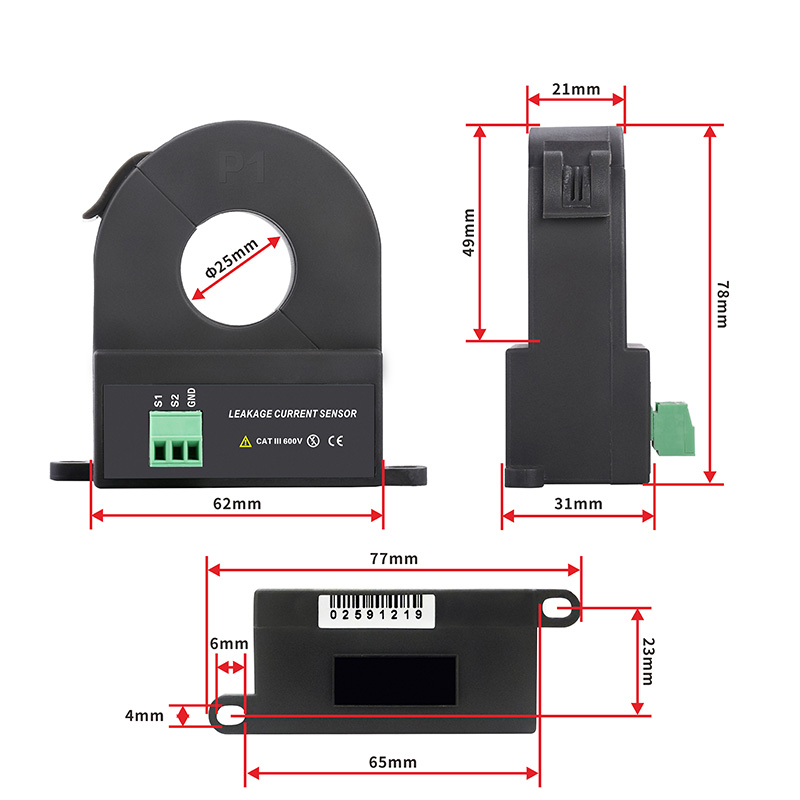

    EM010K (4).jpgEM025K (6).jpgEM040K (6).jpgEM080K (6).jpg

    Technical Parameters

    Product Model

    Product Image

    Measurement Parameters

    Reference Load

    Jaw Size

    External Dimensions

    Weight

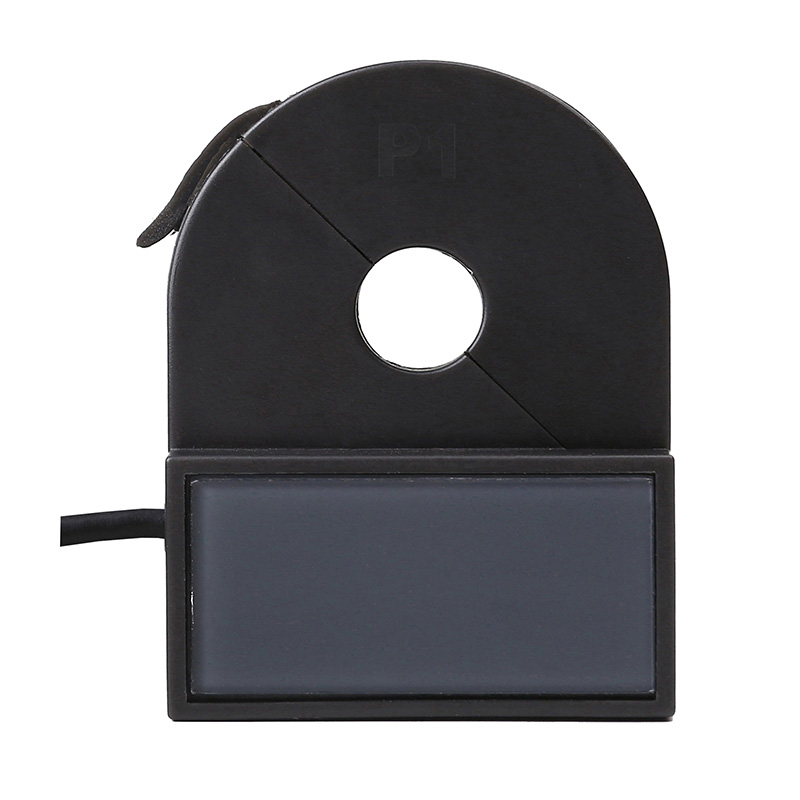

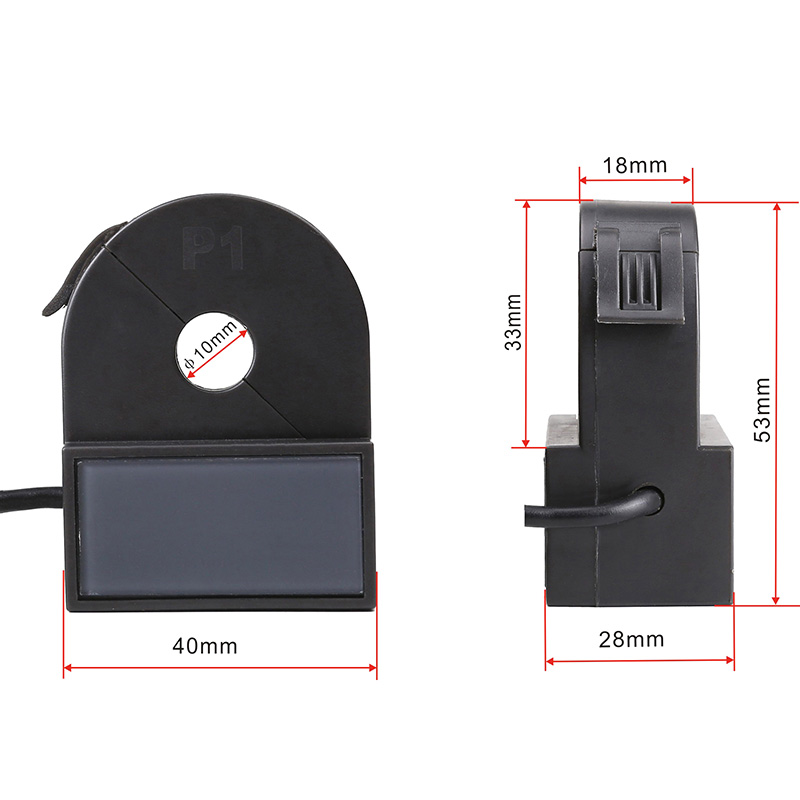

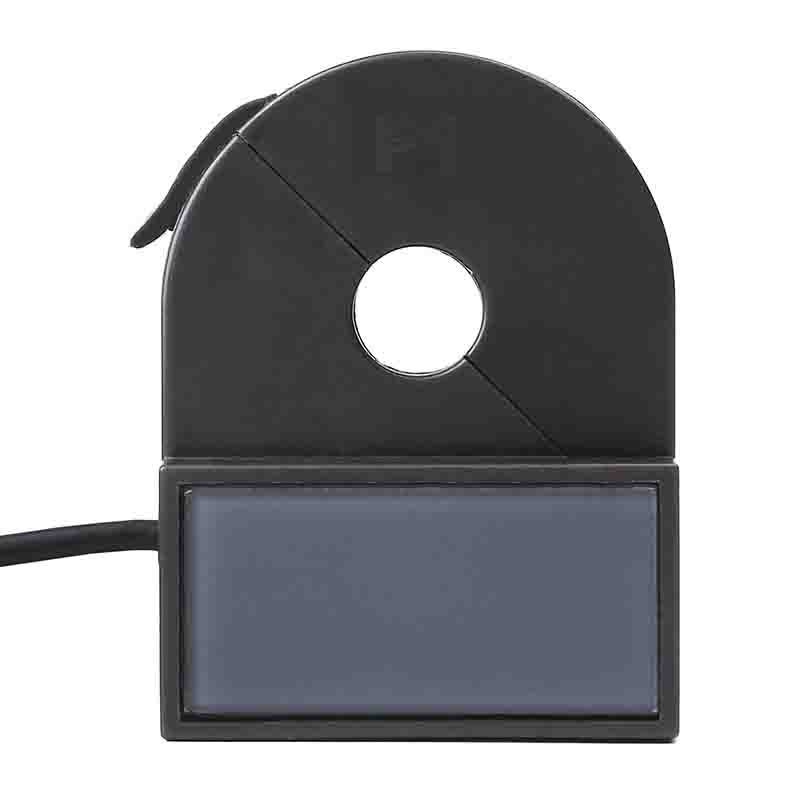

    ETCR EM010K


    Range:0.001mA~20A

    Accuracy:0.5

    Phase error:≤2°

    Transformation ratio:800:1

    Operating frequency:10Hz~100kHz

    0~200mA≤300Ω

    0~2A≤30Ω

    0~20A≤3Ω

    Ф10mm

    53mm×42mm×28mm

    65g

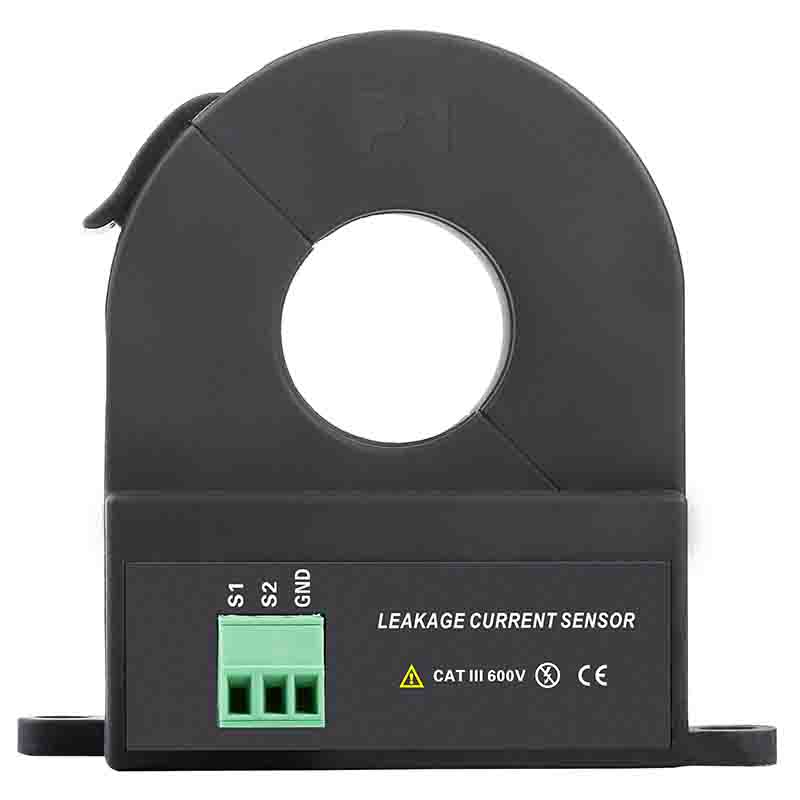

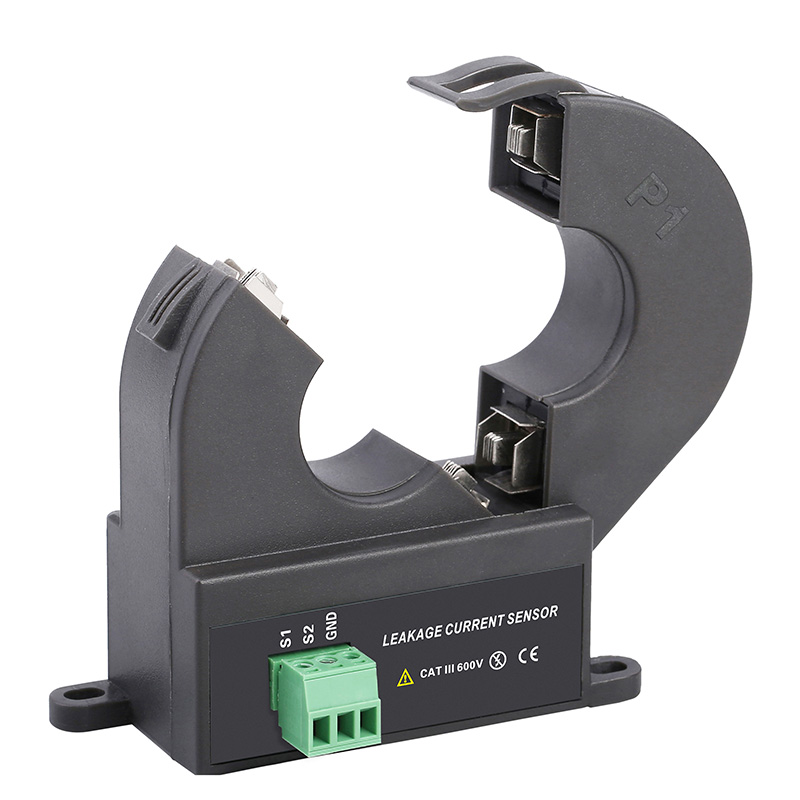

    ETCR EM025K


    Range:0.001mA~30A

    Accuracy:0.5

    Phase error:≤2°

    Transformation ratio:800:1

    Operating frequency:10Hz~100kHz

    0~300mA≤300Ω

    0~3A≤30Ω

    0~30A≤3Ω

    Ф25mm

    78mm×82mm×31mm

    120g

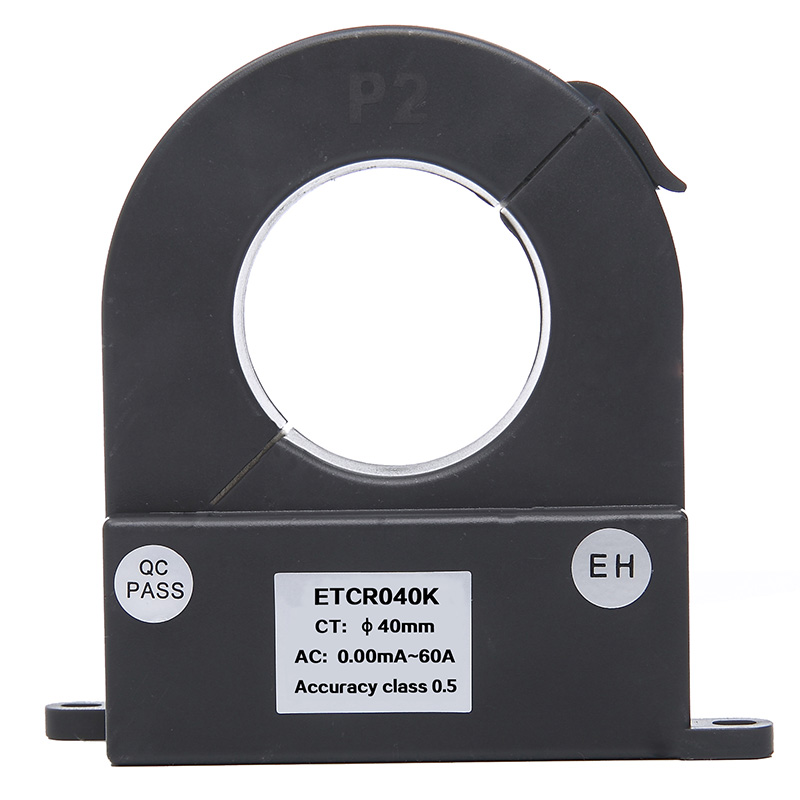

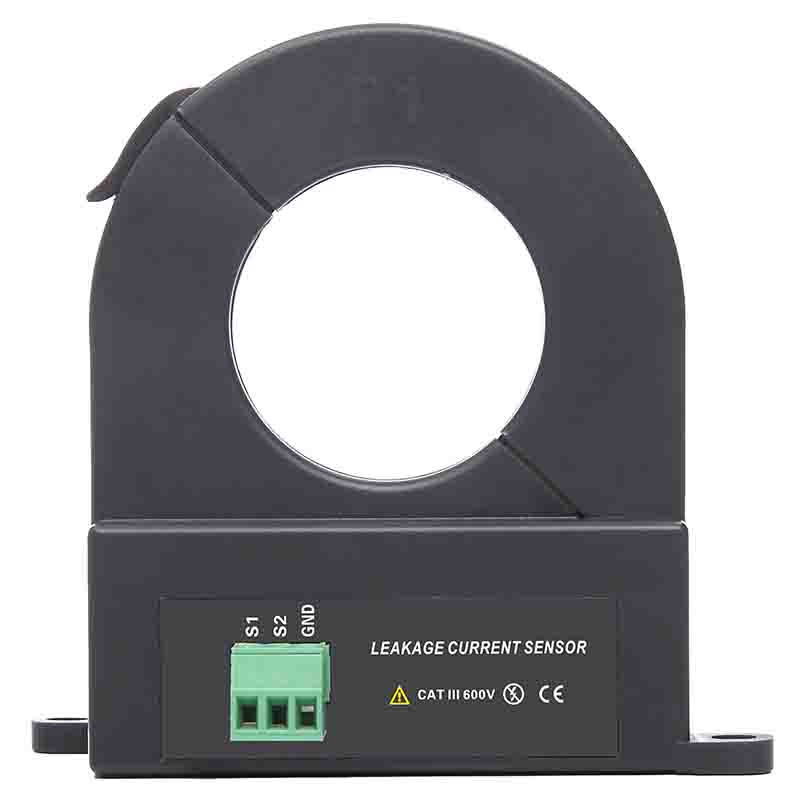

    ETCR EM040K


    Range:0.001mA~60A

    Accuracy:0.5

    Phase error:≤2°

    Transformation ratio:800:1

    Operating frequency:10Hz~100kHz

    0~600mA≤300Ω

    0~6A≤30Ω

    0~60A≤3Ω

    Ф40mm

    95mm×98mm×31mm

    160g

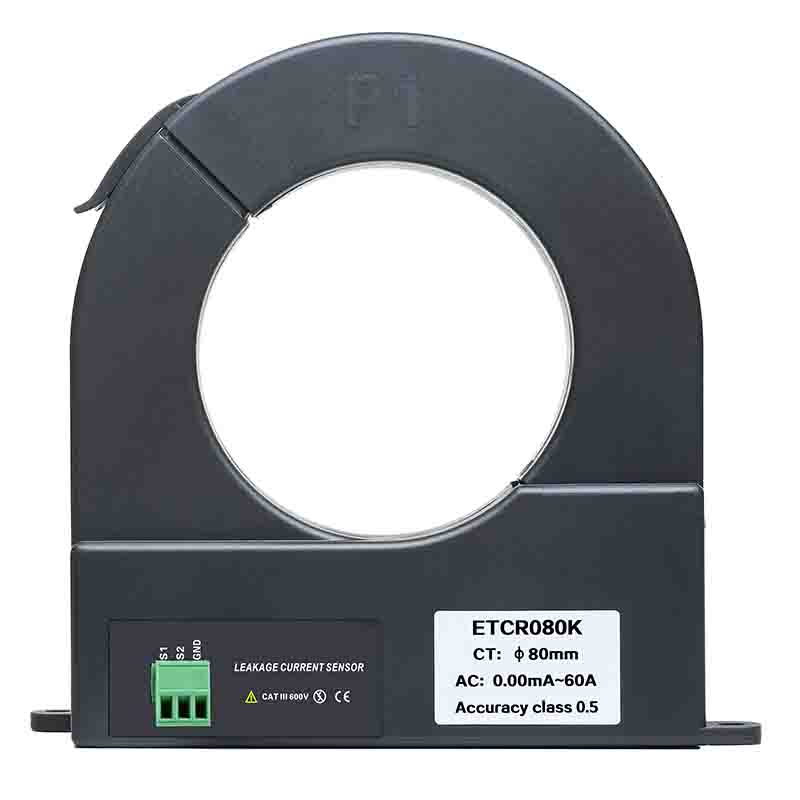

    ETCR EM080K


    Range:0.001mA~60A

    Accuracy:0.5

    Phase error:≤2°

    Transformation ratio:800:1

    Operating frequency:10Hz~100kHz

    0~600mA≤300Ω

    0~6A≤30Ω

    0~60A≤3Ω

    Ф80mm

    135mm×152mm×40mm

    490g
