Product Introduction

ETCR EM3250 Pylon Earth Resistance Tester, also known as four-clamp pylon earth resistance tester and pylon earth resistance tester, which is used for measurement of pylon earth resistance, soil resistivity, earth voltage, earth current and AC current. Transmission line pole pylon usually have 2 or 4 down leads. When using grounding pile method or clamp method to measure the earth resistance, need to disconnect the connection between the down lead and the grounding pole, and the measurement work is cumbersome and require large amount of work. This tester adopt with 4-clamp method to measure the earth resistance value of the pylon, not request to unbuckle the measurement. Wireless communication is used between 4 current clamp and the host, and the on-site measurement is fast and safe, which greatly reduce the work intensity of the operator and improve work efficiency.

ETCR EM3250 Pylon Earth Resistance Tester can also use the two-three-four-wire method to measure earth resistance, soil resistivity, AC current and earth voltage. The tester has unique anti-interference ability and environmental adaptability, and good consistency in repeated test to ensure high precision, high stability and high reliability of long-term measurement. The 4 current clamp of the tester can be used independently as clamp type current tester to measure AC current.

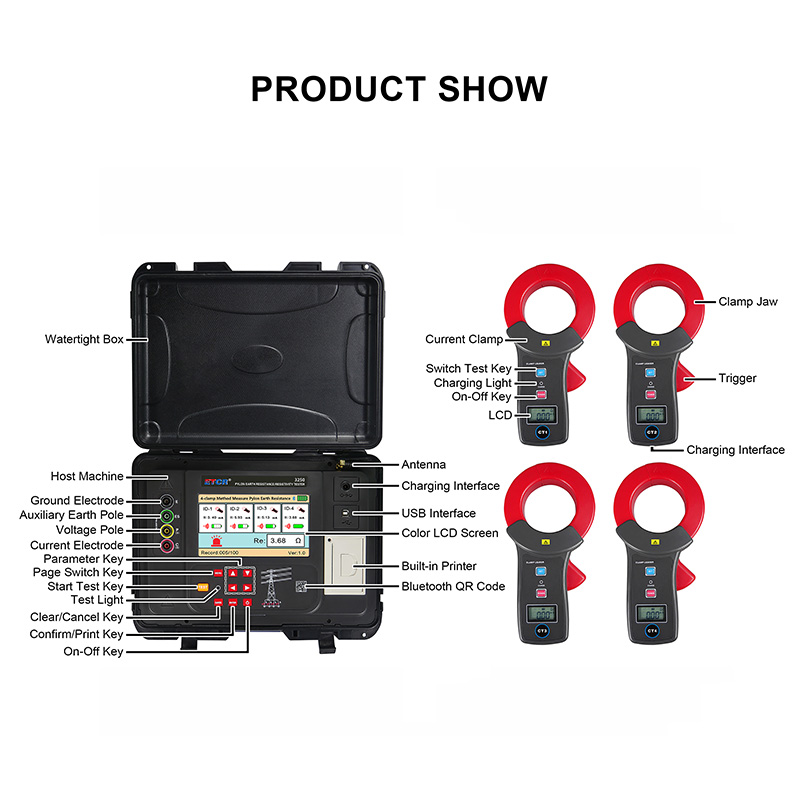

ETCR EM3250 Pylon Earth Resistance Tester consist of host, 4 current clamps, test line, an auxiliary grounding rod, communication line, a printer, etc. The host with 7-inch color screen and the current clamp adopt with wireless communication, and the tester also has Bluetooth communication. After downloading the APP, can test and view the test result on your mobile phone. The tester is equipped with built-in printer, which can print test result on site.The tester can store 100 sets of data and upload test result through the USB interface and the upper computer software to realize functions such as reading, reviewing, saving, reporting, and printing of historical data. The tester shell adopt with waterproof protection box, which is anti-collision, anti-fall, and waterproof (protection level IP65),strong, safe and durable. The tester is also equipped with a large-capacity rechargeable lithium battery pack, which is especially suitable for use on outdoor construction site.

1. Four-clamp method measure the pylon earth resistance without unbuttoning, which is fast, safe and greatly reduce labor intensity.

2. The current clamp and the host adopt with wireless communication to avoid messy connection line and cumbersome storage at the test site, time-saving and efficient.

3. The two-, three- and four-wire method can be used for measurement of earth resistance, soil resistivity, earth voltage and AC leakage current.

4. The current clamp can be used independently as clamp tester.

5. Alarm function, setting alarm threshold.

6. Memory, 2000 sets of data storage.

7. USB interface, data upload function.

8. Bluetooth communication.

9. Large-capacity lithium battery.

10. Built-in printer

Technical Parameters

Function	Measurement Range	Accuracy	Resolution
Earth Resistance (R) (4-clamp Method)	0.10Ω~20.00Ω	±10%rdg±5dgt	0.01Ω
Earth Resistance (R) (4-clamp Method)	20.0Ω~200.0Ω	±10%rdg±5dgt	0.1Ω
Earth Resistance (R)	0.10Ω~20.00Ω	±2%rdg±3dgt	0.01Ω
	20.0Ω~200.0Ω	±2%rdg±3dgt	0.1Ω
	200Ω~2000Ω	±2%rdg±3dgt	1Ω
	2.00kΩ~20.00kΩ	±4%rdg±3dgt	10Ω
Soil Resistivity (ρ)	0.00Ωm~99.99Ωm	(ρ=2πaRa:1m~100m; π=3.14)	0.01Ωm
	100.0Ωm~999.9Ωm		0.1Ωm
	1000Ωm~9999Ωm		1Ωm
	10.00kΩm~99.99kΩm	(ρ=2πaRa:1 m~100m; π=3.14)	10Ωm
	100.0kΩm~999.9kΩm		100Ωm
	1000kΩm~9000kΩm		1kΩm
AC Current（A~）	1.00mA~50.00mA	±2%rdg±3dgt	0.01mA
	0.50A~5.000A	±2%rdg±3dgt	0.001A
	5.0A~500.0A	±3%rdg±3dgt	0.1A
Eearth Voltage（V~）	0.0V~200.0V	±2%rdg±3dgt	0.1V

Power Supply	DC7.4V 5200mAh rechargeable lithium battery, full charge about 8.4V
Measurement Range	4-clamp method measure earth resistance: 200Ω
	Earth Rsistance: 0.00Ω~20.00kΩ
	Soil Resistivity: 0.00Ωm~9000kΩm
	AC Current: 1.00mA~500.0A
	Earth Potential (Voltgae): 0.0V~200.0V
Measurement Method	Pylon earth resistance: 4-clamp method
	Earth resistance: rated current change-pole method
	Soil resistivity: 4-pole method (Wenner method)
	AC Current: Clamp CT, RMS value acquisition
	Earth potential(Voltage): Shunt voltage, RMS collect
CT Size	Φ68mm
Test Frequency	128Hz/111Hz/105Hz/94Hz(AFC)
Short-circuit Test Current	AC 55mA max
Open-circuit Test Voltage	AC 15V max
Test Voltage Wave	Sine wave
LCD Dimension	7-inch colorful screen, LCD size: 151mmX83mm
Tester Dimension	355mm(L)X272mm(W)X164mm(H)
Standard Test Line	4PCS: red 20m, black 20m, yellow 10m, green 10m
Simple Test Line	2PCS: red 1.6m, black 1.6m
Auxiliary Ground Stake	4PCS：φ9mm×230mm
Measurement Time	Earth resistance, soil resistivity: 30s/times
Communication Interface	Equip with USB terminal, software monitoring, stored data can upload to PC, save and print
Printer	Built-in type
Data Storage	100 groups, “001/100” store indication, display “100/100” indicate full storage
Overflow Indication	Over range overflow will indicate “OL” symbol
Auxiliary Earthing Test	With the function of auxiliary earth resistance test, 0.00KΩ~20kΩ(100R+rC<20kΩ，100R+rP<20kΩ)
Alarm Function	Measured value exceed the alarm setting value, will indicate “ ” alarm symbol
Automatic Shutdown	30 minutes without any operation after starting up, the tester will shutdown automatically
Battery Voltage	While battery voltage drop to around DC 7.2V±0.1V, will display low battery voltage symbol“ ”, and remind to charge
Working Current	Stand by: about 400mA; Measurement: 550mA
Total Weight	9000g(include accessories)
Working Temperature	-10℃~40℃; below 80%RH
Store Temperature	-20℃~60℃; below 70%RH
Overload Protection	Measure earth resistance: between each interfaces of C(H)-E、P(S)-ES, AC 280V/3 seconds
Protection Level	IP65(close the case)
Insulation	Above 20MΩ (between the circuit and shell is 500V)
Suitable Safe Standard	IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, Pollution level 2); IEC61010-031; IEC61557-1(earth resistance); IEC61557-5 (soil resistivity); JJG 366-2004

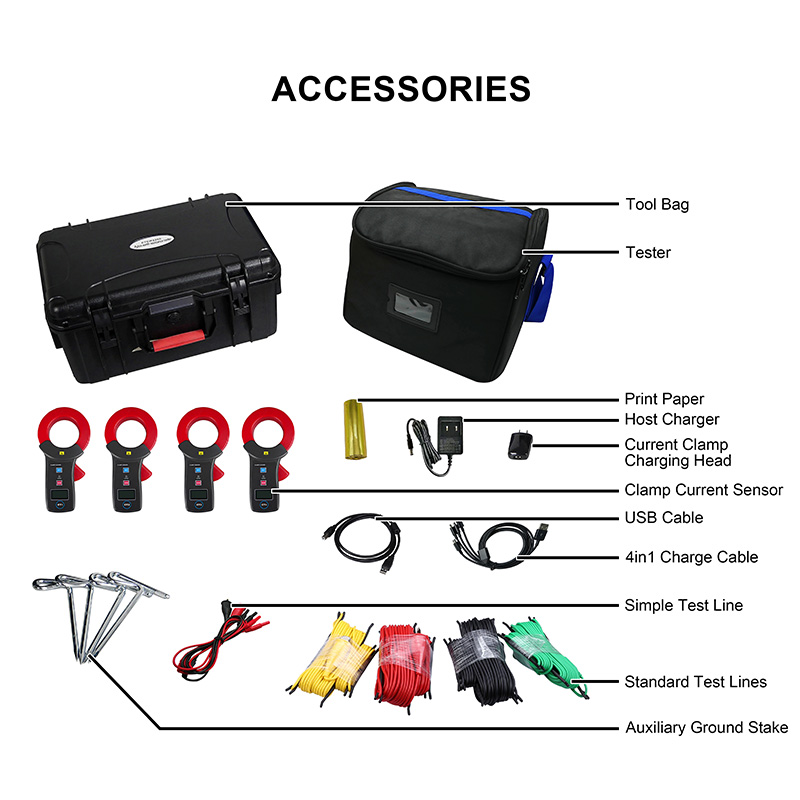

Accessories	Tester:1PC;Clamp current sensor: 4PCS; Ground stake: 4PCS; Test lines:4PCS; Simple test lines: 2PCS; USB communication cable:1PCS; Tool bag: 1PCS; Special recahrager: 1PCS; Calmp current sensor 4in1 charge cable and charger: 1set; Print paper: 1roll
