    ETCR EM8610A Socket Type Leakage Protector Tester
  • Product Series : Socket Type Leakage Protection Device Tester

    • Main Features

      Used for polarity detection of three-hole power socket wiring and protection function detection of leakage switch
      Zero-fire voltage measurement range (L-N): 30V~250V/(50-60Hz)
      Zero-earth voltage measurement range (N-E): 0.1V~10V/(50-60Hz)
      RCD Leakage current: >30mA
      RCD Voltage: AC 220V

    Product Introduction

    ETCR8610A socket leakage protector tester is mainly used for polarity detection of three-hole power socket wiring and leakage switch protection function detection, which can quickly and accurately detect the wiring of the socket, and can promptly detect the socket wiring problems that lead to personnel electrocution, electrical fires, and abnormal operation of equipment. Widely used in fire, security supervision, home furnishing, laboratories, factories and family line detection and maintenance.


    Product features


    1、 Large color screen display, clear indication of the state.


    2, a key RCD test, can detect commonly used 30mA leakage protector.


    The volume is light and delicate, easy to carry, especially suitable for leakage protector site rapid detection.


    Technical Parameters

    Zero-Fire Voltage Measurement Range

     (L-N)

    30~250V/(50~60HZ)

    Zero-Earth Voltage Measurement Range (N-E)

    0.1~10V/(50-60HZ)

    Working Environment

    Temperature 0℃-40℃, Humidity (20%-70%)

    Storage Environment

    Temperature 10℃~50℃, Humidity (20%~80%)

    RCD Current

    >30mA

    RCD Operating Voltage

    220V±20V

    Battery

    AAA X2节

    Product Weight

    106g

    Random Accessories

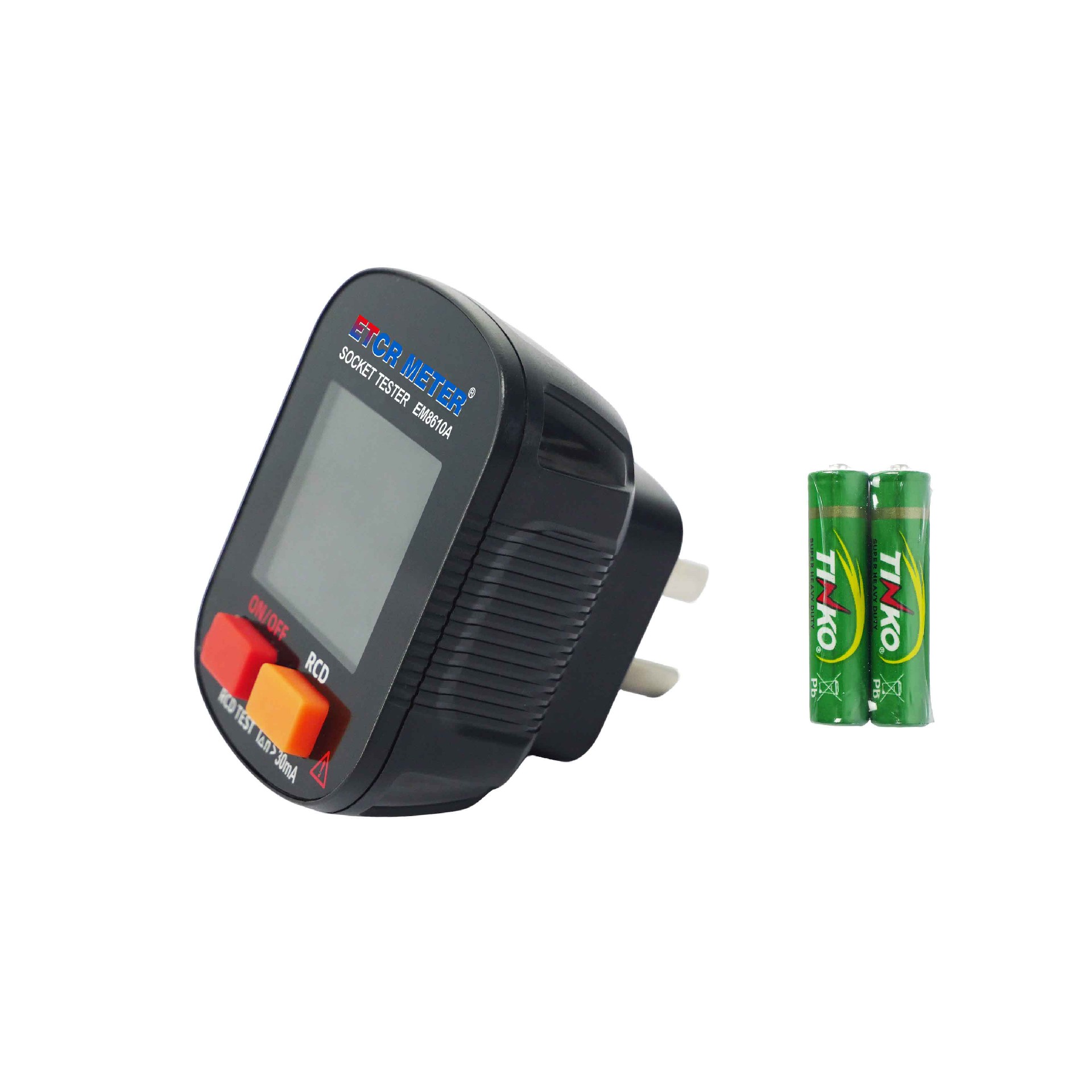

    Main unit: 1 set; AAA batteries: 2 sets; Toolkit: 1 piece


    Model Comparison

    Product Video
