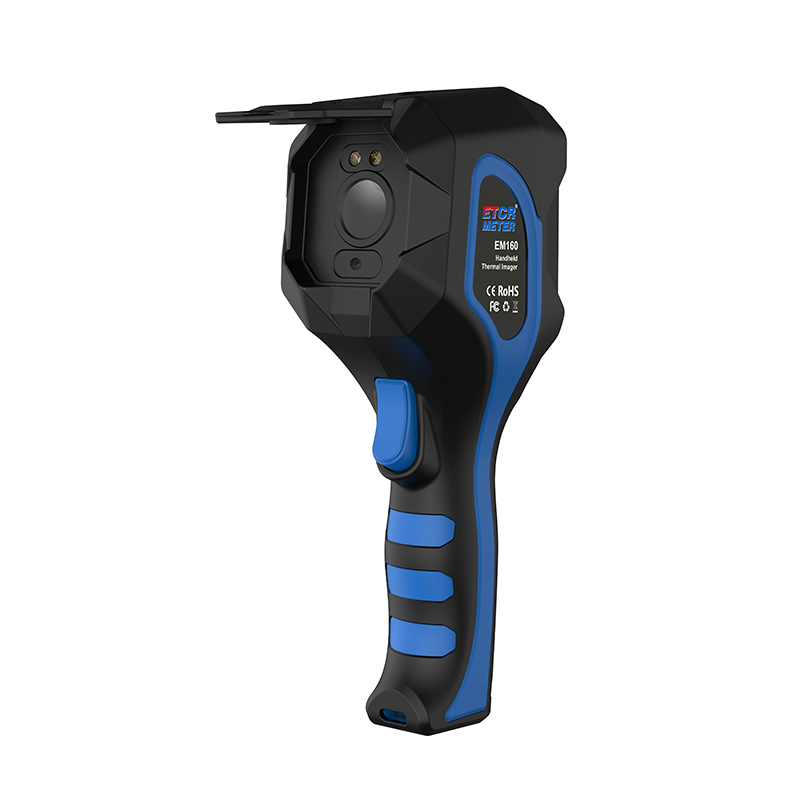

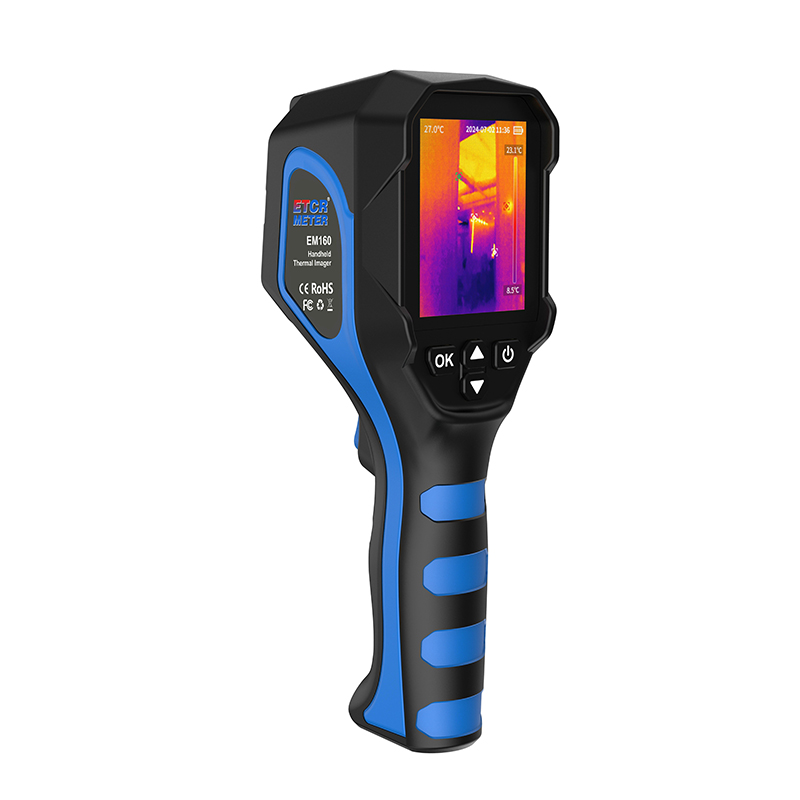

    ETB160 Handheld Infrared Thermal Imager
  • Product Series : Thermal Imager

    • Main Features

      It provides real-time image observation and temperature analysis.
      Temperature Measurement Range: - 20°C ~ 550°C
      Infrared Resolution: 160 × 120
      Pixel Size: 17μm
      Focal Length of Thermal Imaging Lens: 3.2mm
      Spatial Resolution/IFOV: 5.31mrad
      Storage: 16GB
      Power Supply: 3200mAh lithium battery

    Product Introduction

    ETB160 Handheld Infrared Thermal Imager also known as a thermal imager or temperature analyzer, is a handheld infrared thermal imager with a resolution of 162×120. It is a multi-purpose thermal imager that combines temperature measurement and imaging. It provides real-time image observation and temperature analysis, making it an ideal choice for electricians and maintenance personnel to quickly locate fault areas.
    ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.

    Product Features
    1. Temperature measurement range: -20°C ~ 550°C, with three selectable temperature units.
    2. Six selectable color palettes, four selectable image modes, and 16GB of internal storage.
    3. Flashlight function and rechargeable battery.

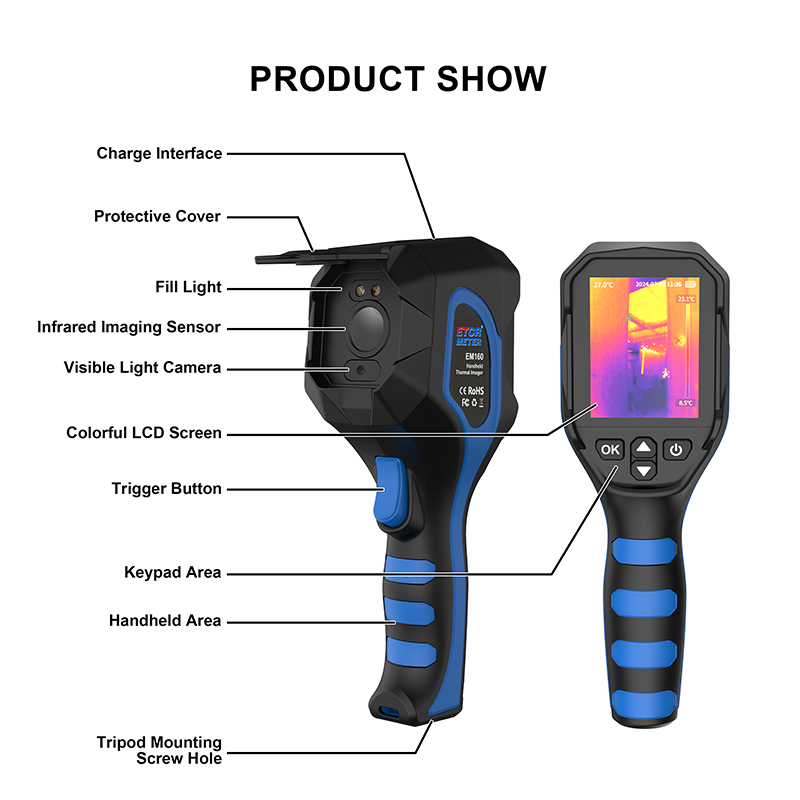

    EM160 (9).jpg

    Technical Parameters

    ModelETB160ETB256
    IR Resolution160 × 120256 × 192
    Pixel Size17μm12μm
    Thermal Lens Focal Length3.2mm3.5mm
    Spatial Resolution / IFOV5.31mrad3.43mrad
    WeightApprox. 396g (with battery)Approx. 394g (with battery)
    Dimensions231mm × 79mm × 85mm
    Detector TypeVanadium Oxide (VOx) microbolometer
    IR Wavelength8~14μm
    Frame Rate25Hz
    Thermal Sensitivity / NETD≤40 mK (@25℃, F#1.0)
    Focus ModeFixed focus
    Field of View50° × 37.2°
    Measuring Range- 20℃~550℃
    Temperature Accuracy±2℃ or ±2% of reading (whichever is greater)
    Temperature Resolution0.1℃
    Temperature ModeIndustrial temperature measurement
    Temperature Unit℃/℉/K
    Temperature DisplayCenter / Max / Min spot
    Image ModeIR, Visible, Fusion, Picture-in-Picture
    Image/Video FormatJPEG/MP4
    Photo/Video RecordingSupported
    Language10 languages supported
    Storage16GB
    Data InterfaceType-C
    Battery3200mAh (non-removable)
    Charging Time≤4h
    Total Power≤1.6W
    Working Time≥6h
    Working Temperature-10℃~50℃
    Working Humidity10%~90%RH non-condensing
    Storage Temperature-20℃~60℃
    IP RatingIP54
    CertificationsCE, FCC, ROHS
    AccessoriesImager: 1PC; Charging cable: 1PC; Lanyard: 1PC

    Model Comparison

    Product Picture

    ModelPixel SizeTemperature  RangeInfrared ResolutionThermal Imaging Lens Focal LengthSpatial ResolutionStorage

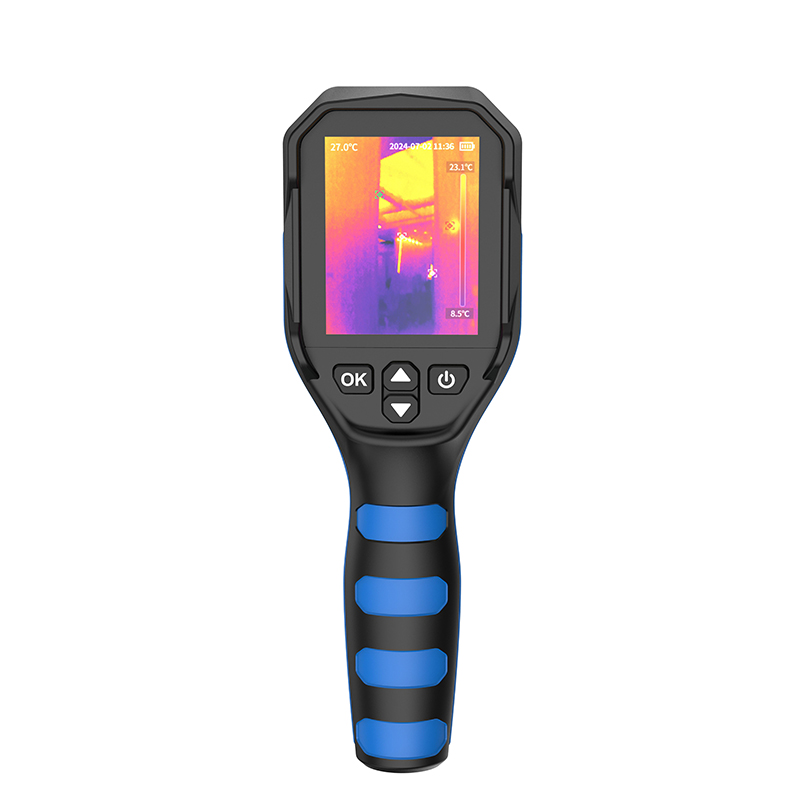

    EM160 (1).jpgETB16017μm-20℃~550℃160×1203.2mm5.31mrad16G

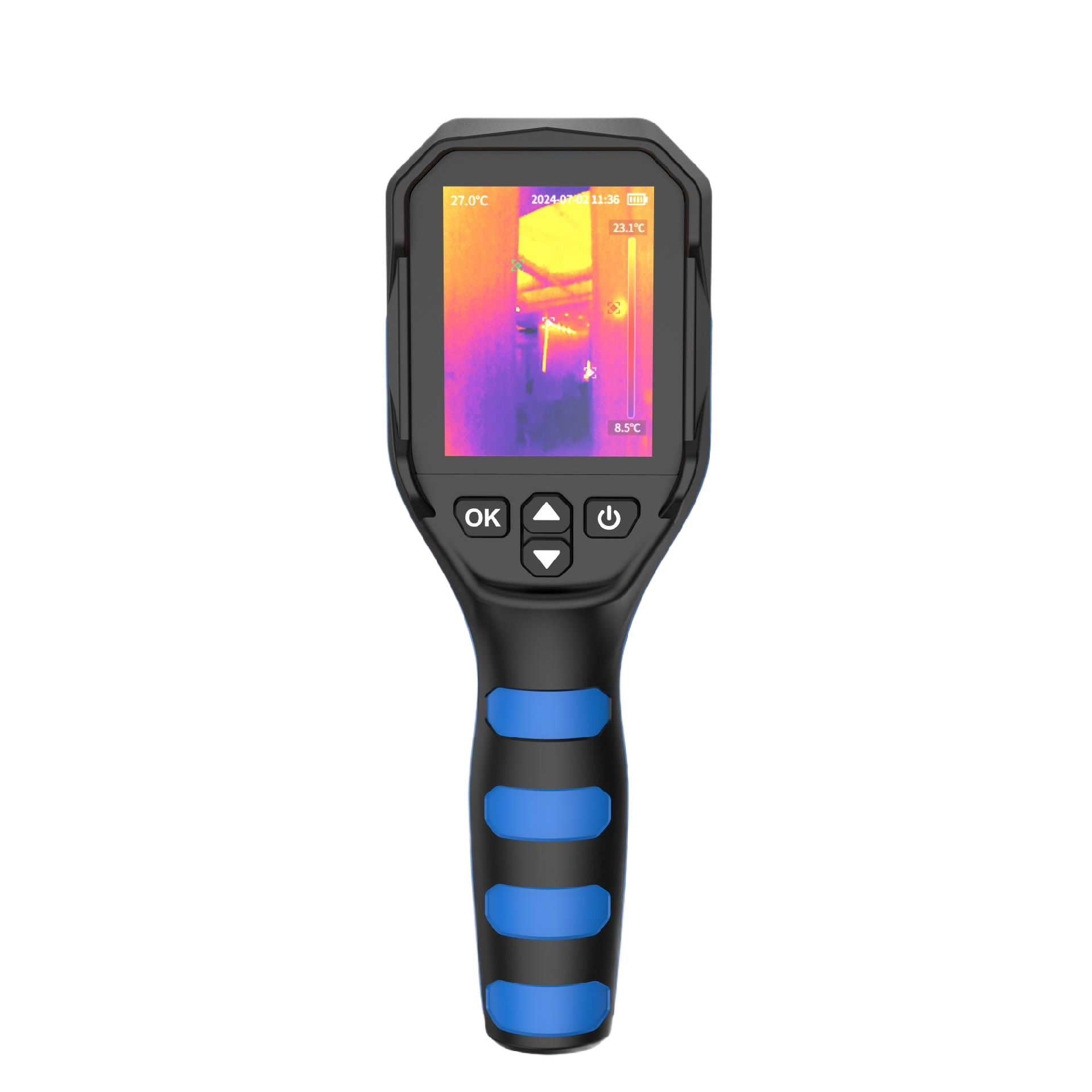

    EM256 (1).pngETB25612μm-20℃~550℃256×1923.5mm5.31mrad16G

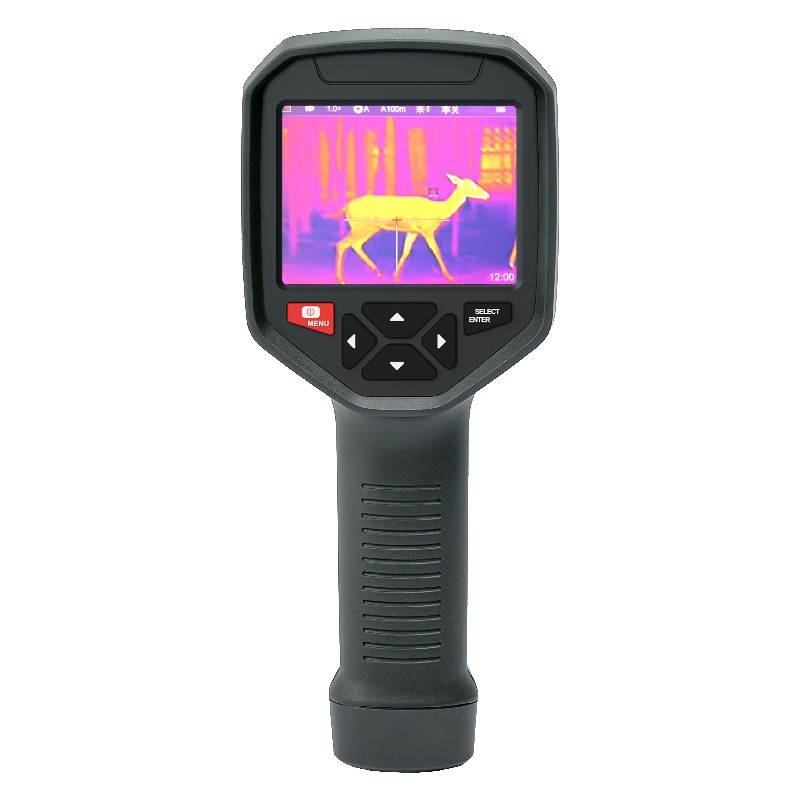

    EM384 (1).jpgETB38412μm-20℃~550℃384×2889.1mm1.32mrad16G

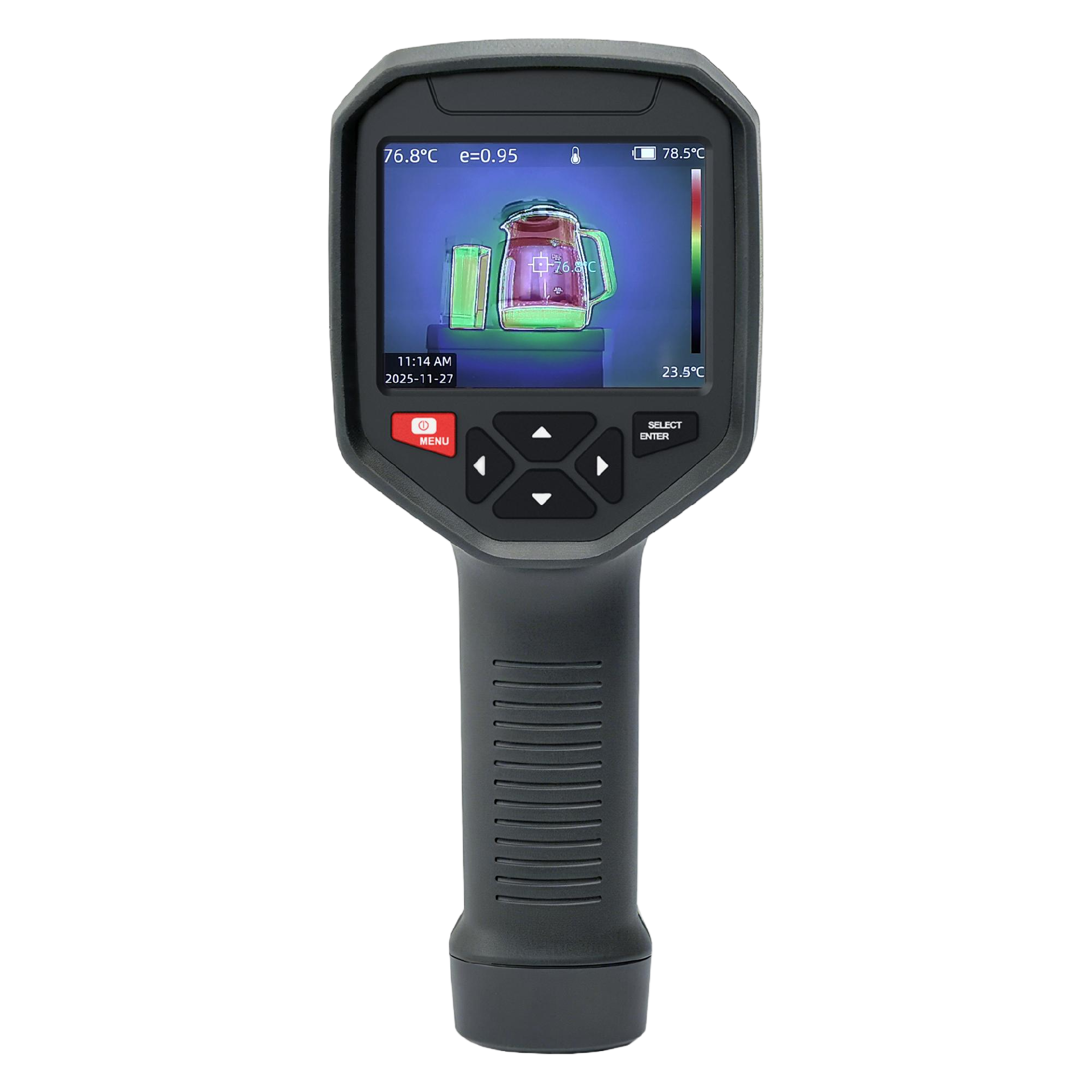

    EM640 (1).pngETB64012μm-15℃~550℃640×4809.1mm1.32mrad32G
    EM160M (1).jpgETB160M17μm-20℃~550℃160x1203.2mm5.31mrad

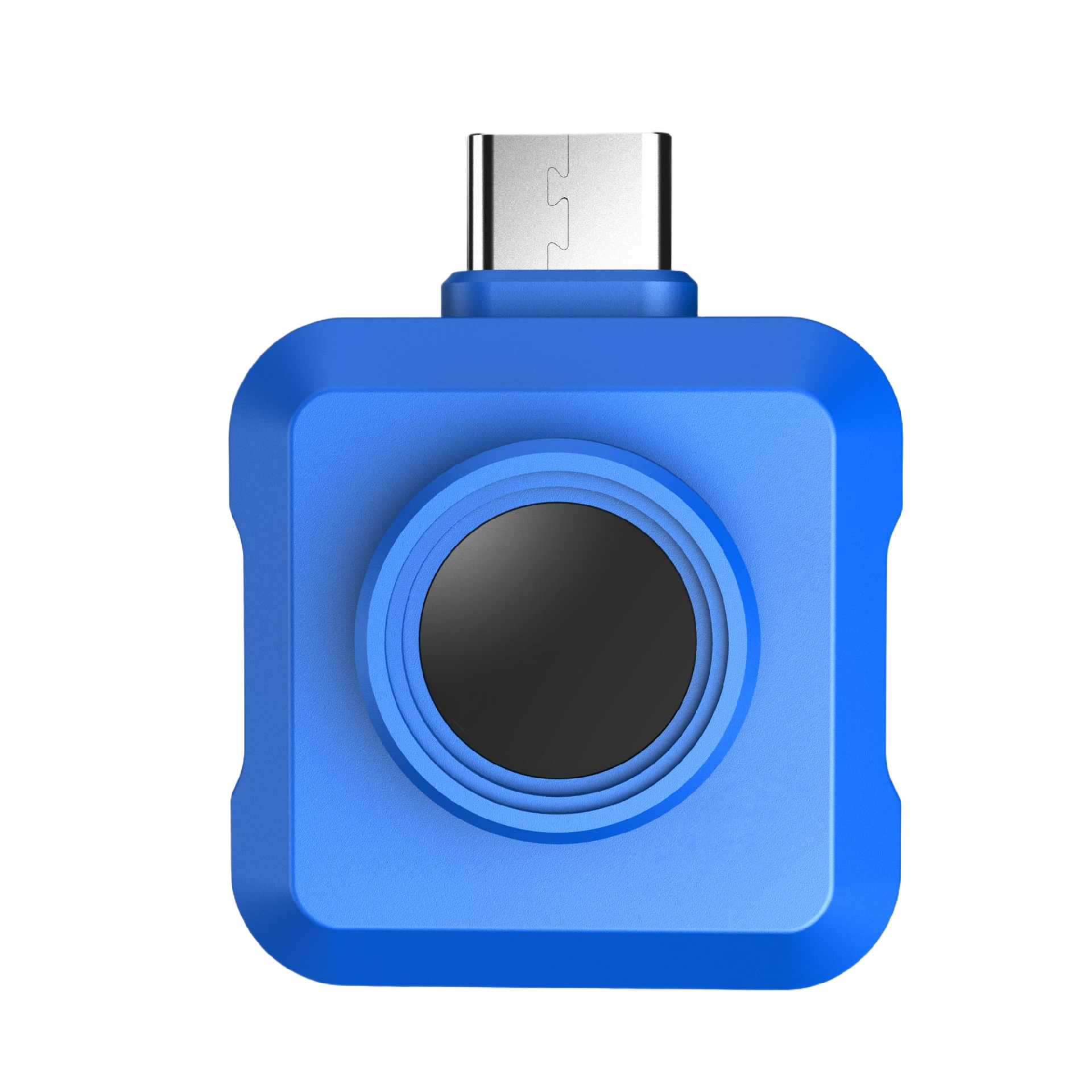

    EM256M (1).pngETB256M12μm-20℃~550℃256×1923.5mm3.43mrad
