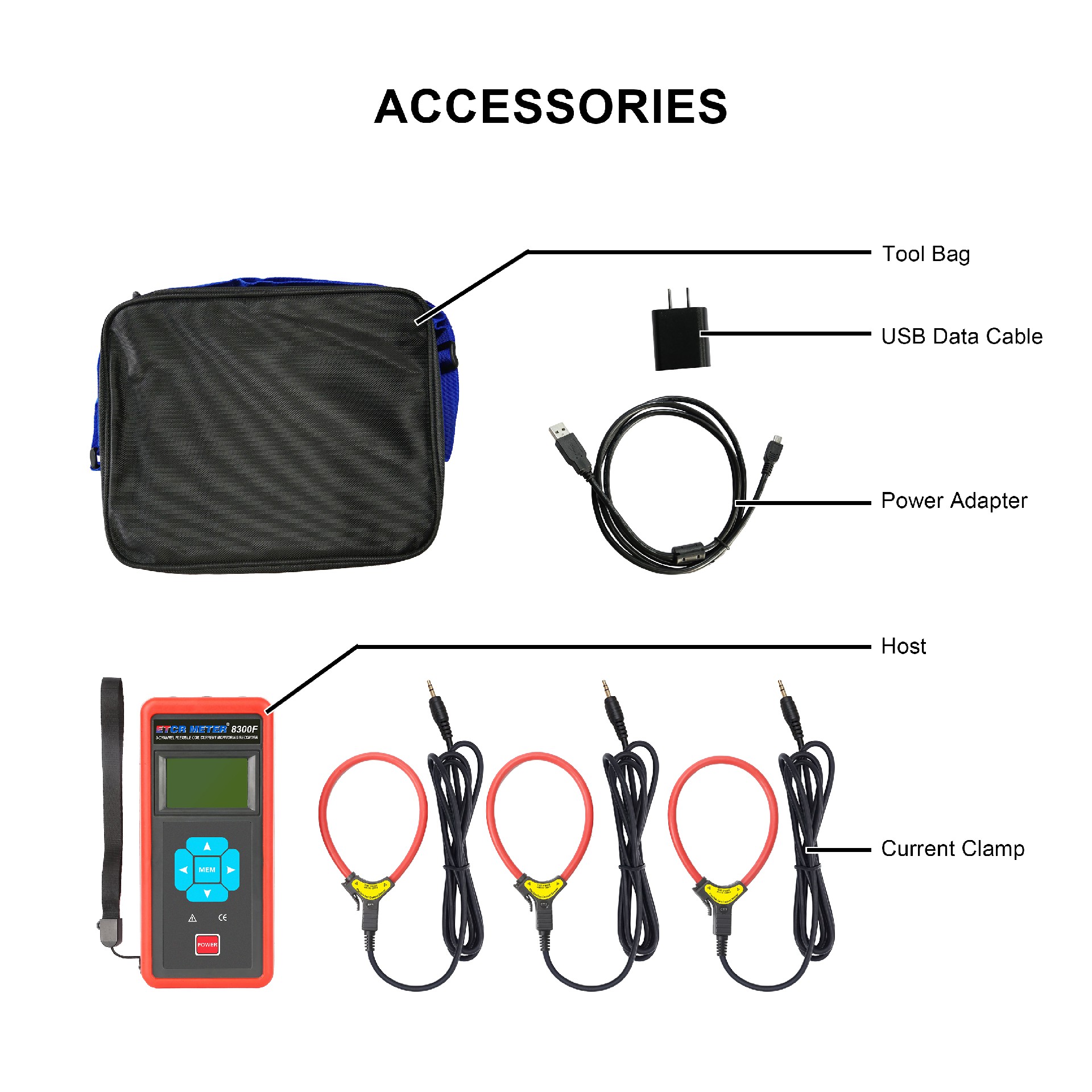

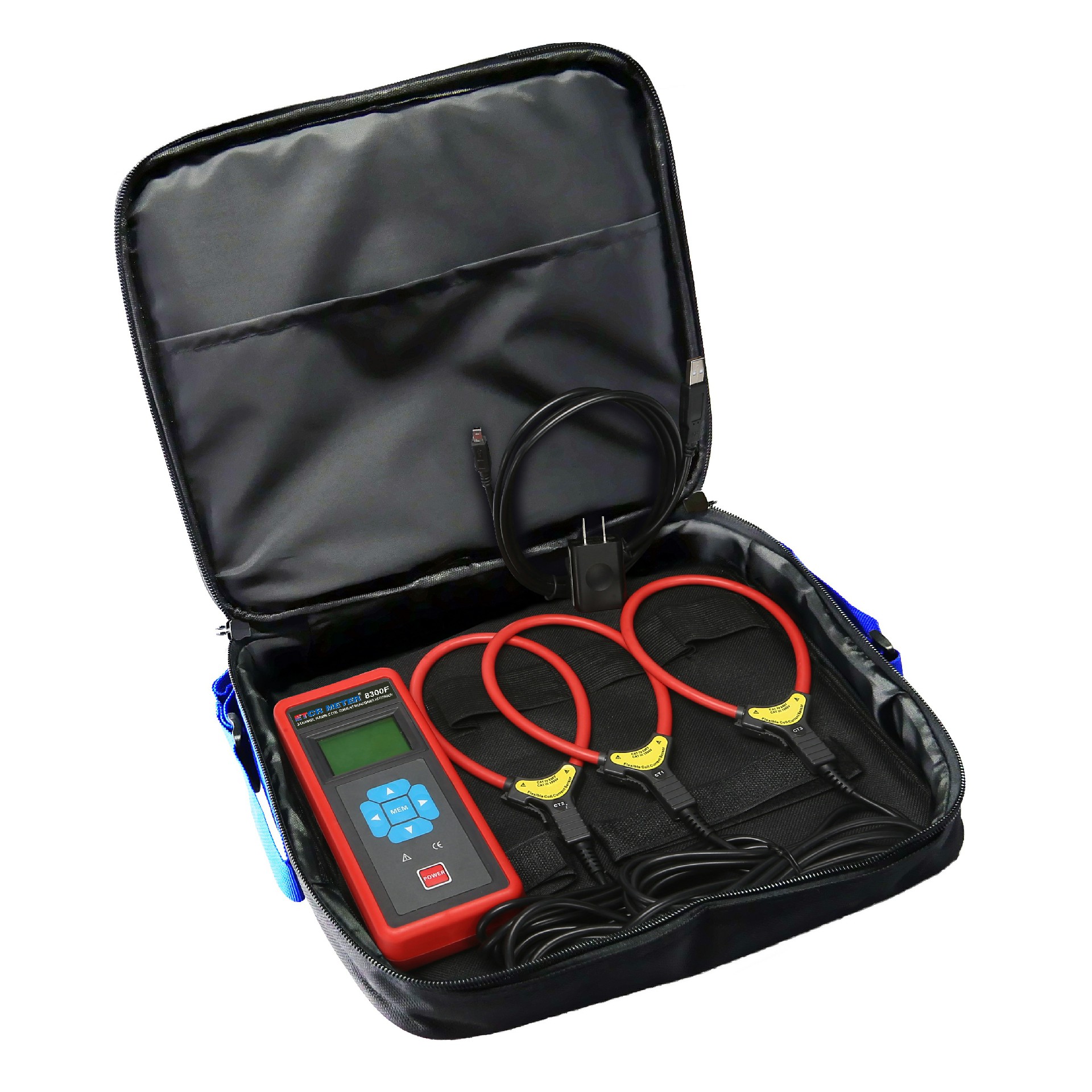

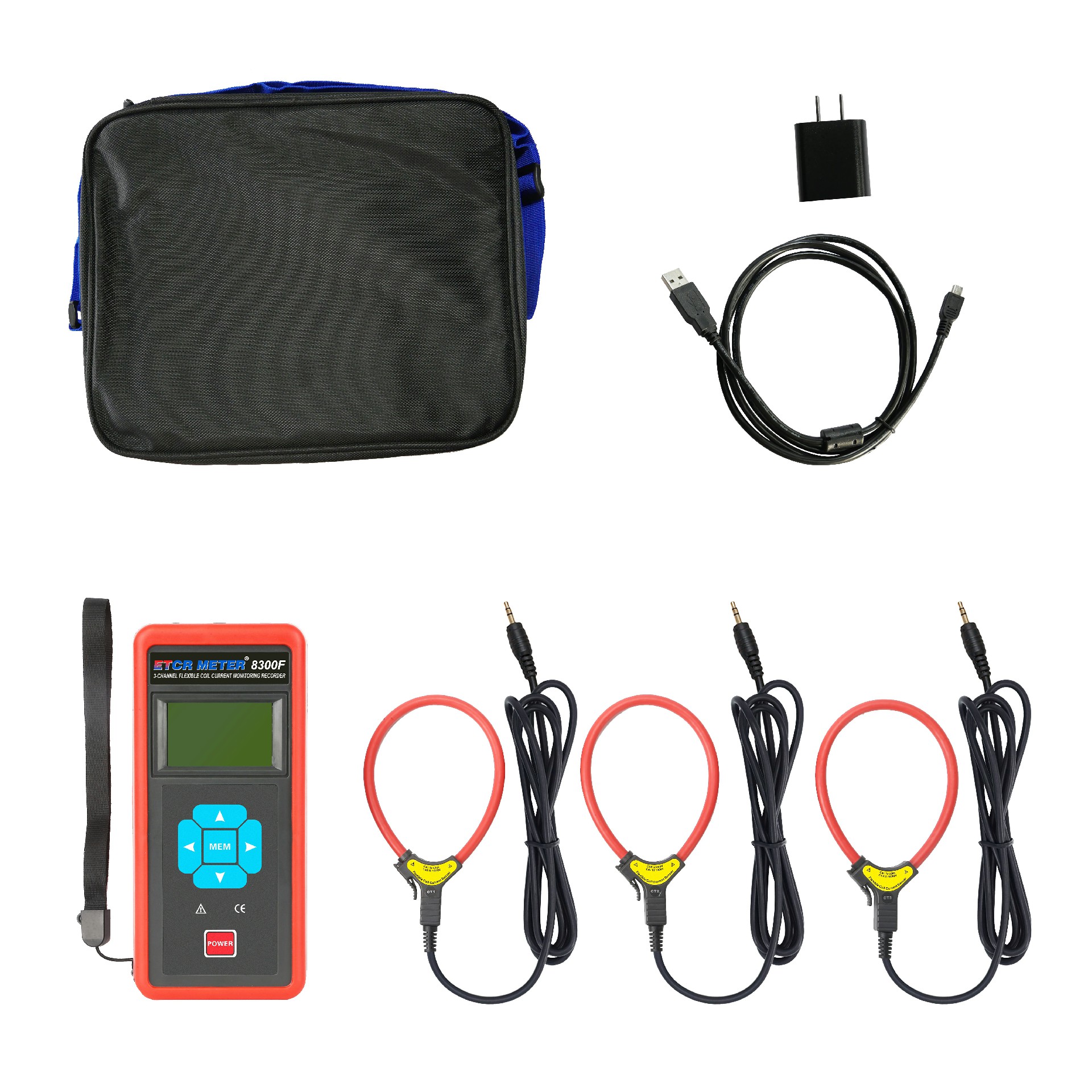

ETCR EM8300F Three Channel Flexible Coil Current Monitoring Recorder , also known as current online recorder and multi-channel current recorder, is used for on-site online simultaneous monitoring and recording of 1 to 3 AC currents, fault finding, and line maintenance.It consists of a host, a flexible current clamp, a charger, data upload software, a communication line, etc.It is widely used in electric power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.It is particularly suitable for current testing in industrial environments with severe signal distortion such as densely wired places, large special-shaped wires, relay protection, SCR rectifier, frequency conversion speed regulation, semiconductor switches, power electronic conversion equipment, arc welding, etc.

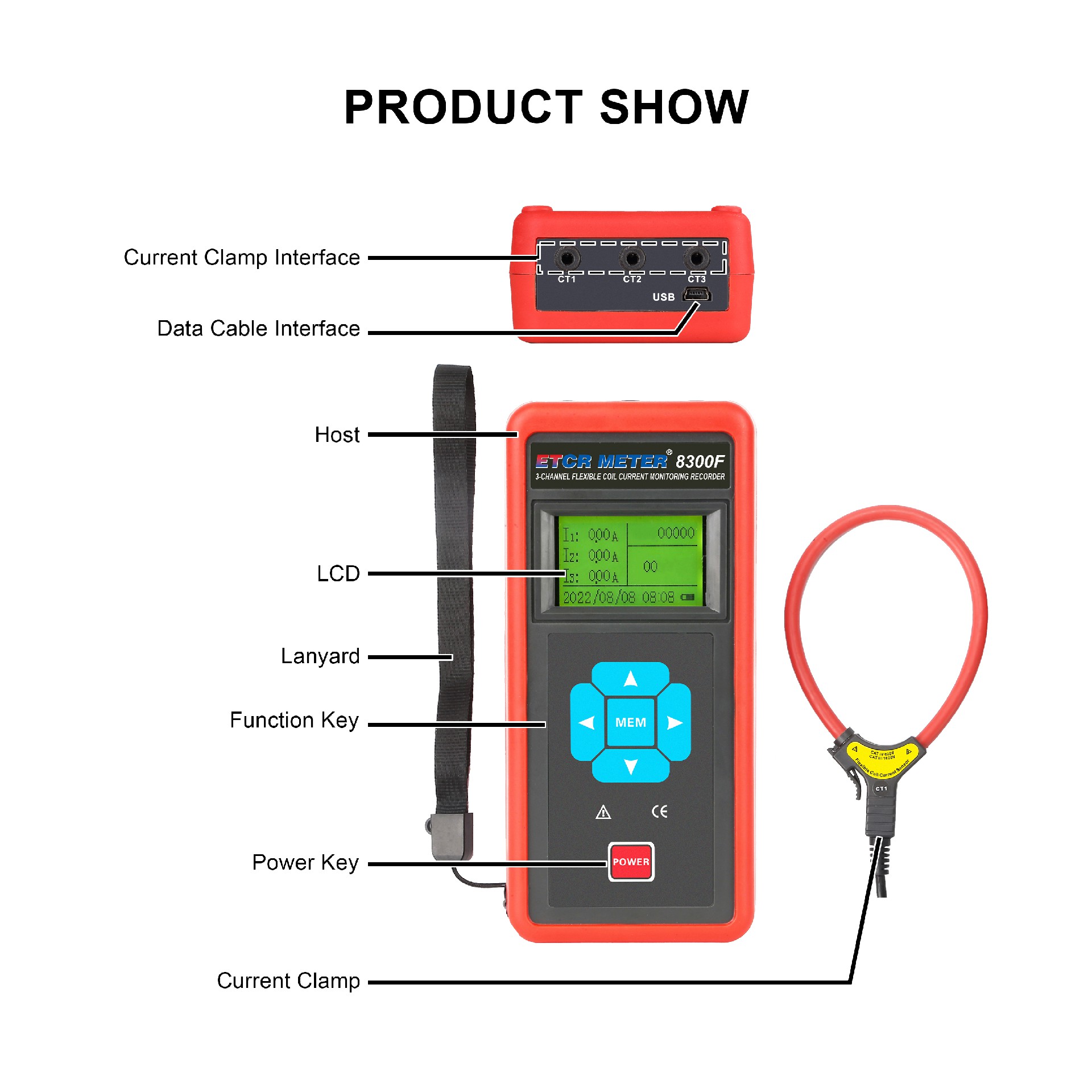

The host of the ETCR EM8300F Three Channel Flexible Coil Current Monitoring Recorder  adopts a blue-screen LCD display, and the three-channel is displayed on the same screen, which is clear at a glance. There are two options for Chinese operation interface and English operation interface, which are suitable for engineers and technicians in different countries.The recorder uses a large-capacity rechargeable lithium battery, and the battery life can continue to record for up to 7 days.It has a system clock function and large storage space, can set the monitoring and recording time on site, can store 200,000 sets of data, has an automatic storage interval setting function, and the recording period is set from 1 second to 99 minutes.Equipped with a USB communication interface, the data upload software has the functions of reading, reviewing, saving, and reporting historical data.
1. The flexible coil does not have any exposed metal conductors, non-contact measurement, safe and reliable.It is small in size, light in weight, soft and flexible, suitable for narrow environments and places with dense wiring, as well as for measuring the current of conductors with large sizes or irregular shapes.Users can customize the coil length according to their needs.

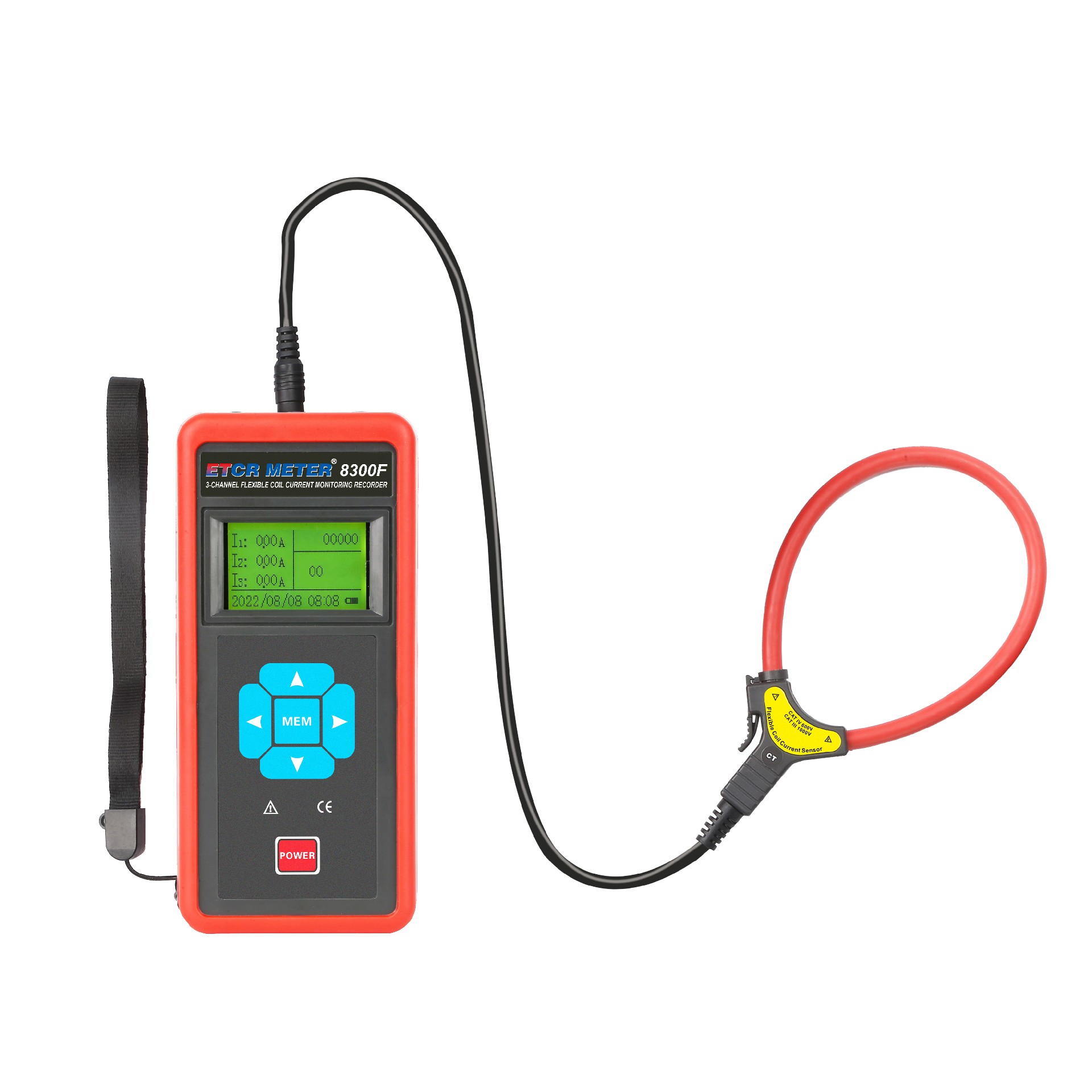

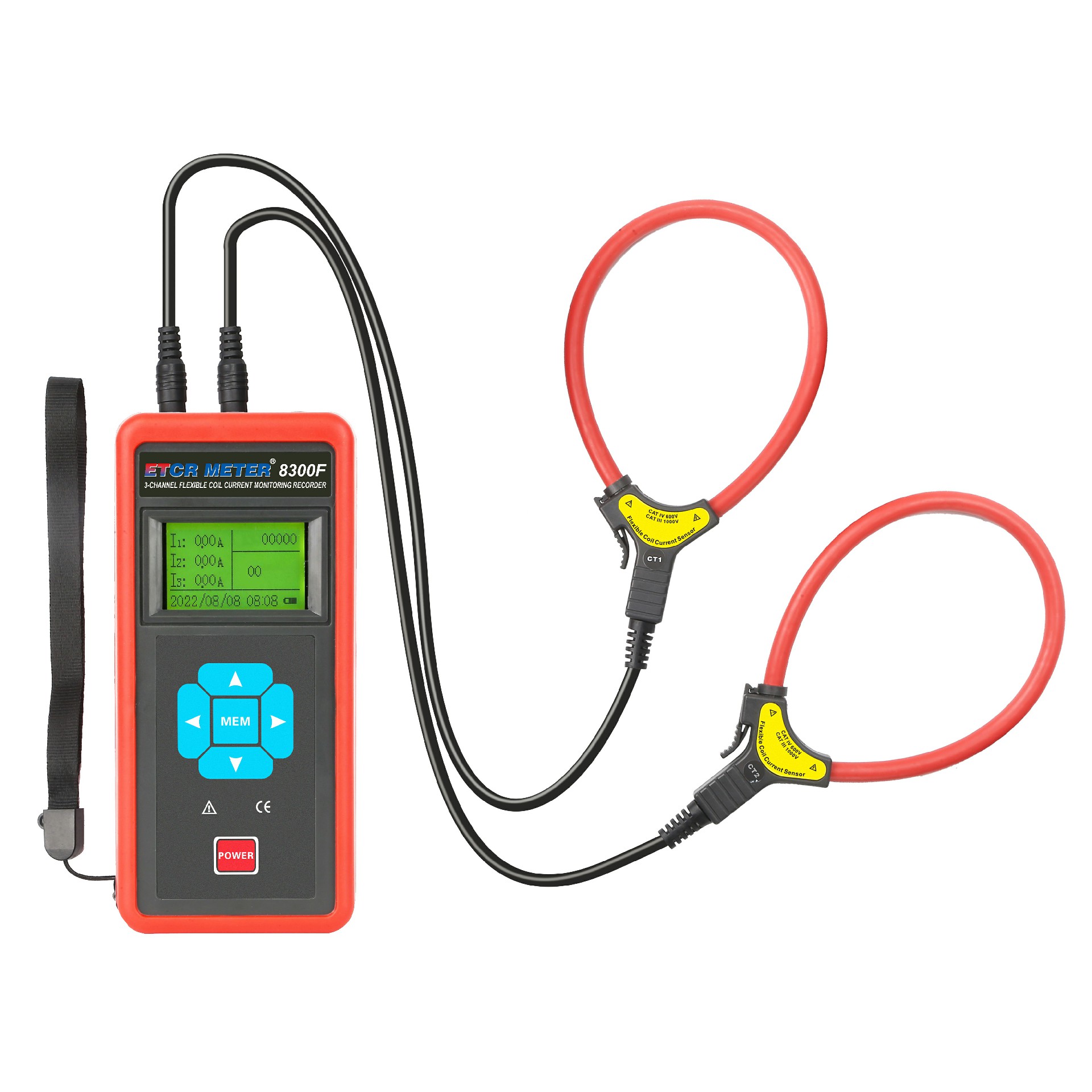

2. The host can be configured with 1 to 3 current pliers, and users can choose the type according to their needs.
3. The recording interval can be set.
4. Storage function, large storage space for 200,000 sets of data.
5. Rechargeable lithium battery, which works continuously for about 7 days in power-saving mode, and data will not be lost when the battery is replaced.

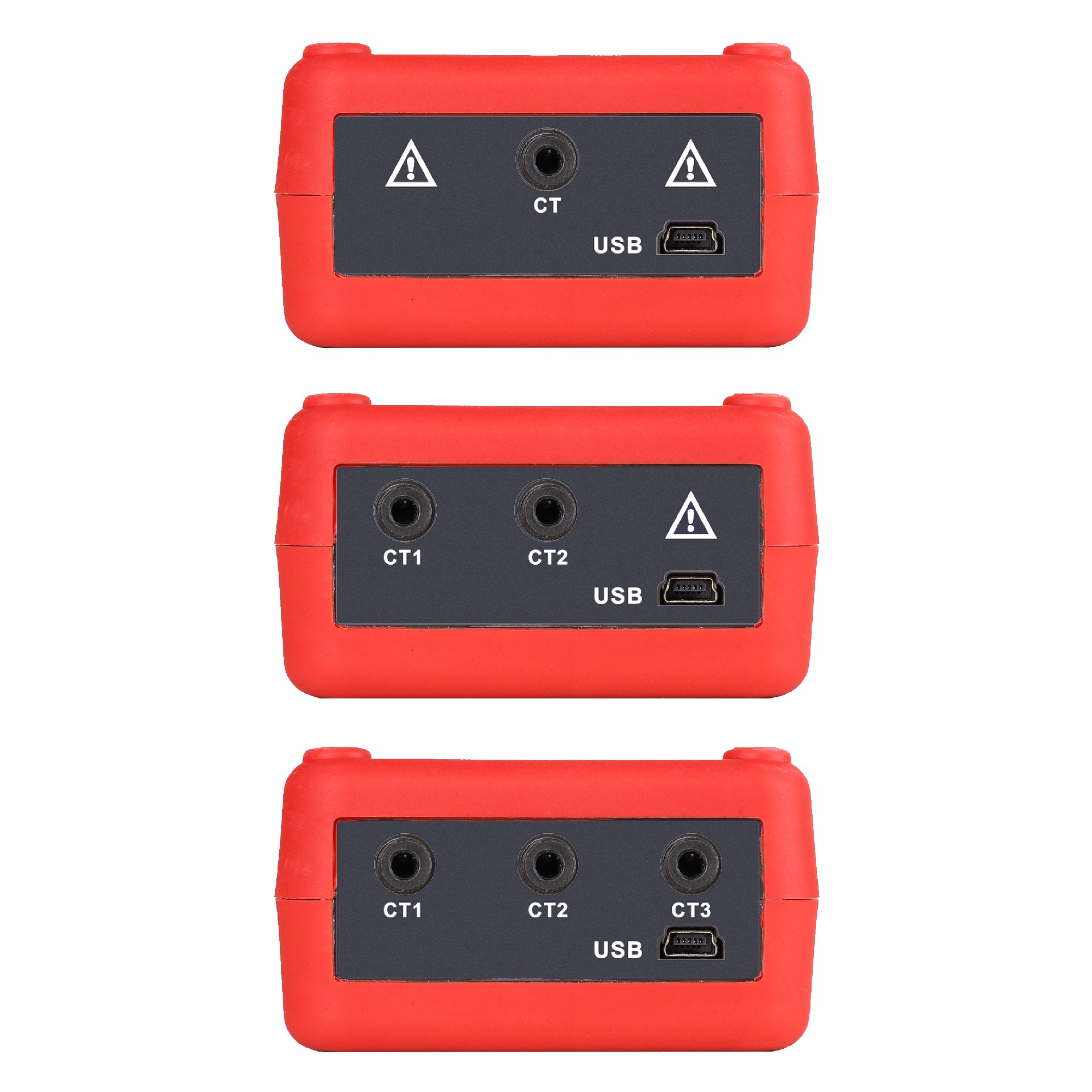

6. USB communication interface

1.Flexible Current Clamp Size

2.General Specifications
