ETCR EM1560A Multifunction Statellite Remote Wireless Phase Detector is used for remote nuclear phase and short-range nuclear phase, phase testing, phase sequence judgment and power verification in high-voltage lines, central cabinets, ring network cabinets and other places. The instrument has long-distance satellite timing nuclear phase and ordinary short-range nuclear phase functions, and is equipped with dedicated high-voltage lines, central cabinets, and ring network cabinets. Nuclear phase detectors, fully realize automatic nuclear phase from 1V to 500kV voltage, easy to operate, time-saving and fast.

The instrument adopts satellite precision timing technology to realize the long-distance nuclear phase, the short-range nuclear phase, the basement nuclear phase, and the underground nuclear phase. The timing accuracy is less than 20nS, and the joint timing is realized to ensure the accuracy of the nuclear phase.When the line voltage level exceeds 110kV, a non-contact nuclear phase must be used. During the nuclear phase, the metal probe hook of the detector is gradually approached to the wire. When the electric field signal is sensed, the nuclear phase can be completed without direct contact with the high-voltage wire, which is safe and fast.

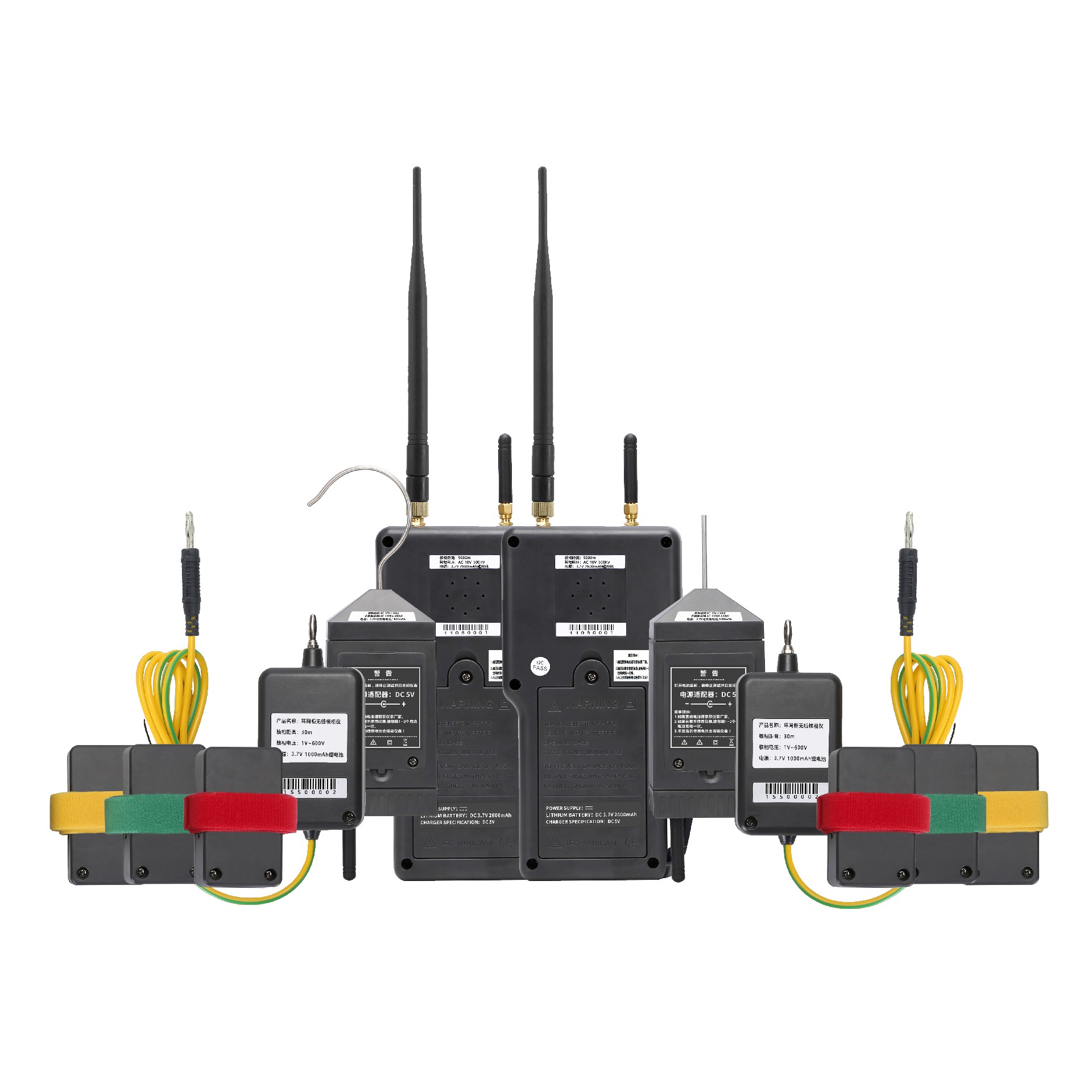

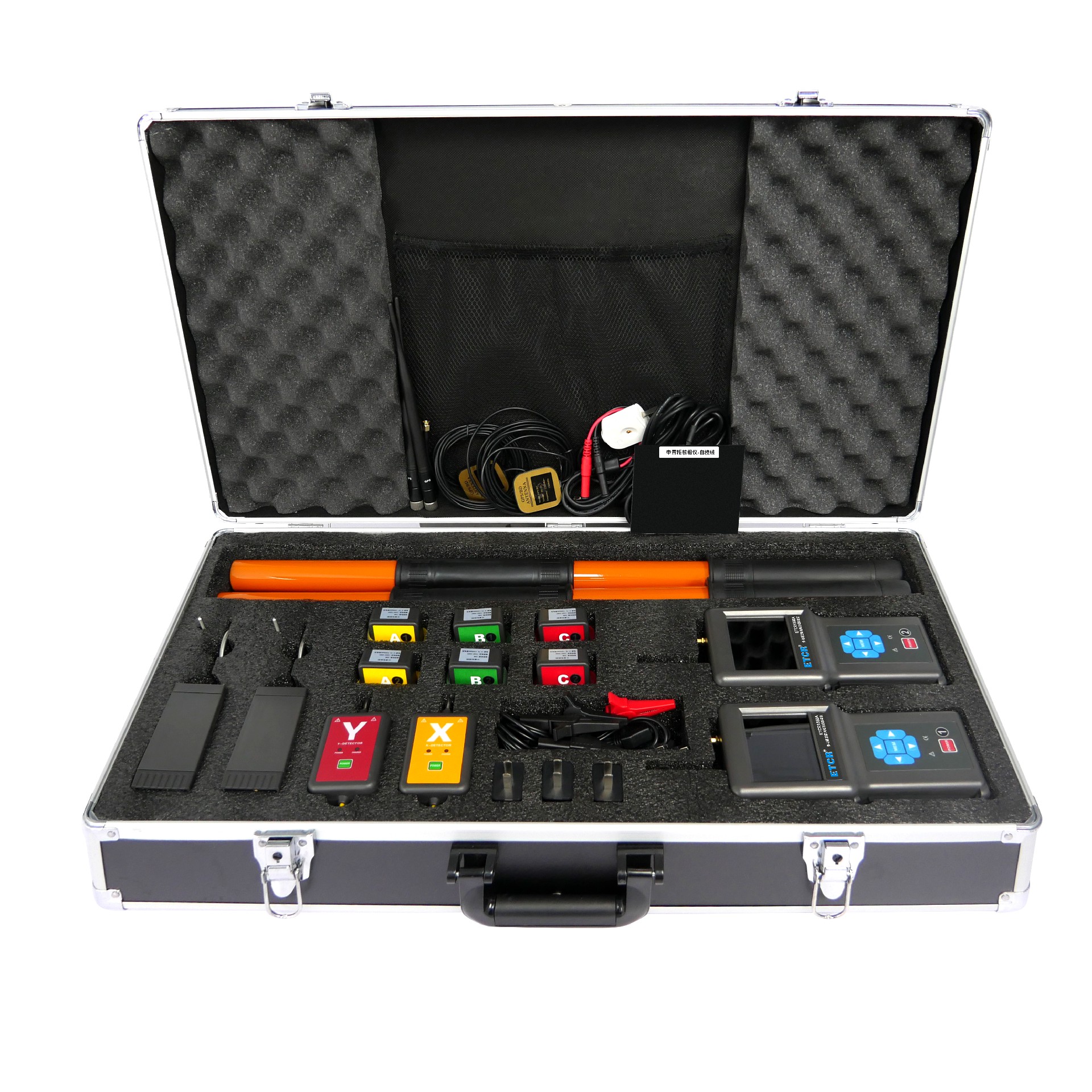

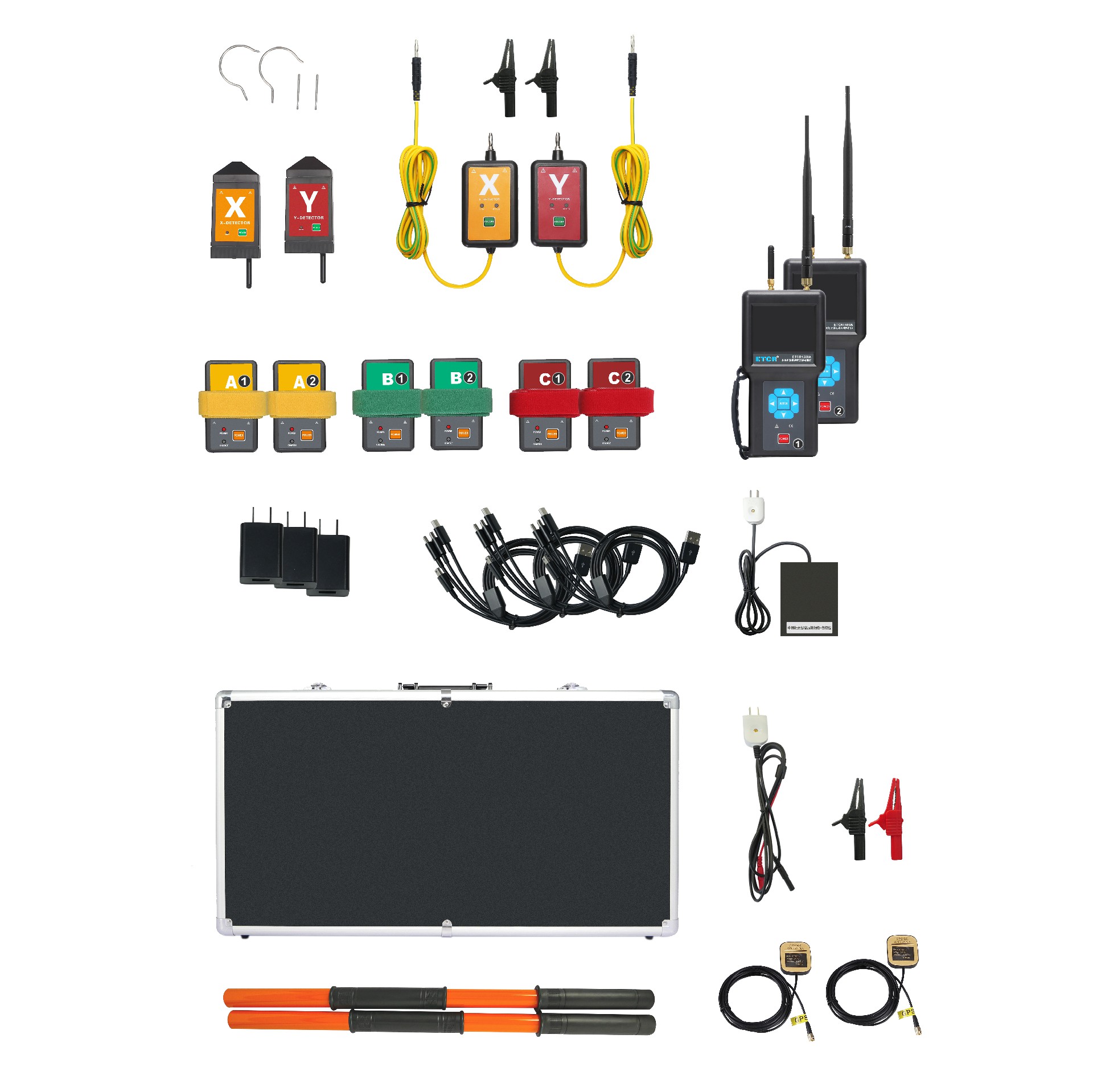

ETCR EM1560A Multifunction Statellite Remote Wireless Phase Detector consists of a host, a high-voltage line detector, a central cabinet detector, a ring network cabinet detector, a telescopic insulating rod, and monitoring software.Two mainframes are required for the remote nuclear phase of the satellite, and one mainframe is used for the short-range nuclear phase.The host adopts a 3.5-inch true-color LCD screen, which can display phase, frequency, phase sequence and nuclear phase results on the same screen; vector diagram indication and phase indication are clear and intuitive; it has voice prompt functions such as “normal X signal, normal Y signal, in-phase, out-of-phase” to make the test easier and easier.Storage function, can store 140 sets of data, USB communication interface, store data and upload to the computer for historical data reading, viewing, saving, printing, etc.

1. A fully functional nuclear phase meter with two nuclear phase modes: satellite remote nuclear phase mode and short-range ordinary nuclear phase mode, which can be used for nuclear phase testing in various occasions.
2. Equipped with 3 types of nuclear phase detectors, it can be handy for various nuclear phase occasions.
3. Voice broadcast function, voice prompt: “X signal is normal, Y signal is normal, Z signal is normal, positive phase sequence, inverse phase sequence”.
4. Using a 3.5-inch LCD color screen, the phase, frequency, phase sequence, and nuclear phase results can be displayed on the same screen, and the vector diagram indication and phase indication are clear and intuitive.
5. The instrument has the functions of power verification and voltage level display.
6. Storage function, 140 groups of data storage.
7. USB communication interface.
8. Rechargeable lithium battery

1.High Voltage Line Phase Detecting

2.Ring Main Unit Phase Detecting

 3.Metalclad Withdraw Phase Detecting


4.Other Techinical Parameters
