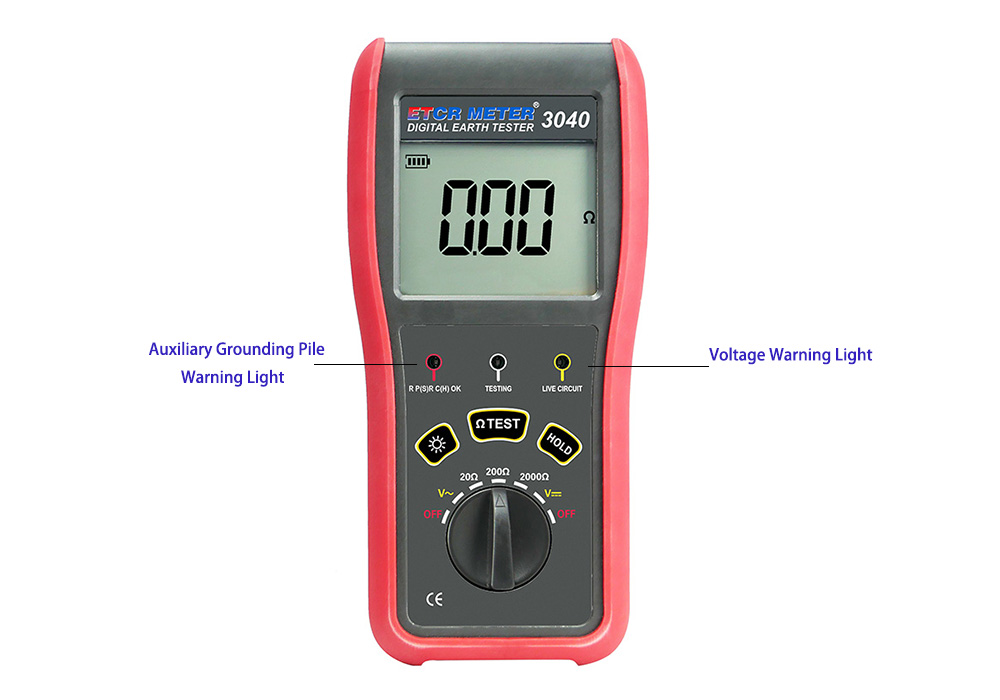

ETCR recently launched a new product: the ETCR EM3040 Digital Ground Resistance Tester. This instrument uses precise 3-wire or 2-wire methods to measure ground resistance. It features a wire resistance verification function that avoids errors caused by test leads not fully inserted into the instrument interface or poor contact, as well as errors from users replacing or extending test leads, making on-site low-value ground resistance measurements more accurate and reliable. The instrument also includes an auxiliary ground stake alarm function. During testing, it displays the resistance value of the auxiliary ground stake, and an indicator light shows whether the auxiliary ground stake is properly grounded, preventing errors due to excessive auxiliary ground electrode resistance. When testing ground voltage, it alarms if the voltage exceeds 36V, ensuring operator safety.
Product Features
1.Compact And Lightweight Design, Easy To Carry And Operate.
2.Equipped With Auxiliary Ground Stake Judgment Function; During Testing, It Displays The Resistance Value Of The Auxiliary Ground Stake, Avoiding Errors Caused By Excessive Auxiliary Ground Electrode Resistance.
3.Features Wire Resistance Verification Function, Avoiding Errors Caused By Poor Test Lead Contact, Making On-Site Low-Value Ground Resistance Measurements More Accurate And Reliable.
4.Ground Voltage Alarm Function; It Alarms When The Voltage Exceeds 36V, Protecting Operator Safety.
5.Auto Power-Off Function.
Product Technical Specifications
Power Supply | DC9V, Alkaline dry battery (LR6 1.5VX6PCS) |
Measurement Method | Earth resistance: rated current change-pole method, test current 20mA Max; Voltage to earth: average value rectification method |
Earth Resistance Measurement | Range: 0.01Ω~2000Ω |
Resolution: 0.01Ω | |
Accuracy: ±2%rdg±3dgt | |
Earth Voltage Measurement | Range: 0V~300V AC/DC |
Resolution: 1V | |
Accuracy: ±2%rdg±3dgt | |
LCD Display | LCD display area: 58mmX46mm |
Tester Dimension | 183mm(L)X89mm(W)X56mm(H) |
Weight | Total weight: about 2.37kg (include accessories) |
Test Indicator | TESTING indicator light up, indicate that earth resistance is testing |
Auxiliary Grounding Alarm | indicator light up, avoid errors caused by excessive grounding resistance of the auxiliary grounding electrode. |
AC/ DC Voltage Alarm | When the voltage is greater than 36V, the Live circuit indicator light will flash and the buzzer will sound an alarm. |
Line Resistance Calibration | Avoid errors caused by the test line not fully inserted into the tester interface or poor contact or the user replaces the lengthened test line, ensure earth resistance measurement accurate |
Measurement Time | Earth resistance: 5 seconds/time;Voltage to earth: 2 times/second; |
Automatic Shutdown | 10 minutes without any operation after starting up, the tester will shutdown automatically |
Battery Voltage | While battery voltage drop to around 7.2V, low battery voltage symbol“ ” will flash display, and remind to replace the battery |
Overload Protection | Earth resistance: between each interfaces of E-P,E-C is AC 280V/3 seconds |
Electromagnetic Property | IEC61010-4-3, wireless frequency electromagnetic field≤1V/m |
Working Current | Backlight: 56mA Max; Standby: 20mA Max(Backlight off); Measurement: 200mA Max(Backlight off) |
Accessories | Tester:1PCS; Ground stake: 2PCS; Test line: 3PCS; Simple test line:1PCS; Tool bag:1PCS; LR6 battery: 6PCS |
Guangdong ETCR Technology Co., Ltd. specializes in the R&D and production of power test instruments and power supply quality management. The company has been deeply involved in the power industry for nearly twenty years, adhering to the path of technological innovation and independent R&D, meticulously crafting each product, and attentively serving every customer. The company actively supports OEM & ODM customization services, tailoring solutions according to specific customer needs to create greater value for clients. ETCR is the manufacturer of the ETCR EM3040 Ground Resistance Tester, ETCR EM3000B Ground Resistance/Soil Resistivity Tester, ETCR EM3200 Dual Clamp Ground Resistance Tester, and ETCR EM3300B Large Ground Grid Resistance Tester. ETCR service hotline: +86 13802922567. Learn more by visiting the official website: www.etcrmeter.com.
